Panasonic Dmc Fz300 Owners Manual

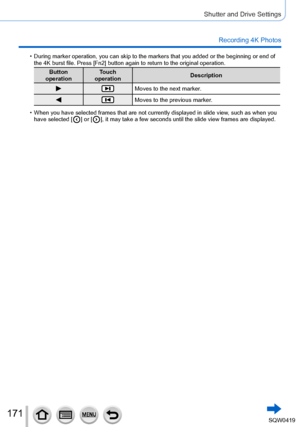

171
Shutter and Drive Settings
Recording 4K Photos
 •During marker operation, you can skip to the markers that you added or t\
he beginning or end of
the 4K burst file. Press [Fn2] button again to return to the original op\
eration.
Button
operation Touch
operation Description
Moves to the next marker.
Moves to the previous marker.
 •When you have selected frames that are not currently displayed in slide \
view, such as when you
have selected [  ] or [  ], it may take a few seconds until the slide...

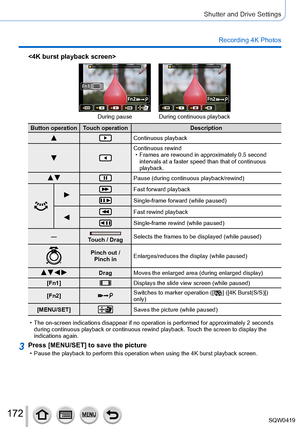

172
Shutter and Drive Settings
Recording 4K Photos

During pause During continuous playback
Button operation Touch operationDescription
Continuous playback
Continuous rewind • Frames are rewound in approximately 0.5 second
intervals at a faster speed than that of continuous
playback.
 Pause (during continuous playback/rewind)
Fast forward playback
Single-frame forward (while paused)
Fast rewind playback
Single-frame rewind (while paused)
—
Touch / Drag Selects the frames to be displayed (while paused)...

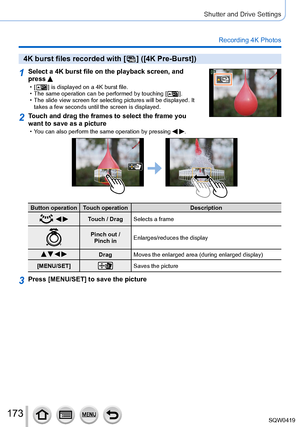

173
Shutter and Drive Settings
Recording 4K Photos
4K burst files recorded with [  ] ([4K Pre-Burst])
1Select a 4K burst file on the playback screen, and
press
 • [  ] is displayed on a 4K burst file. • The same operation can be performed by touching [  ]. • The slide view screen for selecting pictures will be displayed. It takes a few seconds until the screen is displayed.
2Touch and drag the frames to select the frame you
want to save as a picture
 • You can also perform the same operation by...

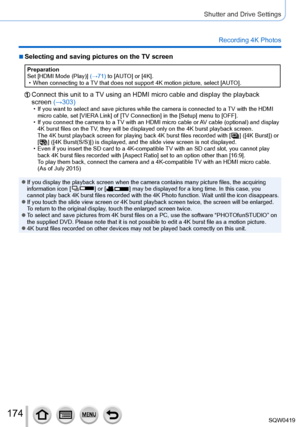

174
Shutter and Drive Settings
Recording 4K Photos
 ■Selecting and saving pictures on the TV screen
Preparation
Set [HDMI Mode (Play)] (→71) to [AUTO] or [4K].
 • When connecting to a
TV that does not support 4K motion picture, select [AUTO].
Connect this unit to a TV using an HDMI micro cable and display the playback
screen (→303)
 • If you want to select and save pictures while the camera is connected to\
 a  TV with the HDMI
micro cable, set [VIERA Link] of [TV Connection] in the [Setup] menu to...

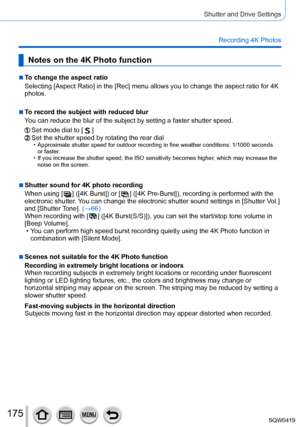

175
Shutter and Drive Settings
Recording 4K Photos
Notes on the 4K Photo function
 ■To change the aspect ratio
Selecting [Aspect Ratio] in the [Rec] menu allows you to change the aspe\
ct ratio for 4K
photos.
 ■To record the subject with reduced blur
You can reduce the blur of the subject by setting a faster shutter speed.\
Set mode dial to [  ]Set the shutter speed by rotating the rear dial • Approximate shutter speed for outdoor recording in fine weather conditio\
ns: 1/1000 seconds or faster .
 • If...

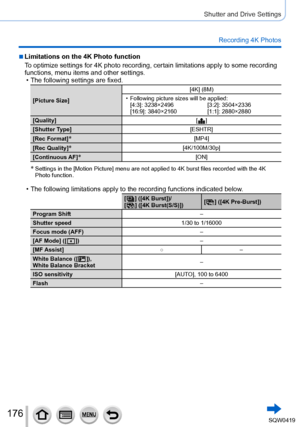

176
Shutter and Drive Settings
Recording 4K Photos
 ■Limitations on the 4K Photo function
To optimize settings for 4K photo recording, certain limitations apply to\
 some recording
functions, menu items and other settings.
 • The following settings are fixed.
[Picture Size][4K] (8M) • Following picture sizes will be applied:
[4:3]: 3238×2496 [3:2]: 3504×2336
[16:9]: 3840×2160 [1:1]: 2880×2880
[Quality] [
  ]
[Shutter T
ype] [ESHTR]
[Rec Format]
*[MP4]
[Rec Quality]
*[4K/100M/30p]
[Continuous AF]
*[ON]
*...

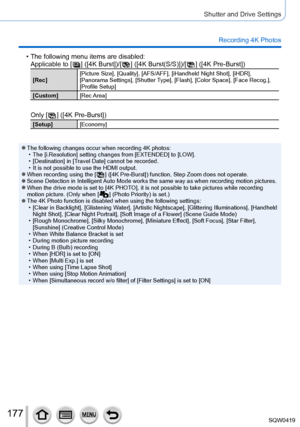

177
Shutter and Drive Settings
Recording 4K Photos
 • The following menu items are disabled:Applicable to [  ] ([4K Burst])/[  ] ([4K Burst(S/S)])/[  ] ([4K Pre-Burst])
[Rec] [Picture Size], [Quality], [AFS/AFF], [iHandheld Night Shot], [iHDR],
[Panorama Settings], [
Shutter Type], [Flash], [Color Space], [Face Recog.],
[Profile Setup]
[Custom] [Rec Area]
Only [  ] ([4K Pre-Burst])
[Setup][Economy]
 ●The following changes occur when recording 4K photos: • The [i.Resolution] setting changes from...

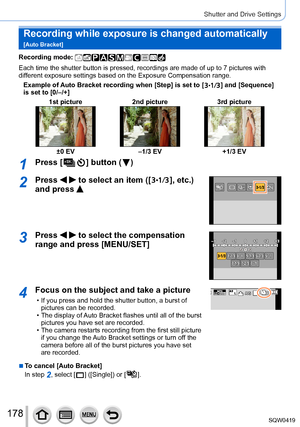

178
Shutter and Drive Settings
Recording while exposure is changed automatically
[Auto Bracket]
Recording mode:
Each time the shutter button is pressed, recordings are made of up to 7 \
pictures with
different exposure settings based on the Exposure Compensation range.Example of Auto Bracket recording when [Step] is set to [
  ] and [Sequence]
is set to [0/–/+]
1st picture 2nd picture 3rd picture
±0 EV–1/3 EV +1/3 EV
1Press [  ] button (  )
2Press   to select an item ([  ], etc.)
and press
3Press...

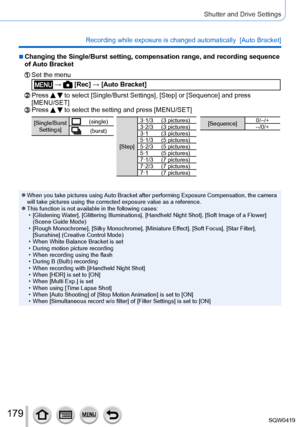

179
Shutter and Drive Settings
Recording while exposure is changed automatically  [Auto Bracket]
 ■Changing the Single/Burst setting, compensation range, and recording seq\
uence
of Auto Bracket
Set the menu
 →  [Rec] → [Auto Bracket]
Press   to select [Single/Burst Settings], [Step] or [Sequence] and press
[MENU/SET]
Press   to select the setting and press [MENU/SET]
[Single/Burst
Settings](single)
(burst)
[Step] 3·1/3 (3 pictures)
3·2/3 (3 pictures)
3·1 (3 pictures)
5·1/3 (5 pictures)
5·2/3 (5...

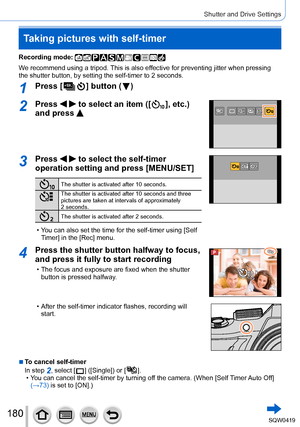

180
Shutter and Drive Settings
Taking pictures with self-timer
Recording mode:
We recommend using a tripod. This is also effective for preventing jitter when pressing
the shutter button, by setting the self-timer to 2 seconds.
1Press [  ] button (  )
2Press   to select an item ([  ], etc.)
and press
3Press   to select the self-timer
operation setting and press [MENU/SET]
The shutter is activated after 10 seconds.
The shutter is activated after 10 seconds and three
pictures are taken at intervals of...
