Panasonic Dmc Fz300 Owners Manual
Here you can view all the pages of manual Panasonic Dmc Fz300 Owners Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 221

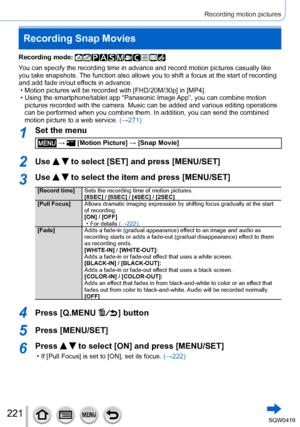

![Page 221
221
Recording motion pictures
Recording Snap Movies
Recording mode:
You can specify the recording time in advance and record motion pictures \
casually like
you take snapshots. The function also allows you to shift a focus at the start of recording \
and add fade in/out effects in advance.
• Motion pictures will be recorded with [FHD/20M/30p] in [MP4]. • Using the smartphone/tablet app “Panasonic Image
App”, you can combine motion
pictures recorded with the camera. Music can be added and various...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-220.png "Page 221
221
Recording motion pictures
Recording Snap Movies
Recording mode:
You can specify the recording time in advance and record motion pictures \
casually like
you take snapshots. The function also allows you to shift a focus at the start of recording \
and add fade in/out effects in advance.
• Motion pictures will be recorded with [FHD/20M/30p] in [MP4]. • Using the smartphone/tablet app “Panasonic Image
App”, you can combine motion
pictures recorded with the camera. Music can be added and various...")
221 Recording motion pictures Recording Snap Movies Recording mode: You can specify the recording time in advance and record motion pictures \ casually like you take snapshots. The function also allows you to shift a focus at the start of recording \ and add fade in/out effects in advance. • Motion pictures will be recorded with [FHD/20M/30p] in [MP4]. • Using the smartphone/tablet app “Panasonic Image App”, you can combine motion pictures recorded with the camera. Music can be added and various...
Page 222

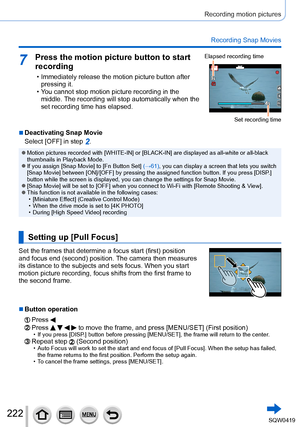

![Page 222
222
Recording motion pictures
Recording Snap Movies
7Press the motion picture button to start
recording
• Immediately release the motion picture button after pressing it.
• Y
ou cannot stop motion picture recording in the
middle. The recording will stop automatically when the
set recording time has elapsed.
Elapsed recording time
Set recording time
■Deactivating Snap Movie
Select [OFF] in step
2.
●Motion pictures recorded with [WHITE-IN] or [BLACK-IN] are displayed as all-white or all-black...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-221.png "Page 222
222
Recording motion pictures
Recording Snap Movies
7Press the motion picture button to start
recording
• Immediately release the motion picture button after pressing it.
• Y
ou cannot stop motion picture recording in the
middle. The recording will stop automatically when the
set recording time has elapsed.
Elapsed recording time
Set recording time
■Deactivating Snap Movie
Select [OFF] in step
2.
●Motion pictures recorded with [WHITE-IN] or [BLACK-IN] are displayed as all-white or all-black...")
222 Recording motion pictures Recording Snap Movies 7Press the motion picture button to start recording • Immediately release the motion picture button after pressing it. • Y ou cannot stop motion picture recording in the middle. The recording will stop automatically when the set recording time has elapsed. Elapsed recording time Set recording time ■Deactivating Snap Movie Select [OFF] in step 2. ●Motion pictures recorded with [WHITE-IN] or [BLACK-IN] are displayed as all-white or all-black...
Page 223

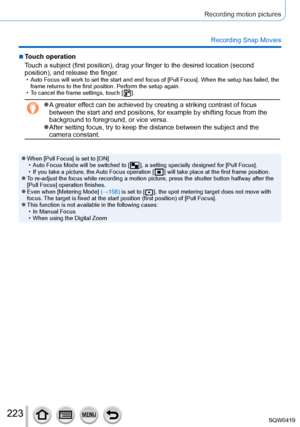

![Page 223
223
Recording motion pictures
Recording Snap Movies
■Touch operation
Touch a subject (first position), drag your finger to the desired locat\
ion (second
position), and release the finger.
• Auto Focus will work to set the start and end focus of [Pull Focus]. Whe\
n the setup has failed, the frame returns to the first position. Perform the setup again.
• T
o cancel the frame settings, touch [
].
●A greater effect can be achieved by creating a striking contrast of focus
between the start and end...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-222.png "Page 223
223
Recording motion pictures
Recording Snap Movies
■Touch operation
Touch a subject (first position), drag your finger to the desired locat\
ion (second
position), and release the finger.
• Auto Focus will work to set the start and end focus of [Pull Focus]. Whe\
n the setup has failed, the frame returns to the first position. Perform the setup again.
• T
o cancel the frame settings, touch [
].
●A greater effect can be achieved by creating a striking contrast of focus
between the start and end...")
223 Recording motion pictures Recording Snap Movies ■Touch operation Touch a subject (first position), drag your finger to the desired locat\ ion (second position), and release the finger. • Auto Focus will work to set the start and end focus of [Pull Focus]. Whe\ n the setup has failed, the frame returns to the first position. Perform the setup again. • T o cancel the frame settings, touch [ ]. ●A greater effect can be achieved by creating a striking contrast of focus between the start and end...
Page 224

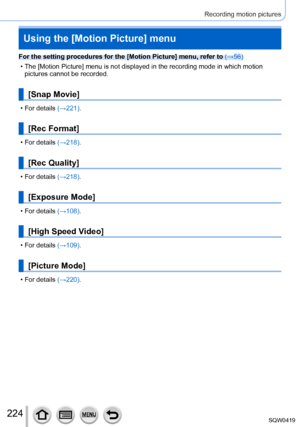

![Page 224
224
Recording motion pictures
Using the [Motion Picture] menu
For the setting procedures for the [Motion Picture] menu, refer to (→56)
• The [Motion Picture] menu is not displayed in the recording mode in whic\
h motion pictures cannot be recorded.
[Snap Movie]
• For details (→ 221).
[Rec Format]
• For details (→218).
[Rec Quality]
• For details (→218).
[Exposure Mode]
• For details (→108).
[High Speed Video]
• For details (→109).
[Picture Mode]
• For details (→220).
SQW0419](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-223.png "Page 224
224
Recording motion pictures
Using the [Motion Picture] menu
For the setting procedures for the [Motion Picture] menu, refer to (→56)
• The [Motion Picture] menu is not displayed in the recording mode in whic\
h motion pictures cannot be recorded.
[Snap Movie]
• For details (→ 221).
[Rec Format]
• For details (→218).
[Rec Quality]
• For details (→218).
[Exposure Mode]
• For details (→108).
[High Speed Video]
• For details (→109).
[Picture Mode]
• For details (→220).
SQW0419")
224 Recording motion pictures Using the [Motion Picture] menu For the setting procedures for the [Motion Picture] menu, refer to (→56) • The [Motion Picture] menu is not displayed in the recording mode in whic\ h motion pictures cannot be recorded. [Snap Movie] • For details (→ 221). [Rec Format] • For details (→218). [Rec Quality] • For details (→218). [Exposure Mode] • For details (→108). [High Speed Video] • For details (→109). [Picture Mode] • For details (→220). SQW0419

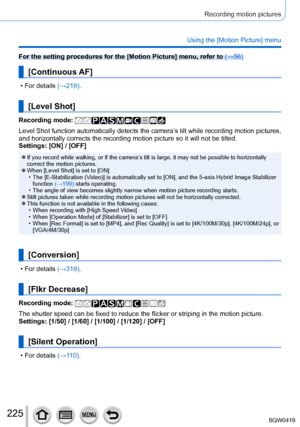

Page 225
![Page 225
225
Recording motion pictures
Using the [Motion Picture] menu
For the setting procedures for the [Motion Picture] menu, refer to (→56)
[Continuous AF]
• For details (→219).
[Level Shot]
Recording mode:
Level Shot function automatically detects the camera’s tilt while recording motion pictures,
and horizontally corrects the recording motion picture so it will not be\
tilted.
Settings: [ON] / [OFF]
●If you record while walking, or if the camera’s tilt is large, it may not be possible to horizontally...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-224.png "Page 225
225
Recording motion pictures
Using the [Motion Picture] menu
For the setting procedures for the [Motion Picture] menu, refer to (→56)
[Continuous AF]
• For details (→219).
[Level Shot]
Recording mode:
Level Shot function automatically detects the camera’s tilt while recording motion pictures,
and horizontally corrects the recording motion picture so it will not be\
tilted.
Settings: [ON] / [OFF]
●If you record while walking, or if the camera’s tilt is large, it may not be possible to horizontally...")
225 Recording motion pictures Using the [Motion Picture] menu For the setting procedures for the [Motion Picture] menu, refer to (→56) [Continuous AF] • For details (→219). [Level Shot] Recording mode: Level Shot function automatically detects the camera’s tilt while recording motion pictures, and horizontally corrects the recording motion picture so it will not be\ tilted. Settings: [ON] / [OFF] ●If you record while walking, or if the camera’s tilt is large, it may not be possible to horizontally...
Page 226

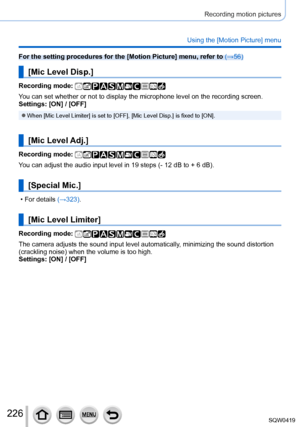

![Page 226
226
Recording motion pictures
Using the [Motion Picture] menu
For the setting procedures for the [Motion Picture] menu, refer to (→56)
[Mic Level Disp.]
Recording mode:
You can set whether or not to display the microphone level on the recordi\
ng screen.
Settings: [ON] / [OFF]
●When [Mic Level Limiter] is set to [OFF], [Mic Level Disp.] is fixed to [ON].
[Mic Level Adj.]
Recording mode:
You can adjust the audio input level in 19 steps (- 12 dB to + 6 dB).
[Special Mic.]
• For details (→323).
[Mic...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-225.png "Page 226
226
Recording motion pictures
Using the [Motion Picture] menu
For the setting procedures for the [Motion Picture] menu, refer to (→56)
[Mic Level Disp.]
Recording mode:
You can set whether or not to display the microphone level on the recordi\
ng screen.
Settings: [ON] / [OFF]
●When [Mic Level Limiter] is set to [OFF], [Mic Level Disp.] is fixed to [ON].
[Mic Level Adj.]
Recording mode:
You can adjust the audio input level in 19 steps (- 12 dB to + 6 dB).
[Special Mic.]
• For details (→323).
[Mic...")
226 Recording motion pictures Using the [Motion Picture] menu For the setting procedures for the [Motion Picture] menu, refer to (→56) [Mic Level Disp.] Recording mode: You can set whether or not to display the microphone level on the recordi\ ng screen. Settings: [ON] / [OFF] ●When [Mic Level Limiter] is set to [OFF], [Mic Level Disp.] is fixed to [ON]. [Mic Level Adj.] Recording mode: You can adjust the audio input level in 19 steps (- 12 dB to + 6 dB). [Special Mic.] • For details (→323). [Mic...
Page 227

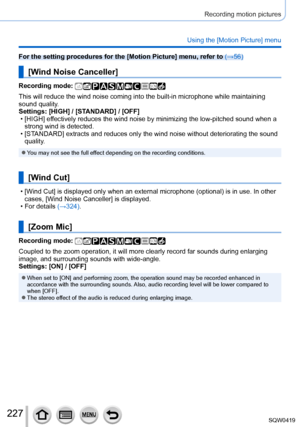

![Page 227
227
Recording motion pictures
Using the [Motion Picture] menu
For the setting procedures for the [Motion Picture] menu, refer to (→56)
[Wind Noise Canceller]
Recording mode:
This will reduce the wind noise coming into the built-in microphone whil\
e maintaining
sound quality.
Settings: [HIGH] / [STANDARD] / [OFF]
• [HIGH] ef
fectively reduces the wind noise by minimizing the low-pitched sound whe\
n a
strong wind is detected.
• [ST
ANDARD] extracts and reduces only the wind noise without...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-226.png "Page 227
227
Recording motion pictures
Using the [Motion Picture] menu
For the setting procedures for the [Motion Picture] menu, refer to (→56)
[Wind Noise Canceller]
Recording mode:
This will reduce the wind noise coming into the built-in microphone whil\
e maintaining
sound quality.
Settings: [HIGH] / [STANDARD] / [OFF]
• [HIGH] ef
fectively reduces the wind noise by minimizing the low-pitched sound whe\
n a
strong wind is detected.
• [ST
ANDARD] extracts and reduces only the wind noise without...")
227 Recording motion pictures Using the [Motion Picture] menu For the setting procedures for the [Motion Picture] menu, refer to (→56) [Wind Noise Canceller] Recording mode: This will reduce the wind noise coming into the built-in microphone whil\ e maintaining sound quality. Settings: [HIGH] / [STANDARD] / [OFF] • [HIGH] ef fectively reduces the wind noise by minimizing the low-pitched sound whe\ n a strong wind is detected. • [ST ANDARD] extracts and reduces only the wind noise without...
Page 228

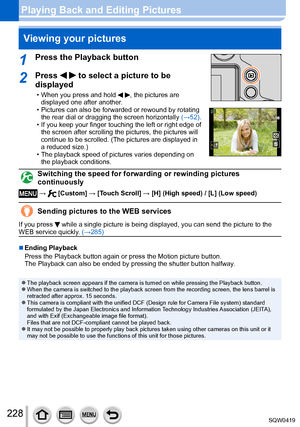

228 Playing Back and Editing PicturesViewing your pictures 1Press the Playback button 2Press to select a picture to be displayed • When you press and hold , the pictures are displayed one after another. • Pictures can also be forwarded or rewound by rotating the rear dial or dragging the screen horizontally (→ 52). • If you keep your finger touching the left or right edge of the screen after scrolling the pictures, the pictures will continue to be scrolled. (The pictures are displayed in a...

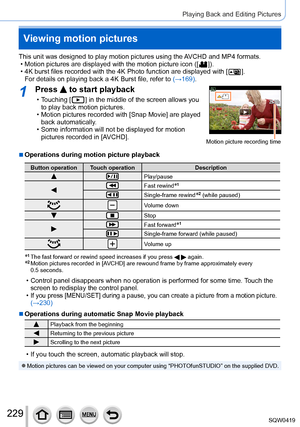

Page 229
![Page 229
229
Playing Back and Editing Pictures
Viewing motion pictures
This unit was designed to play motion pictures using the AVCHD and MP4 formats. • Motion pictures are displayed with the motion picture icon ([ ]). • 4K burst files recorded with the 4K Photo function are displayed with [ ].
For details on playing back a 4K Burst file, refer to (→
169).
1Press to start playback
• Touching [ ] in the middle of the screen allows you
to play back motion pictures.
• Motion pictures recorded with [Snap...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-228.png "Page 229
229
Playing Back and Editing Pictures
Viewing motion pictures
This unit was designed to play motion pictures using the AVCHD and MP4 formats. • Motion pictures are displayed with the motion picture icon ([ ]). • 4K burst files recorded with the 4K Photo function are displayed with [ ].
For details on playing back a 4K Burst file, refer to (→
169).
1Press to start playback
• Touching [ ] in the middle of the screen allows you
to play back motion pictures.
• Motion pictures recorded with [Snap...")
229 Playing Back and Editing Pictures Viewing motion pictures This unit was designed to play motion pictures using the AVCHD and MP4 formats. • Motion pictures are displayed with the motion picture icon ([ ]). • 4K burst files recorded with the 4K Photo function are displayed with [ ]. For details on playing back a 4K Burst file, refer to (→ 169). 1Press to start playback • Touching [ ] in the middle of the screen allows you to play back motion pictures. • Motion pictures recorded with [Snap...
Page 230

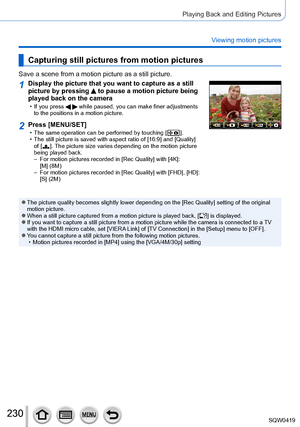

![Page 230
230
Playing Back and Editing Pictures
Viewing motion pictures
Capturing still pictures from motion pictures
Save a scene from a motion picture as a still picture.
1Display the picture that you want to capture as a still
picture by pressing to pause a motion picture being
played back on the camera
• If you press while paused, you can make finer adjustments
to the positions in a motion picture.
2Press [MENU/SET] • The same operation can be performed by touching [ ]. • The still picture is saved...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-229.png "Page 230
230
Playing Back and Editing Pictures
Viewing motion pictures
Capturing still pictures from motion pictures
Save a scene from a motion picture as a still picture.
1Display the picture that you want to capture as a still
picture by pressing to pause a motion picture being
played back on the camera
• If you press while paused, you can make finer adjustments
to the positions in a motion picture.
2Press [MENU/SET] • The same operation can be performed by touching [ ]. • The still picture is saved...")
230 Playing Back and Editing Pictures Viewing motion pictures Capturing still pictures from motion pictures Save a scene from a motion picture as a still picture. 1Display the picture that you want to capture as a still picture by pressing to pause a motion picture being played back on the camera • If you press while paused, you can make finer adjustments to the positions in a motion picture. 2Press [MENU/SET] • The same operation can be performed by touching [ ]. • The still picture is saved...
