Panasonic Dmc Fz300 Owners Manual

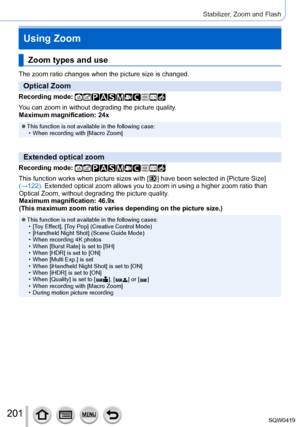

201
Stabilizer, Zoom and Flash
Using Zoom
Zoom types and use
The zoom ratio changes when the picture size is changed.
Optical Zoom
Recording mode:
You can zoom in without degrading the picture quality.
Maximum magnification: 24x
 ●This function is not available in the following case: • When recording with [Macro Zoom]
Extended optical zoom
Recording mode:
This function works when picture sizes with [  ] have been selected in [Picture Size]
(→
122). Extended optical zoom allows you to zoom in using a...

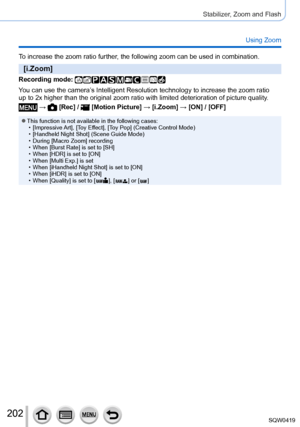

202
Stabilizer, Zoom and Flash
Using Zoom
To increase the zoom ratio further, the following zoom can be used in combination.
[i.Zoom]
Recording mode:
You can use the camera’s Intelligent Resolution technology to increase the zoom ratio
up to 2x higher than the original zoom ratio with limited deterioration \
of picture quality.
 →  [Rec] /  [Motion Picture] → [i.Zoom] → [ON] / [OFF]
 ●This function is not available in the following cases: • [
Impressive Art], [Toy Effect], [Toy Pop] (Creative Control...

203
Stabilizer, Zoom and Flash
Using Zoom
[Digital Zoom]
Recording mode:
Zoom 4x further than Optical/Extended optical zoom. Note that, with Digi\
tal Zoom,
enlarging will decrease picture quality.
 →  [Rec] /  [Motion Picture] → [Digital Zoom ] → [ON] / [OFF]
 ●When [Digital Zoom] is used simultaneously with [i.Zoom], you can only increase the zoom ratio
up to 2x.
 ●When using [Digital Zoom], we recommend using a tripod and the self-timer  (→180) for taking
pictures.
 ●The AF area is largely...

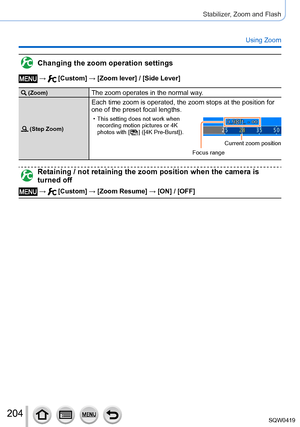

204
Stabilizer, Zoom and Flash
Using Zoom
Changing the zoom operation settings
 →  [Custom] → [Zoom lever] / [Side Lever]
 (Zoom)The zoom operates in the normal way.
 (Step Zoom)
Each time zoom is operated, the zoom stops at the position for
one of the preset focal lengths.
 • This setting does not work when recording motion pictures or 4K
photos with [
  ] ([4K Pre-Burst]).
Focus range Current zoom position
Retaining / not retaining the zoom position when the camera is
turned off
 →  [Custom] → [Zoom...

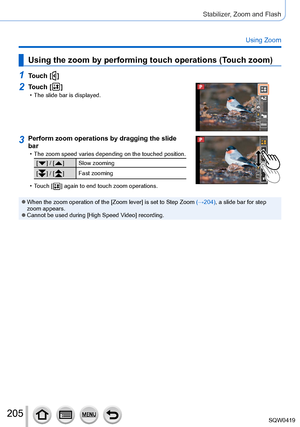

205
Stabilizer, Zoom and Flash
Using Zoom
Using the zoom by performing touch operations (Touch zoom)
1Touch [  ]
2Touch [  ] • The slide bar is displayed.
3Perform zoom operations by dragging the slide
bar
 • The zoom speed varies depending on the touched position.
[  ] / [  ]Slow zooming
[
  ] / [  ] Fast zooming
 • T

ouch [
  ] again to end touch zoom oper ations.
 ●When the zoom operation of the [Zoom lever] is set to Step Zoom (→204), a slide bar for step
zoom appears.
 ●Cannot be used during...

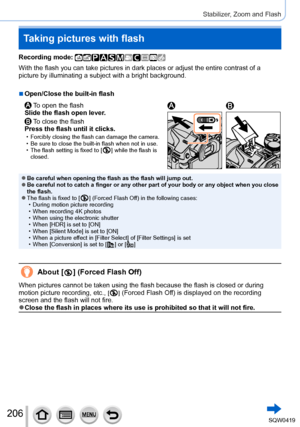

206
Stabilizer, Zoom and Flash
Taking pictures with flash
Recording mode:
With the flash you can take pictures in dark places or adjust the entire\
 contrast of a
picture by illuminating a subject with a bright background.
 ■Open/Close the built-in flash
 To open the flash
Slide the flash open lever.
 To close the flash
Press the flash until it clicks.
 • Forcibly closing the flash can damage the camera. • Be sure to close the built-in flash when not in use. • The flash setting is fixed to [  ] while...

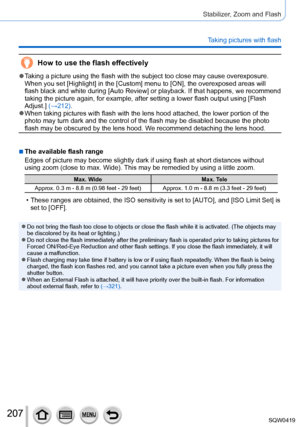

207
Stabilizer, Zoom and Flash
Taking pictures with flash
How to use the flash effectively
 ●Taking a picture using the flash with the subject too close may cause ove\
rexposure.
When you set [Highlight] in the [Custom] menu to [ON], the overexposed areas will
flash black and white during [Auto Review] or playback. If that happens, we recommend
taking the picture again, for example, after setting a lower flash outpu\
t using [Flash
Adjust.] (→212).
 ●When taking pictures with flash with the lens hood...

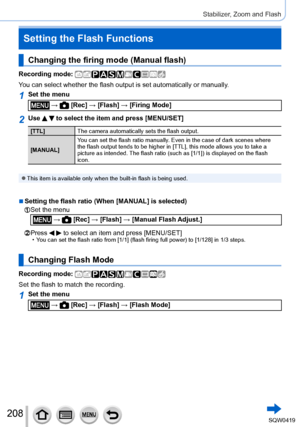

208
Stabilizer, Zoom and Flash
Changing the firing mode (Manual flash)
Recording mode:
You can select whether the flash output is set automatically or manually.
1Set the menu
 →  [Rec] → [Flash] → [Firing Mode]
2Use   to select the item and press [MENU/SET]
[TTL]The camera automatically sets the flash output.
[MANUAL] You can set the flash ratio manually. Even in the case of dark scenes where
the flash output tends to be higher in [TTL], this mode allows you to take a
picture as intended. The flash...

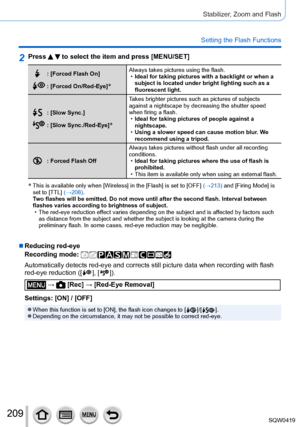

209
Stabilizer, Zoom and Flash
Setting the Flash Functions
2Press   to select the item and press [MENU/SET]
: [Forced Flash On]
: [Forced On/Red-Eye]*
Always takes pictures using the flash. •Ideal for taking pictures with a backlight or when a
subject is located under bright lighting such as a
fluorescent light.
: [Slow Sync.]
: [Slow Sync./Red-Eye]*
Takes brighter pictures such as pictures of subjects
against a nightscape by decreasing the shutter speed
when firing a flash.
 •Ideal for taking...

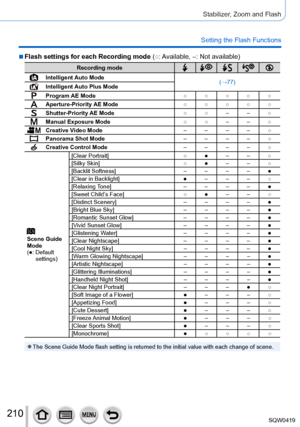

210
Stabilizer, Zoom and Flash
Setting the Flash Functions
 ■Flash settings for each Recording mode (○: Available, –: Not available)
Recording mode
Intelligent Auto Mode
(→77)
Intelligent Auto Plus Mode
Program AE Mode○ ○ ○ ○ ○
Aperture-Priority AE Mode○ ○ ○ ○ ○
Shutter-Priority AE Mode○ ○– –○
Manual Exposure Mode ○ ○– –○
Creative Video Mode – – – –○
Panorama Shot Mode – – – –○
Creative Control Mode – – – –○
Scene Guide
Mode
(●:
 Default
settings)[Clear Portrait]
○ ●– –○
[Silky Skin] ○ ●– –○
[Backlit...
