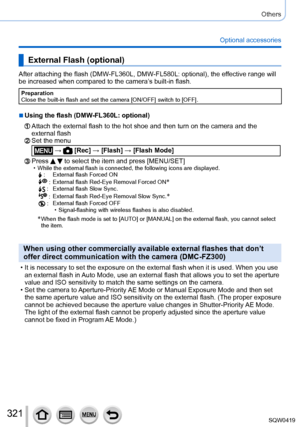

Panasonic Dmc Fz300 Owners Manual

321
Others
Optional accessories
External Flash (optional)
After attaching the flash (DMW-FL360L, DMW-FL580L: optional), the effective range will
be increased when compared to the camera’s built-in flash.
Preparation
Close the built-in flash and set the camera [ON/OFF] switch to [OFF].
 ■Using the flash (DMW-FL360L: optional)
Attach the external flash to the hot shoe and then turn on the camera an\
d the
external flash
Set the menu
 →  [Rec] → [Flash] → [Flash Mode]
Press   to select the item and press...

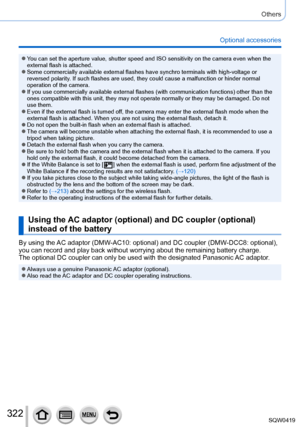

322
Others
Optional accessories
 ●You can set the aperture value, shutter speed and ISO sensitivity on the \
camera even when the
external flash is attached.
 ●Some commercially available external flashes have synchro terminals with\
 high-voltage or
reversed polarity. If such flashes are used, they could cause a malfunction or hinder nor\
mal
operation of the camera.
 ●If you use commercially available external flashes (with communication \
functions) other than the
ones compatible with this unit,...

323
Others
Optional accessories
Shutter Remote Control (optional)
If you use the shutter remote control (DMW-RSL1: optional), you
can avoid jitter (camera shake) when using a tripod and you can
keep the shutter pressed fully when taking pictures with [B] (Bulb)
or Burst Mode. The shutter remote control works similar to the
shutter button on the camera.
 ●Record with Creative Video Mode (→108) when using for motion picture recording. Motion picture
recording can be started/stopped with the shutter...

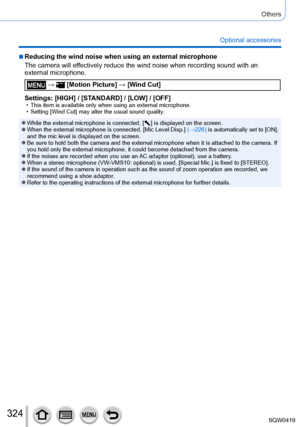

324
Others
Optional accessories
 ■Reducing the wind noise when using an external microphone
The camera will effectively reduce the wind noise when recording sound with an
external microphone.
 →  [Motion Picture] → [Wind Cut]
Settings: [HIGH] / [STANDARD] / [LOW] / [OFF]
 • This item is available only when using an external microphone. • Setting [Wind Cut] may alter the usual sound quality .
 ●While the external microphone is connected, [  ] is displayed on the screen. ●When the external microphone is...

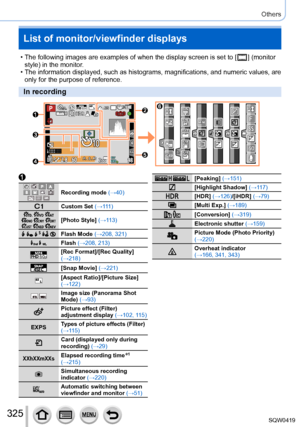

325
Others
List of monitor/viewfinder displays
 • The following images are examples of when the display screen is set to [\
  ] (monitor
style) in the monitor.
 • The information displayed, such as histograms, magnifications, and numer\
ic values, are  only for the purpose of reference.
In recording
       1 Recording mode  (→40)
Custom Set (→111 )      [Photo Style] (→11 3 )
    Flash Mode (→208, 321)
 Flash (→208, 213)
60p[Rec Format]/[Rec Quality]
(→218)
[Snap Movie] (→221)
[Aspect Ratio]/[Picture...

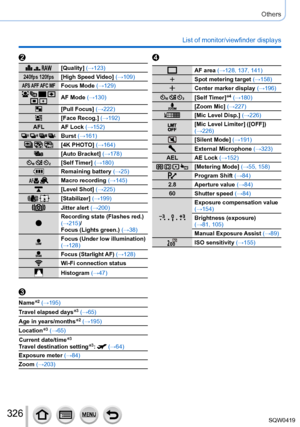

326
Others
List of monitor/viewfinder displays
  [Quality] (→123)
240fps 120fps[High Speed Video] (→109)
AFS AFF AFC MFFocus Mode (→129)
     AF Mode (→130)
[Pull Focus] (→222)
[Face Recog.] (→192)
AFL AF Lock (→152)
   Burst (→161)
  [4K PHOTO] (→164)
[Auto Bracket] (→178)
  [Self Timer] (→180)
Remaining battery (→25)
 Macro recording (→145)
[Level Shot] (→225)
 [Stabilizer] (→199)
Jitter alert (→200)
Recording state (Flashes red.)
(→215)/
Focus (Lights green.)  (→38)
Focus (Under low illumination)...

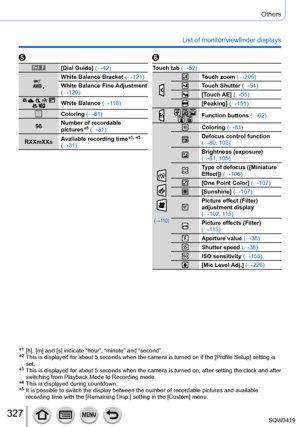

327
Others
List of monitor/viewfinder displays
*1   [h], [m] and [s] indicate “hour”, “minute” and “second”.*2   This is displayed for about 5 seconds when the camera is turned on if th\
e [Profile Setup] setting is
set.
*3   This is displayed for about 5 seconds when the camera is turned on, afte\
r setting the clock and after
switching from Playback Mode to Recording mode.
*4   This is displayed d uring countdown.*5   It is possible to switch the display between the number of recordable pictu\
res...

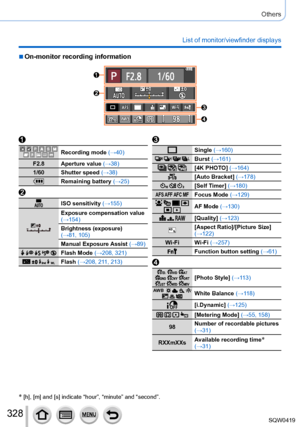

328
Others
List of monitor/viewfinder displays
         Recording mode (→40)
F2.8 Aperture value (→38) 1/60 Shutter speed (→38)
Remaining battery (→25)
ISO sensitivity  (→155)
Exposure compensation value
(→154)
Brightness (exposure)
(→81, 105)
Manual Exposure Assist  (→89)
    Flash Mode (→208, 321)
  Flash (→208, 2 11 , 213)
Single (→160)
   Burst (→161)
  [4K PHOTO] (→164)
[Auto Bracket] (→178)
  [Self Timer] (→180)
AFS AFF AFC MFFocus Mode  (→129)
     AF Mode (→130)
  [Quality] (→123)
[Aspect...

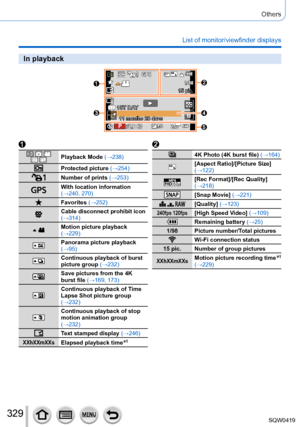

329
Others
List of monitor/viewfinder displays
In playback
   Playback Mode (→238)
Protected picture (→254)
Number of prints (→253)
With location information
(→240, 270)
Favorites (→252)
Cable disconnect prohibit icon
(→314)
Motion picture playback
(→229)
Panorama picture playback
(→95)
Continuous playback of burst
picture group (→232)
Save pictures from the 4K
burst file (→169, 173)
Continuous playback of Time
Lapse Shot picture group
(→232)
Continuous playback of stop
motion animation group...

330
Others
List of monitor/viewfinder displays
Clear Retouch completed icon
(→244)
Acquiring information icon
(→335)
Playback (Motion Pictures)
(→229)
 1ST DAYTravel elapsed days (→65)Upload (Wi-Fi) icon
(→285)
Submenu icon (→233, 285)
[Silent Mode] (→191)
11 months 20 daysAge in years/months
(→194, 195)
Multi Playback (→231)
Delete (→234)
Name*2 (→194, 195)
Location
*2 (→65)
Title
*2 (→245)
Recording information*3
Recording information
[i.Dynamic]*3 (→125)
[HDR]*4 (→126)/[iHDR]*4 (→79)...
