Panasonic Dmc Fz47 Owners Manual

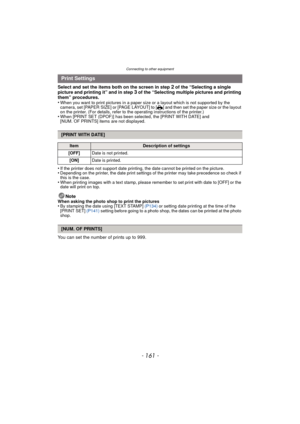

- 161 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures in a paper size or a layout which is not supported by the
camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {] and then set the paper size or the layout
on the printer. (For details, refer to the operating instructions of the printer.)
•When [PRINT...

Connecting to other equipment

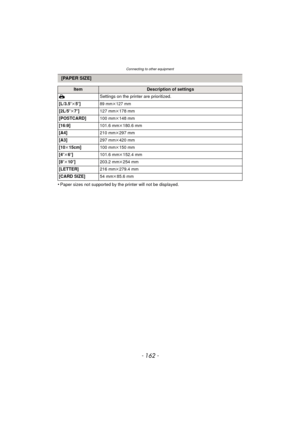

- 162 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm

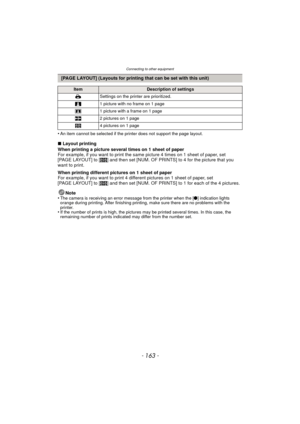

- 163 -
Connecting to other equipment
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...

Others

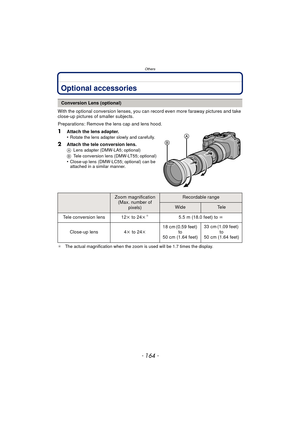

- 164 -
OthersOptional accessories
With the optional conversion lenses, you can record even more faraway pictures and take
close-up pictures of smaller subjects.
Preparations: Remove the lens cap and lens hood.
1Attach the lens adapter.
•Rotate the lens adapter slowly and carefully.
2Attach the tele conversion lens.A Lens adapter (DMW-LA5; optional)
B Tele conversion lens (DMW-LT55; optional)
•Close-up lens (DMW-LC55; optional) can be
attached in a similar manner.
¢ The actual magnific ation...

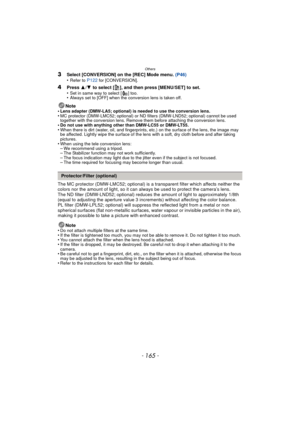

- 165 -
Others
3Select [CONVERSION] on the [REC] Mode menu. (P46)
•Refer to P122 for [CONVERSION].
4Press  3/4  to select [ ], and then press [MENU/SET] to set.
•Set in same way to select [ ] too.•Always set to [OFF] when the conversion lens is taken off.
Note
•Lens adapter (DMW-LA5; optional) is needed to use the conversion lens.•MC protector (DMW-LMC52; optional) or ND f ilters (DMW-LND52; optional) cannot be used
together with the conversion lens. Remove them before attaching the conversion lens.
•Do...

Others

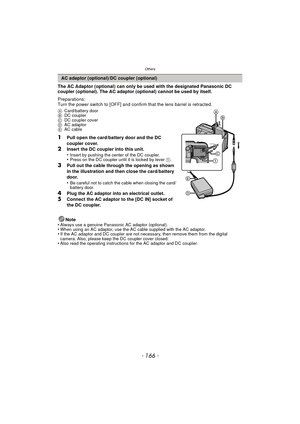

- 166 -
The AC Adaptor (optional) can only be used with the designated Panasonic DC
coupler (optional). The AC adaptor (optional) cannot be used by itself.
Preparations:
Turn the power switch to [OFF] and confirm that the lens barrel is retracted.
ACard/battery door
B DC coupler
C DC coupler cover
D AC adaptor
E AC cable
1Pull open the card/battery door and the DC
coupler cover.
2Insert the DC coupler into this unit.
•Insert by pushing the center of the DC coupler.•Press on the DC coupler until...

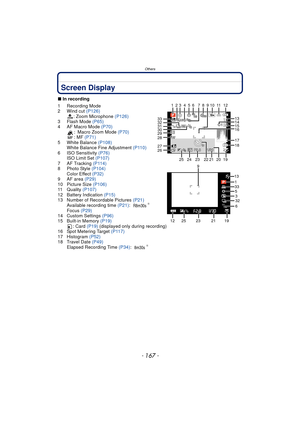

- 167 -
Others
Screen Display
∫In recording
1 Recording Mode
2 Wind cut (P126)
: Zoom Microphone  (P126)
3 Flash Mode  (P65)
4 AF Macro Mode  (P70)
: Macro Zoom Mode  (P70)
: MF (P71)
5 White Balance  (P108)
White Balance Fine Adjustment  (P110)
6 ISO Sensitivity  (P76)
ISO Limit Set  (P107)
7 AF Tracking  (P114)
8 Photo Style  (P104)
Color Effect  (P32)
9 AF area  (P29)
10 Picture Size (P106)
11 Quality  (P107)
12 Battery Indication  (P15)
13 Number of Recordable Pictures  (P21)
Available recording time...

Others

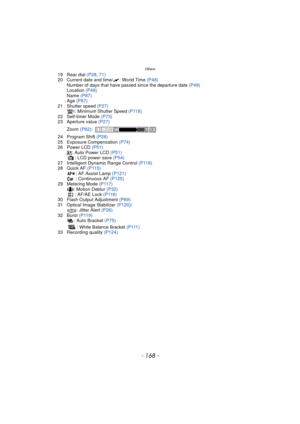

- 168 -
19 Rear dial (P28, 71)
20 Current date and time/ “: World Time (P48)
Number of days that have passed since the departure date  (P49)
Location  (P49)
Name  (P87)
Age  (P87)
21 Shutter speed  (P27)
: Minimum Shutter Speed  (P118)
22 Self-timer Mode  (P73)
23 Aperture value  (P27)
Zoom  (P62):
24 Program Shift  (P28)
25 Exposure Compensation  (P74)
26 Power LCD  (P51)
„: Auto Power LCD  (P51)
: LCD power save  (P54)
27 Intelligent Dynamic Range Control  (P118)
28 Quick AF  (P115)
: AF Assist...

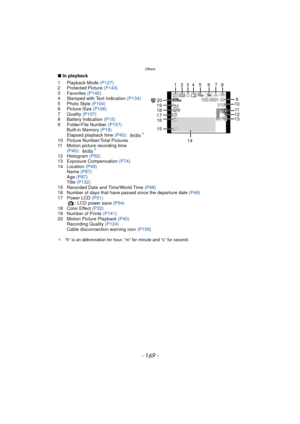

- 169 -
Others
∫In playback
1 Playback Mode  (P127)
2 Protected Picture  (P143)
3 Favorites  (P140)
4 Stamped with Text Indication  (P134)
5 Photo Style  (P104)
6 Picture Size (P106)
7 Quality  (P107)
8 Battery Indication  (P15)
9 Folder/File Number (P157) Built-in Memory  (P19)
Elapsed playback time  (P40):
¢
10 Picture Number/Total Pictures
11 Motion picture recording time
(P40) :
¢
12 Histogram  (P52)
13 Exposure Compensation  (P74)
14 Location  (P49)
Name  (P87)
Age  (P87)
Title  (P132)
15 Recorded...

Others

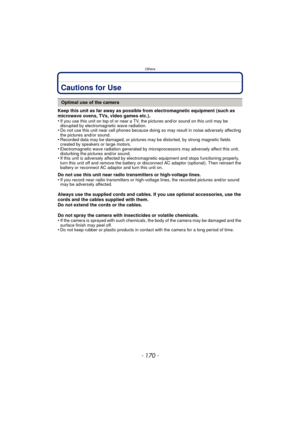

- 170 -
Cautions for Use
Keep this unit as far away as possible from electromagnetic equipment (such as
microwave ovens, TVs, video games etc.).
•
If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be
disrupted by electromagnetic wave radiation.
•Do not use this unit near cell phones because doing so may result in noise adversely affecting
the pictures and/or sound.
•Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields...
