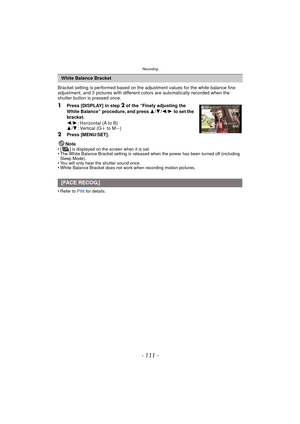

- 111 -
Recording
Bracket setting is performed based on the adjustment values for the white balance fine
adjustment, and 3 pictures with different colors are automatically recorded when the
shutter button is pressed once.
1Press [DISPLAY] in step 2 of the “Finely adjusting the
White Balance” procedure, and press  3/4 /2 /1  to set the
bracket.
2 /1 : Horizontal (A to B)
3 /4 : Vertical (G i to Mj)
2Press [MENU/SET].
Note
•
[ ] is displayed on the screen when it is set.•The White Balance Bracket...

Recording

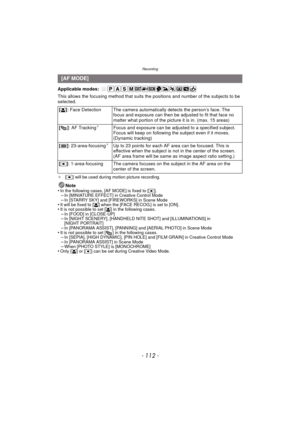

- 112 -
Applicable modes:
This allows the focusing method that suits the positions and number of the subjects to be
selected.
¢[Ø] will be used during motion picture recording.
Note
•In the following cases, [AF MODE] is fixed to [ Ø].–In [MINIATURE EFFECT] in Creative Control Mode–In [STARRY SKY] and [FIREWORKS] in Scene Mode•It will be fixed to [ š] when the [FACE RECOG.] is set to [ON].•It is not possible to set [ š] in the following cases.–In [FOOD] in [CLOSE-UP]–In [NIGHT SCENERY],...

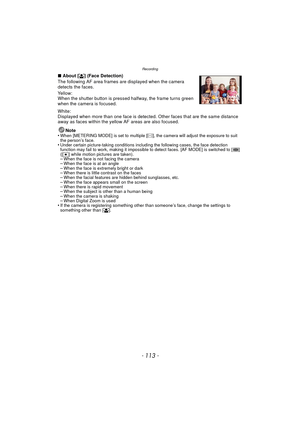

- 113 -
Recording
∫About [ š] (Face Detection)
The following AF area frames are displayed when the camera
detects the faces.
Yellow:
When the shutter button is pressed halfway, the frame turns green
when the camera is focused.
White:
Displayed when more than one face is detected. Other faces that are the same distance
away as faces within the yellow AF areas are also focused.
Note
•
When [METERING MODE] is set to multiple [ C], the camera will adjust the exposure to suit
the person’s face.
•Under...

Recording

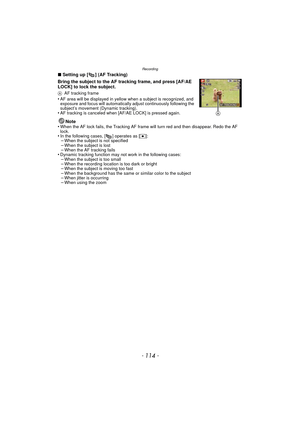

- 114 -
∫Setting up [ ] (AF Tracking)
Bring the subject to the AF tracking frame, and press [AF/AE
LOCK] to lock the subject.
A AF tracking frame•AF area will be displayed in yellow when a subject is recognized, and
exposure and focus will automatically adjust continuously following the
subject’s movement (Dynamic tracking).
•AF tracking is canceled when [AF/AE LOCK] is pressed again.
Note
•When the AF lock fails, the Tracking AF frame will turn red and then disappear. Redo the AF
lock.
•In...

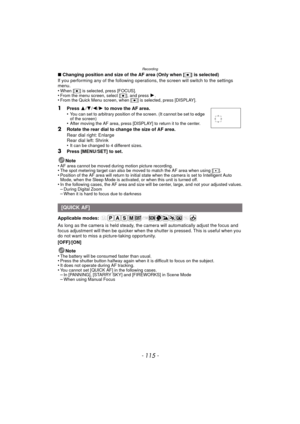

- 115 -
Recording
∫Changing position and size of the AF area (Only when [ Ø] is selected)
If you performing any of the following operations, the screen will switch to the settings
menu.
•
When [ Ø] is selected, press [FOCUS].•From the menu screen, select [ Ø], and press 1.•From the Quick Menu screen, when [ Ø] is selected, press [DISPLAY].
1Press  3/4 /2 /1 to move the AF area.
•You can set to arbitrary position of the screen. (It cannot be set to edge
of the screen)
•After moving the AF area, press...

Recording

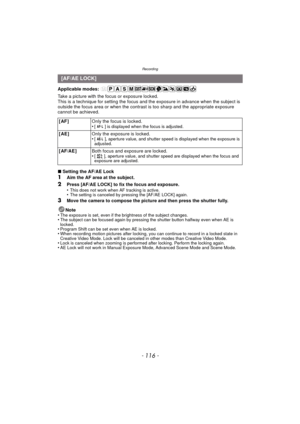

- 116 -
Applicable modes:
Take a picture with the focus or exposure locked.
This is a technique for setting the focus and the exposure in advance when the subject is
outside the focus area or when the contrast is too sharp and the appropriate exposure
cannot be achieved.
∫ Setting the AF/AE Lock
1Aim the AF area at the subject.
2Press [AF/AE LOCK] to fix the focus and exposure.
•This does not work when AF tracking is active.•The setting is canceled by pressing the [AF/AE LOCK] again.
3Move...

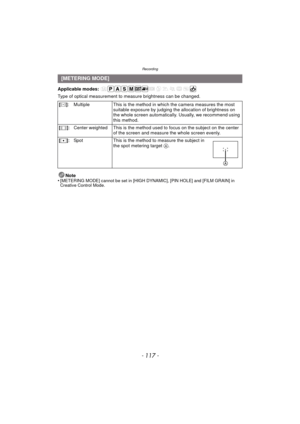

- 117 -
Recording
Applicable modes:
Type of optical measurement to measure brightness can be changed.Note
•
[METERING MODE] cannot be set in [HIGH DYN AMIC], [PIN HOLE] and [FILM GRAIN] in
Creative Control Mode.
[METERING MODE]
[C ]: Multiple This is the method in which the camera measures the most
suitable exposure by judging the allocation of brightness on
the whole screen automatically. Usually, we recommend using
this method.
[] : Center weighted This is the method used  to focus on the subject...

Recording

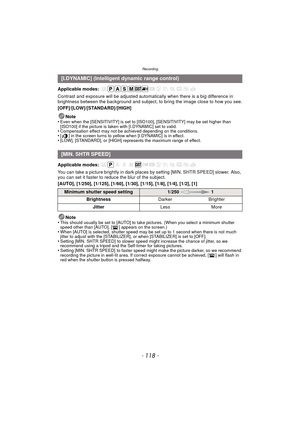

- 118 -
Applicable modes:
Contrast and exposure will be adjusted automatically when there is a big difference in
brightness between the background and subject, to bring the image close to how you see.
[OFF]/[LOW]/[STANDARD]/[HIGH]Note
•
Even when the [SENSITIVITY] is set to [ISO100], [SENSITIVITY] may be set higher than
[ISO100] if the picture is taken with [I.DYNAMIC] set to valid.
•Compensation effect may not be achieved depending on the conditions.•[ ] in the screen turns to yellow when...

- 119 -
Recording
Applicable modes:
Pictures are taken continuously while the shutter button is pressed.
[OFF]/[ ˜]
Note
•
Focus, exposure, and White Balance will be fixed to the settings for the first picture. Depending
on changes in the brightness of the subject, the recording may be brighter or darker from the
second picture.
•When the Self-timer is set to [2SEC.] or [10SEC.], the number of recordable pictures in Burst
Mode is fixed to 3.
•The burst speed (pictures/second) may become slower...

Recording

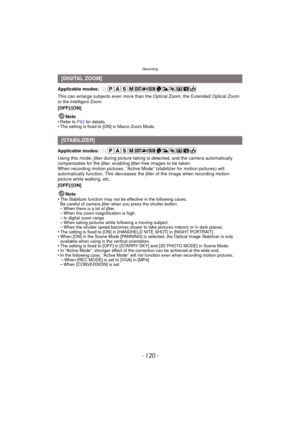

- 120 -
Applicable modes:
This can enlarge subjects even more than the Optical Zoom, the Extended Optical Zoom
or
 the Intelligent Zoom.
[OFF]/[ON]
Note
•
Refer to P62  for details.•The setting is fixed to [ON] in Macro Zoom Mode.
Applicable modes:
Using this mode, jitter during picture taking  is detected, and the camera automatically
compensates for the jitter, enabling jitter-free images to be taken.
When recording motion pictures, “Active Mode” (stabilizer for motion pictures) will...
