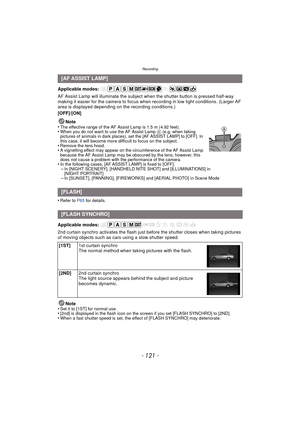

- 121 -
Recording
Applicable modes:
AF Assist Lamp will illuminate the subject when the shutter button is pressed half-way
making it easier for the camera to focus when recording in low light conditions. (Larger AF
area is displayed depending on the recording conditions.)
[OFF]/[ON]Note
•
The effective range of the AF Assist Lamp is 1.5 m (4.92 feet).•When you do not want to use the AF Assist Lamp  A (e.g. when taking
pictures of animals in dark places), set the [AF ASSIST LAMP] to [OFF]. In
this...

Recording

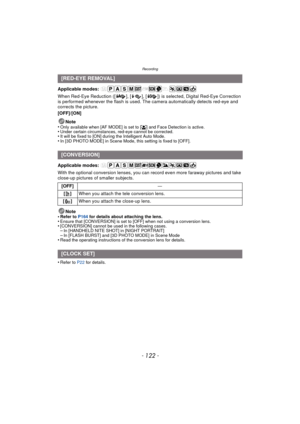

- 122 -
Applicable modes:
When Red-Eye Reduction ([ ], [ ], [ ]) is selected, Digital Red-Eye Correction
is performed whenever the flash is used. The camera automatically detects red-eye and
corrects the picture.
[OFF]/[ON]Note
•
Only available when [AF MODE] is set to [ š] and Face Detection is active.•Under certain circumstances, red-eye cannot be corrected.•It will be fixed to [ON] during the Intelligent Auto Mode.•In [3D PHOTO MODE] in Scene Mode, this setting is fixed to [OFF]....

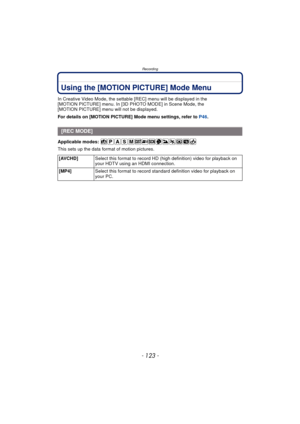

- 123 -
Recording
Using the [MOTION PICTURE] Mode Menu
In Creative Video Mode, the settable [REC] menu will be displayed in the
[MOTION PICTURE] menu. In [3D PHOTO MODE] in Scene Mode, the
[MOTION PICTURE] menu will not be displayed.
For details on [MOTION PICTURE] Mode menu settings, refer to P46.
Applicable modes:
This sets up the data format of motion pictures.
[REC MODE]
[AVCHD] Select this format to record HD (high definition) video for playback on
your HDTV using an HDMI connection.
[MP4]...

Recording

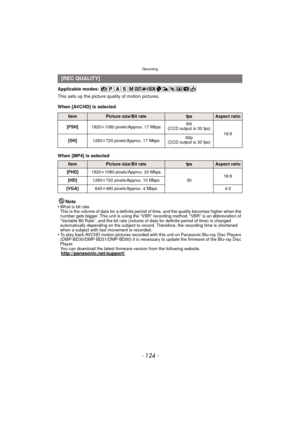

- 124 -
Applicable modes:
This sets up the picture quality of motion pictures.
When [AVCHD] is selected
When [MP4] is selectedNote
•
What is bit rate
This is the volume of data for a definite period of time, and the quality becomes higher when the
number gets bigger. This unit is using the “VBR” recording method. “VBR” is an abbreviation of
“Variable Bit Rate”, and the bit rate (volume of data for definite period of time) is changed
automatically depending on the subject to record....

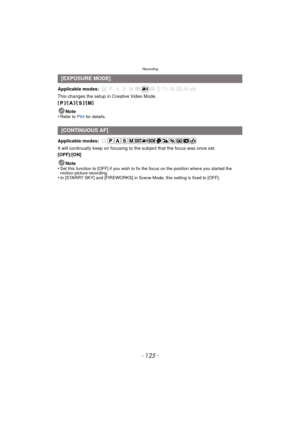

- 125 -
Recording
Applicable modes:
This changes the setup in Creative Video Mode.
[]/[]/[]/[]Note
•
Refer to P94  for details.
Applicable modes:
It will continually keep on focusing to the subject that the focus was once set.
[OFF]/[ON]
Note
•
Set this function to [OFF] if you wish to fix  the focus on the position where you started the
motion picture recording.
•In [STARRY SKY] and [FIREWORKS] in Scene Mode, this setting is fixed to [OFF].
[EXPOSURE MODE]
[CONTINUOUS AF]

Recording

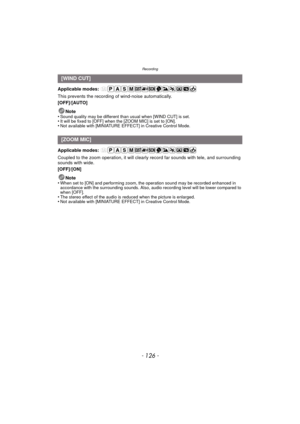

- 126 -
Applicable modes:
This prevents the recording of wind-noise automatically.
[OFF]/[AUTO]Note
•
Sound quality may be different than usual when [WIND CUT] is set.•It will be fixed to [OFF] when the [ZOOM MIC] is set to [ON].•Not available with [MINIATURE EFFECT] in Creative Control Mode.
Applicable modes:
Coupled to the zoom operation, it will clearly record far sounds with tele, and surrounding
sounds with wide.
[OFF]/[ON]
Note
•
When set to [ON] and performing zoom, the operation...

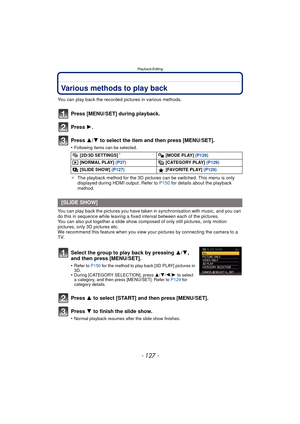

- 127 -
Playback/Editing
Playback/EditingVarious methods to play back
You can play back the recorded pictures in various methods.
Press [MENU/SET] during playback.
Press 1.
Press  3/4 to select the item and then press [MENU/SET].
•Following items can be selected.
¢ The playback method for the 3D pictures can be switched. This menu is only
displayed during HDMI output. Refer to  P150 for details about the playback
method.
You can play back the pictures you have taken in synchronisation with music, and...

Playback/Editing

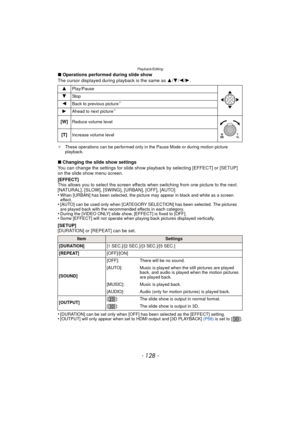

- 128 -
∫Operations performed during slide show
The cursor displayed during playback is the same as  3/4 /2/ 1.
¢ These operations can be performed only in the Pause Mode or during motion picture
playback.
∫Changing the slide show settings
You can change the settings for slide show playback by selecting [EFFECT] or [SETUP]
on the slide show menu screen.
[EFFECT]
This allows you to select the screen effects when switching from one picture to the next.
[NATURAL], [SLOW], [SWING],...

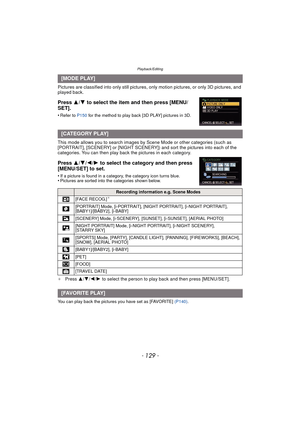

- 129 -
Playback/Editing
Pictures are classified into only still pictures, only motion pictures, or only 3D pictures, and
played back.
Press  3/4 to select the item and then press [MENU/
SET].
•Refer to P150 for the method to play back [3D PLAY] pictures in 3D.
This mode allows you to search images by  Scene Mode or other categories (such as
[PORTRAIT], [SCENERY] or [NIGHT SCENERY]) and sort the pictures into each of the
categories. You can then play back the pictures in each category.
Press  3/4/2/ 1...

Playback/Editing

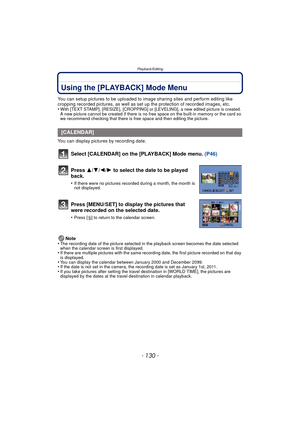

- 130 -
Using the [PLAYBACK] Mode Menu
You can setup pictures to be uploaded to image sharing sites and perform editing like
cropping recorded pictures, as well as set up the protection of recorded images, etc.
•
With [TEXT STAMP], [RESIZE], [CROPPING] or [L EVELING], a new edited picture is created.
A new picture cannot be created if there is no free space on the built-in memory or the card so
we recommend checking that there is free space and then editing the picture.
You can...
