Panasonic Dmc Fz7 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz7 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

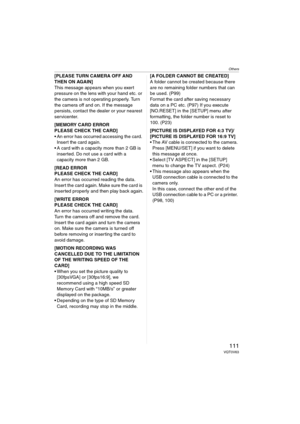

Page 111
![Page 111
Others
111VQT0V63
[PLEASE TURN CAMERA OFF AND
THEN ON AGAIN]
This message appears when you exert
pressure on the lens with your hand etc. or
the camera is not operating properly. Turn
the camera off and on. If the message
persists, contact the dealer or your nearest
servicenter.
[MEMORY CARD ERROR
PLEASE CHECK THE CARD]
An error has occurred accessing the card.
Insert the card again.
A card with a capacity more than 2 GB is
inserted. Do not use a card with a
capacity more than 2 GB.
[READ...](http://img.usermanuals.tech/thumb/58/65509/w300_dmc-fz7_en_om_d-110.png "Page 111
Others
111VQT0V63
[PLEASE TURN CAMERA OFF AND
THEN ON AGAIN]
This message appears when you exert
pressure on the lens with your hand etc. or
the camera is not operating properly. Turn
the camera off and on. If the message
persists, contact the dealer or your nearest
servicenter.
[MEMORY CARD ERROR
PLEASE CHECK THE CARD]
An error has occurred accessing the card.
Insert the card again.
A card with a capacity more than 2 GB is
inserted. Do not use a card with a
capacity more than 2 GB.
[READ...")
Others 111VQT0V63 [PLEASE TURN CAMERA OFF AND THEN ON AGAIN] This message appears when you exert pressure on the lens with your hand etc. or the camera is not operating properly. Turn the camera off and on. If the message persists, contact the dealer or your nearest servicenter. [MEMORY CARD ERROR PLEASE CHECK THE CARD] An error has occurred accessing the card. Insert the card again. A card with a capacity more than 2 GB is inserted. Do not use a card with a capacity more than 2 GB. [READ...

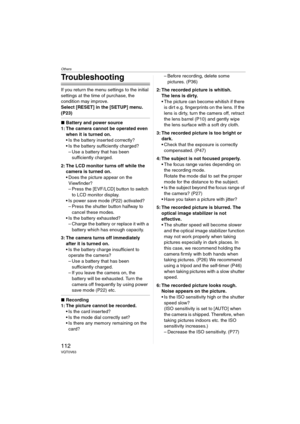

Page 112
![Page 112
Others
112VQT0V63
Troubleshooting
If you return the menu settings to the initial
settings at the time of purchase, the
condition may improve.
Select [RESET] in the [SETUP] menu.
(P23)
∫Battery and power source
1: The camera cannot be operated even
when it is turned on.
Is the battery inserted correctly?
Is the battery sufficiently charged?
– Use a battery that has been
sufficiently charged.
2: The LCD monitor turns off while the
camera is turned on.
Does the picture appear on the...](http://img.usermanuals.tech/thumb/58/65509/w300_dmc-fz7_en_om_d-111.png "Page 112
Others
112VQT0V63
Troubleshooting
If you return the menu settings to the initial
settings at the time of purchase, the
condition may improve.
Select [RESET] in the [SETUP] menu.
(P23)
∫Battery and power source
1: The camera cannot be operated even
when it is turned on.
Is the battery inserted correctly?
Is the battery sufficiently charged?
– Use a battery that has been
sufficiently charged.
2: The LCD monitor turns off while the
camera is turned on.
Does the picture appear on the...")
Others 112VQT0V63 Troubleshooting If you return the menu settings to the initial settings at the time of purchase, the condition may improve. Select [RESET] in the [SETUP] menu. (P23) ∫Battery and power source 1: The camera cannot be operated even when it is turned on. Is the battery inserted correctly? Is the battery sufficiently charged? – Use a battery that has been sufficiently charged. 2: The LCD monitor turns off while the camera is turned on. Does the picture appear on the...

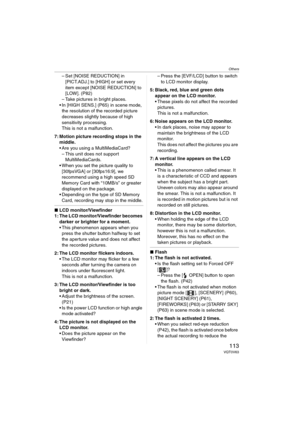

Page 113
![Page 113
Others
113VQT0V63
– Set [NOISE REDUCTION] in
[PICT.ADJ.] to [HIGH] or set every
item except [NOISE REDUCTION] to
[LOW]. (P82)
– Take pictures in bright places.
In [HIGH SENS.] (P65) in scene mode,
the resolution of the recorded picture
decreases slightly because of high
sensitivity processing.
This is not a malfunction.
7: Motion picture recording stops in the
middle.
Are you using a MultiMediaCard?
– This unit does not support
MultiMediaCards.
When you set the picture quality to...](http://img.usermanuals.tech/thumb/58/65509/w300_dmc-fz7_en_om_d-112.png "Page 113
Others
113VQT0V63
– Set [NOISE REDUCTION] in
[PICT.ADJ.] to [HIGH] or set every
item except [NOISE REDUCTION] to
[LOW]. (P82)
– Take pictures in bright places.
In [HIGH SENS.] (P65) in scene mode,
the resolution of the recorded picture
decreases slightly because of high
sensitivity processing.
This is not a malfunction.
7: Motion picture recording stops in the
middle.
Are you using a MultiMediaCard?
– This unit does not support
MultiMediaCards.
When you set the picture quality to...")
Others 113VQT0V63 – Set [NOISE REDUCTION] in [PICT.ADJ.] to [HIGH] or set every item except [NOISE REDUCTION] to [LOW]. (P82) – Take pictures in bright places. In [HIGH SENS.] (P65) in scene mode, the resolution of the recorded picture decreases slightly because of high sensitivity processing. This is not a malfunction. 7: Motion picture recording stops in the middle. Are you using a MultiMediaCard? – This unit does not support MultiMediaCards. When you set the picture quality to...

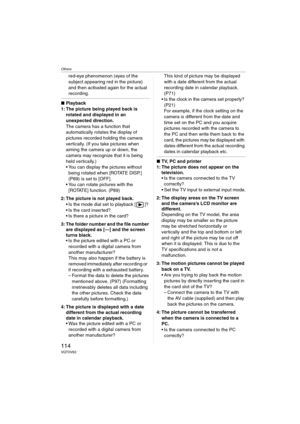

Page 114
Others 114VQT0V63 red-eye phenomenon (eyes of the subject appearing red in the picture) and then activated again for the actual recording. ∫Playback 1: The picture being played back is rotated and displayed in an unexpected direction. The camera has a function that automatically rotates the display of pictures recorded holding the camera vertically. (If you take pictures when aiming the camera up or down, the camera may recognize that it is being held vertically.) You can display the...

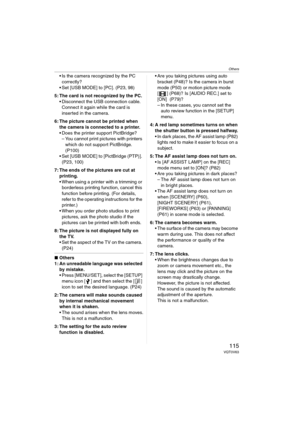

Page 115
![Page 115
Others
115VQT0V63
Is the camera recognized by the PC
correctly?
Set [USB MODE] to [PC]. (P23, 98)
5: The card is not recognized by the PC.
Disconnect the USB connection cable.
Connect it again while the card is
inserted in the camera.
6: The picture cannot be printed when
the camera is connected to a printer.
Does the printer support PictBridge?
– You cannot print pictures with printers
which do not support PictBridge.
(P100)
Set [USB MODE] to [PictBridge (PTP)].
(P23, 100)
7: The ends...](http://img.usermanuals.tech/thumb/58/65509/w300_dmc-fz7_en_om_d-114.png "Page 115
Others
115VQT0V63
Is the camera recognized by the PC
correctly?
Set [USB MODE] to [PC]. (P23, 98)
5: The card is not recognized by the PC.
Disconnect the USB connection cable.
Connect it again while the card is
inserted in the camera.
6: The picture cannot be printed when
the camera is connected to a printer.
Does the printer support PictBridge?
– You cannot print pictures with printers
which do not support PictBridge.
(P100)
Set [USB MODE] to [PictBridge (PTP)].
(P23, 100)
7: The ends...")
Others 115VQT0V63 Is the camera recognized by the PC correctly? Set [USB MODE] to [PC]. (P23, 98) 5: The card is not recognized by the PC. Disconnect the USB connection cable. Connect it again while the card is inserted in the camera. 6: The picture cannot be printed when the camera is connected to a printer. Does the printer support PictBridge? – You cannot print pictures with printers which do not support PictBridge. (P100) Set [USB MODE] to [PictBridge (PTP)]. (P23, 100) 7: The ends...

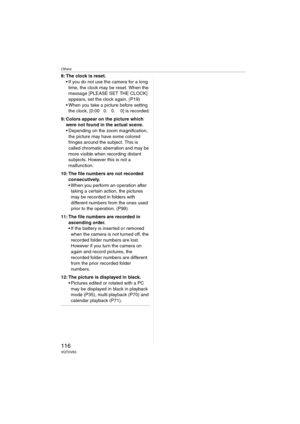

Page 116
![Page 116
Others
116VQT0V63
8: The clock is reset.
If you do not use the camera for a long
time, the clock may be reset. When the
message [PLEASE SET THE CLOCK]
appears, set the clock again. (P19)
When you take a picture before setting
the clock, [0:00 0. 0. 0] is recorded.
9: Colors appear on the picture which
were not found in the actual scene.
Depending on the zoom magnification,
the picture may have some colored
fringes around the subject. This is
called chromatic aberration and may be
more...](http://img.usermanuals.tech/thumb/58/65509/w300_dmc-fz7_en_om_d-115.png "Page 116
Others
116VQT0V63
8: The clock is reset.
If you do not use the camera for a long
time, the clock may be reset. When the
message [PLEASE SET THE CLOCK]
appears, set the clock again. (P19)
When you take a picture before setting
the clock, [0:00 0. 0. 0] is recorded.
9: Colors appear on the picture which
were not found in the actual scene.
Depending on the zoom magnification,
the picture may have some colored
fringes around the subject. This is
called chromatic aberration and may be
more...")
Others 116VQT0V63 8: The clock is reset. If you do not use the camera for a long time, the clock may be reset. When the message [PLEASE SET THE CLOCK] appears, set the clock again. (P19) When you take a picture before setting the clock, [0:00 0. 0. 0] is recorded. 9: Colors appear on the picture which were not found in the actual scene. Depending on the zoom magnification, the picture may have some colored fringes around the subject. This is called chromatic aberration and may be more...

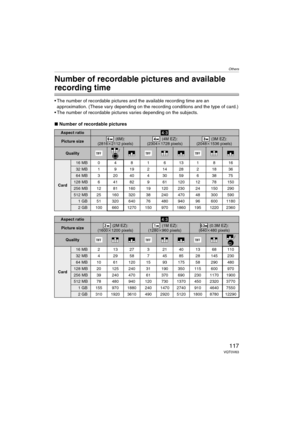

Page 117
Others 117VQT0V63 Others Number of recordable pictures and available recording time The number of recordable pictures and the available recording time are an approximation. (These vary depending on the recording conditions and the type of card.) The number of recordable pictures varies depending on the subjects. ∫Number of recordable pictures Aspect ratio Picture size (6M): (2816k2112 pixels) (4M EZ): (2304k1728 pixels) (3M EZ): (2048k1536 pixels) Quality/ Card 16MB04816131816 32 MB 1 9 19 2 14 28...

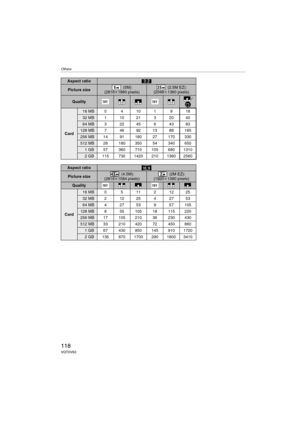

Page 118
Others 118VQT0V63 Aspect ratio Picture size (5M): (2816k1880 pixels) (2.5M EZ): (2048k1360 pixels) Quality/ Card 16MB04101918 32 MB 1 10 21 3 20 40 64 MB 3 22 45 6 43 83 128 MB 7 46 92 13 88 165 256 MB 14 91 180 27 170 330 512 MB 28 180 350 54 340 650 1 GB 57 360 710 105 680 1310 2 GB 115 730 1420 210 1360 2560 Aspect ratio Picture size (4.5M): (2816k1584 pixels) (2M EZ): (1920k1080 pixels) Quality Card 16 MB 0 5 11 2 12 25 32 MB 2 12 25 4 27 53 64 MB 4 27 53 9 57 105 128 MB 8 55 105 18 115 220 256 MB 17...

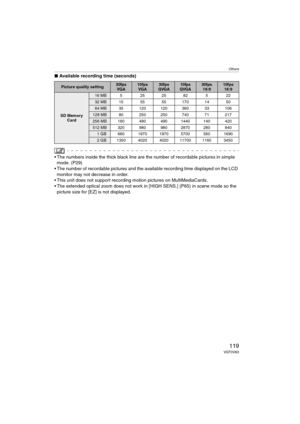

Page 119
![Page 119
Others
119VQT0V63
∫Available recording time (seconds)
The numbers inside the thick black line are the number of recordable pictures in simple
mode. (P29)
The number of recordable pictures and the available recording time displayed on the LCD
monitor may not decrease in order.
This unit does not support recording motion pictures on MultiMediaCards.
The extended optical zoom does not work in [HIGH SENS.] (P65) in scene mode so the
picture size for [EZ] is not displayed.
Picture quality...](http://img.usermanuals.tech/thumb/58/65509/w300_dmc-fz7_en_om_d-118.png "Page 119
Others
119VQT0V63
∫Available recording time (seconds)
The numbers inside the thick black line are the number of recordable pictures in simple
mode. (P29)
The number of recordable pictures and the available recording time displayed on the LCD
monitor may not decrease in order.
This unit does not support recording motion pictures on MultiMediaCards.
The extended optical zoom does not work in [HIGH SENS.] (P65) in scene mode so the
picture size for [EZ] is not displayed.
Picture quality...")
Others 119VQT0V63 ∫Available recording time (seconds) The numbers inside the thick black line are the number of recordable pictures in simple mode. (P29) The number of recordable pictures and the available recording time displayed on the LCD monitor may not decrease in order. This unit does not support recording motion pictures on MultiMediaCards. The extended optical zoom does not work in [HIGH SENS.] (P65) in scene mode so the picture size for [EZ] is not displayed. Picture quality...

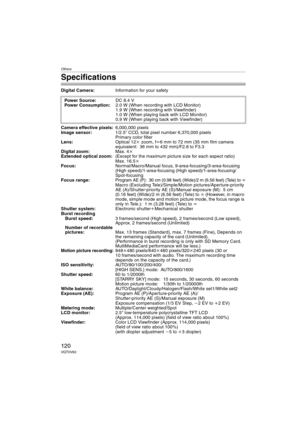

Page 120
Others 120VQT0V63 Specifications Digital Camera:Information for your safety Camera effective pixels:6,000,000 pixels Image sensor:1/2.5 q CCD, total pixel number 6,370,000 pixels Primary color filter Lens:Optical 12 kzoom, fl6 mm to 72 mm (35 mm film camera equivalent: 36 mm to 432 mm)/F2.8 to F3.3 Digital zoom:Max. 4k Extended optical zoom:(Except for the maximum picture size for each aspect ratio) Max. 16.5k Focus:Normal/Macro/Manual focus, 9-area-focusing/3-area-focusing (High speed)/1-area-focusing...
