Menu Settings

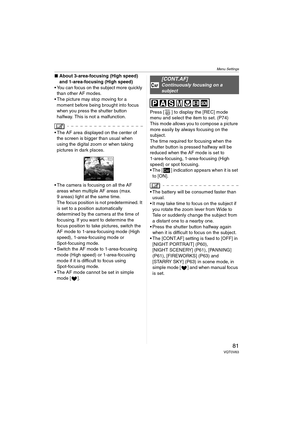

81VQT0V63
∫About 3-area-focusing (High speed)
and 1-area-focusing (High speed)
 You can focus on the subject more quickly
than other AF modes.
 The picture may stop moving for a
moment before being brought into focus
when you press the shutter button
halfway. This is not a malfunction.
 The AF area displayed on the center of
the screen is bigger than usual when
using the digital zoom or when taking
pictures in dark places.
 The camera is focusing on all the AF
areas when...

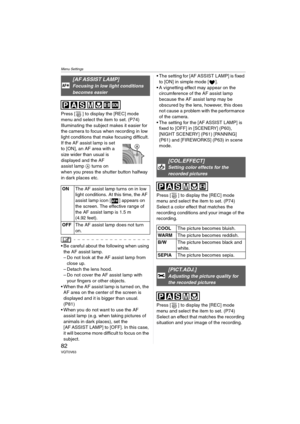

Menu Settings
82VQT0V63
Press [ ] to display the [REC] mode
menu and select the item to set. (P74)
Illuminating the subject makes it easier for
the camera to focus when recording in low
light conditions that make focusing difficult.
If the AF assist lamp is set
to [ON], an AF area with a
size wider than usual is
displayed and the AF
assist lamp A turns on
when you press the shutter button halfway
in dark places etc.
 Be careful about the following when using
the AF assist lamp.
– Do not look...

Menu Settings

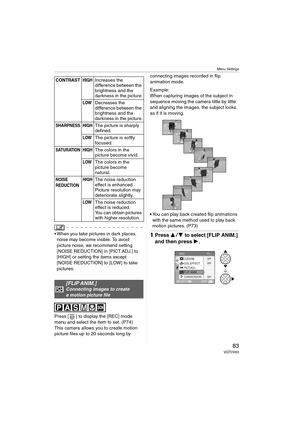

83VQT0V63
 When you take pictures in dark places,
noise may become visible. To avoid
picture noise, we recommend setting
[NOISE REDUCTION] in [PICT.ADJ.] to
[HIGH] or setting the items except
[NOISE REDUCTION] to [LOW] to take
pictures.
Press [ ] to display the [REC] mode
menu and select the item to set. (P74)
This camera allows you to create motion
picture files up to 20 seconds long by connecting images recorded in flip
animation mode.
Example:
When capturing images of the...

Menu Settings

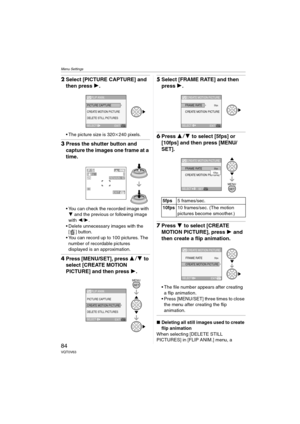

84VQT0V63
2Select [PICTURE CAPTURE] and
then press 1.
 The picture size is 320k240 pixels.
3Press the shutter button and
capture the images one frame at a
time.
 You can check the recorded image with
4 and the previous or following image
with 2/1.
 Delete unnecessary images with the
[ ] button.
 You can record up to 100 pictures. The
number of recordable pictures
displayed is an approximation.
4Press [MENU/SET], press 34 to
select [CREATE MOTION
PICTURE] and then press 1....

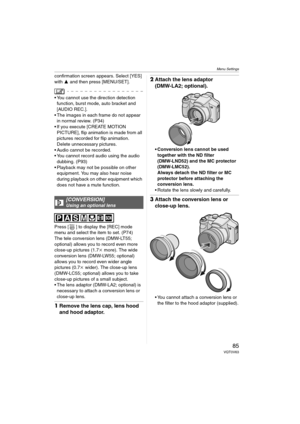

Menu Settings
85VQT0V63
confirmation screen appears. Select [YES]
with 3 and then press [MENU/SET].
 You cannot use the direction detection
function, burst mode, auto bracket and
[AUDIO REC.].
 The images in each frame do not appear
in normal review. (P34)
 If you execute [CREATE MOTION
PICTURE], flip animation is made from all
pictures recorded for flip animation.
Delete unnecessary pictures.
 Audio cannot be recorded.
 You cannot record audio using the audio
dubbing. (P93)
 Playback may...

Menu Settings

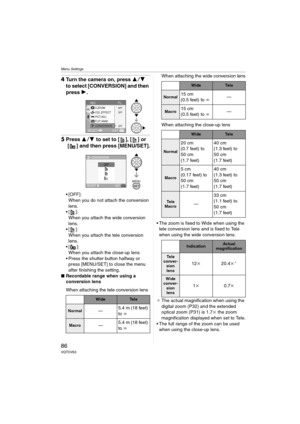

86VQT0V63
4Turn the camera on, press 34
to select [CONVERSION] and then
press 1.
5Press 34 to set to [ ], [ ] or
[ ] and then press [MENU/SET].
 [OFF]:
When you do not attach the conversion
lens.
[ ]:
When you attach the wide conversion
lens.
[ ]:
When you attach the tele conversion
lens.
[ ]:
When you attach the close-up lens
 Press the shutter button halfway or
press [MENU/SET] to close the menu
after finishing the setting.
∫Recordable range when using a
conversion lens...

Menu Settings

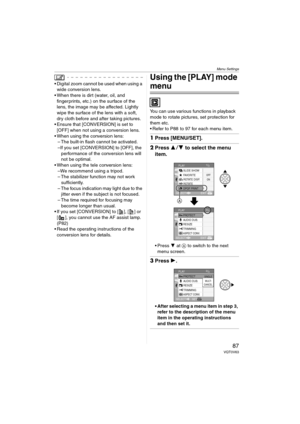

87VQT0V63
 Digital zoom cannot be used when using a
wide conversion lens.
 When there is dirt (water, oil, and
fingerprints, etc.) on the surface of the
lens, the image may be affected. Lightly
wipe the surface of the lens with a soft,
dry cloth before and after taking pictures.
 Ensure that [CONVERSION] is set to
[OFF] when not using a conversion lens.
 When using the conversion lens:
– The built-in flash cannot be activated.
–If you set [CONVERSION] to [OFF], the
performance of...

Menu Settings

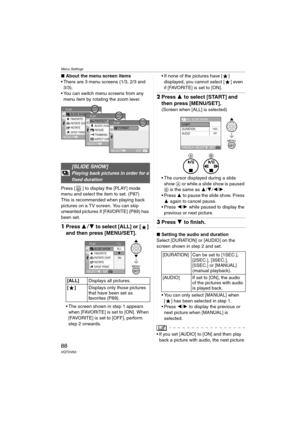

88VQT0V63
∫About the menu screen items
 There are 3 menu screens (1/3, 2/3 and
3/3).
 You can switch menu screens from any
menu item by rotating the zoom lever.
Press [ ] to display the [PLAY] mode
menu and select the item to set. (P87)
This is recommended when playing back
pictures on a TV screen. You can skip
unwanted pictures if [FAVORITE] (P89) has
been set.
1Press 34 to select [ALL] or [ ]
and then press [MENU/SET].
 The screen shown in step 1 appears
when [FAVORITE] is set...

Menu Settings

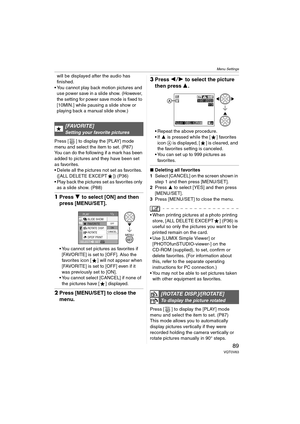

89VQT0V63
will be displayed after the audio has
finished.
 You cannot play back motion pictures and  use power save in a slide show. (However,
the setting for power save mode is fixed to
[10MIN.] while pausing a slide show or
playing back a manual slide show.)
Press [ ] to display the [PLAY] mode
menu and select the item to set. (P87)
You can do the following if a mark has been
added to pictures and they have been set
as favorites.
 Delete all the pictures not set as favorites....

Menu Settings

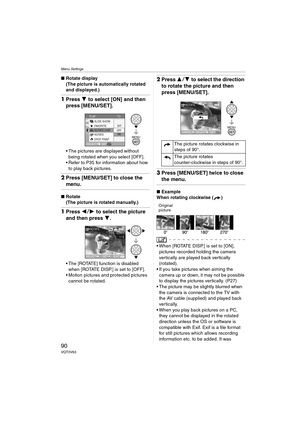

90VQT0V63
∫Rotate display
(The picture is automatically rotated
and displayed.)
1Press 4 to select [ON] and then
press [MENU/SET].
 The pictures are displayed without
being rotated when you select [OFF].
 Refer to P35 for information about how
to play back pictures.
2Press [MENU/SET] to close the
menu.
∫Rotate
(The picture is rotated manually.)
1Press 21 to select the picture
and then press 4.
 The [ROTATE] function is disabled
when [ROTATE DISP.] is set to [OFF].
 Motion...
