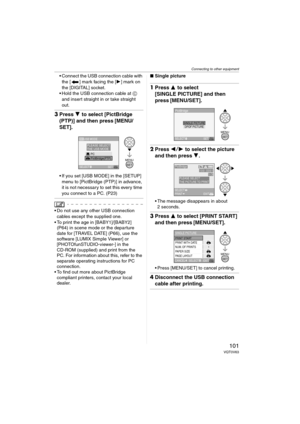

Panasonic Dmc Fz7 Operating Instructions Manual

Connecting to other equipment
101VQT0V63
 Connect the USB connection cable with
the [ ] mark facing the [1] mark on
the [DIGITAL] socket.
 Hold the USB connection cable at C
and insert straight in or take straight
out.
3Press 4 to select [PictBridge
(PTP)] and then press [MENU/
SET].
 If you set [USB MODE] in the [SETUP]
menu to [PictBridge (PTP)] in advance,
it is not necessary to set this every time
you connect to a PC. (P23)
 Do not use any other USB connection
cables except the supplied...

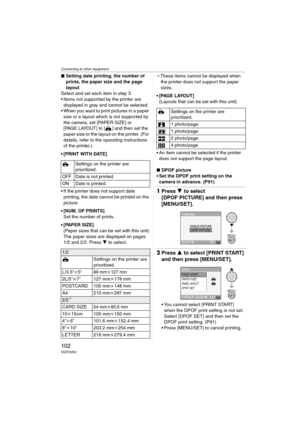

Connecting to other equipment
102VQT0V63
∫Setting date printing, the number of
prints, the paper size and the page
layout
Select and set each item in step 3.
 Items not supported by the printer are
displayed in gray and cannot be selected.
 When you want to print pictures in a paper
size or a layout which is not supported by
the camera, set [PAPER SIZE] or
[PAGE LAYOUT] to [ ] and then set the
paper size or the layout on the printer. (For
details, refer to the operating instructions
of the...

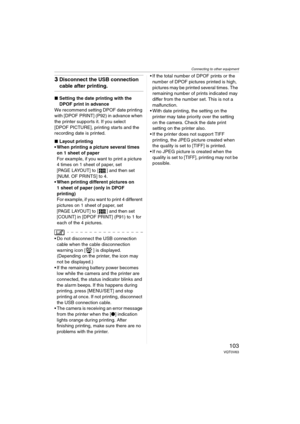

Connecting to other equipment
103VQT0V63
3Disconnect the USB connection
cable after printing.
∫Setting the date printing with the
DPOF print in advance
We recommend setting DPOF date printing
with [DPOF PRINT] (P92) in advance when
the printer supports it. If you select
[DPOF PICTURE], printing starts and the
recording date is printed.
∫Layout printing
 When printing a picture several times
on 1 sheet of paper
For example, if you want to print a picture
4 times on 1 sheet of paper, set
[PAGE...

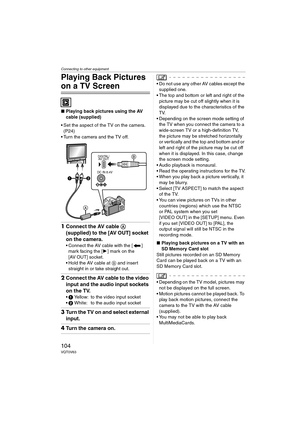

Connecting to other equipment
104VQT0V63
Playing Back Pictures
on a TV Screen
∫Playing back pictures using the AV
cable (supplied)
 Set the aspect of the TV on the camera.
(P24)
 Turn the camera and the TV off.
1Connect the AV cable A
(supplied) to the [AV OUT] socket
on the camera.
 Connect the AV cable with the [ ]
mark facing the [1] mark on the
[AV OUT] socket.
 Hold the AV cable at B and insert
straight in or take straight out.
2Connect the AV cable to the video
input and the audio...

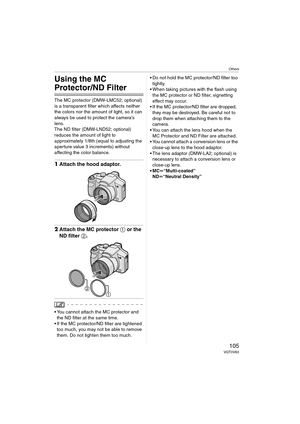

Others
105VQT0V63
Others
Using the MC
Protector/ND Filter
The MC protector (DMW-LMC52; optional)
is a transparent filter which affects neither
the colors nor the amount of light, so it can
always be used to protect the camera’s
lens.
The ND filter (DMW-LND52; optional)
reduces the amount of light to
approximately 1/8th (equal to adjusting the
aperture value 3 increments) without
affecting the color balance.
1Attach the hood adaptor.
2Attach the MC protector 1 or the
ND filter 2.
 You cannot...

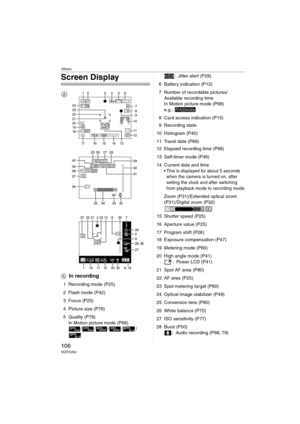

Others
106VQT0V63
Screen Display
AIn recording
1 Recording mode (P25)
2 Flash mode (P42)
3 Focus (P25)
4 Picture size (P78)
5 Quality (P78)
In Motion picture mode (P68)
//// /: Jitter alert (P28)
6 Battery indication (P12)
7 Number of recordable pictures/
Available recording time
In Motion picture mode (P68)
e.g.:
8 Card access indication (P15)
9 Recording state
10 Histogram (P40)
11 Travel date (P66)
12 Elapsed recording time (P68)
13 Self-timer mode (P46)
14 Current date and time
 This is displayed...

Others
107VQT0V63
29 Color effect mode (P82)
30 Focus range (P56)
31 Continuous AF (P81)
32 Joystick operation (P26, 35, 36, 53, 54)
33 MF operation (P56)
34 Number of days that have passed since
the travel date (P66)
 This is displayed for about 5 seconds if
the camera is turned on when the
travel date is set, after setting the
clock, departure date or travel date
and after switching from playback
mode to another mode.
35 Age (P64)
 This is displayed for about 5 seconds
when the camera is...

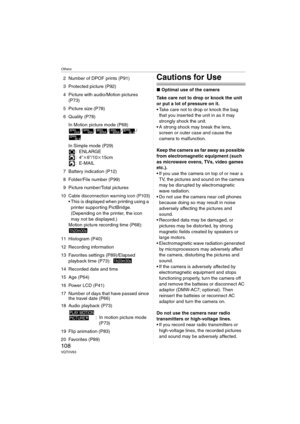

Others
108VQT0V63
2 Number of DPOF prints (P91)
3 Protected picture (P92)
4 Picture with audio/Motion pictures
(P73)
5 Picture size (P78)
6 Quality (P78)
In Motion picture mode (P68)
//// /
In Simple mode (P29)
:ENLARGE
:4qk6q/10k15cm
: E-MAIL
7 Battery indication (P12)
8 Folder/File number (P99)
9 Picture number/Total pictures
10 Cable disconnection warning icon (P103) This is displayed when printing using a
printer supporting PictBridge.　
(Depending on the printer, the icon
may not be displayed.)...

Others

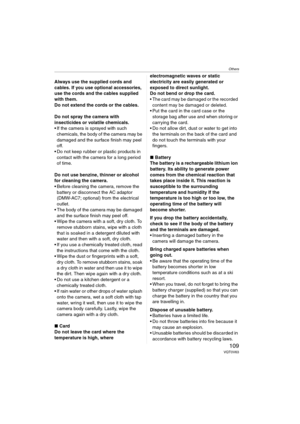

109VQT0V63
Always use the supplied cords and
cables. If you use optional accessories,
use the cords and the cables supplied
with them.
Do not extend the cords or the cables.
Do not spray the camera with
insecticides or volatile chemicals.
 If the camera is sprayed with such
chemicals, the body of the camera may be
damaged and the surface finish may peel
off.
 Do not keep rubber or plastic products in
contact with the camera for a long period
of time.
Do not use benzine, thinner or...

Others
110VQT0V63
Call the RBRC hotline on 1-800-822-8837
for information.
Do not allow battery terminals to come
into contact with metal objects (such as
necklaces, hairpins etc.).
 This can cause short circuiting or heat
generation and you may be badly burned
if you touch a battery.
∫Charger
 If you use the battery charger near a
radio, the radio reception may be
disturbed. Keep the charger 1 m
(3.28 feet) or more away from radios.
 The charger may generate whirring
sounds when it is being...
