Application (Record)

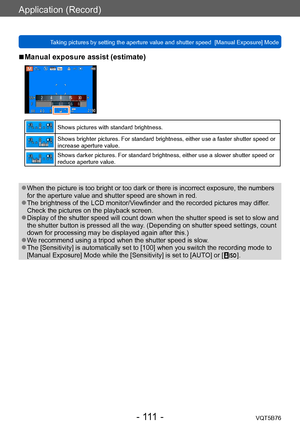

Taking pictures by setting the aperture value and shutter speed  [Manual Exposure] ModeVQT5B76
- 111 -
 ■Manual exposure assist (estimate)
Shows pictures with standard brightness.
Shows brighter pictures. For standard brightness, either use a faster shutter speed or
increase aperture value.
Shows darker pictures. For standard brightness, either use a slower shutter speed or
reduce aperture value.
 ●When the picture is too bright or too dark or there is incorrect exposure, the...

Application (Record)

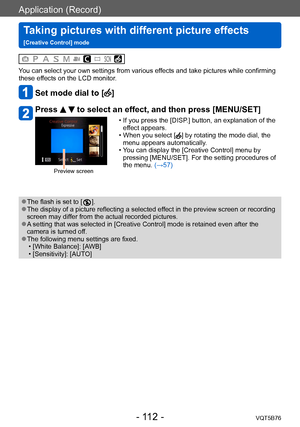

Taking pictures with different picture effects
[Creative Control] modeVQT5B76
- 112 -
You can select your own settings from various effects and take pictures while confirming
these effects on the LCD monitor.
Set mode dial to []
Press   to select an effect, and then press [MENU/SET]
Preview screen
 • If you press the [DISP.] button, an explanation of the
effect appears.
 • When you select [] by rotating the mode dial, the
menu appears automatically.
 • Y

ou can display the...

Application (Record)
Taking pictures with different picture effects  [Creative Control] modeVQT5B76
- 113 -

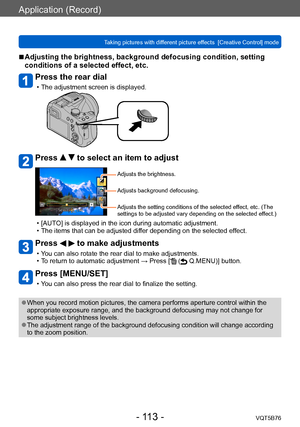

 ■Adjusting the brightness, background defocusing condition, setting
conditions of a selected effect, etc.
Press the rear dial
 • The adjustment screen is displayed.
Press   to select an item to adjust
Adjusts the brightness.
Adjusts background defocusing.
Adjusts the setting conditions of the selected effect, etc. (The
settings to be adjusted vary depending on the selected effect.)
 • [AUTO] is...

Application (Record)

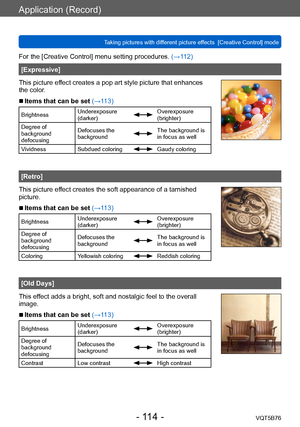

Taking pictures with different picture effects  [Creative Control] modeVQT5B76
- 114 -
For the [Creative Control] menu setting procedures. (→112)
[Expressive]
This picture effect creates a pop art style picture that enhances
the color.
 ■Items that can be set (→113)
Brightness Underexposure
(darker)Overexposure
(brighter)
Degree of
background
defocusing Defocuses the
background
The background is
in focus as well
Vividness Subdued coloring
Gaudy coloring
[Retro]
This picture...

Application (Record)
Taking pictures with different picture effects  [Creative Control] modeVQT5B76
- 115 -
For the [Creative Control] menu setting procedures. (→112)

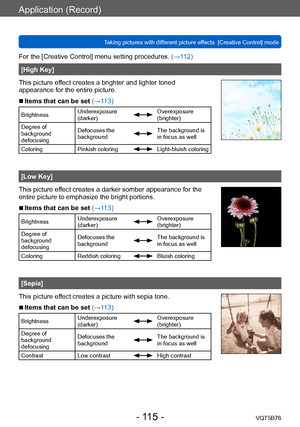

[High Key]
This picture effect creates a brighter and lighter toned
appearance for the entire picture.
 ■Items that can be set (→113)
Brightness Underexposure
(darker)Overexposure
(brighter)
Degree of
background
defocusing Defocuses the
background
The background is
in focus as well
Coloring Pinkish coloring
Light-bluish coloring
[Low...

Application (Record)

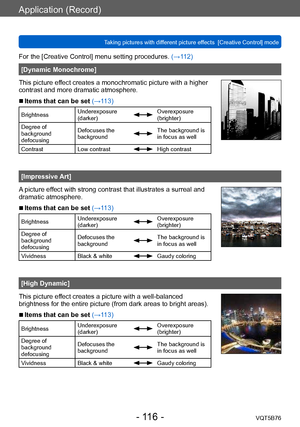

Taking pictures with different picture effects  [Creative Control] modeVQT5B76
- 116 -
For the [Creative Control] menu setting procedures. (→112)
[Dynamic Monochrome]
This picture effect creates a monochromatic picture with a higher
contrast and more dramatic atmosphere.
 ■Items that can be set (→113)
Brightness Underexposure
(darker)Overexposure
(brighter)
Degree of
background
defocusing Defocuses the
background
The background is
in focus as well
Contrast Low contrast
High...

Application (Record)

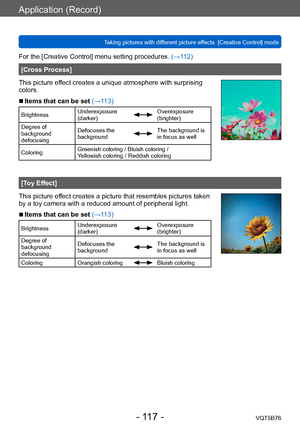

Taking pictures with different picture effects  [Creative Control] modeVQT5B76
- 117 -
For the [Creative Control] menu setting procedures. (→112)
[Cross Process]
This picture effect creates a unique atmosphere with surprising
colors.
 ■Items that can be set (→113)
Brightness Underexposure
(darker)Overexposure
(brighter)
Degree of
background
defocusing Defocuses the
background
The background is
in focus as well
Coloring Greenish coloring / Bluish coloring /
Yellowish coloring...

Application (Record)

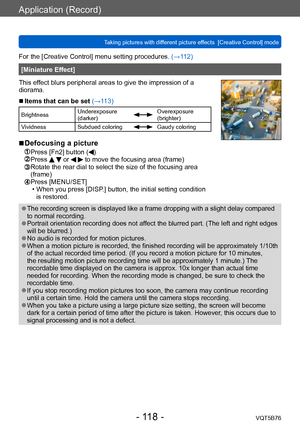

Taking pictures with different picture effects  [Creative Control] modeVQT5B76
- 118 -
For the [Creative Control] menu setting procedures. (→112)
[Miniature Effect]
This effect blurs peripheral areas to give the impression of a
diorama.
 ■Items that can be set (→113)
Brightness Underexposure
(darker)Overexposure
(brighter)
Vividness Subdued coloring
Gaudy coloring
 ■Defocusing a picture
 Press [Fn2] button () Press   or   to move the focusing area (frame)  Rotate the rear dial to...

Application (Record)

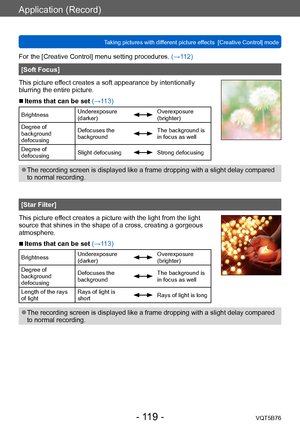

Taking pictures with different picture effects  [Creative Control] modeVQT5B76
- 119 -
For the [Creative Control] menu setting procedures. (→112)
[Soft Focus]
This picture effect creates a soft appearance by intentionally
blurring the entire picture.
 ■Items that can be set (→113)
Brightness Underexposure
(darker)Overexposure
(brighter)
Degree of
background
defocusing Defocuses the
background
The background is
in focus as well
Degree of
defocusing Slight defocusing
Strong...

Application (Record)

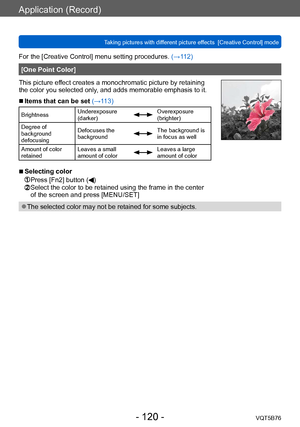

Taking pictures with different picture effects  [Creative Control] modeVQT5B76
- 120 -
For the [Creative Control] menu setting procedures. (→112)
[One Point Color]
This picture effect creates a monochromatic picture by retaining
the color you selected only, and adds memorable emphasis to it.
 ■Items that can be set (→113)
Brightness Underexposure
(darker)Overexposure
(brighter)
Degree of
background
defocusing Defocuses the
background
The background is
in focus as well
Amount...
