Connecting with other devices
Keeping the still pictures and motion pictures on your PCVQT5B76
- 191 -

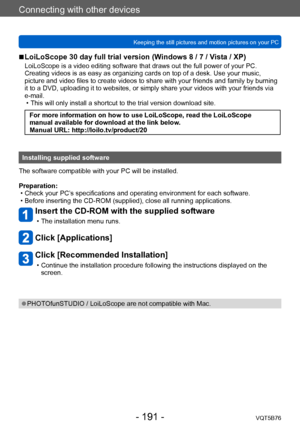

 ■LoiLoScope 30 day full trial version (Windows 8 / 7 / Vista / XP)
LoiLoScope is a video editing software that draws out the full power of your PC.
Creating videos is as easy as organizing cards on top of a desk. Use your music,
picture and video files to create videos to share with your friends and family by burning
it to a DVD, uploading it to websites, or simply share your videos with your...

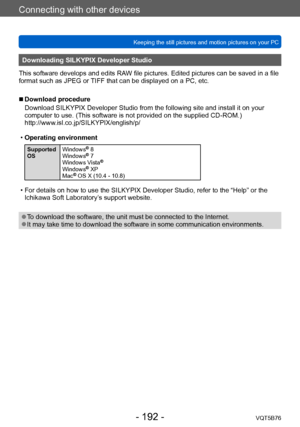

Connecting with other devices
Keeping the still pictures and motion pictures on your PCVQT5B76
- 192 -
Downloading SILKYPIX Developer Studio
This software develops and edits RAW file pictures. Edited pictures can be saved in a file
format such as JPEG or TIFF that can be displayed on a PC, etc.
 ■ Download procedure
Download SILKYPIX Developer Studio from the following site and install it on your
computer to use. (This software is not provided on the supplied CD-ROM.)...

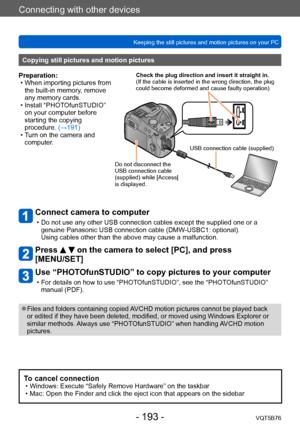

Connecting with other devices
Keeping the still pictures and motion pictures on your PCVQT5B76
- 193 -
Connect camera to computer
 • Do not use any other USB connection cables except the supplied one or a genuine Panasonic USB connection cable (DMW -USBC1: optional).
Using cables other than the above may cause a malfunction.
Press   on the camera to select [PC], and press
[MENU/SET]
Use “PHOTOfunSTUDIO” to copy pictures to your computer
 • For details on how to use “PHOT OfunSTUDIO”, see the...

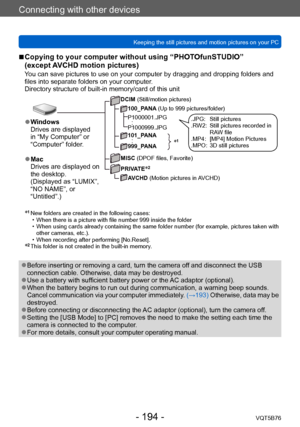

Connecting with other devices
Keeping the still pictures and motion pictures on your PCVQT5B76
- 194 -
 ■Copying to your computer without using “PHOTOfunSTUDIO”
(except AVCHD motion pictures)
You can save pictures to use on your computer by dragging and dropping folders and
files into separate folders on your computer.
Directory structure of built-in memory/card of this unit
DCIM (Still/motion pictures)100_PANA (Up to 999 pictures/folder)
101_PANA
  :999_PANA
MISC (DPOF...

Connecting with other devices
Keeping the still pictures and motion pictures on your PCVQT5B76

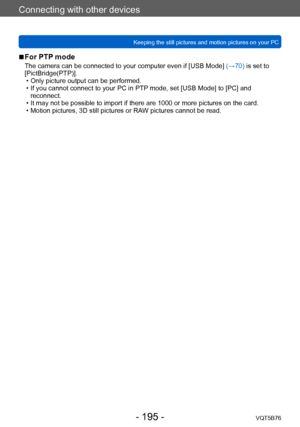

- 195 -
 ■For PTP mode
The camera can be connected to your computer even if [USB Mode]  (→70) is set to
[PictBridge(PTP)].
 • Only picture output can be performed. • If you cannot connect to your PC in PTP

 mode, set [USB Mode] to [PC] and
reconnect.
 • It may not be possible to import if there are 1000 or more pictures on the card. • Motion pictures, 3D still pictures or RA

W pictures cannot be read.

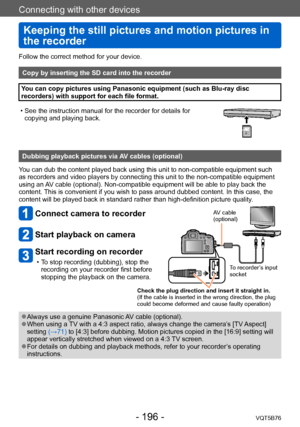

Connecting with other devices
Keeping the still pictures and motion pictures in
the recorder
VQT5B76- 196 -
Follow the correct method for your device.
Copy by inserting the SD card into the recorder
You can copy pictures using Panasonic equipment (such as Blu-ray disc
recorders) with support for each file format.
 • See the instruction manual for the recorder for details for copying and playing back.
323232
Dubbing playback pictures via AV cables (optional)
You can dub the content played back using...

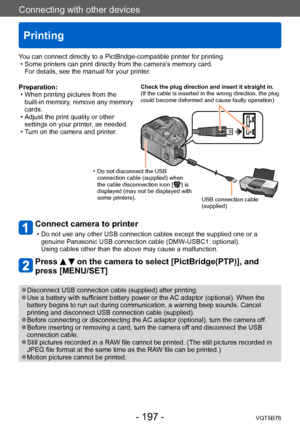

Connecting with other devices
Printing
VQT5B76- 197 -
Preparation: • When printing pictures from the built-in memory
, remove any memory
cards.
 • Adjust the print quality or other  settings on your printer

, as needed.
 • T

urn on the camera and printer.
Connect camera to printer
 • Do not use any other USB connection cables except the supplied one or a genuine Panasonic USB connection cable (DMW -USBC1: optional).
Using cables other than the above may cause a malfunction.
Press   on the camera to...

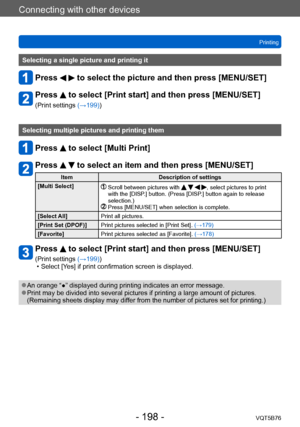

Connecting with other devices
Printing
VQT5B76
- 198 -
Selecting a single picture and printing it
Press   to select the picture and then press [MENU/SET]
Press  to select [Print start] and then press [MENU/SET]
(Print settings (→199))
Selecting multiple pictures and printing them
Press  to select [Multi Print]
Press   to select an item and then press [MENU/SET]
Item Description of settings
[Multi Select]
  Scroll between pictures with    , select pictures to print
with the [DISP.] button. (Press [DISP.]...

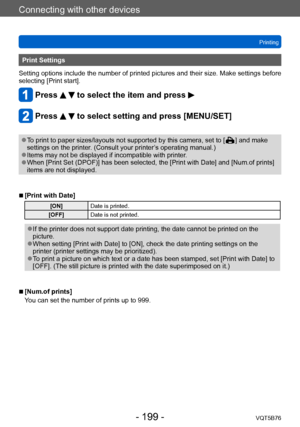

Connecting with other devices
Printing
VQT5B76
- 199 -
Print Settings
Setting options include the number of printed pictures and their size. Make settings before
selecting [Print start].
Press   to select the item and press
Press   to select setting and press [MENU/SET]
 ●To print to paper sizes/layouts not supported by this camera, set to [  ] and make
settings on the printer
. (Consult your printer’s operating manual.)
 ●Items may not be displayed if incompatible with printer. ●When [Print Set...

Connecting with other devices
Printing
VQT5B76

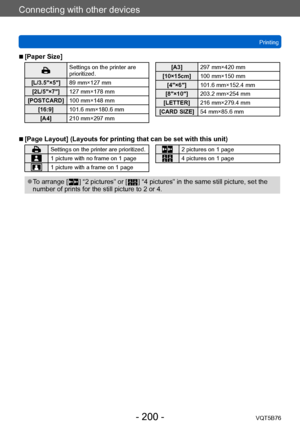

- 200 -
 ■[Paper Size]
Settings on the printer are
prioritized.
[L/3.5″×5″] 89 mm×127 mm
[2L/5″×7″] 127 mm×178 mm
[POSTCARD] 100 mm×148 mm
[16:9] 101.6 mm×180.6 mm
[A4] 210 mm×297 mm[A3]297 mm×420 mm
[10×15cm] 100 mm×150 mm
[4″×6″] 101.6 mm×152.4 mm
[8″×10″] 203.2 mm×254 mm
[LETTER] 216 mm×279.4 mm
[CARD SIZE] 54 mm×85.6 mm
 ■[Page Layout] (Layouts for printing that can be set with this unit)
Settings on the printer are prioritized.
1 picture with no frame...
