Connecting with other devices
Printing
VQT5B76
- 201 -

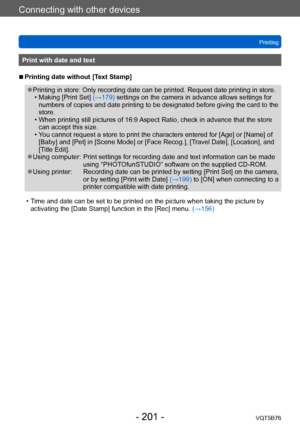

Print with date and text
 ■Printing date without [Text Stamp]
 ●Printing in store: Only recording date can be printed. Request date printing in store. • Making [Print Set]  (→179) settings on the camera in advance allows settings for
numbers of copies and date printing to be designated before giving the card to the
store.
 • When printing still pictures of 16:9

Aspect Ratio, check in advance that the store
can accept this size.
 • Y

ou cannot...

Others
Optional accessories
VQT5B76- 202 -
Others

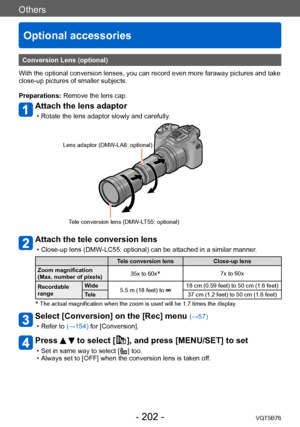

Conversion Lens (optional)
With the optional conversion lenses, you can record even more faraway pictures and take
close-up pictures of smaller subjects.
Preparations: Remove the lens cap.
Attach the lens adaptor
 • Rotate the lens adaptor slowly and carefully .
Lens adaptor (DMW-LA8: optional)
Tele conversion lens (DMW-LT55: optional)
Attach the tele conversion lens
 • Close-up lens (DMW -LC55: optional) can be attached in a similar manner.
Tele...

Others
Optional accessoriesVQT5B76
- 203 -

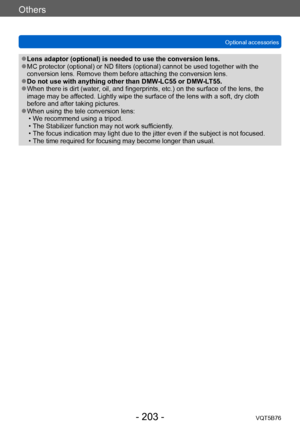

 ●Lens adaptor (optional) is needed to use the conversion lens. ●MC protector (optional) or ND filters (optional) cannot be used together with the
conversion lens. Remove them before attaching the conversion lens.
 ●Do not use with anything other than DMW-LC55 or DMW-LT55. ●When there is dirt (water, oil, and fingerprints, etc.) on the surface of the lens, the
image may be affected. Lightly wipe the surface of the lens with a soft, dry cloth
before and after...

Others
Optional accessoriesVQT5B76
- 204 -

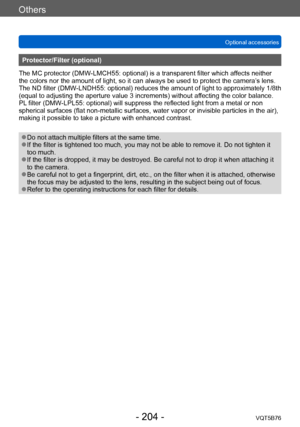

Protector/Filter (optional)
The MC protector (DMW-LMCH55: optional) is a transparent filter which affects neither
the colors nor the amount of light, so it can always be used to protect the camera’ s lens.
The ND filter (DMW-LNDH55: optional) reduces the amount of light to approximately 1/8th
(equal to adjusting the aperture value 3 increments) without affecting the color balance.
PL filter (DMW-LPL55: optional) will suppress the reflected light from a metal...

Others
Optional accessoriesVQT5B76
- 205 -

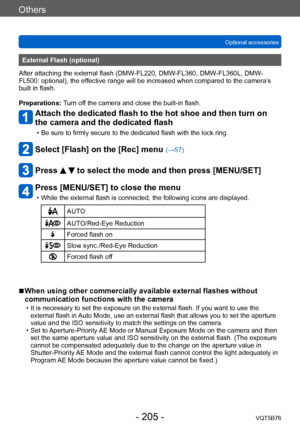

External Flash (optional)
After attaching the external flash (DMW-FL220, DMW-FL360, DMW-FL360L, DMW-
FL500: optional), the effective range will be increased when compared to the camera’s
built in flash.
Preparations: Turn off the camera and close the built-in flash.
Attach the dedicated flash to the hot shoe and then turn on
the camera and the dedicated flash
 • Be sure to firmly secure to the dedicated flash with the lock ring.
Select [Flash] on the [Rec]...

Others
Optional accessoriesVQT5B76
- 206 -

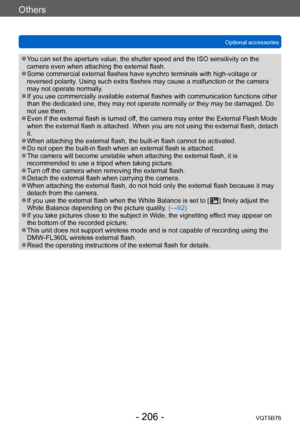

 ●You can set the aperture value, the shutter speed and the ISO sensitivity on the
camera even when attaching the external flash.
 ●Some commercial external flashes have synchro terminals with high-voltage or
reversed polarity. Using such extra flashes may cause a malfunction or the camera
may not operate normally.
 ●If you use commercially available external flashes with communication functions other
than the dedicated one, they may not operate normally or...

Others
Optional accessoriesVQT5B76
- 207 -

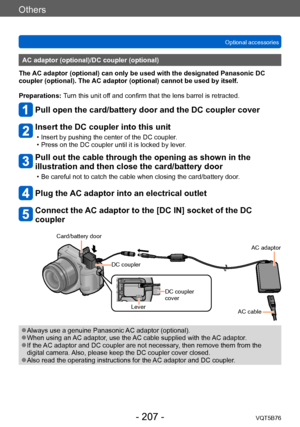

AC adaptor (optional)/DC coupler (optional)
The AC adaptor (optional) can only be used with the designated Panasonic DC
coupler (optional). The AC adaptor (optional) cannot be used by itself.
Preparations: Turn this unit off and confirm that the lens barrel is retracted.
Pull open the card/battery door and the DC coupler cover
Insert the DC coupler into this unit
 • Insert by pushing the center of the DC coupler . • Press on the DC coupler until it is locked by...

Others

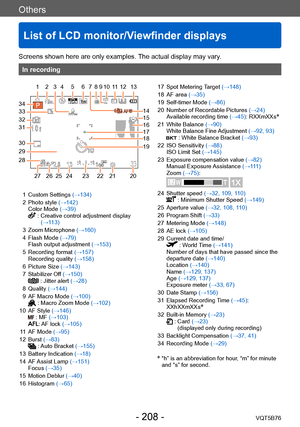

List of LCD monitor/Viewfinder displays
VQT5B76- 208 -
Screens shown here are only examples. The actual display may vary.
In recording
1 Custom Settings (→134)
2 Photo style (→142)Color Mode  (→39)
 :  Creative control  adjustment display
(→113)
3 Zoom Microphone  (→160)
4 Flash Mode (→79) Flash output adjustment  (→153)
5 Recording format  (→157)
Recording quality  (→158)
6 Picture Size (→143)
7 Stabilizer Off (→150)
 : Jitter alert (→28)
8 Quality (→144)
9 AF Macro Mode (→100)
 : Macro Zoom...

Others
List of LCD monitor/Viewfinder displaysVQT5B76
- 209 -

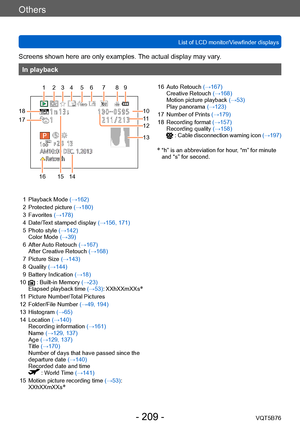

Screens shown here are only examples. The actual display may vary.
In playback
1 Playback Mode (→162)
2 Protected picture (→180)
3 Favorites (→178)
4 Date/Text stamped display  (→156, 171)
5 Photo style (→142) Color Mode  (→39)
6 After Auto Retouch (→167) After Creative Retouch  (→168)
7 Picture Size (→143)
8 Quality (→144)
9 Battery Indication (→18)
10
 : Built-in Memory (→23)
Elapsed playback time  (→53): XXhXXmXXs*
11 Picture Number/Total...

Others

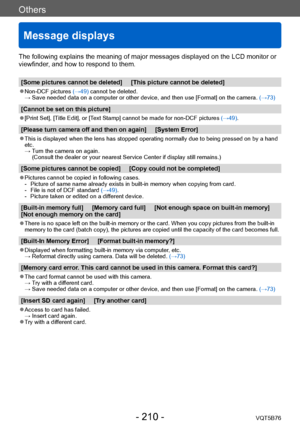

Message displays
VQT5B76- 210 -
The following explains the meaning of major messages displayed on the LCD monitor or
viewfinder, and how to respond to them.
[Some pictures cannot be deleted]     [This picture cannot be deleted]
 ●Non-DCF pictures (→49) cannot be deleted. →
 Save needed da ta on a computer or other device, and then use [Format] on the camera.  (→73)
[Cannot be set on this picture]
 ●[Print Set], [Title Edit], or [Text Stamp] cannot be made for non-DCF pictures (→49).
[Please turn...
