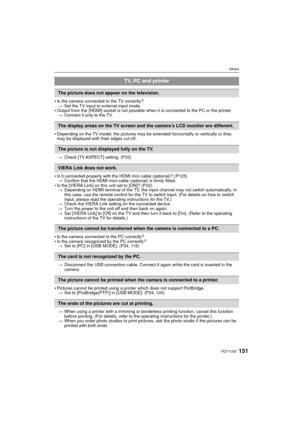

Page 151
![Page 151
151VQT1U32
Others
Is the camera connected to the TV correctly?> Set the TV input to external input mode.
Output from the [HDMI] socket is not possible when it is connected to the PC or the printer.
> Connect it only to the TV.
Depending on the TV model, the pictures may be extended horizontally or vertically or they
may be displayed with their edges cut off.
> Check [TV ASPECT] setting. (P32)
Is it connected properly with the HDMI mini cable (optional)? (P125)
> Confirm that the HDMI mini-cable...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-150.png "Page 151
151VQT1U32
Others
Is the camera connected to the TV correctly?> Set the TV input to external input mode.
Output from the [HDMI] socket is not possible when it is connected to the PC or the printer.
> Connect it only to the TV.
Depending on the TV model, the pictures may be extended horizontally or vertically or they
may be displayed with their edges cut off.
> Check [TV ASPECT] setting. (P32)
Is it connected properly with the HDMI mini cable (optional)? (P125)
> Confirm that the HDMI mini-cable...")
151VQT1U32 Others Is the camera connected to the TV correctly?> Set the TV input to external input mode. Output from the [HDMI] socket is not possible when it is connected to the PC or the printer. > Connect it only to the TV. Depending on the TV model, the pictures may be extended horizontally or vertically or they may be displayed with their edges cut off. > Check [TV ASPECT] setting. (P32) Is it connected properly with the HDMI mini cable (optional)? (P125) > Confirm that the HDMI mini-cable...

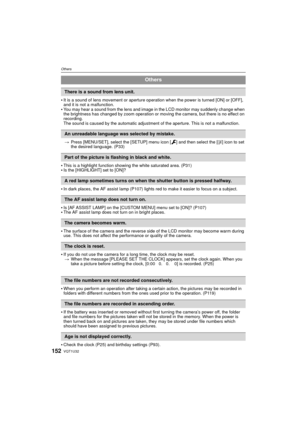

Page 152
![Page 152
VQT1U32152
Others
It is a sound of lens movement or aperture operation when the power is turned [ON] or [OFF],
and it is not a malfunction.
You may hear a sound from the lens and image in the LCD monitor may suddenly change when
the brightness has changed by zoom operation or moving the camera, but there is no effect on
recording.
The sound is caused by the automatic adjustment of the aperture. This is not a malfunction.> Press [MENU/SET], select the [SETUP] menu icon [ ] and then select the [ ~] icon...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-151.png "Page 152
VQT1U32152
Others
It is a sound of lens movement or aperture operation when the power is turned [ON] or [OFF],
and it is not a malfunction.
You may hear a sound from the lens and image in the LCD monitor may suddenly change when
the brightness has changed by zoom operation or moving the camera, but there is no effect on
recording.
The sound is caused by the automatic adjustment of the aperture. This is not a malfunction.> Press [MENU/SET], select the [SETUP] menu icon [ ] and then select the [ ~] icon...")
VQT1U32152 Others It is a sound of lens movement or aperture operation when the power is turned [ON] or [OFF], and it is not a malfunction. You may hear a sound from the lens and image in the LCD monitor may suddenly change when the brightness has changed by zoom operation or moving the camera, but there is no effect on recording. The sound is caused by the automatic adjustment of the aperture. This is not a malfunction.> Press [MENU/SET], select the [SETUP] menu icon [ ] and then select the [ ~] icon...

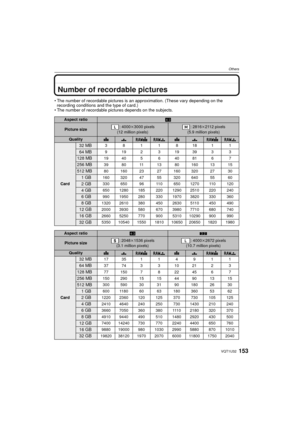

Page 153
153VQT1U32 Others OthersNumber of recordable pictures •The number of recordable pictures is an approximation. (These vary depending on the recording conditions and the type of card.) The number of recordable pictures depends on the subjects. Aspect ratioX Picture size: 4000 k3000 pixels (12 million pixels): 2816 k2112 pixels (5.9 million pixels) QualityA › A › Card 32 MB381181811 64 MB9192 319393 3 128 MB19 40 5 6 40 81 6 7 256 MB39 80 11 13 80 160 13 15 512 MB8016023 2716032027 30 1GB160 320 47 55...

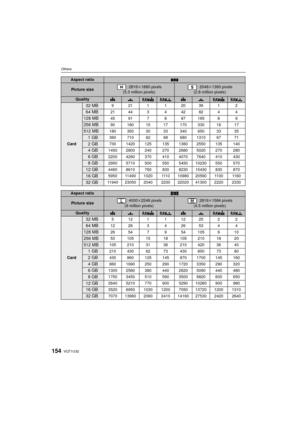

Page 154
VQT1U32154 Others Aspect ratioY Picture size: 2816k1880 pixels (5.3 million pixels): 2048k 1360 pixels (2.8 million pixels) QualityA › A › Card 32 MB9211 120391 2 64 MB21 44 3 4 42 82 4 4 128 MB45 91 7 8 87 165 8 9 256 MB90 180 15 17 170 330 16 17 512 MB180 350 30 33 340 650 33 35 1GB360 710 62 68 680 1310 67 71 2GB730 1420 125 135 1360 2550 135 140 4GB1450 2800 240 270 2680 5020 270 280 6GB2200 4260 370 410 4070 7640 410 430 8GB2950 5710 500 550 5450 10230 550 570 12 GB4460 8610 760 830 8230 15430 830...

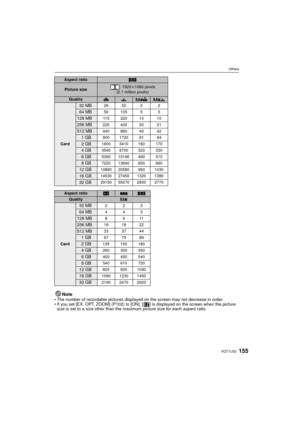

Page 155
![Page 155
155VQT1U32
Others
NoteThe number of recordable pictures displayed on the screen may not decrease in order.
If you set [EX. OPT. ZOOM] (P102) to [ON], [ ] is displayed on the screen when the picture
size is set to a size other than the maximum picture size for each aspect ratio.
Aspect ratioW
Picture size: 1920 k1080 pixels
(2.1 million pixels)
QualityA ›
Card
32 MB26 52 2 2
64 MB56 105 5 5
128 MB115 220 10 10
256 MB220 430 20 21
512 MB440 860 40 42
1GB900 1720 81 84
2GB1800 3410 160 170
4GB3540 6700...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-154.png "Page 155
155VQT1U32
Others
NoteThe number of recordable pictures displayed on the screen may not decrease in order.
If you set [EX. OPT. ZOOM] (P102) to [ON], [ ] is displayed on the screen when the picture
size is set to a size other than the maximum picture size for each aspect ratio.
Aspect ratioW
Picture size: 1920 k1080 pixels
(2.1 million pixels)
QualityA ›
Card
32 MB26 52 2 2
64 MB56 105 5 5
128 MB115 220 10 10
256 MB220 430 20 21
512 MB440 860 40 42
1GB900 1720 81 84
2GB1800 3410 160 170
4GB3540 6700...")
155VQT1U32 Others NoteThe number of recordable pictures displayed on the screen may not decrease in order. If you set [EX. OPT. ZOOM] (P102) to [ON], [ ] is displayed on the screen when the picture size is set to a size other than the maximum picture size for each aspect ratio. Aspect ratioW Picture size: 1920 k1080 pixels (2.1 million pixels) QualityA › Card 32 MB26 52 2 2 64 MB56 105 5 5 128 MB115 220 10 10 256 MB220 430 20 21 512 MB440 860 40 42 1GB900 1720 81 84 2GB1800 3410 160 170 4GB3540 6700...
Page 156
VQT1U32156 Others Specifications Digital Camera Body (DMC-G1):Information for your safety Power Source: DC 9.3 V Power Consumption: 2.8 W (When recording with LCD Monitor) 2.6 W (When recording with Viewfinder) 1.7 W (When playing back with LCD Monitor) 1.6 W (When playing back with Viewfinder) Camera effective pixels:12,100,000 pixels Image sensor: 4/3q Live MOS sensor, total pixel number 13,060,000 pixels, Primary color filter Digital zoom: Max. 4k Extended optical zoom: (Except for the maximum...

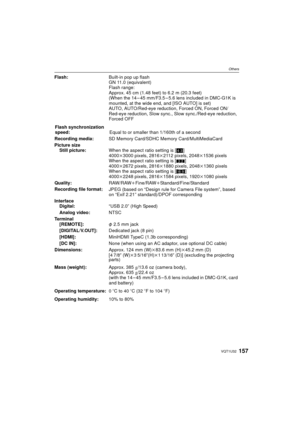

Page 157
![Page 157
157VQT1U32
Others
Flash:Built-in pop up flash
GN 11.0 (equivalent)
Flash range:
Approx. 45 cm (1.48 feet) to 6.2 m (20.3 feet)
(When the 14 – 45 mm/F3.5 – 5.6 lens included in DMC-G1K is
mounted, at the wide end, and [ISO AUTO] is set)
AUTO, AUTO/Red-eye reduction, Forced ON, Forced ON/
Red-eye reduction, Slow sync., Slow sync./Red-eye reduction,
Forced OFF
Flash synchronization
speed: Equal to or smaller than 1/160th of a second
Recording media: SD Memory Card/SDHC Memory Card
/MultiMediaCard...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-156.png "Page 157
157VQT1U32
Others
Flash:Built-in pop up flash
GN 11.0 (equivalent)
Flash range:
Approx. 45 cm (1.48 feet) to 6.2 m (20.3 feet)
(When the 14 – 45 mm/F3.5 – 5.6 lens included in DMC-G1K is
mounted, at the wide end, and [ISO AUTO] is set)
AUTO, AUTO/Red-eye reduction, Forced ON, Forced ON/
Red-eye reduction, Slow sync., Slow sync./Red-eye reduction,
Forced OFF
Flash synchronization
speed: Equal to or smaller than 1/160th of a second
Recording media: SD Memory Card/SDHC Memory Card
/MultiMediaCard...")
157VQT1U32 Others Flash:Built-in pop up flash GN 11.0 (equivalent) Flash range: Approx. 45 cm (1.48 feet) to 6.2 m (20.3 feet) (When the 14 – 45 mm/F3.5 – 5.6 lens included in DMC-G1K is mounted, at the wide end, and [ISO AUTO] is set) AUTO, AUTO/Red-eye reduction, Forced ON, Forced ON/ Red-eye reduction, Slow sync., Slow sync./Red-eye reduction, Forced OFF Flash synchronization speed: Equal to or smaller than 1/160th of a second Recording media: SD Memory Card/SDHC Memory Card /MultiMediaCard...

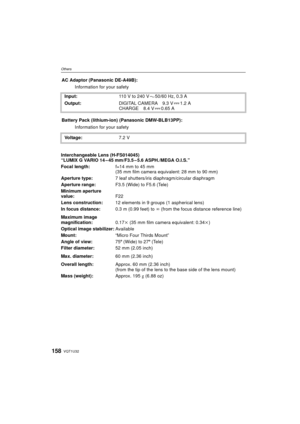

Page 158
VQT1U32158 Others Interchangeable Lens (H-FS014045) “LUMIX G VARIO 14 – 45 mm/F3.5 – 5.6 ASPH./MEGA O.I.S.”AC Adaptor (Panasonic DE-A49B): Information for your safety Input: 110 V to 240 V 50/60 Hz, 0.3 A Output: DIGITAL CAMERA 9.3 V 1.2 A CHARGE 8.4 V 0.65 A Battery Pack (lithium-ion) (Panasonic DMW-BLB13PP): Information for your safety Voltage: 7.2 V Focal length: f=14 mm to 45 mm (35 mm film camera equivalent: 28 mm to 90 mm) Aperture type: 7 leaf shutters/iris diaphragm/circular diaphragm Aperture...

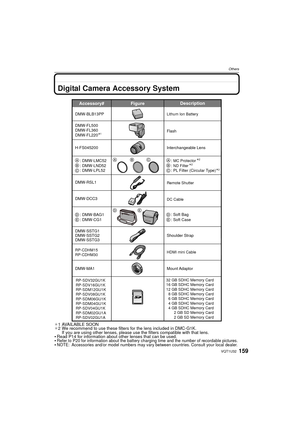

Page 159
159VQT1U32 Others OthersDigital Camera Accessory System ¢1 AVAILABLE SOON ¢ 2 We recommend to use these filters for the lens included in DMC-G1K. If you are using other lenses, please use the filters compatible with that lens. Read P14 for information about other lenses that can be used.Refer to P20 for information about the battery charging time and the number of recordable pictures.NOTE: Accessories and/or model numbers may vary between countries. Consult your local dealer. Accessory# Description...

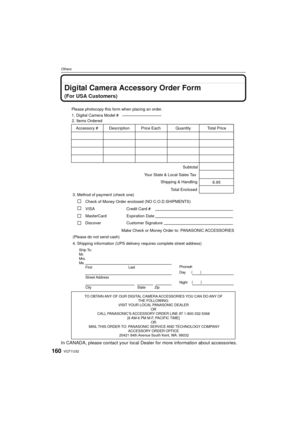

Page 160
![Page 160
VQT1U32160
Others
Digital Camera Accessory Order Form
(For USA Customers)
In CANADA, please contact your local Dealer for more information about accessories.
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
Ship To:...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-159.png "Page 160
VQT1U32160
Others
Digital Camera Accessory Order Form
(For USA Customers)
In CANADA, please contact your local Dealer for more information about accessories.
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
Ship To:...")
VQT1U32160 Others Digital Camera Accessory Order Form (For USA Customers) In CANADA, please contact your local Dealer for more information about accessories. TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING: VISIT YOUR LOCAL PANASONIC DEALER OR CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, PACIFIC TIME] OR MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE 20421 84th Avenue South Kent, WA. 98032 Ship To:...
