Panasonic Dmc G1 Operating Instructions Manual

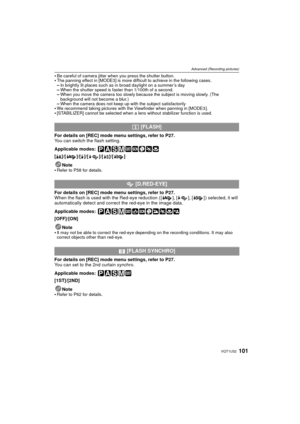

101VQT1U32
Advanced (Recording pictures)
Be careful of camera jitter when you press the shutter button.The panning effect in [MODE3] is more difficult to achieve in the following cases.–In brightly lit places such as in broad daylight on a summer’s day–When the shutter speed is faster than 1/100th of a second.–When you move the camera too slowly because the subject is moving slowly. (The
background will not become a blur.)
–When the camera does not keep up with the subject satisfactorilyWe recommend...

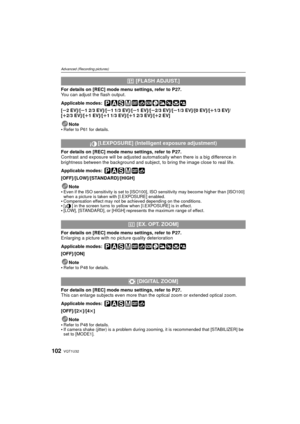

VQT1U32102
Advanced (Recording pictures)
For details on [REC] mode menu settings, refer to  P27.
You can adjust the flash output.
Applicable modes:

[ s2EV]/[ s12/3EV]/[ s1 1/3 EV]/[ s1EV]/[s2/3 EV]/[ s1/3 EV]/[0 EV]/[ r1/3 EV]/
[ r2/3 EV]/[ r1EV]/[r11/3 EV]/[ r12/3EV]/[ r2EV]
Note

Refer to P61 for details.
For details on  [REC] mode menu settings, refer to  P27.
Contrast and exposure will be adjusted automatically when there is a big difference in
brightness between the background and subject,  to...

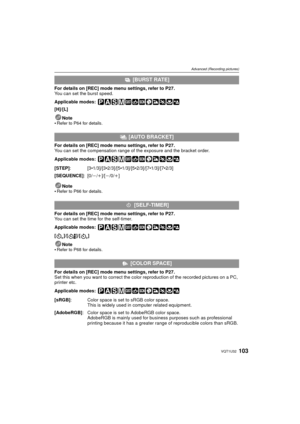

103VQT1U32
Advanced (Recording pictures)
For details on [REC] mode menu settings, refer to P27 .
You can set the burst speed.
Applicable modes:

[H]/[L]
Note

Refer to P64 for details.
For details on  [REC] mode menu settings, refer to P27 .
You can set the compensation range of  the exposure and the bracket order.
Applicable modes:

Note
Refer to P66 for details.
For details on  [REC] mode menu settings, refer to P27 .
You can set the time for the self-timer.
Applicable modes:

[]/[ ]/[]
Note

Refer...

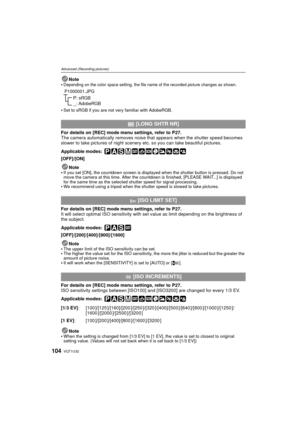

VQT1U32104
Advanced (Recording pictures)
Note
Depending on the color space setting, the file name of the recorded picture changes as shown.
Set to sRGB if you are not very familiar with AdobeRGB.
For details on  [REC] mode menu settings, refer to  P27.
The camera automatically removes noise that appears when the shutter speed becomes
slower to take pictures of night scenery  etc. so you can take beautiful pictures.
Applicable modes:

[OFF]/[ON]
Note

If you set [ON], the countdown screen is displayed...

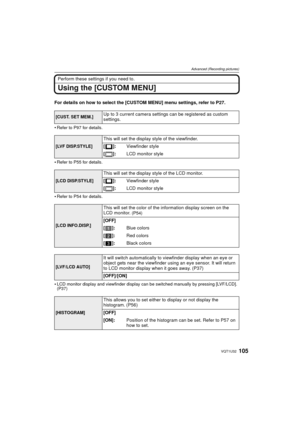

105VQT1U32
Advanced (Recording pictures)
Perform these settings if you need to.
Using the [CUSTOM MENU]
For details on how to select the [CUSTOM MENU] menu settings, refer to P27.

Refer to P97 for details.
Refer to P55 for details.
Refer to P54 for details.
LCD monitor display and viewfinder display can be switched manually by pressing [LVF/LCD].
(P37)
[CUST. SET MEM.]Up to 3 current camera settings can be registered as custom
settings.
[LVF DISP.STYLE]
This will set the display style of the...

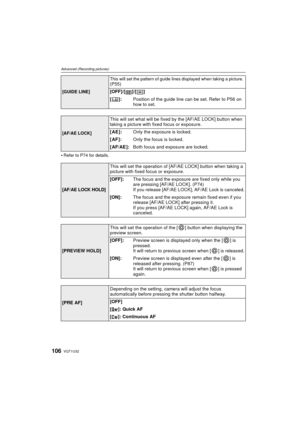

VQT1U32106
Advanced (Recording pictures)
Refer to P74 for details.
[GUIDE LINE]This will set the pattern of guide lines displayed when taking a picture.

(P55)
[OFF]/[ ]/[ ]
[]: Position of the guide line can be set. Refer to P56 on
how to set.
[AF/AE LOCK]
This will set what will be fixed by the [AF/AE LOCK] button when
taking a picture with fixed focus or exposure.
[AE]:Only the exposure is locked.
[AF]: Only the focus is locked.
[AF/AE]: Both focus and exposure are locked.
[AF/AE LOCK HOLD]
This...

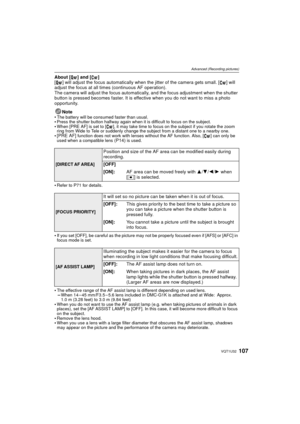

107VQT1U32
Advanced (Recording pictures)
About [] and []
[ ] will adjust the focus automatically when the jitter of the camera gets small. [ ] will
adjust the focus at all times (continuous AF operation).
The camera will adjust the focus automatically, and the focus adjustment when the shutter
button is pressed becomes faster. It is effective when you do not want to miss a photo
opportunity.
Note

The battery will be consumed faster than usual.Press the shutter button halfway again when it is...

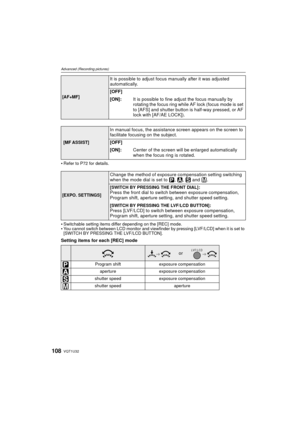

VQT1U32108
Advanced (Recording pictures)
Refer to P72 for details.
Switchable setting items differ depending on the [REC] mode.You cannot switch between LCD monitor and viewfinder by pressing [LVF/LCD] when it is set to
[SWITCH BY PRESSING THE LVF/LCD BUTTON].
Setting items for each [REC] mode
[AF+MF]
It is possible to adjust focus manually after it was adjusted
automatically.
[OFF]
[ON]:It is possible to fine adjust the focus manually by
rotating the focus ring while AF lock (focus mode is set
to...

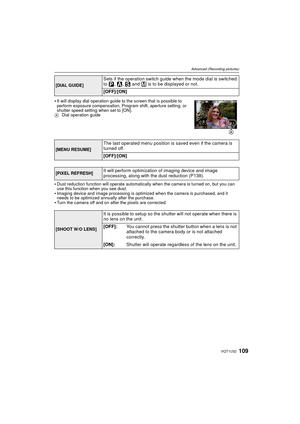

109VQT1U32
Advanced (Recording pictures)
It will display dial operation guide to the screen that is possible to
perform exposure compensation, Program shift, aperture setting, or
shutter speed setting when set to [ON].
A Dial operation guide
Dust reduction function will operate automatically when the camera is turned on, but you can
use this function when you see dust.
Imaging device and image processing is optimized when the camera is purchased, and it
needs to be optimized annually after the...

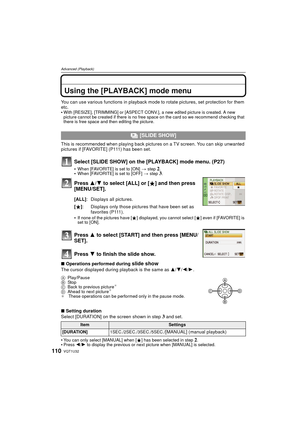

VQT1U32110
Advanced (Playback)
Advanced (Playback)Using the [PLAYBACK] mode menu
You can use various functions in playback mode to rotate pictures, set protection for them
etc.

With [RESIZE], [TRIMMING] or [ASPECT CONV.], a new edited picture is created. A new
picture cannot be created if there is no free space on the card so we recommend checking that
there is free space and then editing the picture.
This is recommended when playing back pict ures on a TV screen. You can skip unwanted
pictures if...
