Panasonic Dmc G1 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc G1 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

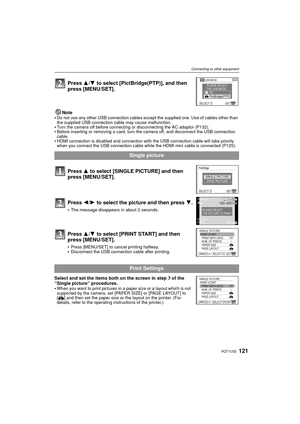

Page 121
![Page 121
121VQT1U32
Connecting to other equipment
Press 3/4 to select [PictBridge(PTP)], and then
press [MENU/SET].
Note
Do not use any other USB connection cables except the supplied one. Use of cables other than
the supplied USB connection cable may cause malfunction.
Turn the camera off before connecting or disconnecting the AC adaptor (P132).Before inserting or removing a card, turn the camera off, and disconnect the USB connection
cable.
HDMI connection is disabled and connection with the USB connection...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-120.png "Page 121
121VQT1U32
Connecting to other equipment
Press 3/4 to select [PictBridge(PTP)], and then
press [MENU/SET].
Note
Do not use any other USB connection cables except the supplied one. Use of cables other than
the supplied USB connection cable may cause malfunction.
Turn the camera off before connecting or disconnecting the AC adaptor (P132).Before inserting or removing a card, turn the camera off, and disconnect the USB connection
cable.
HDMI connection is disabled and connection with the USB connection...")
121VQT1U32 Connecting to other equipment Press 3/4 to select [PictBridge(PTP)], and then press [MENU/SET]. Note Do not use any other USB connection cables except the supplied one. Use of cables other than the supplied USB connection cable may cause malfunction. Turn the camera off before connecting or disconnecting the AC adaptor (P132).Before inserting or removing a card, turn the camera off, and disconnect the USB connection cable. HDMI connection is disabled and connection with the USB connection...

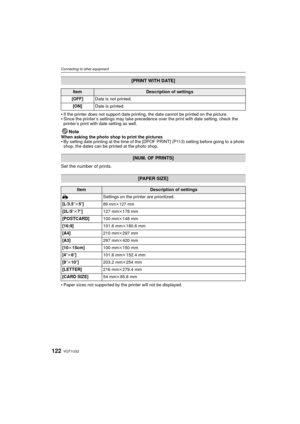

Page 122
![Page 122
VQT1U32122
Connecting to other equipment
If the printer does not support date printing, the date cannot be printed on the picture.Since the printer’s settings may take precedence over the print with date setting, check the
printer’s print with date setting as well.
NoteWhen asking the photo shop to print the picturesBy setting date printing at the time of the [DPOF PRINT] (P113) setting before going to a photo
shop, the dates can be printed at the photo shop.
Set the number of prints.
Paper sizes not...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-121.png "Page 122
VQT1U32122
Connecting to other equipment
If the printer does not support date printing, the date cannot be printed on the picture.Since the printer’s settings may take precedence over the print with date setting, check the
printer’s print with date setting as well.
NoteWhen asking the photo shop to print the picturesBy setting date printing at the time of the [DPOF PRINT] (P113) setting before going to a photo
shop, the dates can be printed at the photo shop.
Set the number of prints.
Paper sizes not...")
VQT1U32122 Connecting to other equipment If the printer does not support date printing, the date cannot be printed on the picture.Since the printer’s settings may take precedence over the print with date setting, check the printer’s print with date setting as well. NoteWhen asking the photo shop to print the picturesBy setting date printing at the time of the [DPOF PRINT] (P113) setting before going to a photo shop, the dates can be printed at the photo shop. Set the number of prints. Paper sizes not...

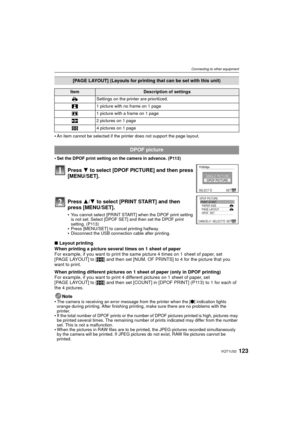

Page 123
![Page 123
123VQT1U32
Connecting to other equipment
An item cannot be selected if the printer does not support the page layout.
Set the DPOF print setting on the camera in advance. (P113)
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper (only in DPOF...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-122.png "Page 123
123VQT1U32
Connecting to other equipment
An item cannot be selected if the printer does not support the page layout.
Set the DPOF print setting on the camera in advance. (P113)
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper (only in DPOF...")
123VQT1U32 Connecting to other equipment An item cannot be selected if the printer does not support the page layout. Set the DPOF print setting on the camera in advance. (P113) ∫Layout printing When printing a picture several times on 1 sheet of paper For example, if you want to print the same picture 4 times on 1 sheet of paper, set [PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you want to print. When printing different pictures on 1 sheet of paper (only in DPOF...

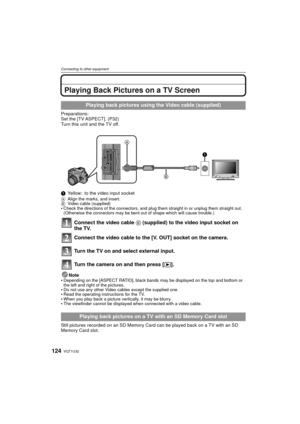

Page 124
![Page 124
VQT1U32124
Connecting to other equipment
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P32)
Turn this unit and the TV off.
1Yellow: to the video input socket
A Align the marks, and insert.
B Video cable (supplied)
Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause trouble.)
Connect the video cable B (supplied) to the video input socket on
the TV.
Connect the video...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-123.png "Page 124
VQT1U32124
Connecting to other equipment
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P32)
Turn this unit and the TV off.
1Yellow: to the video input socket
A Align the marks, and insert.
B Video cable (supplied)
Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause trouble.)
Connect the video cable B (supplied) to the video input socket on
the TV.
Connect the video...")
VQT1U32124 Connecting to other equipment Playing Back Pictures on a TV Screen Preparations: Set the [TV ASPECT]. (P32) Turn this unit and the TV off. 1Yellow: to the video input socket A Align the marks, and insert. B Video cable (supplied) Check the directions of the connectors, and plug them straight in or unplug them straight out. (Otherwise the connectors may be bent out of shape which will cause trouble.) Connect the video cable B (supplied) to the video input socket on the TV. Connect the video...

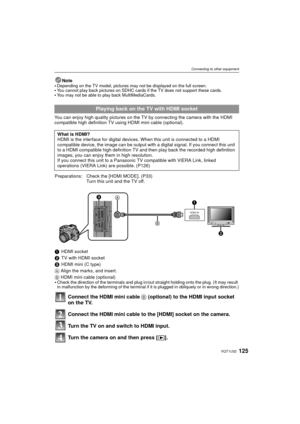

Page 125
125VQT1U32 Connecting to other equipment Note Depending on the TV model, pictures may not be displayed on the full screen.You cannot play back pictures on SDHC cards if the TV does not support these cards.You may not be able to play back MultiMediaCards. You can enjoy high quality pictures on the TV by connecting the camera with the HDMI compatible high definition TV using HDMI mini cable (optional). Playing back on the TV with HDMI socket What is HDMI? HDMI is the interface for digital devices . When...

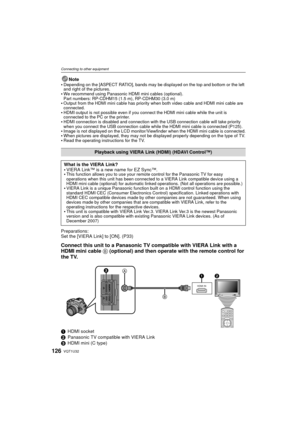

Page 126
![Page 126
VQT1U32126
Connecting to other equipment
Note
Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left
and right of the pictures.
We recommend using Panasonic HDMI mini cables (optional).
Part numbers: RP-CDHM15 (1.5 m), RP-CDHM30 (3.0 m)
Output from the HDMI mini cable has priority when both video cable and HDMI mini cable are
connected.
HDMI output is not possible even if you connect the HDMI mini cable while the unit is
connected to the PC or the printer.
HDMI...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-125.png "Page 126
VQT1U32126
Connecting to other equipment
Note
Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left
and right of the pictures.
We recommend using Panasonic HDMI mini cables (optional).
Part numbers: RP-CDHM15 (1.5 m), RP-CDHM30 (3.0 m)
Output from the HDMI mini cable has priority when both video cable and HDMI mini cable are
connected.
HDMI output is not possible even if you connect the HDMI mini cable while the unit is
connected to the PC or the printer.
HDMI...")
VQT1U32126 Connecting to other equipment Note Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left and right of the pictures. We recommend using Panasonic HDMI mini cables (optional). Part numbers: RP-CDHM15 (1.5 m), RP-CDHM30 (3.0 m) Output from the HDMI mini cable has priority when both video cable and HDMI mini cable are connected. HDMI output is not possible even if you connect the HDMI mini cable while the unit is connected to the PC or the printer. HDMI...

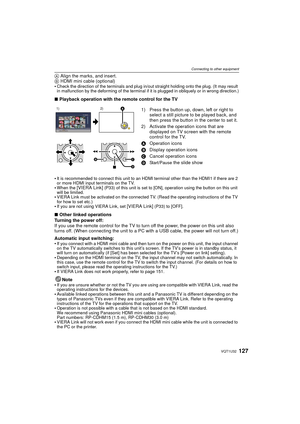

Page 127
127VQT1U32 Connecting to other equipment A Align the marks, and insert. B HDMI mini cable (optional) Check the direction of the terminals and plug in/out straight holding onto the plug. (It may result in malfunction by the deforming of the terminal if it is plugged in obliquely or in wrong direction.) ∫ Playback operation with the remote control for the TV It is recommended to connect this unit to an HDMI terminal other than the HDMI1 if there are 2 or more HDMI input terminals on the TV. When the...

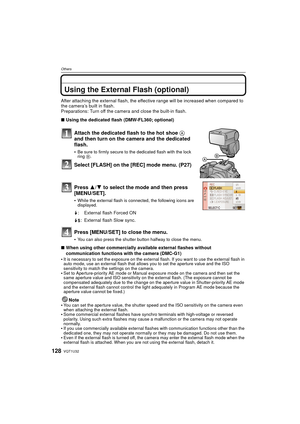

Page 128
![Page 128
VQT1U32128
Others
OthersUsing the External Flash (optional)
After attaching the external flash, the effective range will be increased when compared to
the camera’s built in flash.
Preparations: Turn off the camera and close the built-in flash.
∫Using the dedicated flash (DMW-FL360; optional)
Attach the dedicated flash to the hot shoe A
and then turn on the camera and the dedicated
flash.
Be sure to firmly secure to the dedicated flash with the lock
ring B.
Select [FLASH] on the [REC] mode menu....](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-127.png "Page 128
VQT1U32128
Others
OthersUsing the External Flash (optional)
After attaching the external flash, the effective range will be increased when compared to
the camera’s built in flash.
Preparations: Turn off the camera and close the built-in flash.
∫Using the dedicated flash (DMW-FL360; optional)
Attach the dedicated flash to the hot shoe A
and then turn on the camera and the dedicated
flash.
Be sure to firmly secure to the dedicated flash with the lock
ring B.
Select [FLASH] on the [REC] mode menu....")
VQT1U32128 Others OthersUsing the External Flash (optional) After attaching the external flash, the effective range will be increased when compared to the camera’s built in flash. Preparations: Turn off the camera and close the built-in flash. ∫Using the dedicated flash (DMW-FL360; optional) Attach the dedicated flash to the hot shoe A and then turn on the camera and the dedicated flash. Be sure to firmly secure to the dedicated flash with the lock ring B. Select [FLASH] on the [REC] mode menu....

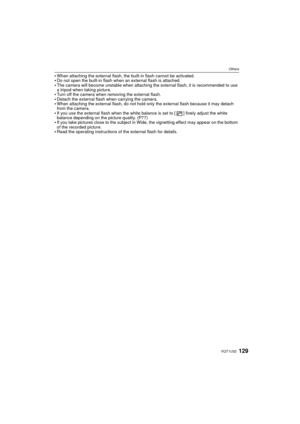

Page 129
129VQT1U32 Others When attaching the external flash, the built-in flash cannot be activated.Do not open the built-in flash when an external flash is attached.The camera will become unstable when attaching the external flash, it is recommended to use a tripod when taking picture. Turn off the camera when removing the external flash.Detach the external flash when carrying the camera.When attaching the external flash, do not hold only the external flash because it may detach from the camera. If you use...

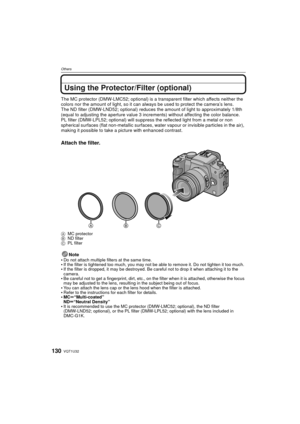

Page 130
VQT1U32130 Others Using the Protector/Filter (optional) The MC protector (DMW-LMC52; optional) is a transparent filter which affects neither the colors nor the amount of light, so it can always be used to protect the camera’s lens. The ND filter (DMW-LND52; optional) reduces the amount of light to approximately 1/8th (equal to adjusting the aperture value 3 incre ments) without affecting the color balance. PL filter (DMW-LPL52; optional) will suppress the reflected light from a metal or non spherical...
