Panasonic Dmc G10k Operating Instructions Manual

11VQT2S62
Before Use

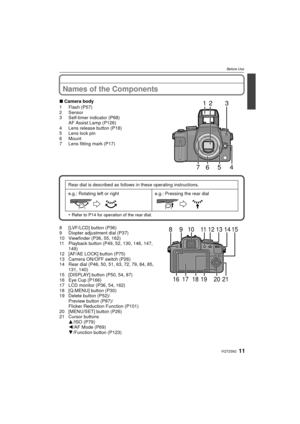

Names of the Components
∫Camera body
1 Flash (P57)
2 Sensor
3 Self-timer indicator (P68) AF Assist Lamp (P126)
4 Lens release button (P18)
5 Lens lock pin
6 Mount
7 Lens fitting mark (P17)
•
Refer to P14 for operation of the rear dial.
8 [LVF/LCD] button (P36)
9 Diopter adjustment dial (P37)
10 Viewfinder (P36, 55, 162)
11 Playback button (P49, 52, 130, 146, 147, 149)
12 [AF/AE LOCK] button (P75)
13 Camera ON/OFF switch (P26)
14 Rear dial (P46, 50, 51, 63, 72, 79, 84, 85,  131, 140)...

VQT2S6212
Before Use

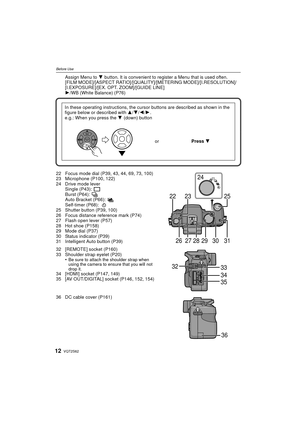

Assign Menu to 4 button. It is convenient to regi ster a Menu that is used often.
[FILM MODE]/[ASPECT RATIO]/[QUALITY]/[METERING MODE]/[I.RESOLUTION]/
[I.EXPOSURE]/[EX. OPT. ZOOM]/[GUIDE LINE]
1 /WB (White Balance) (P76)
22 Focus mode dial (P39, 43, 44, 69, 73, 100)
23 Microphone (P100, 122)
24 Drive mode lever Single (P43):
Burst (P64):
Auto Bracket (P66):
Self-timer (P68):
25 Shutter button (P39, 100)
26 Focus distance reference mark (P74)
27 Flash open lever (P57)
28 Hot shoe...

13VQT2S62
Before Use

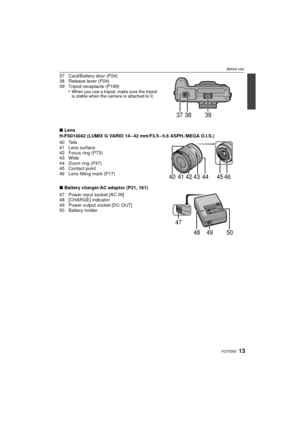

37 Card/Battery door (P24)
38 Release lever (P24)
39 Tripod receptacle (P169)•
When you use a tripod, make sure the tripod
is stable when the camera is attached to it.
∫Lens
H-FS014042 (LUMIX G VARIO 14 – 42 mm/F3.5 – 5.6 ASPH./MEGA O.I.S.)
40 Tele
41 Lens surface
42 Focus ring (P73)
43 Wide
44 Zoom ring (P47)
45 Contact point
46 Lens fitting mark (P17)
∫ Battery charger/AC adaptor (P21, 161)
47 Power input socket [AC IN]
48 [CHARGE] indicator
49 Power output socket [DC OUT]
50...

VQT2S6214
Before Use

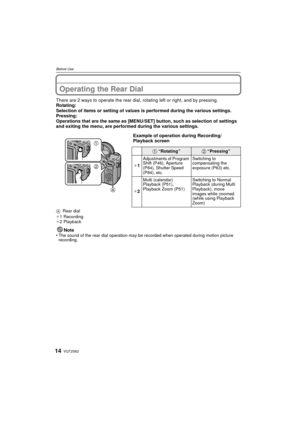

Operating the Rear Dial
There are 2 ways to operate the rear dial, rotating left or right, and by pressing.
Rotating:
Selection of items or setting of values is performed during the various settings.
Pressing:
Operations that are the same as [MENU/SET] button, such as selection of settings
and exiting the menu, are performed during the various settings.
A Rear dial
¢ 1 Recording
¢ 2 Playback
Note
•The sound of the rear dial operation may be recorded when operated during motion...

15VQT2S62
Before Use

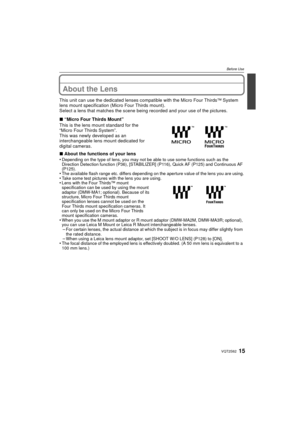

About the Lens
This unit can use the dedicated lenses compatible with the Micro Four Thirds™ System
lens mount specification (Micro Four Thirds mount).
Select a lens that matches the scene being recorded and your use of the pictures.
∫ “Micro Four Thirds Mount”
This is the lens mount standard for the
“Micro Four Thirds System”.
This was newly developed as an
interchangeable lens mount dedicated for
digital cameras.
∫ About the functions of your lens
•
Depending on the type of...

VQT2S6216
Before Use

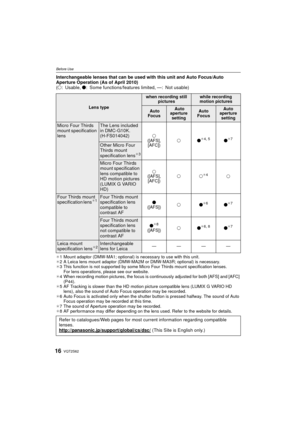

Interchangeable lenses that can be used with this unit and Auto Focus/Auto
Aperture Operation (As of April 2010)
(±: Usable,  ¥: Some functions/features limited, —: Not usable)
¢ 1 Mount adaptor (DMW-MA1; optional) is necessary to use with this unit.
¢ 2 A Leica lens mount adaptor (DMW-MA2M or DMW-MA3R; optional) is necessary.
¢ 3 This function is not supported by some Micro Four Thirds mount specification lenses.
For lens operations, please see our website.
¢ 4 When recording...

17VQT2S62
Preparation

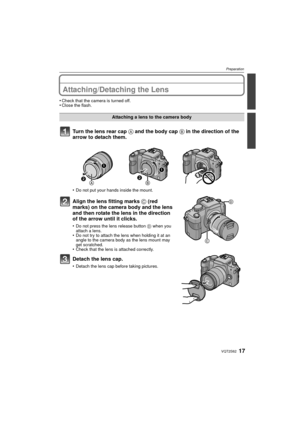

PreparationAttaching/Detaching the Lens
•Check that the camera is turned off.•Close the flash.
Turn the lens rear cap A and the body cap  B in the direction of the
arrow to detach them.
•Do not put your hands inside the mount.
Align the lens fitting marks  C (red
marks) on the camera body and the lens
and then rotate the lens in the direction
of the arrow until it clicks.
•Do not press the lens release button  D when you
attach a lens.
•Do not try to attach the lens when...

VQT2S6218
Preparation

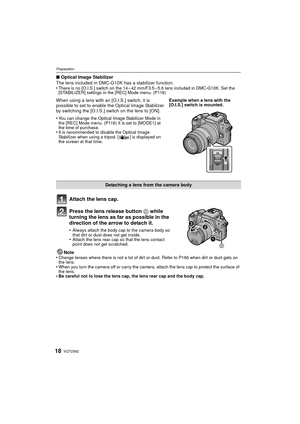

∫Optical Image Stabilizer
The lens included in DMC-G10K  has a stabilizer function.
•
There is no [O.I.S.] switch on the 14 – 42 mm/F3.5 – 5.6 lens included in DMC-G10K. Set the
[STABILIZER] settings in the [REC] Mode menu. (P116)
Attach the lens cap.
Press the lens release button  D while
turning the lens as far as possible in the
direction of the arrow to detach it.
•Always attach the body cap to the camera body so
that dirt or dust does not get inside.
•Attach the lens rear...

19VQT2S62
Preparation

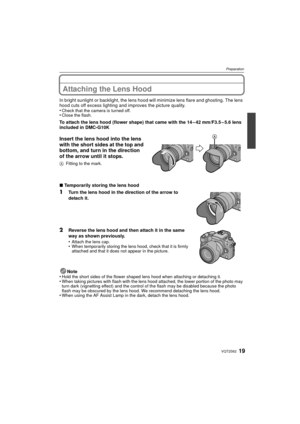

Attaching the Lens Hood
In bright sunlight or backlight, the lens hood will minimize lens flare and ghosting. The lens
hood cuts off excess lighting and improves the picture quality.
•
Check that the camera is turned off.•Close the flash.
To attach the lens hood (flower shape) that came with the 14 – 42 mm/F3.5 – 5.6 lens
included in DMC-G10K
Insert the lens hood into the lens
with the short sides at the top and
bottom, and turn in the direction
of the arrow until it stops....

VQT2S6220
Preparation

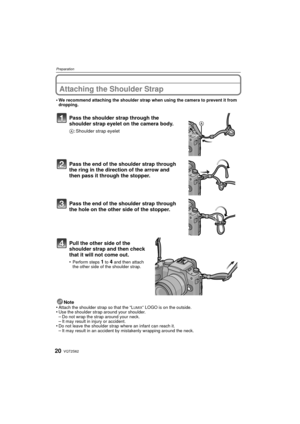

Attaching the Shoulder Strap
•We recommend attaching the shoulder strap when using the camera to prevent it from
dropping.
Pass the shoulder strap through the
shoulder strap eyelet on the camera body.
A: Shoulder strap eyelet
Pass the end of the shoulder strap through
the ring in the direction of the arrow and
then pass it through the stopper.
Pass the end of the shoulder strap through
the hole on the other side of the stopper.
Pull the other side of the
shoulder strap and...
