Panasonic Dmc G10k Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc G10k Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

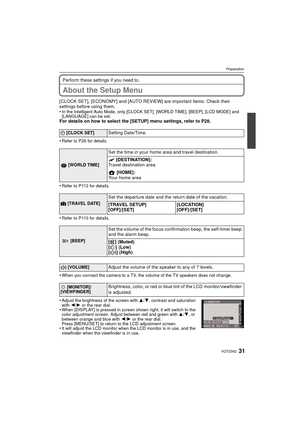

Page 31
![Page 31
31VQT2S62
Preparation
Perform these settings if you need to.
About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
•
In the Intelligent Auto Mode, only [CLOCK SET], [WORLD TIME], [BEEP], [LCD MODE] and
[LANGUAGE] can be set.
For details on how to select the [SETUP] menu settings, refer to P28.
•
Refer to P26 for details.
•Refer to P112 for details.
•Refer to P110 for details.
•When you connect the camera to a TV, the volume of the TV...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-30.png "Page 31
31VQT2S62
Preparation
Perform these settings if you need to.
About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
•
In the Intelligent Auto Mode, only [CLOCK SET], [WORLD TIME], [BEEP], [LCD MODE] and
[LANGUAGE] can be set.
For details on how to select the [SETUP] menu settings, refer to P28.
•
Refer to P26 for details.
•Refer to P112 for details.
•Refer to P110 for details.
•When you connect the camera to a TV, the volume of the TV...")
31VQT2S62 Preparation Perform these settings if you need to. About the Setup Menu [CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their settings before using them. • In the Intelligent Auto Mode, only [CLOCK SET], [WORLD TIME], [BEEP], [LCD MODE] and [LANGUAGE] can be set. For details on how to select the [SETUP] menu settings, refer to P28. • Refer to P26 for details. •Refer to P112 for details. •Refer to P110 for details. •When you connect the camera to a TV, the volume of the TV...

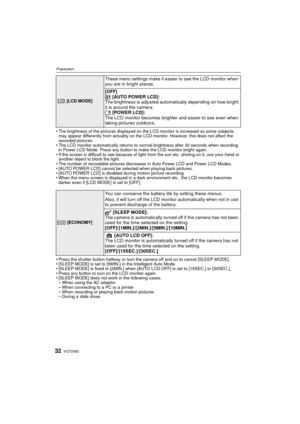

Page 32
VQT2S6232 Preparation •The brightness of the pictures displayed on the LCD monitor is increased so some subjects may appear differently from actuality on the LCD monitor. However, this does not affect the recorded pictures. •The LCD monitor automatically returns to normal brightness after 30 seconds when recording in Power LCD Mode. Press any button to make the LCD monitor bright again. •If the screen is difficult to see because of light from the sun etc. shining on it, use your hand or another...
Page 33

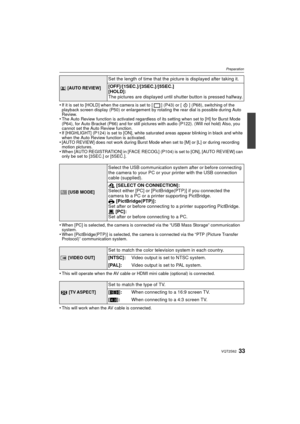

![Page 33
33VQT2S62
Preparation
•If it is set to [HOLD] when the camera is set to [ ] (P43) or [ ] (P68), switching of the
playback screen display (P50) or enlargement by rotating the rear dial is possible during Auto
Review.
•The Auto Review function is activated regardless of its setting when set to [H] for Burst Mode
(P64), for Auto Bracket (P66) and for still pictures with audio (P122). (Will not hold) Also, you
cannot set the Auto Review function.
•If [HIGHLIGHT] (P124) is set to [ON], white saturated...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-32.png "Page 33
33VQT2S62
Preparation
•If it is set to [HOLD] when the camera is set to [ ] (P43) or [ ] (P68), switching of the
playback screen display (P50) or enlargement by rotating the rear dial is possible during Auto
Review.
•The Auto Review function is activated regardless of its setting when set to [H] for Burst Mode
(P64), for Auto Bracket (P66) and for still pictures with audio (P122). (Will not hold) Also, you
cannot set the Auto Review function.
•If [HIGHLIGHT] (P124) is set to [ON], white saturated...")
33VQT2S62 Preparation •If it is set to [HOLD] when the camera is set to [ ] (P43) or [ ] (P68), switching of the playback screen display (P50) or enlargement by rotating the rear dial is possible during Auto Review. •The Auto Review function is activated regardless of its setting when set to [H] for Burst Mode (P64), for Auto Bracket (P66) and for still pictures with audio (P122). (Will not hold) Also, you cannot set the Auto Review function. •If [HIGHLIGHT] (P124) is set to [ON], white saturated...
Page 34
![Page 34
VQT2S6234
Preparation
¢1 When [VIDEO OUT] is set to [PAL]
¢ 2 When [VIDEO OUT] is set to [NTSC]
•Interlace method/progressive method
i= interlace scanning is scanning the screen with half of the effective scanning lines every
1/60 seconds, where p= progressive scanning is a high density image signal that is scanning
the screen with all the effective scanning lines every 1/60 seconds.
The [HDMI] terminal on this unit is compatible with high-definition output [1080i]. It is necessary
to have a...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-33.png "Page 34
VQT2S6234
Preparation
¢1 When [VIDEO OUT] is set to [PAL]
¢ 2 When [VIDEO OUT] is set to [NTSC]
•Interlace method/progressive method
i= interlace scanning is scanning the screen with half of the effective scanning lines every
1/60 seconds, where p= progressive scanning is a high density image signal that is scanning
the screen with all the effective scanning lines every 1/60 seconds.
The [HDMI] terminal on this unit is compatible with high-definition output [1080i]. It is necessary
to have a...")
VQT2S6234 Preparation ¢1 When [VIDEO OUT] is set to [PAL] ¢ 2 When [VIDEO OUT] is set to [NTSC] •Interlace method/progressive method i= interlace scanning is scanning the screen with half of the effective scanning lines every 1/60 seconds, where p= progressive scanning is a high density image signal that is scanning the screen with all the effective scanning lines every 1/60 seconds. The [HDMI] terminal on this unit is compatible with high-definition output [1080i]. It is necessary to have a...
Page 35

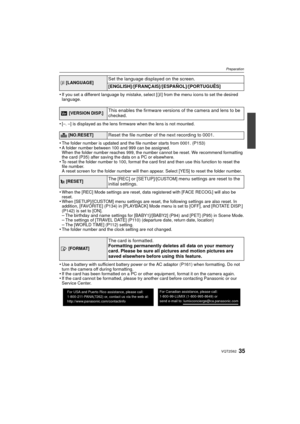

![Page 35
35VQT2S62
Preparation
•If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
•[–. –] is displayed as the lens firmware when the lens is not mounted.
•The folder number is updated and the file number starts from 0001. (P153)•A folder number between 100 and 999 can be assigned.
When the folder number reaches 999, the number cannot be reset. We recommend formatting
the card (P35) after saving the data on a PC or elsewhere.
•To reset the folder number to...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-34.png "Page 35
35VQT2S62
Preparation
•If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
•[–. –] is displayed as the lens firmware when the lens is not mounted.
•The folder number is updated and the file number starts from 0001. (P153)•A folder number between 100 and 999 can be assigned.
When the folder number reaches 999, the number cannot be reset. We recommend formatting
the card (P35) after saving the data on a PC or elsewhere.
•To reset the folder number to...")
35VQT2S62 Preparation •If you set a different language by mistake, select [~] from the menu icons to set the desired language. •[–. –] is displayed as the lens firmware when the lens is not mounted. •The folder number is updated and the file number starts from 0001. (P153)•A folder number between 100 and 999 can be assigned. When the folder number reaches 999, the number cannot be reset. We recommend formatting the card (P35) after saving the data on a PC or elsewhere. •To reset the folder number to...

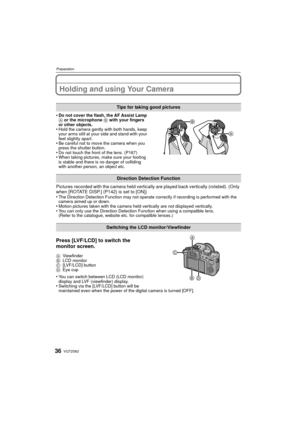

Page 36
VQT2S6236 Preparation Holding and using Your Camera •Do not cover the flash, the AF Assist Lamp A or the microphone B with your fingers or other objects. •Hold the camera gently with both hands, keep your arms still at your side and stand with your feet slightly apart. •Be careful not to move the camera when you press the shutter button. •Do not touch the front of the lens. (P167)•When taking pictures, make sure your footing is stable and there is no danger of colliding with another person, an...

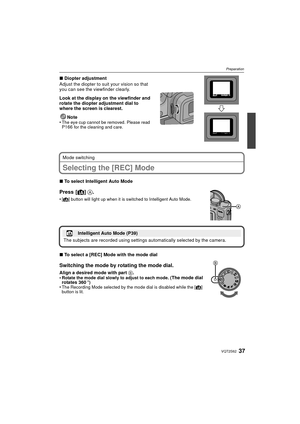

Page 37
![Page 37
37VQT2S62
Preparation
∫Diopter adjustment
Adjust the diopter to suit your vision so that
you can see the viewfinder clearly.
Look at the display on the viewfinder and
rotate the diopter adjustment dial to
where the screen is clearest.
Note
•
The eye cup cannot be removed. Please read P166 for the cleaning and care.
Mode switching
Selecting the [REC] Mode
∫ To select Intelligent Auto Mode
Press [¦ ] A.
•[¦] button will light up when it is switched to Intelligent Auto Mode.
∫ To select a [REC] Mode with...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-36.png "Page 37
37VQT2S62
Preparation
∫Diopter adjustment
Adjust the diopter to suit your vision so that
you can see the viewfinder clearly.
Look at the display on the viewfinder and
rotate the diopter adjustment dial to
where the screen is clearest.
Note
•
The eye cup cannot be removed. Please read P166 for the cleaning and care.
Mode switching
Selecting the [REC] Mode
∫ To select Intelligent Auto Mode
Press [¦ ] A.
•[¦] button will light up when it is switched to Intelligent Auto Mode.
∫ To select a [REC] Mode with...")
37VQT2S62 Preparation ∫Diopter adjustment Adjust the diopter to suit your vision so that you can see the viewfinder clearly. Look at the display on the viewfinder and rotate the diopter adjustment dial to where the screen is clearest. Note • The eye cup cannot be removed. Please read P166 for the cleaning and care. Mode switching Selecting the [REC] Mode ∫ To select Intelligent Auto Mode Press [¦ ] A. •[¦] button will light up when it is switched to Intelligent Auto Mode. ∫ To select a [REC] Mode with...

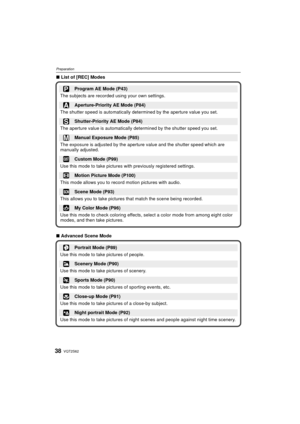

Page 38
![Page 38
VQT2S6238
Preparation
∫List of [REC] Modes
∫ Advanced Scene Mode
Program AE Mode (P43)
The subjects are recorded using your own settings.
Aperture-Priority AE Mode (P84)
The shutter speed is automatically determined by the aperture value you set.
Shutter-Priority AE Mode (P84)
The aperture value is automatically determined by the shutter speed you set.
Manual Exposure Mode (P85)
The exposure is adjusted by the aperture value and the shutter speed which are
manually adjusted.
Custom Mode (P99)
Use this...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-37.png "Page 38
VQT2S6238
Preparation
∫List of [REC] Modes
∫ Advanced Scene Mode
Program AE Mode (P43)
The subjects are recorded using your own settings.
Aperture-Priority AE Mode (P84)
The shutter speed is automatically determined by the aperture value you set.
Shutter-Priority AE Mode (P84)
The aperture value is automatically determined by the shutter speed you set.
Manual Exposure Mode (P85)
The exposure is adjusted by the aperture value and the shutter speed which are
manually adjusted.
Custom Mode (P99)
Use this...")
VQT2S6238 Preparation ∫List of [REC] Modes ∫ Advanced Scene Mode Program AE Mode (P43) The subjects are recorded using your own settings. Aperture-Priority AE Mode (P84) The shutter speed is automatically determined by the aperture value you set. Shutter-Priority AE Mode (P84) The aperture value is automatically determined by the shutter speed you set. Manual Exposure Mode (P85) The exposure is adjusted by the aperture value and the shutter speed which are manually adjusted. Custom Mode (P99) Use this...

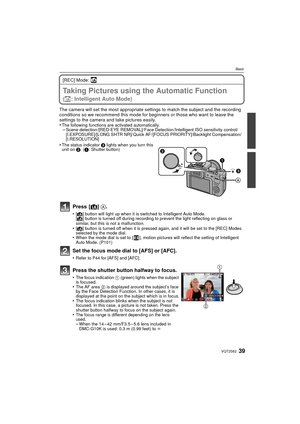

Page 39
![Page 39
39VQT2S62
Basic
[REC] Mode: ñ
BasicTaking Pictures using the Automatic Function
(ñ: Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
•
The following functions are activated automatically.–Scene detection /[RED-EYE REMOVAL]/ Face Detection /Intelligent ISO sensitivity control/
[I.EXPOSURE]/[LONG SHTR NR]/ Quick...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-38.png "Page 39
39VQT2S62
Basic
[REC] Mode: ñ
BasicTaking Pictures using the Automatic Function
(ñ: Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
•
The following functions are activated automatically.–Scene detection /[RED-EYE REMOVAL]/ Face Detection /Intelligent ISO sensitivity control/
[I.EXPOSURE]/[LONG SHTR NR]/ Quick...")
39VQT2S62 Basic [REC] Mode: ñ BasicTaking Pictures using the Automatic Function (ñ: Intelligent Auto Mode) The camera will set the most appropriate settings to match the subject and the recording conditions so we recommend this mode for beginners or those who want to leave the settings to the camera and take pictures easily. • The following functions are activated automatically.–Scene detection /[RED-EYE REMOVAL]/ Face Detection /Intelligent ISO sensitivity control/ [I.EXPOSURE]/[LONG SHTR NR]/ Quick...

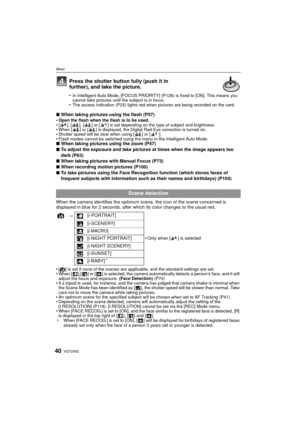

Page 40
![Page 40
VQT2S6240
Basic
∫When taking pictures using the flash (P57)
•Open the flash when the flash is to be used.•[ ], [ ], [ ] or [ ] is set depending on the type of subject and brightness.•When [ ] or [ ] is displayed, the Digital Red-Eye correction is turned on.•Shutter speed will be slow when using [ ] or [ ].•Flash modes cannot be switched using the menu in the Intelligent Auto Mode.∫ When taking pictures using the zoom (P47)
∫ To adjust the exposure and take pictures at times when the image appears too...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-39.png "Page 40
VQT2S6240
Basic
∫When taking pictures using the flash (P57)
•Open the flash when the flash is to be used.•[ ], [ ], [ ] or [ ] is set depending on the type of subject and brightness.•When [ ] or [ ] is displayed, the Digital Red-Eye correction is turned on.•Shutter speed will be slow when using [ ] or [ ].•Flash modes cannot be switched using the menu in the Intelligent Auto Mode.∫ When taking pictures using the zoom (P47)
∫ To adjust the exposure and take pictures at times when the image appears too...")
VQT2S6240 Basic ∫When taking pictures using the flash (P57) •Open the flash when the flash is to be used.•[ ], [ ], [ ] or [ ] is set depending on the type of subject and brightness.•When [ ] or [ ] is displayed, the Digital Red-Eye correction is turned on.•Shutter speed will be slow when using [ ] or [ ].•Flash modes cannot be switched using the menu in the Intelligent Auto Mode.∫ When taking pictures using the zoom (P47) ∫ To adjust the exposure and take pictures at times when the image appears too...
