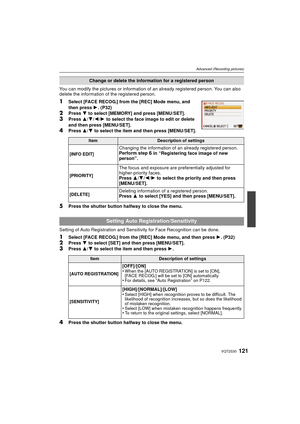

Panasonic Dmc G2k Operating Instructions Manual

121VQT2S30
Advanced (Recording pictures)
You can modify the pictures or information of an already registered person. You can also
delete the information of the registered person.
1Select [FACE RECOG.] from the [REC] Mode menu, and
then press  1. (P32)
2Press  4 to select [MEMORY] and press [MENU/SET].3Press 3/4/2/1  to select the face image to edit or delete
and then press [MENU/SET].
4Press  3/4 to select the item and then press [MENU/SET].
5Press the shutter button halfway to close the menu.
Setting...

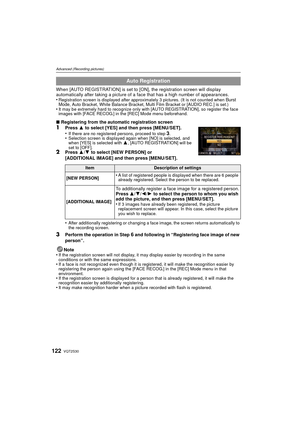

VQT2S30122
Advanced (Recording pictures)
When [AUTO REGISTRATION] is set to [ON], the registration screen will display
automatically after taking a picture of a face that has a high number of appearances.
•
Registration screen is displayed after approximately 3 pictures. (It is not counted when Burst
Mode, Auto Bracket, White Balance Bracket, Multi Film Bracket or [AUDIO REC.] is set.)•It may be extremely hard to recognize only with [AUTO REGISTRATION], so register the face
images with [FACE RECOG.]...

123VQT2S30
Advanced (Recording pictures)

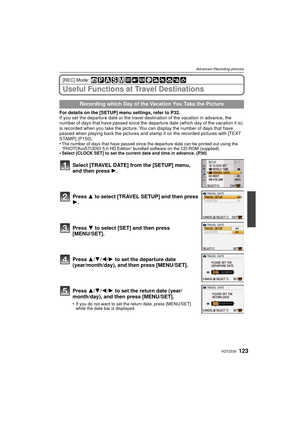

[REC] Mode:
Useful Functions at Travel Destinations
For details on the [SETUP] menu settings, refer to P32.
If you set the departure date or the travel destination of the vacation in advance, the
number of days that have passed since the departure date (which day of the vacation it is)
is recorded when you take the picture. You can display the number of days that have
passed when playing back the pictures and stamp it on the recorded pictures with [TEXT...

VQT2S30124
Advanced (Recording pictures)

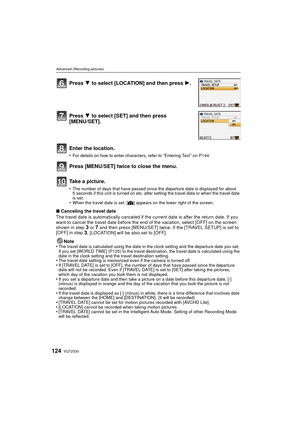

∫Canceling the travel date
The travel date is automatically canceled if the current date is after the return date. If you
want to cancel the travel date before the end of the vacation, select [OFF] on the screen
shown in step
3 or 7 and then press [MENU/SET] twice. If the [TRAVEL SETUP] is set to
[OFF] in step 3, [LOCATION] will be also set to [OFF].
Note
•
The travel date is calculated using the date in the clock setting and the departure date you set.
If...

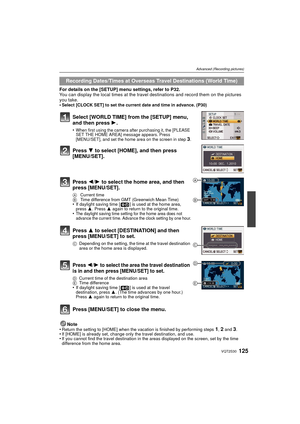

125VQT2S30
Advanced (Recording pictures)
For details on the [SETUP] menu settings, refer to P32.
You can display the local times at the travel destinations and record them on the pictures
you take.
•
Select [CLOCK SET] to set the current date and time in advance. (P30)
Note
•Return the setting to [HOME] when the vacation is finished by performing steps 1, 2 and 3.•If [HOME] is already set, change only the travel destination, and use.•If you cannot find the travel destination in the areas displayed on...

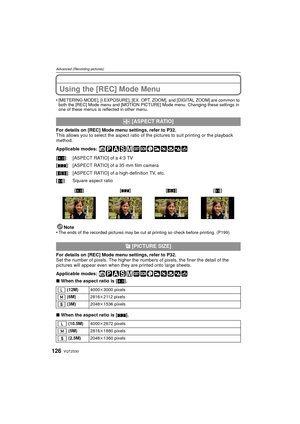

VQT2S30126
Advanced (Recording pictures)
Using the [REC] Mode Menu
•[METERING MODE], [I.EXPOSURE], [EX. OPT. ZOOM], and [DIGITAL ZOOM] are common to
both the [REC] Mode menu and [MOTION PICTURE] Mode menu. Changing these settings in
one of these menus is reflected in other menu.
For details on [REC] Mode menu settings, refer to P32.
This allows you to select the aspect ratio of the pictures to suit printing or the playback
method.
Applicable modes:
Note
•
The ends of the recorded pictures may be cut...

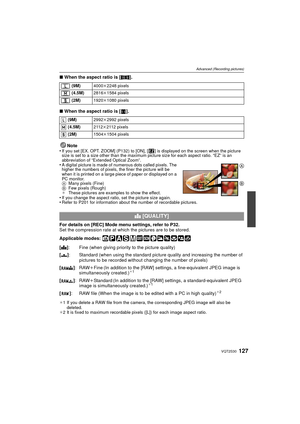

127VQT2S30
Advanced (Recording pictures)
∫When the aspect ratio is [W ].
∫ When the aspect ratio is [ ].
Note
•
If you set [EX. OPT. ZOOM] (P132) to [ON], [ ] is displayed on the screen when the picture
size is set to a size other than the maximum picture size for each aspect ratio. “EZ” is an
abbreviation of “Extended Optical Zoom”.
•A digital picture is made of numerous dots called pixels. The
higher the numbers of pixels, the finer the picture will be
when it is printed on a large piece of paper...

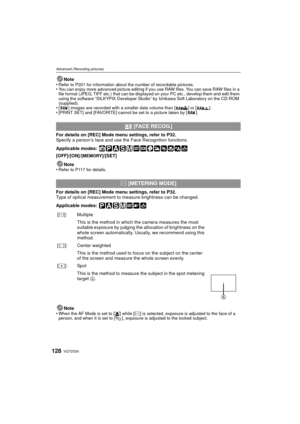

VQT2S30128
Advanced (Recording pictures)
Note
•Refer to P201 for information about the number of recordable pictures.•You can enjoy more advanced picture editing if you use RAW files. You can save RAW files in a
file format (JPEG, TIFF etc.) that can be displayed on your PC etc., develop them and edit them
using the software “SILKYPIX Developer Studio”  by Ichikawa Soft Laboratory on the CD-ROM
(supplied).
•[ ] images are recorded with a smaller data volume than [ ] or [ ].•[PRINT SET] and [FAVORITE]...

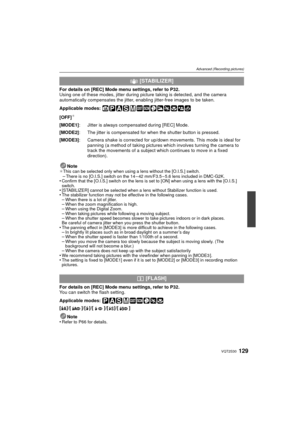

129VQT2S30
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P32.
Using one of these modes, jitter during picture taking is detected, and the camera
automatically compensates the jitter, enabling jitter-free images to be taken.
Applicable modes:
Note
¢This can be selected only when using a lens without the [O.I.S.] switch.–There is no [O.I.S.] switch on the 14 – 42 mm/F3.5 – 5.6 lens included in DMC-G2K.•Confirm that the [O.I.S.] switch on the lens is  set to [ON] when...

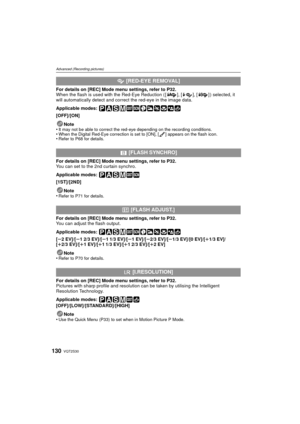

VQT2S30130
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P32.
When the flash is used with the Red-Eye Reduction ( [ ], [ ], [ ] ) selected, it
will automatically detect and correct the red-eye in the image data.
Applicable modes:
[OFF]/[ON]Note
•
It may not be able to correct the red-eye depending on the recording conditions.•When the Digital Red-Eye correction is set to [ON], [ ] appears on the flash icon.•Refer to P68 for details.
For details on [REC] Mode menu...
