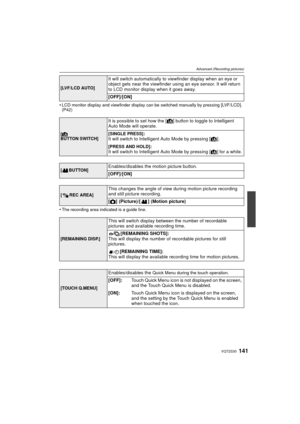

Panasonic Dmc G2k Operating Instructions Manual

141VQT2S30
Advanced (Recording pictures)
•LCD monitor display and viewfinder display can be switched manually by pressing [LVF/LCD].
(P42)
•The recording area indicated is a guide line.
[LVF/LCD AUTO]
It will switch automatically to viewfinder display when an eye or
object gets near the viewfinder using an eye sensor. It will return
to LCD monitor display when it goes away.
[OFF]/[ON]
[ ¦ BUTTON SWITCH]
It is possible to set how the [ ¦] button to toggle to Intelligent
Auto Mode will operate.
[SINGLE...

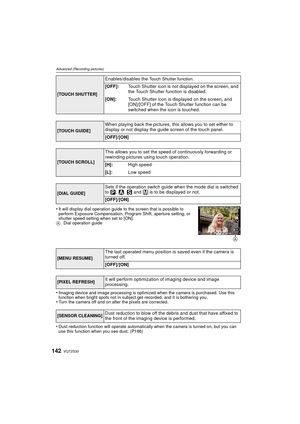

VQT2S30142
Advanced (Recording pictures)
•It will display dial operation guide to the screen that is possible to
perform Exposure Compensation, Program Shift, aperture setting, or
shutter speed setting when set to [ON].
A Dial operation guide
•Imaging device and image processing is optimized when the camera is purchased. Use this
function when bright spots not in subject get recorded, and it is bothering you.
•Turn the camera off and on after the pixels are corrected.
•Dust reduction function will...

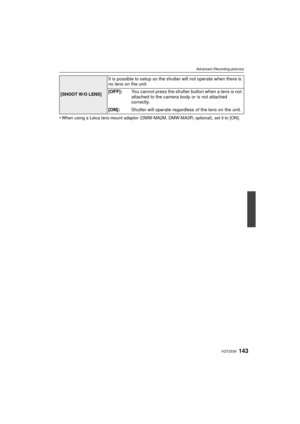

143VQT2S30
Advanced (Recording pictures)
•When using a Leica lens mount adaptor (DMW-MA2M, DMW-MA3R; optional), set it to [ON].
[SHOOT W/O LENS]
It is possible to setup so the shutter will not operate when there is
no lens on the unit.
[OFF]:You cannot press the shutter button when a lens is not
attached to the camera body or is not attached
correctly.
[ON]: Shutter will operate regardless of the lens on the unit.
DMC-G2KPP-VQT2S30_eng.book  143 ページ  ２０１０年４月１３日　火曜日　午後９時２０分

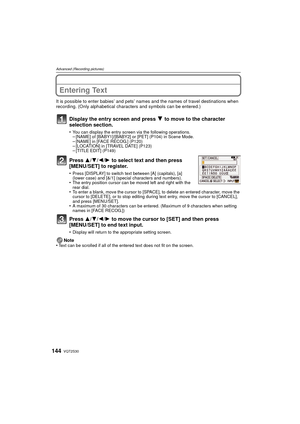

VQT2S30144
Advanced (Recording pictures)
Entering Text
It is possible to enter babies’ and pets’ names and the names of travel destinations when
recording. (Only alphabetical characters and symbols can be entered.)
Display the entry screen and press 4 to move to the character
selection section.
•You can display the entry screen via the following operations.–[NAME] of [BABY1]/[BABY2] or [PET] (P104) in Scene Mode.–[NAME] in [FACE RECOG.] (P120)–[LOCATION] in [TRAVEL DATE] (P123)–[TITLE EDIT] (P149)...

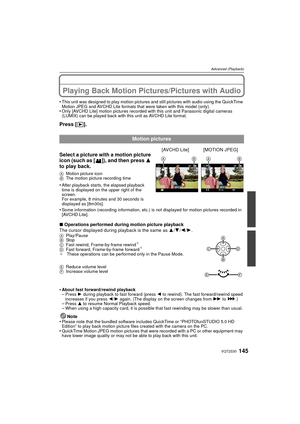

145VQT2S30
Advanced (Playback)
Advanced (Playback)Playing Back Motion Pictures/Pictures with Audio
•This unit was designed to play motion pictures and still pictures with audio using the QuickTime
Motion JPEG and AVCHD Lite formats that were taken with this model (only).
•Only [AVCHD Lite] motion pictures recorded with this unit and Panasonic digital cameras
(LUMIX) can be played back with this unit as AVCHD Lite format.
Press [(].
∫Operations performed during motion picture playback
The cursor...

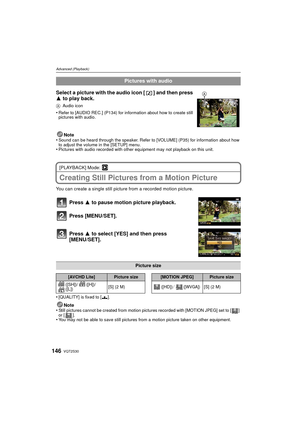

VQT2S30146
Advanced (Playback)
Note
•Sound can be heard through the speaker. Refer  to [VOLUME] (P35) for information about how
to adjust the volume in the [SETUP] menu.
•Pictures with audio recorded with other equipment may not playback on this unit.
[PLAYBACK] Mode: ¸
Creating Still Pictures from a Motion Picture
You can create a single still picture from a recorded motion picture.
Press 3 to pause motion picture playback.
Press [MENU/SET].
Press 3 to select [YES] and then press
[MENU/SET]....

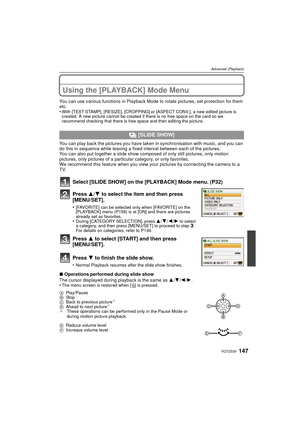

147VQT2S30
Advanced (Playback)
Using the [PLAYBACK] Mode Menu
You can use various functions in Playback Mode to rotate pictures, set protection for them
etc.
•
With [TEXT STAMP], [RESIZE], [CROPPING] or [ASPECT CONV.], a new edited picture is
created. A new picture cannot be created if there is no free space on the card so we
recommend checking that there is free space and then editing the picture.
You can play back the pictures you have tak en in synchronisation with music, and you can
do this in...

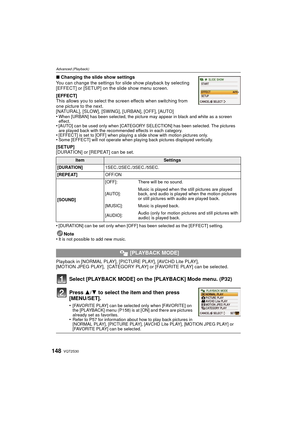

VQT2S30148
Advanced (Playback)
∫Changing the slide show settings
You can change the settings for slide show playback by selecting
[EFFECT] or [SETUP] on the slide show menu screen.
[EFFECT]
This allows you to select the screen effects when switching from
one picture to the next.
[NATURAL], [SLOW], [SWING], [URBAN], [OFF], [AUTO]
•
When [URBAN] has been selected, the picture may appear in black and white as a screen
effect.
•[AUTO] can be used only when [CATEGORY SEL ECTION] has been selected. The...

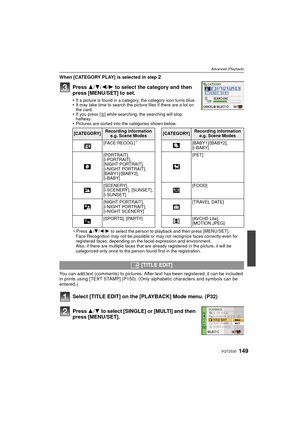

149VQT2S30
Advanced (Playback)
When [CATEGORY PLAY] is selected in step 2
Press  3/4/ 2/1 to select the category and then
press [MENU/SET] to set.
•If a picture is found in a category, the category icon turns blue.•It may take time to search the picture files if there are a lot on
the card.
•If you press [ ‚] while searching, the searching will stop
halfway.
•Pictures are sorted into the categories shown below.
¢ Press  3/4/2 /1  to select the person to playback and then press [MENU/SET].
Face...

VQT2S30150
Advanced (Playback)
Enter the text. (P144)
Press [‚] to return to the menu screen.
¢
¢ The menu screen is automatically re stored when [MULTI] is selected.•Press [MENU/SET] to close the menu.
Note
•To delete the title, erase all the text in the text input screen.•Text can be scrolled if all of the registered text does not fit on the screen.•You can print out texts (comments) using the “PHOTOfunSTUDIO 5.0 HD Edition” bundled
software on the CD-ROM (supplied).
•You can set up to 50 pictures at...
