Panasonic Dmc G2k Operating Instructions Manual

161VQT2S30
Advanced (Playback)

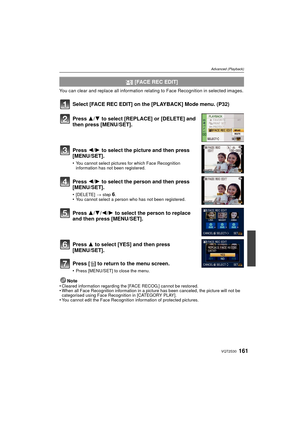

You can clear and replace all information relating to Face Recognition in selected images.
Select [FACE REC EDIT] on the [PLAYBACK] Mode menu. (P32)
Note
•Cleared information regarding the [FACE RECOG.] cannot be restored.•When all Face Recognition information in a pict ure has been canceled, the picture will not be
categorised using Face Recognition in [CATEGORY PLAY].
•You cannot edit the Face Recognition information of protected pictures.
  [FACE REC EDIT]
Press  3/4 to...

VQT2S30162
Connecting to other equipment

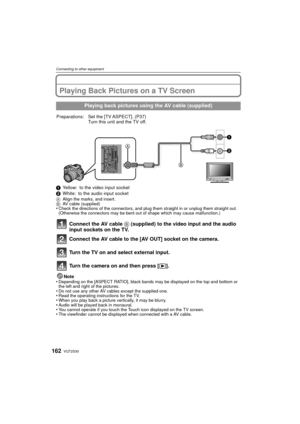

Connecting to other equipmentPlaying Back Pictures on a TV Screen
1Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which may cause malfunction.)
Connect the AV cable  B (supplied) to the video input and the audio
input sockets on the TV.
Connect...

163VQT2S30
Connecting to other equipment

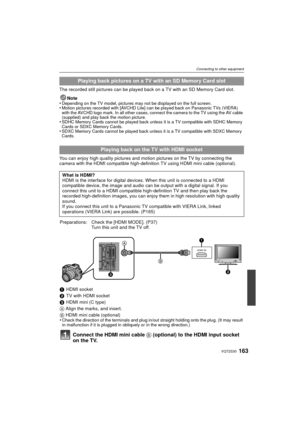

The recorded still pictures can be played back on a TV with an SD Memory Card slot.Note
•
Depending on the TV model, pictures may not be displayed on the full screen.•Motion pictures recorded with [AVCHD Lite] can be played back on Panasonic TVs (VIERA)
with the AVCHD logo mark. In all other cases, connect the camera to the TV using the AV cable
(supplied) and play back the motion picture.
•SDHC Memory Cards cannot be played back unle ss it is a TV compatible...

VQT2S30164
Connecting to other equipment

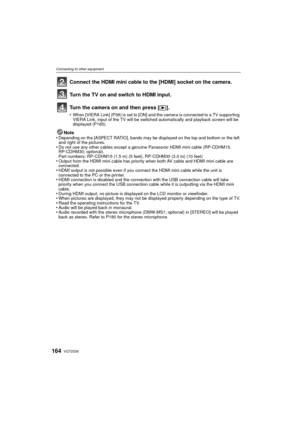

Note
•Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left
and right of the pictures.
•Do not use any other cables except a genuine Panasonic HDMI mini cable (RP-CDHM15,
RP-CDHM30; optional).
Part numbers: RP-CDHM15 (1.5 m) (5 feet), RP-CDHM30 (3.0 m) (10 feet)
•Output from the HDMI mini cable has priority  when both AV cable and HDMI mini cable are
connected.
•HDMI output is not possible even if you con nect the HDMI mini...

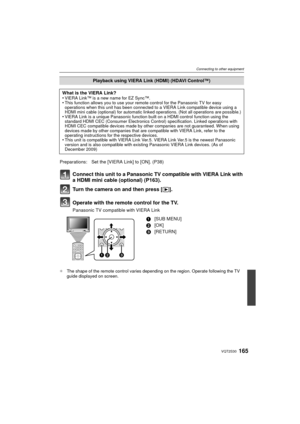

165VQT2S30
Connecting to other equipment
Connect this unit to a Panasonic TV compatible with VIERA Link with
a HDMI mini cable (optional) (P163).
Turn the camera on and then press [(].
Operate with the remote control for the TV.
Panasonic TV compatible with VIERA Link
¢ The shape of the remote control varies depending on the region. Operate following the TV
guide displayed on screen.
Playback using VIERA Link (HDMI) (HDAVI Control™)
What is the VIERA Link?
•
VIERA Link™ is a new name for EZ Sync™.•This...

VQT2S30166
Connecting to other equipment

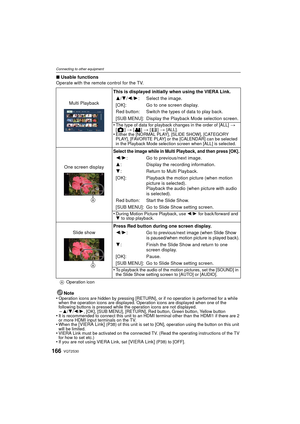

∫Usable functions
Operate with the remote control for the TV.
Note
•
Operation icons are hidden by pressing [RETURN], or if no operation is performed for a while
when the operation icons are displayed. Operation icons are displayed when one of the
following buttons is pressed while the operation icons are not displayed.
–3/ 4/2/1, [OK], [SUB MENU], [RETURN], Red button, Green button, Yellow button•It is recommended to connect this unit to an HDMI terminal other...

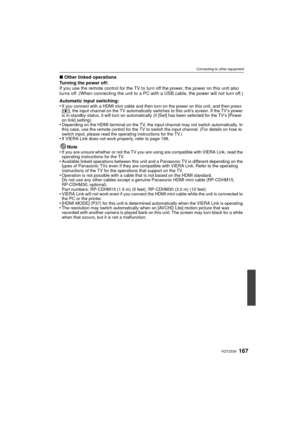

167VQT2S30
Connecting to other equipment
∫Other linked operations
Turning the power off:
If you use the remote control for the TV to turn off the power, the power on this unit also
turns off. (When connecting the unit to a PC with a USB cable, the power will not turn off.)
Automatic input switching:
•
If you connect with a HDMI mini cable and then  turn on the power on this unit, and then press
[ ( ], the input channel on the TV automatically switches to this unit’s screen. If the TV’s power
is in...

VQT2S30168
Connecting to other equipment

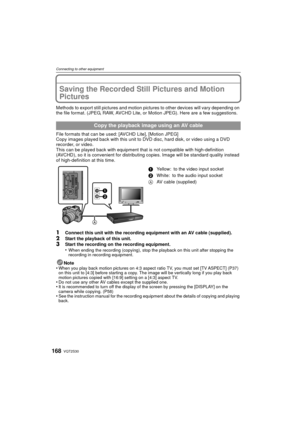

Saving the Recorded Still Pictures and Motion
Pictures
Methods to export still pictures and motion pictures to other devices will vary depending on
the file format. (JPEG, RAW, AVCHD Lite, or Motion JPEG). Here are a few suggestions.
File formats that can be used: [AVCHD Lite], [Motion JPEG]
Copy images played back with this unit to DVD disc, hard disk, or video using a DVD
recorder, or video.
This can be played back with equipment that  is not compatible with...

169VQT2S30
Connecting to other equipment

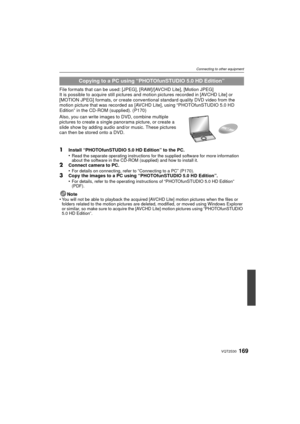

File formats that can be used: [JPEG], [RAW]/[AVCHD Lite], [Motion JPEG]
It is possible to acquire still pictures and motion pictures recorded in [AVCHD Lite] or
[MOTION JPEG] formats, or create conventional standard quality DVD video from the
motion picture that was recorded as [AVCHD Lite], using “PHOTOfunSTUDIO 5.0 HD
Edition” in the CD-ROM (supplied). (P170)
Also, you can write images to DVD, combine multiple
pictures to create a single panorama picture,...

VQT2S30170
Connecting to other equipment

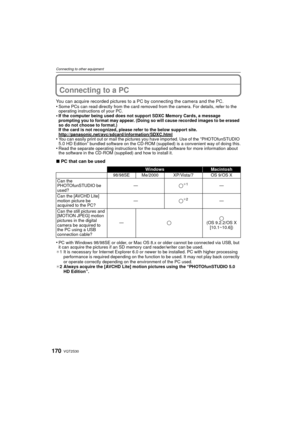

Connecting to a PC
You can acquire recorded pictures to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message
prompting you to format may appear. (Doing so will cause recorded images to be erased
so do not choose to format.)
If the card is not recognized, please refer to the...
