Page 11

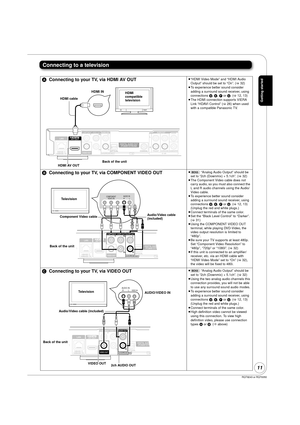

![Page 11
RQT9243 or RQT9350
11
Connecting to a television
AConnecting to your TV, via HDMI AV OUT≥“HDMI Video Mode” and “HDMI Audio
Output” should be set to “On”. ( >32)
≥ To experience better sound consider
adding a surround sound receiver, using
connections D, E , F or G. (> 12, 13)
≥ The HDMI connection supports VIERA
Link “HDAVI Control” ( >26) when used
with a compatible Panasonic TV.
B Connecting to your TV, via COMPONENT VIDEO OUT≥[BD55] : “Analog Audio Output” should be
set to “2ch (Downmix) +...](http://img.usermanuals.tech/thumb/58/64098/w300_dmp-bd35_mul_om_d-10.png "Page 11
RQT9243 or RQT9350
11
Connecting to a television
AConnecting to your TV, via HDMI AV OUT≥“HDMI Video Mode” and “HDMI Audio
Output” should be set to “On”. ( >32)
≥ To experience better sound consider
adding a surround sound receiver, using
connections D, E , F or G. (> 12, 13)
≥ The HDMI connection supports VIERA
Link “HDAVI Control” ( >26) when used
with a compatible Panasonic TV.
B Connecting to your TV, via COMPONENT VIDEO OUT≥[BD55] : “Analog Audio Output” should be
set to “2ch (Downmix) +...")
RQT9243 or RQT9350 11 Connecting to a television AConnecting to your TV, via HDMI AV OUT≥“HDMI Video Mode” and “HDMI Audio Output” should be set to “On”. ( >32) ≥ To experience better sound consider adding a surround sound receiver, using connections D, E , F or G. (> 12, 13) ≥ The HDMI connection supports VIERA Link “HDAVI Control” ( >26) when used with a compatible Panasonic TV. B Connecting to your TV, via COMPONENT VIDEO OUT≥[BD55] : “Analog Audio Output” should be set to “2ch (Downmix) +...

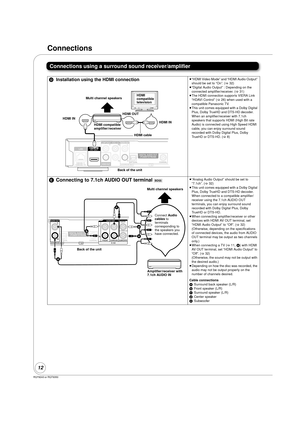

Page 12
RQT9243 or RQT9350 12 Connections Connections using a surround sound receiver/amplifier DInstallation using the HDMI connection≥“HDMI Video Mode” and “HDMI Audio Output” should be set to “On”. ( >32) ≥ “Digital Audio Output” : Depending on the connected amplifier/receiver. ( >31) ≥ The HDMI connection supports VIERA Link “HDAVI Control” ( >26) when used with a compatible Panasonic TV. ≥ This unit comes equipped with a Dolby Digital Plus, Dolby TrueHD and DTS-HD decoder. When an amplifier/receiver...
Page 13

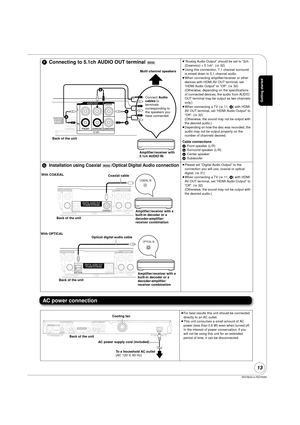

![Page 13
RQT9243 or RQT9350
13
AC power connection
FConnecting to 5.1ch AUDIO OUT terminal [BD55] ≥
“Analog Audio Output” should be set to “2ch
(Downmix) + 5.1ch”. ( >32)
≥ Using this connection, 7.1 channel surround
is mixed down to 5.1 channel audio.
≥ When connecting amplifier/receiver or other
devices with HDMI AV OUT terminal, set
“HDMI Audio Output” to “Off”. (> 32)
(Otherwise, depending on the specifications
of connected devices, the audio from AUDIO
OUT terminal may be output as two channels...](http://img.usermanuals.tech/thumb/58/64098/w300_dmp-bd35_mul_om_d-12.png "Page 13
RQT9243 or RQT9350
13
AC power connection
FConnecting to 5.1ch AUDIO OUT terminal [BD55] ≥
“Analog Audio Output” should be set to “2ch
(Downmix) + 5.1ch”. ( >32)
≥ Using this connection, 7.1 channel surround
is mixed down to 5.1 channel audio.
≥ When connecting amplifier/receiver or other
devices with HDMI AV OUT terminal, set
“HDMI Audio Output” to “Off”. (> 32)
(Otherwise, depending on the specifications
of connected devices, the audio from AUDIO
OUT terminal may be output as two channels...")
RQT9243 or RQT9350 13 AC power connection FConnecting to 5.1ch AUDIO OUT terminal [BD55] ≥ “Analog Audio Output” should be set to “2ch (Downmix) + 5.1ch”. ( >32) ≥ Using this connection, 7.1 channel surround is mixed down to 5.1 channel audio. ≥ When connecting amplifier/receiver or other devices with HDMI AV OUT terminal, set “HDMI Audio Output” to “Off”. (> 32) (Otherwise, depending on the specifications of connected devices, the audio from AUDIO OUT terminal may be output as two channels...

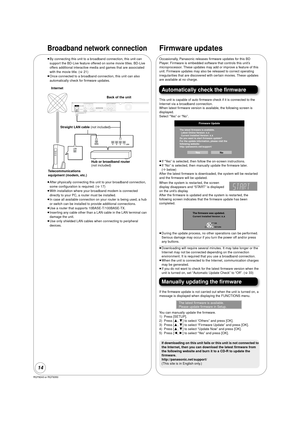

Page 14
RQT9243 or RQT9350 14 Broadband network connection ≥By connecting this unit to a broadband connection, this unit can support the BD-Live feature offered on some movie titles. BD-Live offers additional interactive media and games that are associated with the movie title. ( >21) ≥ Once connected to a broadband connection, this unit can also automatically check for firmware updates. ≥ After physically connecting this unit to your broadband connection, some configuration is required. ( >17) ≥ With...
Page 15

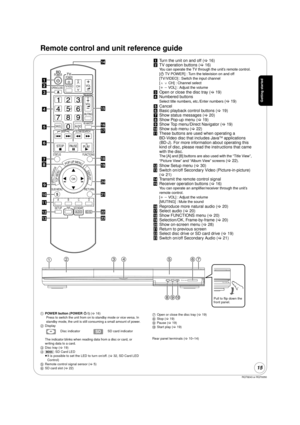

![Page 15
RQT9243 or RQT9350
15
Remote control and unit reference guide
!Turn the unit on and off ( >16)
@ TV operation buttons ( >16)
You can operate the TV through the unit’s remote control.
[Í TV POWER] : Turn the television on and off
[TV/VIDEO] : Switch the input channel
[ WX CH] : Channel select
[ ij VOL] : Adjust the volume
#Open or close the disc tray ( >19)
$ Numbered buttons
Select title numbers, etc./Enter numbers (> 19)
% Cancel
^ Basic playback control buttons ( >19)
& Show status messages ( >20)
*...](http://img.usermanuals.tech/thumb/58/64098/w300_dmp-bd35_mul_om_d-14.png "Page 15
RQT9243 or RQT9350
15
Remote control and unit reference guide
!Turn the unit on and off ( >16)
@ TV operation buttons ( >16)
You can operate the TV through the unit’s remote control.
[Í TV POWER] : Turn the television on and off
[TV/VIDEO] : Switch the input channel
[ WX CH] : Channel select
[ ij VOL] : Adjust the volume
#Open or close the disc tray ( >19)
$ Numbered buttons
Select title numbers, etc./Enter numbers (> 19)
% Cancel
^ Basic playback control buttons ( >19)
& Show status messages ( >20)
*...")
RQT9243 or RQT9350 15 Remote control and unit reference guide !Turn the unit on and off ( >16) @ TV operation buttons ( >16) You can operate the TV through the unit’s remote control. [Í TV POWER] : Turn the television on and off [TV/VIDEO] : Switch the input channel [ WX CH] : Channel select [ ij VOL] : Adjust the volume #Open or close the disc tray ( >19) $ Numbered buttons Select title numbers, etc./Enter numbers (> 19) % Cancel ^ Basic playback control buttons ( >19) & Show status messages ( >20) *...
Page 16

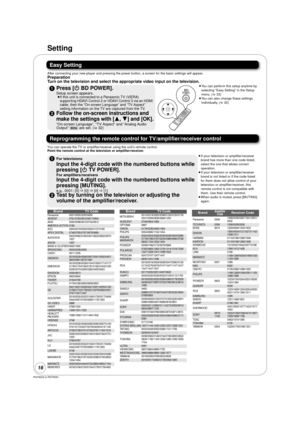

![Page 16
RQT9243 or RQT9350
16
Setting
Easy Setting
After connecting your new player and pressing the power button, a sc reen for the basic settings will appear.
Preparation
Turn on the television and select the appropriate video input on the television.
Reprogramming the remote control for TV/amplifier/receiver control
You can operate the TV or amplifier/receiver using the unit’s remote control.
Point the remote control at the television or amplifier/receiver.
1Press [ ÍBD POWER].
Setup screen appears.≥If this...](http://img.usermanuals.tech/thumb/58/64098/w300_dmp-bd35_mul_om_d-15.png "Page 16
RQT9243 or RQT9350
16
Setting
Easy Setting
After connecting your new player and pressing the power button, a sc reen for the basic settings will appear.
Preparation
Turn on the television and select the appropriate video input on the television.
Reprogramming the remote control for TV/amplifier/receiver control
You can operate the TV or amplifier/receiver using the unit’s remote control.
Point the remote control at the television or amplifier/receiver.
1Press [ ÍBD POWER].
Setup screen appears.≥If this...")
RQT9243 or RQT9350 16 Setting Easy Setting After connecting your new player and pressing the power button, a sc reen for the basic settings will appear. Preparation Turn on the television and select the appropriate video input on the television. Reprogramming the remote control for TV/amplifier/receiver control You can operate the TV or amplifier/receiver using the unit’s remote control. Point the remote control at the television or amplifier/receiver. 1Press [ ÍBD POWER]. Setup screen appears.≥If this...
Page 17

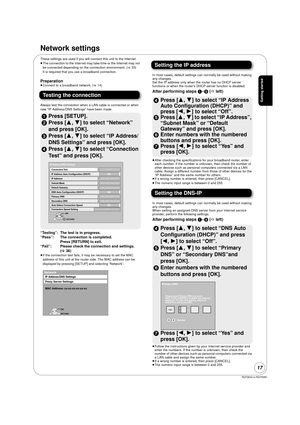

![Page 17
RQT9243 or RQT9350
17
Network settings
These settings are used if you will connect this unit to the Internet.
≥The connection to the Internet may take time or the Internet may not
be connected depending on the connection environment. ( >33)
It is required that you use a broadband connection.
Preparation≥ Connect to a broadband network. ( >14)
Testing the connection
Always test the connection when a LAN cable is connected or when
new “IP Address/DNS Settings” have been made.
1 Press [SETUP].
2 Press [3...](http://img.usermanuals.tech/thumb/58/64098/w300_dmp-bd35_mul_om_d-16.png "Page 17
RQT9243 or RQT9350
17
Network settings
These settings are used if you will connect this unit to the Internet.
≥The connection to the Internet may take time or the Internet may not
be connected depending on the connection environment. ( >33)
It is required that you use a broadband connection.
Preparation≥ Connect to a broadband network. ( >14)
Testing the connection
Always test the connection when a LAN cable is connected or when
new “IP Address/DNS Settings” have been made.
1 Press [SETUP].
2 Press [3...")
RQT9243 or RQT9350 17 Network settings These settings are used if you will connect this unit to the Internet. ≥The connection to the Internet may take time or the Internet may not be connected depending on the connection environment. ( >33) It is required that you use a broadband connection. Preparation≥ Connect to a broadband network. ( >14) Testing the connection Always test the connection when a LAN cable is connected or when new “IP Address/DNS Settings” have been made. 1 Press [SETUP]. 2 Press [3...
Page 18

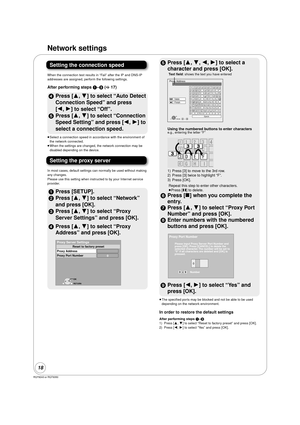

![Page 18
18
RQT9243 or RQT9350
Network settings
Setting the connection speed
When the connection test results in “Fail” after the IP and DNS-IP
addresses are assigned, perform the following settings.
After performing steps 1–3 ( >17)
4 Press [3, 4] to select “Auto Detect
Connection Speed” and press
[2, 1] to select “Off”.
5 Press [3, 4] to select “Connection
Speed Setting” and press [ 2,1] to
select a connection speed.
≥ Select a connection speed in acco rdance with the environment of
the network...](http://img.usermanuals.tech/thumb/58/64098/w300_dmp-bd35_mul_om_d-17.png "Page 18
18
RQT9243 or RQT9350
Network settings
Setting the connection speed
When the connection test results in “Fail” after the IP and DNS-IP
addresses are assigned, perform the following settings.
After performing steps 1–3 ( >17)
4 Press [3, 4] to select “Auto Detect
Connection Speed” and press
[2, 1] to select “Off”.
5 Press [3, 4] to select “Connection
Speed Setting” and press [ 2,1] to
select a connection speed.
≥ Select a connection speed in acco rdance with the environment of
the network...")
18 RQT9243 or RQT9350 Network settings Setting the connection speed When the connection test results in “Fail” after the IP and DNS-IP addresses are assigned, perform the following settings. After performing steps 1–3 ( >17) 4 Press [3, 4] to select “Auto Detect Connection Speed” and press [2, 1] to select “Off”. 5 Press [3, 4] to select “Connection Speed Setting” and press [ 2,1] to select a connection speed. ≥ Select a connection speed in acco rdance with the environment of the network...
Page 19

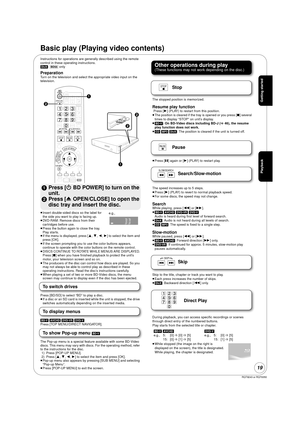

![Page 19
RQT9243 or RQT9350
19
Play back
Basic play (Playing video contents)
Instructions for operations are generally described using the remote
control in these operating instructions.
[DivX]: [BD55] only
PreparationTurn on the television and select the appropriate video input on the
television.
1 Press [Í BD POWER] to turn on the
unit.
2 Press [ 46), the resume
play function does not work.
≥ [CD] [MP3] [DivX] : The position is cleared if the unit is turned off.
Pause
≥Press [ ;] again or [ 1] (PLAY) to...](http://img.usermanuals.tech/thumb/58/64098/w300_dmp-bd35_mul_om_d-18.png "Page 19
RQT9243 or RQT9350
19
Play back
Basic play (Playing video contents)
Instructions for operations are generally described using the remote
control in these operating instructions.
[DivX]: [BD55] only
PreparationTurn on the television and select the appropriate video input on the
television.
1 Press [Í BD POWER] to turn on the
unit.
2 Press [ 46), the resume
play function does not work.
≥ [CD] [MP3] [DivX] : The position is cleared if the unit is turned off.
Pause
≥Press [ ;] again or [ 1] (PLAY) to...")
RQT9243 or RQT9350 19 Play back Basic play (Playing video contents) Instructions for operations are generally described using the remote control in these operating instructions. [DivX]: [BD55] only PreparationTurn on the television and select the appropriate video input on the television. 1 Press [Í BD POWER] to turn on the unit. 2 Press [ 46), the resume play function does not work. ≥ [CD] [MP3] [DivX] : The position is cleared if the unit is turned off. Pause ≥Press [ ;] again or [ 1] (PLAY) to...
Page 20

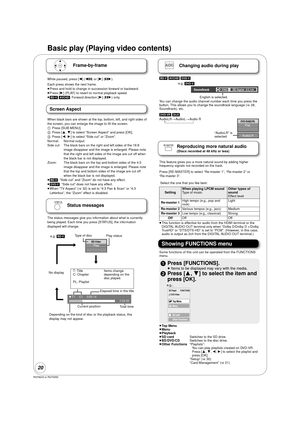

![Page 20
20
RQT9243 or RQT9350
Basic play (Playing video contents)
Frame-by-frame
While paused, press [ 2] (2;) or [ 1] (;1 ).
Each press shows the next frame.
≥ Press and hold to change in succession forward or backward.
≥ Press [ 1] (PLAY) to revert to normal playback speed.
≥ [BD-V] [AVCHD] : Forward direction [ 1] (;1) only.
Screen Aspect
When black bars are shown at the top, bottom, left, and right sides of
the screen, you can enlarge the image to fill the screen.
1Press [SUB MENU].
2 Press [ 3,4] to select...](http://img.usermanuals.tech/thumb/58/64098/w300_dmp-bd35_mul_om_d-19.png "Page 20
20
RQT9243 or RQT9350
Basic play (Playing video contents)
Frame-by-frame
While paused, press [ 2] (2;) or [ 1] (;1 ).
Each press shows the next frame.
≥ Press and hold to change in succession forward or backward.
≥ Press [ 1] (PLAY) to revert to normal playback speed.
≥ [BD-V] [AVCHD] : Forward direction [ 1] (;1) only.
Screen Aspect
When black bars are shown at the top, bottom, left, and right sides of
the screen, you can enlarge the image to fill the screen.
1Press [SUB MENU].
2 Press [ 3,4] to select...")
20 RQT9243 or RQT9350 Basic play (Playing video contents) Frame-by-frame While paused, press [ 2] (2;) or [ 1] (;1 ). Each press shows the next frame. ≥ Press and hold to change in succession forward or backward. ≥ Press [ 1] (PLAY) to revert to normal playback speed. ≥ [BD-V] [AVCHD] : Forward direction [ 1] (;1) only. Screen Aspect When black bars are shown at the top, bottom, left, and right sides of the screen, you can enlarge the image to fill the screen. 1Press [SUB MENU]. 2 Press [ 3,4] to select...
