Panasonic Dmp Bd35 Operating Instructions

RQT9243 or RQT9350
31
To select these options, perform steps 1–4 ( >30)
“Video”
Still Mode (paused video) [BD-V] [AVCHD] [DVD-V]
Select the type of picture shown when you pause playback
(> 46, Frames and fields). ≥
Auto≥Field: Select if jittering occurs when “Auto” is selected. (The picture
is coarser.)
≥ Frame: Select if small text or fine patterns cannot be seen clearly
when “Auto” is selected. (The picture is clearer and finer.)
Seamless Play [DVD-VR]
Select the play mode between playlist chapter...

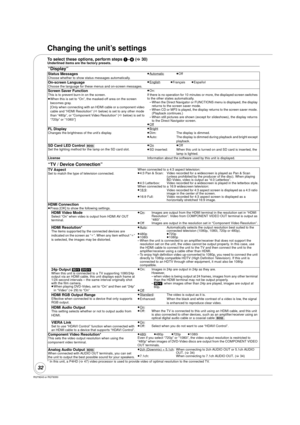

RQT9243 or RQT9350
32
Changing the unit’s settings
To select these options, perform steps 1–4 (> 30)Underlined items are the factory presets.
* In this unit, a P4HD ( >47) video processor is used to provide video  of optimal resolution to the connected TV.
“Display”
Status MessagesChoose whether to show status messages automatically. ≥
Automatic
≥Off
On-screen LanguageChoose the language for these m enus and on-screen messages. ≥
English
≥Français ≥Español
Screen Saver FunctionThis is to prevent burn-in...

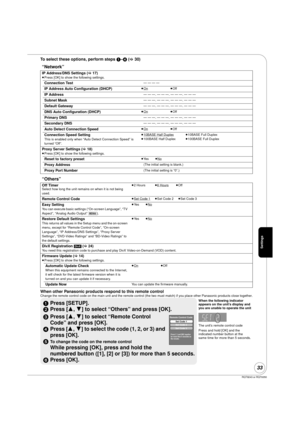

RQT9243 or RQT9350
33
To select these options, perform steps 1–4 ( >30)
When other Panasonic products respond to this remote control
Change the remote control code on the main unit and the remote control (the two must match) if you place other Panasonic produc ts close together.
“Network”
IP Address/DNS Settings (>17)
≥Press [OK] to show the following settings.
Connection Test— — — —
IP Address Auto Configuration (DHCP) ≥On≥Off
IP Address — — —. — — —. — — —. — — —
Subnet Mask — — —. — — —. — — —. — — —...

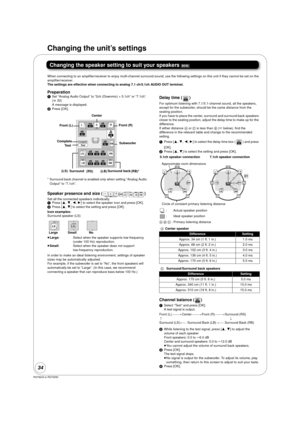

34
RQT9243 or RQT9350
Changing the unit’s settings
Changing the speaker setting to suit your speakers [BD55]
When connecting to an amplifier/receiver to enjoy multi-channel surround sound, use the following settings on this unit if they  cannot be set on the
amplifier/receiver.
The settings are effective when connecting to analog 7.1 ch/5.1ch AUDIO OUT terminal.
Preparation1 Set “Analog Audio Output” to “2ch (Downmix) + 5.1ch” or “7.1ch”.
(> 32)
A message is displayed.
2 Press [OK].
* Surround back...

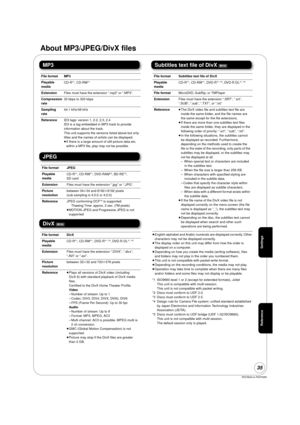

RQT9243 or RQT9350
35
Reference
About MP3/JPEG/DivX files
MP3
JPEG
DivX
[BD55]
Subtitles text file of DivX [BD55]
≥English alphabet and Arabic numerals  are displayed correctly. Other
characters may not be displayed correctly.
≥ The display order on this unit may differ from how the order is
displayed on a computer.
≥ Depending on how you create the media (writing software), files
and folders may not play in the order you numbered them.
≥ This unit is not compatible with packet-write format.
≥...

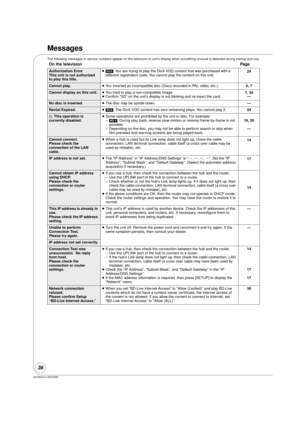

RQT9243 or RQT9350
36
Messages
The following messages or service numbers appear on the television or unit’s display when something unusual is detected during startup and use.
On the television Page
Authorization Error
This unit is not authorized
to play this title.≥[DivX]: You are trying to play the DivX VOD content that was purchased with a
different registration code. You cannot play the content on this unit.  24
Cannot play.
≥You inserted an incompatible disc (Discs recorded in PAL video, etc.). 6,...

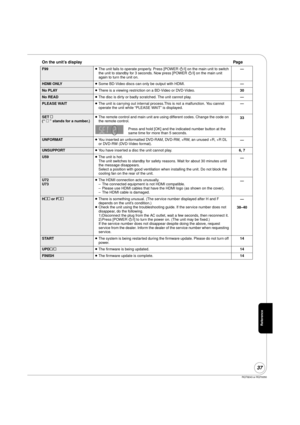

RQT9243 or RQT9350
37
On the unit’s displayPage
F99≥The unit fails to operate properly. Press [POWER  Í/I] on the main unit to switch
the unit to standby for 3 seconds. Now press [POWER  Í/I] on the main unit
again to turn the unit on. —
HDMI ONLY
≥Some BD-Video discs can only be output with HDMI. —
No PLAY≥There is a viewing restriction on a BD-Video or DVD-Video. 30
No READ≥The disc is dirty or badly scratched. The unit cannot play. —
PLEASE WAIT≥The unit is carrying out internal process.This is not...

RQT9243 or RQT9350
38

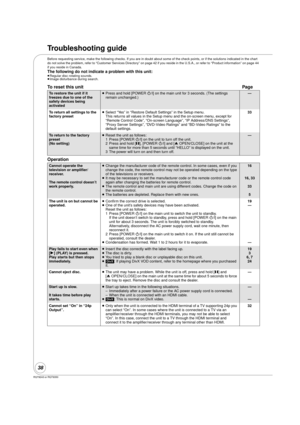

Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart
do not solve the problem, refer to “Customer Services Directory”  on page 42 if you reside in the U.S.A., or refer to “Product information” on page 44
if you reside in Canada.
The following do not indicate a problem with this unit:≥ Regular disc rotating sounds.
≥ Image disturbance during search.
To reset this...

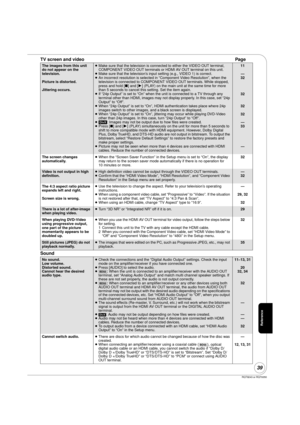

RQT9243 or RQT9350
39
TV screen and videoPage
Sound
The images from this unit
do not appear on the
television.
Picture is distorted.
Jittering occurs.≥ Make sure that the television is connected to either the VIDEO OUT terminal,
COMPONENT VIDEO OUT terminals or HDMI AV OUT terminal on this unit.
≥ Make sure that the television’s input setting (e.g., VIDEO 1) is correct.
≥ An incorrect resolution is selected in “Component Video Resolution”, when the
television is connected to COMPONENT VIDEO OUT...

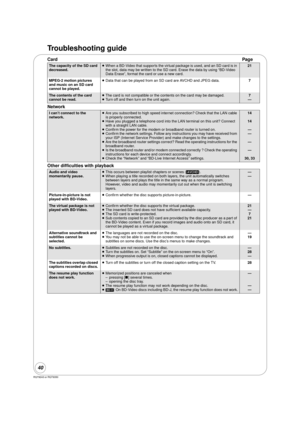

40
RQT9243 or RQT9350
Troubleshooting guide
CardPage
Network
Other difficulties with playback
The capacity of the SD card
decreased.≥ When a BD-Video that supports the virtual package is used, and an SD card is in
the slot, data may be written to the SD card. Erase the data by using “BD-Video
Data Erase”, format the card or use a new card.21
MPEG-2 motion pictures
and music on an SD card
cannot be played. ≥
Data that can be played from an SD card are AVCHD and JPEG data.  7
The contents of the card...
