Panasonic Dmp Bd35 Operating Instructions

RQT9243 or RQT9350
41

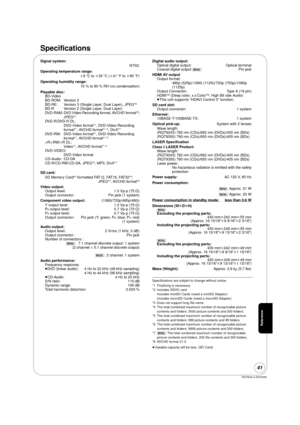

Specifications
Signal system:
NTSC
Operating temperature range: i5 oC to i 35 oC ( i41  oF to i 95 oF)
Operating humidity range: 10 % to 80  % RH (no condensation)
Playable disc: BD-Video
BD-ROM: Version 2
BD-RE: Version 3 (Single Layer, Dual Layer), JPEG*
6
BD-R Version 2 (Single Layer, Dual Layer)
DVD-RAM: DVD Video Recording format, AVCHD format*8,
JPEG*4
DVD-R/DVD-R DL: DVD-Video format*1, DVD-Video Recording
for mat*1, AVCHD format*1, 8, DivX*7
DVD-RW: DVD-Video format*1,...

42
RQT9243 or RQT9350

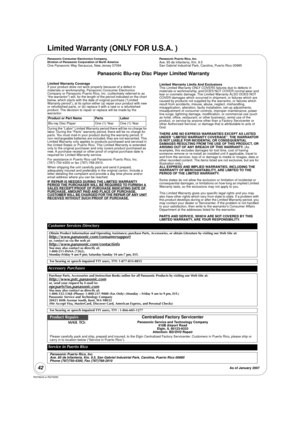

Limited Warranty (ONLY FOR U.S.A. )
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Blu-ray Disc  Player Limited Warranty
Limited Warranty Coverage
If your product does not work  properly because of a defect in
materials or workmanship, Panasonic Consumer Electronics...

RQT9243 or RQT9350
43

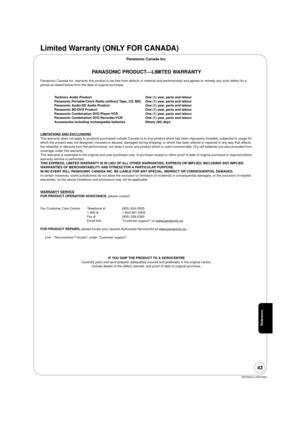

Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
PANASONIC PRODUCT—LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a
period as stated below from the date of original purchase.
Technics Audio Product  One (1) year, parts and labour
Panasonic Portable/Clock Radio (without Tape, CD, MD) One (1) year, parts and labour
Panasonic Audio/SD Audio Product One (1) year, parts and...

RQT9243 or RQT9350
44

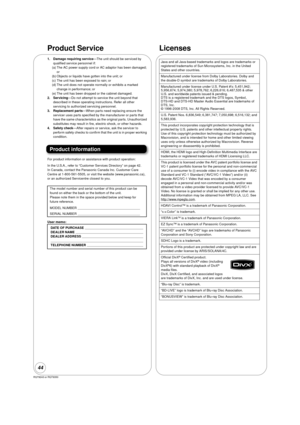

Product Service
1. Damage requiring service—The unit should be serviced by
qualified service personnel if:
(a) The AC power supply cord or AC adaptor has been damaged;
or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked
change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing —Do not attempt to service the unit beyond that
described in...

RQT9243 or RQT9350
45

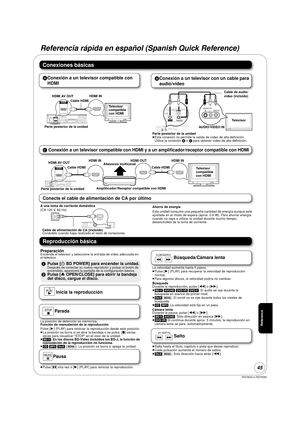

Referencia rápida en español (Spanish Quick Reference)
Conexiones básicas
AConexión a un televisor compatible con
HDMI B
Conexión a un televisor con un cable para
audio/vídeo
Parte posterior de la unidad
≥Esta conexión no permite la salida de vídeo de alta definición.
Utilice la conexión  A o  C  para obtener vídeo de alta definición.
C Conexión a un televisor compatible con HDMI y a un amplificador/receptor compatible con HDMI
Conecte el cable de alimentación de CA por último...

RQT9243 or RQT9350
46

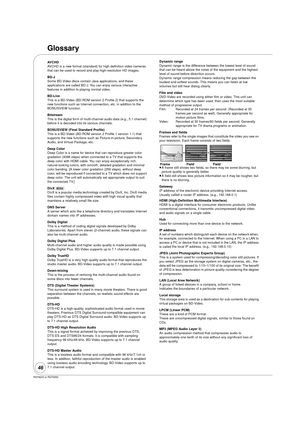

Glossary
AVCHD
AVCHD is a new format (standard) for high definition video cameras
that can be used to record and play high-resolution HD images.
BD-J
Some BD-Video discs contain Java applications, and these
applications are called BD-J. You can enjoy various interactive
features in addition to playing normal video.
BD-Live
This is a BD-Video (BD-ROM version 2 Profile 2) that supports the
new functions such as Internet connection, etc. in addition to the
BONUSVIEW function....

RQT9243 or RQT9350
47

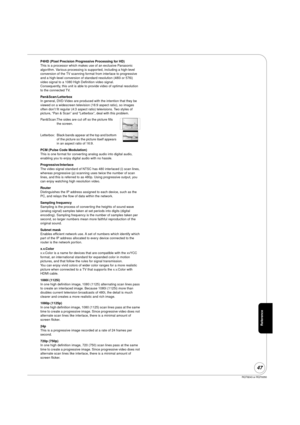

P4HD (Pixel Precision Progressive Processing for HD)
This is a processor which makes use of an exclusive Panasonic
algorithm. Various processing is supported, including a high-level
conversion of the TV scanning format from interlace to progressive
and a high-level conversion of standard resolution (480i or 576i)
video signal to a 1080 High Definition video signal.
Consequently, this unit is able to provide video of optimal resolution
to the connected TV.
Pan&Scan/Letterbox
In...

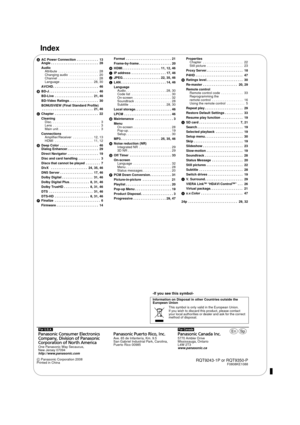

Index
AAC Power Connection . . . . . . . . . . . .  13
Angle . . . . . . . . . . . . . . . . . . . . . . . . . .  28
Audio
Attribute  . . . . . . . . . . . . . . . . . . . . . .  28
Changing audio  . . . . . . . . . . . . . . . .  20
Channel  . . . . . . . . . . . . . . . . . . . . . .  28
Language . . . . . . . . . . . . . . . . . .  28, 30
AVCHD. . . . . . . . . . . . . . . . . . . . . . . . .  46
B BD-J . . . . . . . . . . . . . . . . . . . . . . . . . . .  46
BD-Live  . . . . . . . . . . . . . . . ....
