Page 1
Owner’s Manual (Detailed Information) Streaming Player Model No. DMP-MST60DMP-MS10 Unless otherwise indicated, illustrations in this Owner’s Manual are of DMP-MST60. 0Á 0Á VQT4X69 F0113QK0PPC
Page 2
- 2 - Table of contents Getting started Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Unit and media care . . . . . . . . . . . . . . . . . . . . . 3 Control reference guide . . . . . . . . . . . . . . . . . .4 Connections & Settings Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . 7 Connecting to the AC adaptor . . . . . . . . . . . . . 7 Connecting to an amplifier/receiver . . . . . . . . . 8 Connecting to the network . . . . . . . . . . . . . . . . 8 Settings ....
Page 3
- 3 - Getting started Getting startedAccessories Check the supplied accessories before using this unit. ≥Product numbers provided in this Owner’s Manual correct as of December 2012. These may be subject to change. 1 Remote control ([MST60] N2QAYB000889 / [MS10] N2QAYB000883) 2 Batteries for remote control 1 AC adaptor (VSK0811) ≥For use with this unit only. Do not use it with other equipment. ≥ Do not use any other AC adaptors except the supplied one. 1 HDMI cable (K1HY19YY0012) Unit and media...
Page 4
- 4 - Getting started Control reference guide [MST60]1 Turn the unit on and off 2 TV operation buttons You can operate the Panasonic TV using the unit’s remote control. Some buttons may not work depending on the TV. [Í TV] : Turn the TV on and off [AV] : Change input [ ijVOL] : Adjust the volume 3 Enter numbers or characters 4 Cancel 5 Basic playback control buttons ( >19) 6 Show Top menu ( >19) 7 Show Miracast™ screen ( >15) 8 Show Option menu ( >22) 9 Colored buttons (red, green, blue, yellow) Used...
Page 5
- 5 - Getting started [MS10]1 Turn the unit on and off 2 TV operation buttons You can operate the Panasonic TV using the unit’s remote control. Some buttons may not work depending on the TV. [ÍTV] : Turn the TV on and off [AV] : Change input [ijVOL] : Adjust the volume 3 Enter numbers 4 Cancel 5 Select audio ( >19) 6 Basic playback control buttons ( >19) 7 Show Top menu ( >19) 8 Show Miracast screen ( >15) 9 Show Option menu ( >22) 10 Colored buttons (red, green, blue, yellow) Used for various purposes...
Page 6
- 6 - Getting started Front View Rear View 1 Remote control signal sensorDistance: Within approx. 7 m (23 feet) Angle: Approx. 20 e up and down, 30e left and right 2 POWER LED Blinks when the power is turned on. Wait for the LED to turn solid green before using this unit. 3 INFO LED ( >28, “LED indicators”) Displays the various states of this unit. 4 USB port ( >18) 5 DC IN terminal ( >7) 6 LAN port ( >9) 7 HDMI AV OUT terminal ( >7) 8 Standby/on switch ( POWERÍ/I) ( > 10) Press to switch the unit from...

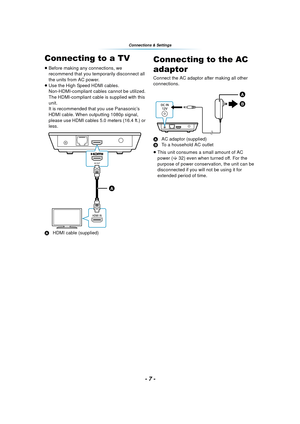

Page 7
- 7 - Connections & Settings C onn ect ion s & Se tt ing sConnecting to a TV ≥Before making any connections, we recommend that you temporarily disconnect all the units from AC power. ≥ Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized. The HDMI-compliant cable is supplied with this unit. It is recommended that you use Panasonic’s HDMI cable. When outputting 1080p signal, please use HDMI cables 5.0 meters (16.4 ft.) or less. A HDMI cable (supplied) Connecting to the AC...
Page 8
- 8 - Connections & Settings Connecting to an amplifier/receiver AHDMI cable (supplied) B Amplifier/receiver C HDMI cable ≥ Set “Digital Audio Output” ( >25). ≥ When using the TV or amplifier/receiver that does not have the indication of “(ARC)” (non-ARC-compatible) on the HDMI terminal, the amplifier/receiver and TV must also be connected using an optical digital cable in order to enjoy the TV’s sound through the amplifier/ receiver. ≥ [MST60] When connecting to a non-3D compatible...
Page 9
- 9 - Connections & Settings This unit has built-in Wi-Fi® and can be connected to a wireless router. A Wireless router, etc. B Internet ≥ For up-to-date compatibility information on your wireless router, refer to http://panasonic.jp/support/global/cs/ (This site is in English only.) For additional information about this unit refer to http://www.panasonic.com/help (For U.S.A.) ≥ The unit is not compatible with public wireless LAN services provided in airports, stations, cafes, etc. ≥ See “Owner’s...

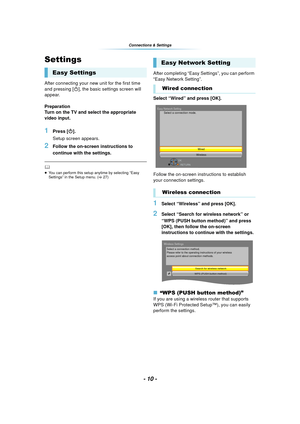

Page 10
- 10 - Connections & Settings Settings After connecting your new unit for the first time and pressing [Í], the basic settings screen will appear. Preparation Turn on the TV and select the appropriate video input. 1Press [ Í]. Setup screen appears. 2Follow the on-screen instructions to continue with the settings. ≥ You can perform this setup anytime by selecting “Easy Settings” in the Setup menu. ( >27) After completing “Easy Settings”, you can perform “Easy Network Setting”. Select “Wired” and...
