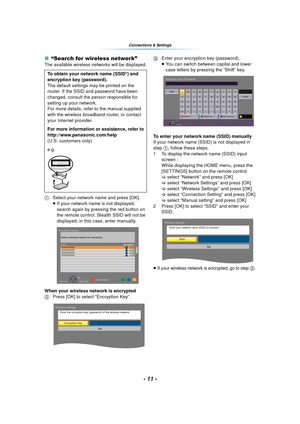

- 11 -
Connections & Settings
∫“Search for wireless network”
The available wireless networks will be displayed.
1 Select your network name and press [OK].
≥If your network name is not displayed,
search again by pressing the red button on
the remote control. Stealth SSID will not be
displayed; in this case, enter manually.
When your wireless network is encrypted
2 Press [OK] to select “Encryption Key”. 3
Enter your encryption key (password).
≥You can switch between capital and lower
case letters by...

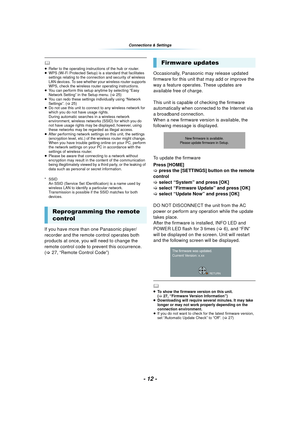

- 12 -
Connections & Settings
	≥Refer to the operating instructions of the hub or router.
≥ WPS (Wi-Fi Protected Setup) is a standard that facilitates
settings relating to the connection and security of wireless
LAN devices. To see whether your wireless router supports
WPS, check the wireless router operating instructions.
≥ You can perform this setup anytime by selecting “Easy
Network Setting” in the Setup menu. ( >25)
≥ You can redo these settings individually using “Network
Settings”. (> 25)
≥ Do...

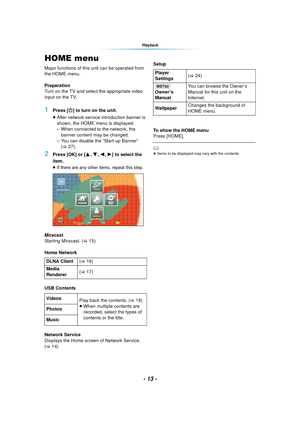

- 13 -
Playback
Playba ckHOME menu
Major functions of this unit can be operated from
the HOME menu.
Preparation
Turn on the TV and select the appropriate video
input on the TV.
1Press [Í] to turn on the unit.
≥ After network service introduction banner is
shown, the HOME menu is displayed.
– When connected to the network, the
banner content may be changed.
– You can disable the “Start-up Banner”  (> 27).
2Press [OK] or [ 3,4 ,2 ,1] to select the
item.
≥If there are any other items, repeat this...

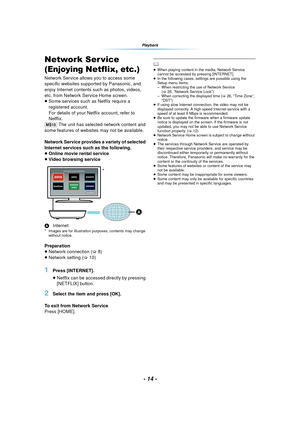

- 14 -
Playback
Network Ser vice
(Enjoying Netflix, etc.)
Network Service allows you to access some
specific websites supported by Panasonic, and
enjoy Internet contents such as photos, videos,
etc. from Network Service Home screen.
≥Some services such as Netflix require a
registered account.
For details of your Netflix account, refer to
Netflix.
[MS10]  The unit has selected network content and
some features of websites may not be available.
Network Service provides a variety of selected...

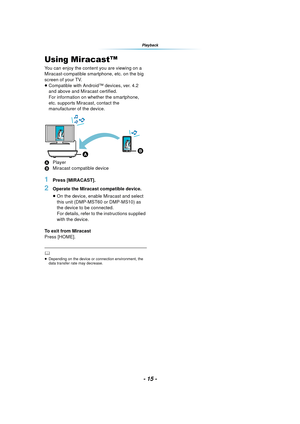

- 15 -
Playback
Using Miracast™
You can enjoy the content you are viewing on a
Miracast-compatible smartphone, etc. on the big
screen of your TV.
≥Compatible with Android™ devices, ver. 4.2
and above and Miracast certified.
For information on whether the smartphone,
etc. supports Miracast, contact the
manufacturer of the device.
A Player
B Miracast compatible device
1Press [MIRACAST].
2Operate the Miracast compatible device.
≥On the device, enable Miracast and select
this unit (DMP-MST60 or...

- 16 -
Playback
Home Network feature
You can share photos, videos and music stored in
the DLNA Certified media server (PC with
Windows 7 installed, smartphone, etc.) connected
to your home network, and enjoy the contents
with this player.
≥About support format of DLNA. ( >33)
≥ Before using the DLNA feature, be sure to
configure the DLNA server on your Home
Network.
A Player
B Server
Preparation
1 Perform network connection (> 8) and
network settings ( >10) of this unit.
2 Perform Home Network...

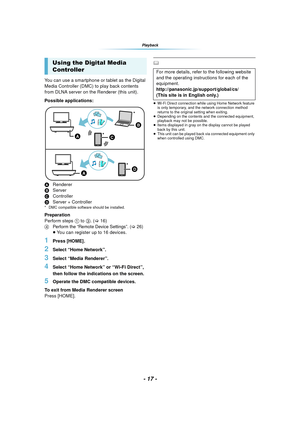

- 17 -
Playback
You can use a smartphone or tablet as the Digital
Media Controller (DMC) to play back contents
from DLNA server on the Renderer (this unit).
Possible applications:
ARenderer
B Server
C Controller
D Server + Controller
* DMC compatible software should be installed.
Preparation
Perform steps 1  to 3. ( >16)
4Perform the “Remote Device Settings”. (>26)≥You can register up to 16 devices.
1Press [HOME].
2Select “Home Network”.
3Select “Media Renderer”.
4Select “Home Network” or “Wi-Fi...

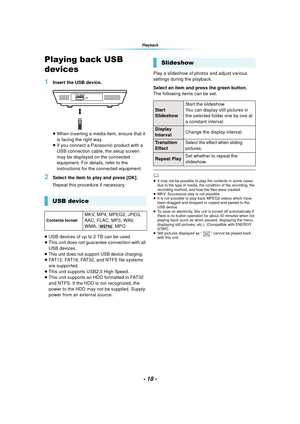

- 18 -
Playback
Playing back USB
devices
1Insert the USB device.
≥When inserting a media item, ensure that it
is facing the right way.
≥ If you connect a Panasonic product with a
USB connection cable, the setup screen
may be displayed on the connected
equipment. For details, refer to the
instructions for the connected equipment.
2Select the item to play and press [OK].
Repeat this procedure if necessary.
≥ USB devices of up to 2 TB can be used.
≥ This unit does not guarantee connection with all...

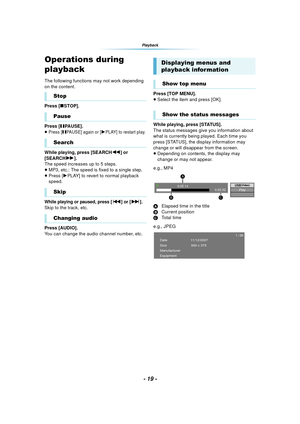

- 19 -
Playback
Operations during
playback
The following functions may not work depending
on the content.
Press [∫STOP].
Press [ ;PA U S E ] .
≥Press [;PAUSE] again or [1PLAY] to restart play.
While playing, press [SEARCH 6] or
[SEARCH 5].
The speed increases up to 5 steps.
≥ MP3, etc.: The speed is fixed to a single step.
≥ Press
[1PLAY] to revert to normal playback
speed.
While playing or paused, press [:] or [9].Skip to the track, etc.
Press [AUDIO].
You can change the audio channel number, etc....

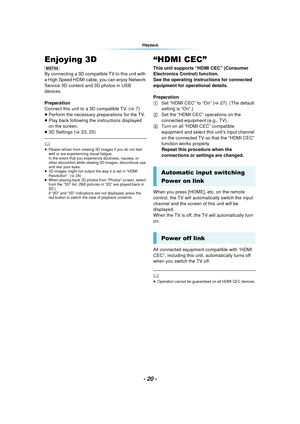

- 20 -
Playback
Enjoying 3D
[MST60]
By connecting a 3D compatible TV to this unit with
a High Speed HDMI cable, you can enjoy Network
Service 3D content and 3D photos in USB
devices.
Preparation
Connect this unit to a 3D compatible TV. (>7)
≥ Perform the necessary preparations for the TV.
≥ Play back following the instructions displayed
on the screen.
≥ 3D Settings ( >23, 25)
	≥Please refrain from viewing 3D images if you do not feel
well or are experiencing visual fatigue.
In the event that you...
