Panasonic Document Scanner Kv S1026c Operating Manual

Safety Information (For
United Kingdom only)
This appliance is supplied with a molded three pin
mains plug for your safety and convenience.
Should
the fuse need to be replaced please ensure that
the replacement fuse is of the same rating and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark   or the BSI mark   on the
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If

you lose the fuse cover the plug must...

Roller Cleaning Paper (sold
separately)
•
Keep
the roller cleaning paper out of reach of small
children.
• Do not store the roller cleaning paper in direct
sunlight or in a place with a temperature over
40   (104 °F).
• Only use the roller cleaning paper to clean the
rollers.
• For details about the roller cleaning paper, please
refer to the Material Safety Data Sheet (MSDS).
Please ask your Panasonic sales company about
obtaining the Material Safety Data Sheet.
KEEP AWAY FROM FIRE.
Others
• Make sure...

Security Notice
The management of documents and scanned data is
the
responsibility of the user. In particular, pay attention
to the following points.
• Make sure you have the same number of pages for
important documents both before and after
scanning, and take care not to leave any pages in
the scanner.
• Periodically back up important data.
• When having your computer or hard disk serviced,
or when disposing of your computer or hard disk,
completely erase any stored image data. Operating Manual 13...

Check the Accessories
Check that all accessories are included before installing the scanner. In the event that an item is missing,
please contact your dealer.
Accessories Name Notes Power cord
Two power cords may be included. Use the
power
cord appropriate for where you use the
unit. AC adaptor
Panasonic AC adaptor PJSWC0004 USB cable
— Mixed batch card guide It is pre-installed and fixed to the unit.
Software /
Manual DVD-ROM
Drivers, Applications, Utilities, Documents Safety Guide
— Quick Reference...

Location of Controls
Main Unit
Front Document guides
Mixed batch card guide
Useful when scanning business cards (
page 37).Door open button
Used to open the ADF door.
ADF door
Exit tray
Exit extension tray
Exit stopper
Exit support
Used if paper curls and cannot be fed properly when scanning thin paper (

page 35).Control Panel
For details, refer to "Control Panel and LED Indicators

" (page 17).LED   (Red) / LED   (Green)
Shows the scanner’

s status. For details, see "Control Panel and LED...

Rear
Power connector
Security slot
Use a commercially available security cable.
USB connector
16 Operating ManualInstallation3
1
2

Control Panel and LED Indicators
LED   (Red)
Turns on when an error occurs. LED   (Green)
Shows the scanner’ s status. Power button ( )
Press the power button for more than one second to turn the scanner off. Skip button (KV-S1026C only)
If

you press this button when a double feed occurs, the document that was detected as a double feed will
be scanned, and scanning will continue. Start/Stop button
•
If

you set [Wait Key] for "Manual Feed Mode" *1
 in your application, pushing this button...

About LED
A LED   (Red)
B LED   (Green)
Status
OFF OFFPower is off.*1
OFF ONReady or Scanning
OFF Blink (Fast)Warming up
OFF Blink (Slow)Sleep
OFF Blink (2 times
consecutively)Double feed detected error
ON OFFError
Blink (Slow) ONCaution*1
If  no operation is performed for 30 minutes or longer, the scanner will be turned OFF automatically. The time until the scanner turns
OFF can be changed with the User Utility. 18 Operating ManualInstallation

Installing the Unit
About the installation location
Notice
•Do not connect the scanner to a computer before installing the software.
• Do not move the unit immediately from a cold place to a warm place. It may cause dew.
In
order to ensure proper operation, install the unit maintaining the proper distances from surrounding objects,
as shown in the following illustration. *1
Clearance required to set the feed tray and exit tray. Operating Manual 19 Installation210 mm*¹
320 mm*¹
[Top View]

1.
Remove all packing tape.

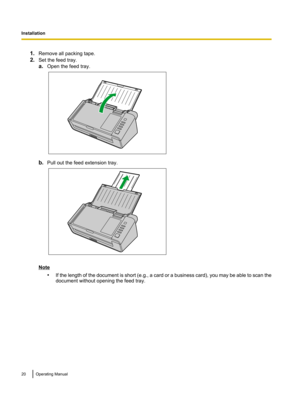

2. Set the feed tray.
a.Open the feed tray. b.
Pull out the feed extension tray. Note
•If
the length of the document is short (e.g., a card or a business card), you may be able to scan the
document without opening the feed tray. 20 Operating ManualInstallation
