Page 11
2LocationofControls 2.1MainUnit 2.1.1Front Documentguides Feedextensiontray Feedtray ADFdoor Manualfeedselector Y oucanselectthedocumentfeedingmethod. :Manualfeeding :Automaticfeeding Paperpathselector Y oucanselectthepaperpathfordocuments. :U-turnpath(frontexit) :Straightpath(rearexit) Operationpanel Fordetails,see"2.2OperationPanel "(page13).ADFdoorrelease Exittray Exitextensiontray1 Exitextensiontray2 2LocationofControls 111 432...
Page 12
2.1.2Rear ACinlet Powercord Securityslot Useacommerciallyavailablesecuritycable. USBcable USBconnector Fanexhaustvent Imprinterdoor Y ouopenthisdoorwheninstallinganimprinterunit(soldseparately)orinkcartridge. Fordetailsaboutinstallinganimprinterunit,referto"7.1InstallingtheImprinterUnitandInkCartridge" (page57). 2.1.2Rear 123 17 564 2
Page 13
2.2OperationPanel LCD Selectedjobs,errorcodes,notificationmessages,andthe scannerstatusaredisplayed. Powerbutton Pressthepowerbuttonformorethanonesecondtoturn theunitof f. LED(Red) Lightswhenanerroroccurs. LED(Green) Showsthescanner
Page 14
2.2.1AboutLED ThestatusofthescannerisdisplayedbytheLED(Red)( )andtheLED(Green)( ),asshowninthe tablebelow: LED(Red) LED(Green) Status OFF OFF PowerOFF*1 OFF Blinking(Fast) Warmingup OFF ON ReadymodeorScanning Blinking(Slow) ON Notificationmode OFF Blinking(Slow) Sleepmode*2 orCleaningmode Blinking(Slow) Blinking(Slow) Sleepmode*2 andNotificationmode ON OFF Error*3 OFF Blinking(Fast,2timesconsecutively) Doublefeedskipmode OFF...
Page 15
2.2.2AboutLCD ThestatusoftheunitisdisplayedontheLCDasfollows. LCD StatusThescanneriswarmingup. TheUSBcableisnotconnected. TheScannerstatusandscanningcounteraredisplayed. Examplesofdisplaysofscannerstatusesareasfollows. G:nn GROUPNAME Groupnumber(two-digit)andGroupnameofjob J:nn JOBNAME Jobnumber(two-digit)andJobname U:nn MESSAGE Errornumber(two-digit)andErrormessage 2.2.2AboutLCD 15 123
Page 16
3Installation 3.1RequiredSpaceAroundtheScanner Inordertoensureproperoperation,installtheunitmaintainingtheproperdistancesfromsurrounding objects,asshowninthefollowingillustration. Notice
Page 17

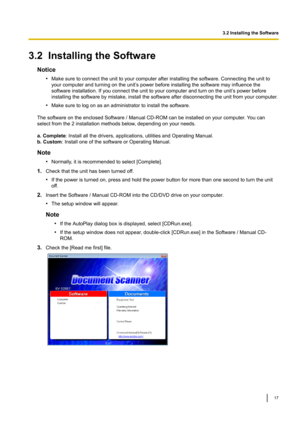

3.2InstallingtheSoftware Notice
Page 18

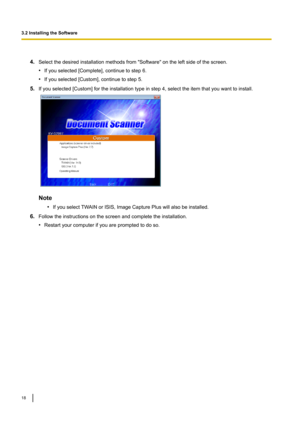

4. Selectthedesiredinstallationmethodsfrom"Software"ontheleftsideofthescreen.
Page 19

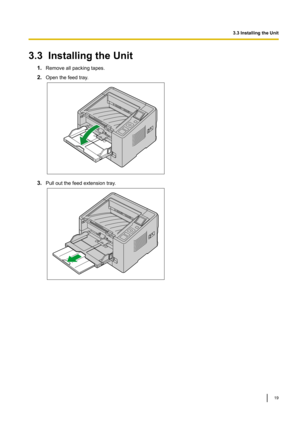

3.3InstallingtheUnit 1. Removeallpackingtapes. 2. Openthefeedtray .3. Pulloutthefeedextensiontray . 3.3InstallingtheUnit 19
Page 20

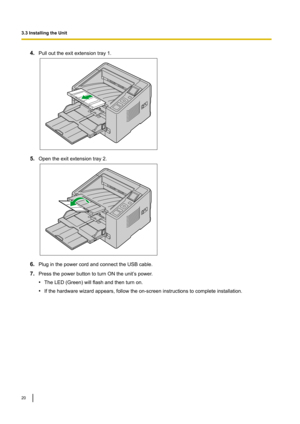

4. Pullouttheexitextensiontray1. 5. Opentheexitextensiontray2. 6. PluginthepowercordandconnecttheUSBcable. 7. PressthepowerbuttontoturnONtheunit
