11
Introduction and Installation

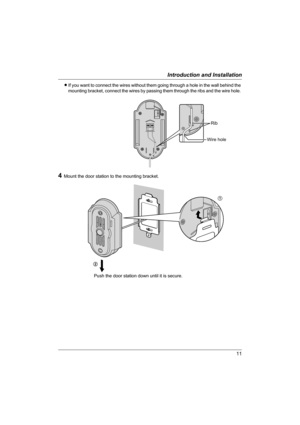

LIf you want to connect the wires without them going through a hole in the wall behind the
mounting bracket, connect the wires by passing them through the ribs and the wire hole.
4Mount the door station to the mounting bracket.
Push the door station down until it is secure.
Rib
Wire hole
1
2
VL-GC001A.book  Page 11  Monday, February 28, 2005  12:08 PM

12
Introduction and Installation

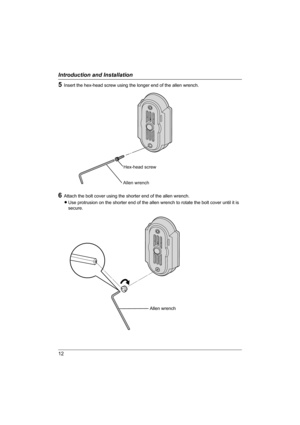

5Insert the hex-head screw using the longer end of the allen wrench.
6Attach the bolt cover using the shorter end of the allen wrench.
LUse protrusion on the shorter end of the allen wrench to rotate the bolt cover until it is
secure.
Hex-head screw
Allen wrench
Allen wrench
VL-GC001A.book  Page 12  Monday, February 28, 2005  12:08 PM

13
Help

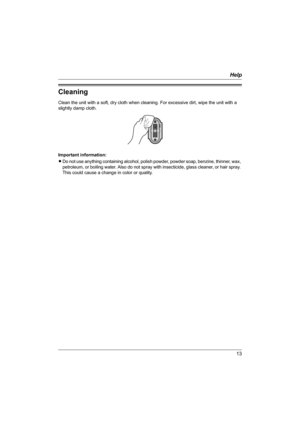

Cleaning
Clean the unit with a soft, dry cloth when cleaning. For excessive dirt, wipe the unit with a
slightly damp cloth.
Important information:
LDo not use anything containing alcohol, polish powder, powder soap, benzine, thinner, wax,
petroleum, or boiling water. Also do not spray with insecticide, glass cleaner, or hair spray.
This could cause a change in color or quality.
VL-GC001A.book  Page 13  Monday, February 28, 2005  12:08 PM

14
General Information

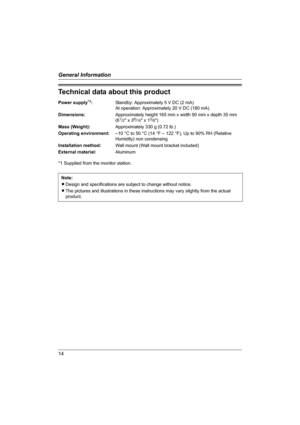

Technical data about this product
Power supply*1:Standby: Approximately 5 V DC (2 mA)
At operation: Approximately 20 V DC (180 mA)
Dimensions:Approximately height 165 mm x width 90 mm x depth 35 mm
(6
1/2 x 39/16 x 13/8)
Mass (Weight):Approximately 330 g (0.72 lb.)
Operating environment:
–10 °C to 50 °C (14 °F – 122 °F), Up to 90% RH (Relative
Humidity) non condensing
Installation method:Wall mount (Wall mount bracket included)
External material:Aluminum
*1 Supplied from the...

15
General Information

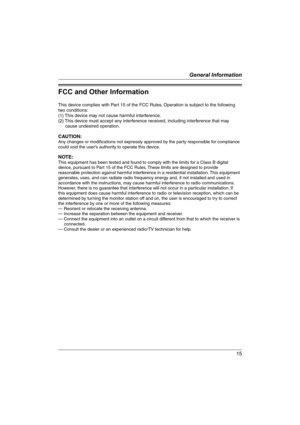

FCC and Other Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.

CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this device.
NOTE:
This equipment has...

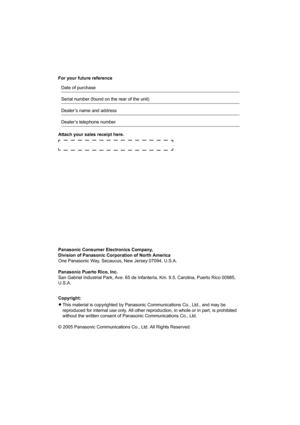

For your future reference
Attach your sales receipt here.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094, U.S.A.
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5, Carolina, Puerto Rico 00985,
U.S.A.
Copyright:
LThis material is copyrighted by Panasonic Communications Co., Ltd., and may be
reproduced for internal use only. All other reproduction, in whole or in part, is...
