Panasonic Dual DIN HDD Mobile Navigation System Cn Nvd905u System Upgrade Guidebook

XM Satellite Radio control (continued)
Select a category
  To turn the category selection on
1Select [Setup].
   The XM Setup screen is displayed.
2Select [On] from “Category”.
   Select [Off] to turn the category selection off.
  To select a category
Select [] or [].
   The category switches.
Note:
   It is not possible to select a category if “Category” is
set to [Off].
Preset memory
The channel being received can be stored manually
under a selected number.
Select the channel, then touch and...

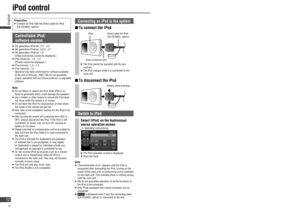

Preparation:   Connect an iPod with the Direct cable for iPod
(CA-DC300U, option).
Controllable iPod/
software version
   3rd generation iPod/ver. 2.2 – 2.3   4th generation iPod/ver. 3.0.2 – 3.1   5th generation iPod/ver. 1.0
(Video and photos cannot be displayed.)
   iPod Photo/ver. 1.0 – 1.2
(Photos cannot be displayed.)
   iPod mini/ver. 1.2 – 1.4   iPod nano/ver. 1.0
*   Operation has been con rmed for software available
at the end of February, 2007. We do not guarantee
proper operation...

Preparation:   Connect an iPod with the Direct cable for iPod
(CA-DC300U, option).
Controllable iPod/
software version
   3rd generation iPod/ver. 2.2 – 2.3   4th generation iPod/ver. 3.0.2 – 3.1   5th generation iPod/ver. 1.0
(Video and photos cannot be displayed.)
   iPod Photo/ver. 1.0 – 1.2
(Photos cannot be displayed.)
   iPod mini/ver. 1.2 – 1.4   iPod nano/ver. 1.0
*   Operation has been con rmed for software available
at the end of February, 2007. We do not guarantee
proper operation...

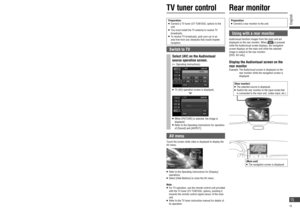

Using with a rear monitor
Audiovisual function images from the main unit are
displayed on the rear monitor. When
 is pressed
while the Audiovisual screen displays, the navigation
screen displays on the main unit while the selected
image is output to the rear monitor.
[DVD, AV only]
Display the Audiovisual screen on the
rear monitor
Example:  The Audiovisual screen is displayed on the
rear monitor while the navigation screen is
displayed.

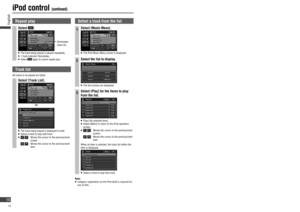

Repeat play
Select .
Illuminates
when On.
   The track...

Using with a rear monitor
Audiovisual function images from the main unit are
displayed on the rear monitor. When
 is pressed
while the Audiovisual screen displays, the navigation
screen displays on the main unit while the selected
image is output to the rear monitor.
[DVD, AV only]
Display the Audiovisual screen on the
rear monitor
Example:  The Audiovisual screen is displayed on the
rear monitor while the navigation screen is
displayed.
Repeat play
Select .
Illuminates
when On.
   The track...

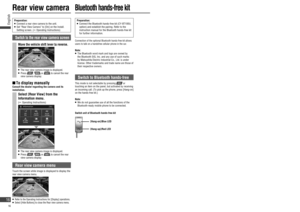

Bluetooth hands-free kit
Preparation:   Connect the Bluetooth hands-free kit (CY-BT100U,
option) and establish the pairing. Refer to the
instruction manual for the Bluetooth hands-free kit
for further information.
Connection of the optional Bluetooth hands-free kit allows
users to talk on a handsfree cellular phone in the car.
Note:   The Bluetooth word mark and logo are owned by
the Bluetooth SIG, Inc. and any use of such marks
by Matsushita Electric Industrial Co., Ltd. is under
license. Other...

Bluetooth hands-free kit
Preparation:   Connect the Bluetooth hands-free kit (CY-BT100U,
option) and establish the pairing. Refer to the
instruction manual for the Bluetooth hands-free kit
for further information.
Connection of the optional Bluetooth hands-free kit allows
users to talk on a handsfree cellular phone in the car.
Note:   The Bluetooth word mark and logo are owned by
the Bluetooth SIG, Inc. and any use of such marks
by Matsushita Electric Industrial Co., Ltd. is under
license. Other...

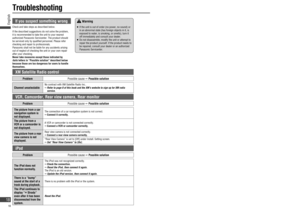

iPod
ProblemPossible cause  Possible solution
The iPod does not
function normally.
The iPod was not recognized correctly.
  Check the connection.
  Reset the iPod, then connect it again.
The iPod is an old version.
  Update the iPod version, then connect it again.
There is a “bump”
sound at the start of a
track during playback.
There is no problem with the iPod or the system.
The iPod continues to
display “
 Strada”
even after it has been
disconnected from the
system.
Reset the iPod.
XM...

iPod
ProblemPossible cause  Possible solution
The iPod does not
function normally.
The iPod was not recognized correctly.
  Check the connection.
  Reset the iPod, then connect it again.
The iPod is an old version.
  Update the iPod version, then connect it again.
There is a “bump”
sound at the start of a
track during playback.
There is no problem with the iPod or the system.
The iPod continues to
display “
 Strada”
even after it has been
disconnected from the
system.
Reset the iPod.
XM...

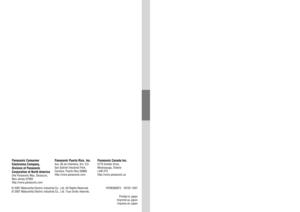

Panasonic Consumer
