Panasonic Ey45a1 Operating Instructions Manual

Cordless Reciprocating sawScie alternative sur batterie
Sierra alternativa inalámbrica
Operating Instructions
Instructions d’utilisation
Manual de instrucciones

Model No: EY45A1
IMPORTANTThis manual contains safety information. Read manual completely before f\
irst using this product and save this
manual for future use.
IMPORTANTCe mode d’emploi contient des informations sur la sécurité. Lis\
ez-le en entier avant d’utiliser le produit et conservez-
le pour référence.
IMPORTANTEEste manual contiene...

-2-
Index/Index/Indice
English: Page  5
Français: Page  19
Español: Página  35
FUNCTIONAL DESCRIPTION
DESCRIPTION DES FONCTIONS
DESCRIPCIÓN FUNCIONAL
V(7)
(8)
(9) (1)
(10)
(11)
(6) (5)(12)
(13)
(4)
(2)
(3)

-3-
(1) Power switchInterrupteur d’alimentation Interruptor de alimentación
(2) Switch lock lever Levier de verrouillage d’interrupteur Palanca de bloqueo del interruptor
(3) Battery low warning lamp
Témoin d’avertissement de batterie basseLuz de aviso de baja carga de batería
(4) Overheat warning lamp (battery)Témoin d’avertissement de surchauffe (batterie)Luz de advertencia de sobrecalentamiento (batería)
(5) Front cover Couvercle avantTapa frontal
(6) Protective shoe Sabot de protectionzapata...

-4-
Asegúrese de utilizar la cubierta de la caja de bateríaCuando no utilice la caja de batería, guarde la batería de tal for\
ma que las materias extrañas tales como polvo
y agua, etc. ensucien los terminales. Asegúrese de colocar la cubierta de la caja de batería de tal form\
a de
proteger los terminales de la batería.
 Cuando cargue la caja de batería, confirme que los terminales en el c\
argador de batería estén libres de
materias extrañas tales como polvo y agua, etc. Limpie los terminales\...

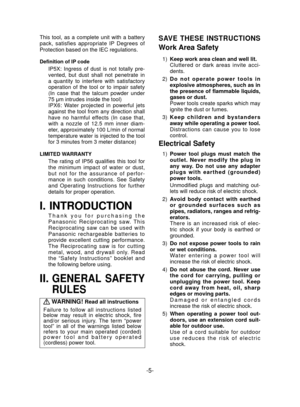

-5-
This tool, as a complete unit with a battery
pack, satisfies appropriate IP Degrees of
Protection based on the IEC regulations.
Definition of IP code
IP5X: Ingress of dust is not totally pre-
vented, but dust shall not penetrate in
a quantity to interfere with satisfactory
operation of the tool or to impair safety
(In case that the talcum powder under
75 μm intrudes inside the tool)
IPX6: Water projected in powerful jets
against the tool from any direction shall
have no harmful effects (In...

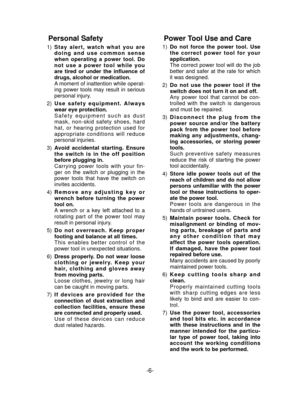

-6-
Personal Safety
 1)  Stay alert, watch what you are
doing and use common sense
when operating a power tool. Do
not use a power tool while you
are tired or under the influence of
drugs, alcohol or medication.
  A moment of inattention while operat- ing power tools may result in  serious
personal injury.
  2)  Use safety equipment. Always
wear eye protection.
  Safety equipment such as dust  mask, non-skid safety shoes, hard
hat, or hearing protection used for
appropriate conditions will...

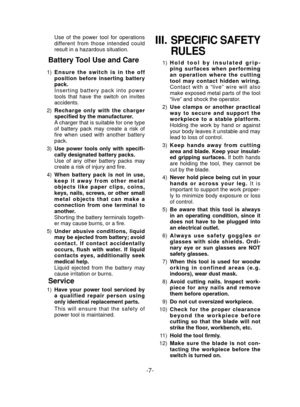

-7-
  Use of the power tool for operations different from those intended could
result in a hazardous situation.
Battery Tool Use and Care
 1)  Ensure the switch is in the off
position before inserting battery
pack.
  Inserting battery pack into power  tools that have the switch on invites
accidents.
 2)  Recharge only with the charger
specified by the manufacturer.
  A charger that is suitable for one type  of battery pack may create a risk of
fire when used with another battery
pack.
 3)  Use...

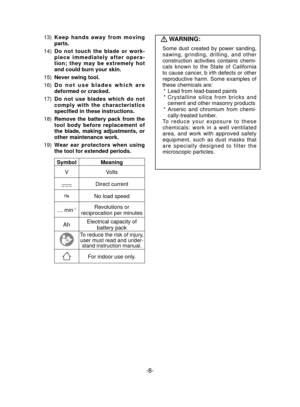

-8-
 13) Keep hands away from moving
parts.
 14)  Do not touch the blade or work-
piece immediately after opera-
tion; they may be extremely hot
and could burn your skin.
 15)  Never swing tool.
 16)  Do not use blades which are
deformed or cracked.
 17)  Do not use blades which do not
comply with the characteristics
specified in these instructions.
 18)  Remove the battery pack from the
tool body before replacement of
the blade, making adjustments, or
other maintenance work.
 19)  Wear ear...

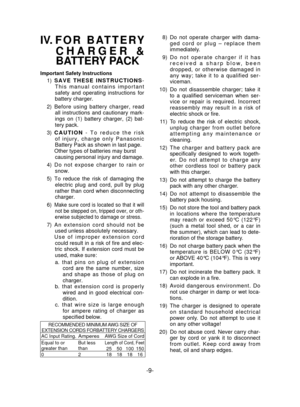

-9-
IV. FOR  BATTERY CHARGER &
BATTERY PACK
Important Safety Instructions
 1)  SAVE THESE IN  STRUCTIONS-
This manual contains important
safety and operating instructions for
battery charger.
  2)  Before using battery charger, read  all instructions and cautionary mark-
ings on (1) battery charger, (2) bat-
tery pack.
 3)  CAUTION  - To reduce the risk
of injury, charge only Panasonic
Battery Pack as shown in last page.

Other types of batteries may burst  causing personal injury and damage....

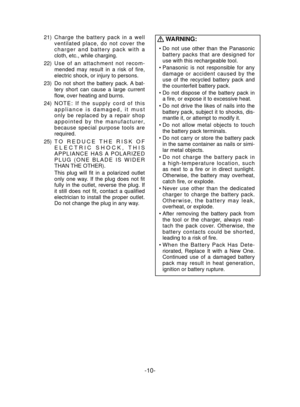

-10-
 21) Charge the battery pack in a well
ventilated place, do not cover the
charger and battery pack with a
cloth, etc., while charging.
  22) U s e o f a n attachment not recom- mended may result in a risk of fire,
electric shock, or injury to persons.
  23)  Do not short the battery pack. A bat- tery short can cause a large current
flow, over heating and burns.
 24)  NOTE: If the supply cord of this
appliance is damaged, it must
only be replaced by a repair shop
appointed by the...
