Panasonic EYFR02 Operating Instructions

- 11 -

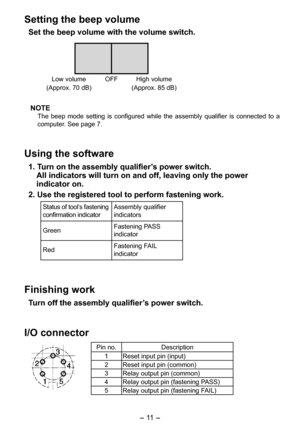

Setting the beep volume
Set the beep volume with the volume switch.
Low volume
(Approx. 70 dB)
OFFHigh volume
(Approx. 85 dB)
NOTE
The  beep  mode  setting  is  configured  while  the  assembly  qualifier  is  connected  to  a
computer. See page 7.
Using the software
1. Turn on the assembly qualifier’s power switch.
All indicators will turn on and off, leaving only the power
indicator on.
2. Use the registered tool to perform fastening work.
Status of tool’s fastening
confirmation...

- 1 -

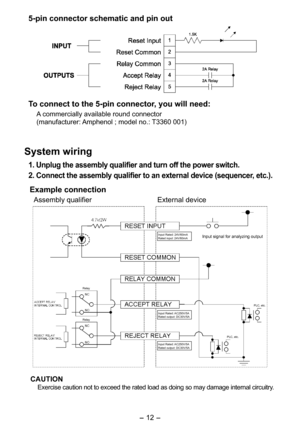

5-pin connector schematic and pin out
To connect to the 5-pin connector, you will need:
A commercially available round connector
(manufacturer: Amphenol ; model no.: T3360 001)
System wiring
1. Unplug the assembly qualifier and turn off the power switch.
2. Connect the assembly qualifier to an external device (sequencer, etc.).
Example connection
Assembly qualifier External device
Input Rated: 4V/60mA
Rated input: 4V/60mA
Input Rated: AC50V/5ARated output: DC30V/5A
Input...

- 13 -

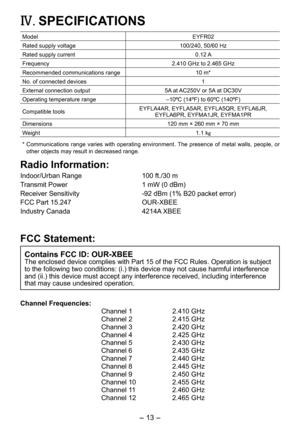

IV.	SPECIFICATIONS
ModelEYFR0
Rated supply voltage100/40, 50/60 Hz
Rated supply current 0.1 A
Frequency.410 GHz to .465 GHz
Recommended communications range10 m*
No. of connected devices1
External connection output5A at AC50V or 5A at DC30V
Operating temperature range–10ºC (14ºF) to 60ºC (140ºF)
Compatible toolsEYFLA4AR, EYFLA5AR, EYFLA5QR, EYFLA6JR,  EYFLA6PR, EYFMA1JR, EYFMA1PR
Dimensions 10 mm × 60 mm × 70 mm
Weight1.1 kg
* Communications  range...
