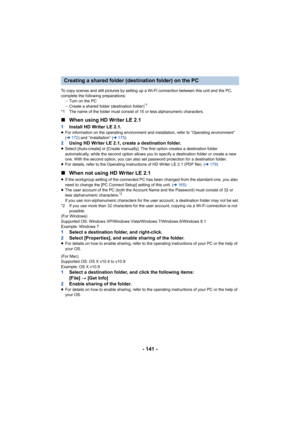

- 141 -
To copy scenes and still pictures by setting up a Wi-Fi connection between this unit and the PC,
complete the following preparations:jTurn on the PC
j Create a shared folder (destination folder)
*1
*1 The name of the folder must consist of 15 or less alphanumeric characters.
∫ When using HD Writer LE 2.1
1 Install HD Writer LE 2.1.≥For information on the operating environment and installation, refer to “Operating environment”
(l 172 ) and “Installation” (l 175).
2Using HD Writer LE 2.1, create...

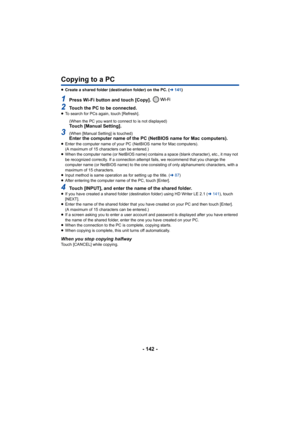

- 142 -
Copying to a PC
≥Create a shared folder (destination folder) on the PC. ( l141 )
1Press Wi-Fi button and touch [Copy].
2Touch the PC to be connected.≥To search for PCs again, touch [Refresh].
(When the PC you want to connect to is not displayed)
Touch [Manual Setting].
3(When [Manual Setting] is touched)Enter the computer name of the PC (NetBIOS name for Mac computers).≥Enter the computer name of your PC (NetBIOS name for Mac computers).
(A maximum of 15 characters can be entered.)
≥ When the...

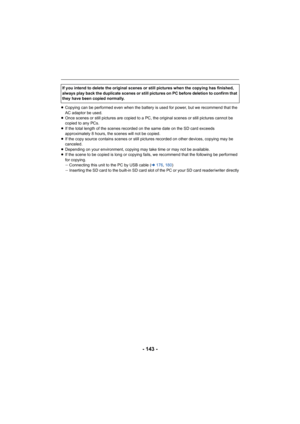

- 143 -
≥Copying can be performed even when the battery is used for power, but we recommend that the
AC adaptor be used.
≥ Once scenes or still pictures are copied to a PC, the original scenes or still pictures cannot be
copied to any PCs.
≥ If the total length of the scenes recorded on the same date on the SD card exceeds
approximately 8 hours, the scenes will not be copied.
≥ If the copy source contains scenes or still pictures recorded on other devices, copying may be
canceled.
≥ Depending on...

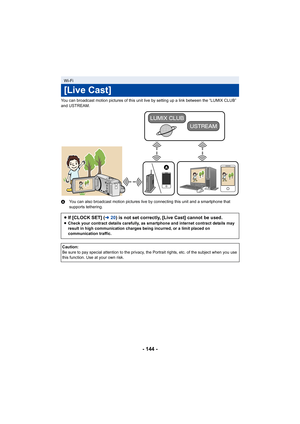

- 144 -
You can broadcast motion pictures of this unit live by setting up a link between the “LUMIX CLUB”
and USTREAM.
AYou can also broadcast motion pictures live by connecting this unit and a smartphone that
supports tethering.
Wi-Fi
[Live Cast]
≥If [CLOCK SET] ( l20) is not set correctly, [Live Cast] cannot be used.≥Check your contract details carefully, as smartphone and internet contract details may
result in high communication charges being incurred, or a limit placed on
communication traffic....

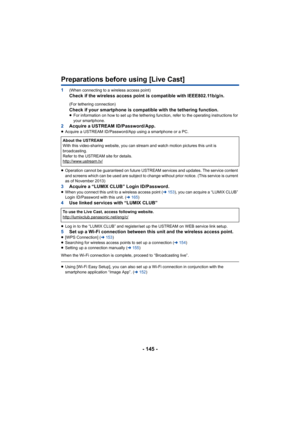

- 145 -
Preparations before using [Live Cast]
1(When connecting to a wireless access point)Check if the wireless access point is compatible with IEEE802.11b/g/n.
(For tethering connection)
Check if your smartphone is compatible with the tethering function.≥For information on how to set up the tethering function, refer to the operating instructions for
your smartphone.
2 Acquire a USTREAM ID/Password/App.≥Acquire a USTREAM ID/Password/App using a smartphone or a PC.
≥ Operation cannot be guaranteed on...

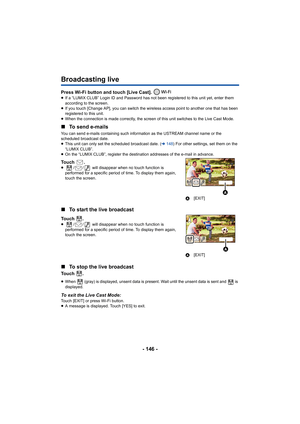

- 146 -
Broadcasting live
Press Wi-Fi button and touch [Live Cast]. ≥If a “LUMIX CLUB” Login ID and Password has not been registered to this unit yet, enter them
according to the screen.
≥ If you touch [Change AP], you can switch the wireless access point to another one that has been
registered to this unit.
≥ When the connection is made correctly, the screen of this unit switches to the Live Cast Mode.
∫ To send e-mails
You can send e-mails containing such information as the USTREAM channel name or...

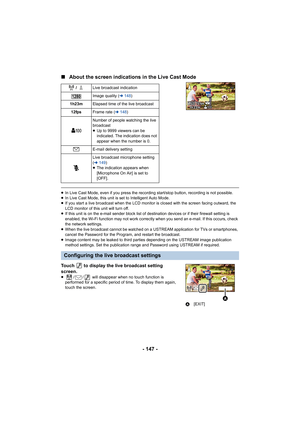

- 147 -
∫
About the screen indications in the Live Cast Mode
≥In Live Cast Mode, even if you press the recording start/stop button, recording is not possible.
≥ In Live Cast Mode, this unit is set to Intelligent Auto Mode.
≥ If you start a live broadcast when the LCD monitor is closed with the screen facing outward, the
LCD monitor of this unit will turn off.
≥ If this unit is on the e-mail sender block list of de stination devices or if their firewall setting is
enabled, the Wi-Fi function may not...

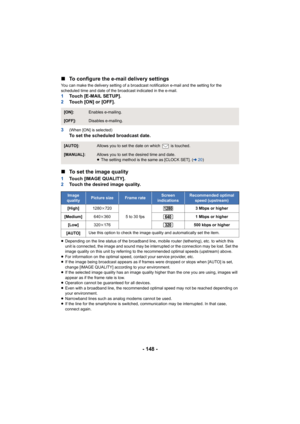

- 148 -
∫
To configure the e-mail delivery settings
You can make the delivery setting of a broadcast notification e-mail and the setting for the
scheduled time and date of the broadcast indicated in the e-mail.
1 Touch [E-MAIL SETUP].
2 Touch [ON] or [OFF].
3
(When [ON] is selected)To set the scheduled broadcast date.
∫ To set the image quality
1 Touch [IMAGE QUALITY].
2 Touch the desired image quality.
≥Depending on the line status of the broadband line, mobile router (tethering), etc. to which this...

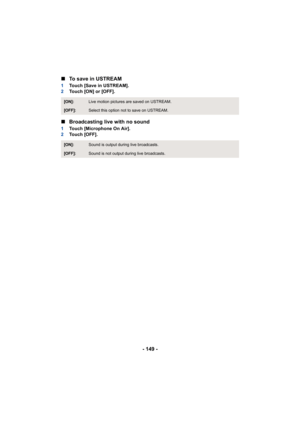

- 149 -
∫
To save in USTREAM
1 Touch [Save in USTREAM].
2 Touch [ON] or [OFF].
∫Broadcasting live with no sound
1 Touch [Microphone On Air].
2 Touch [OFF].
[ON]:Live motion pictures are saved on USTREAM.
[OFF]:Select this option not to save on USTREAM.
[ON]:Sound is output during live broadcasts.
[OFF]:Sound is not output during live broadcasts.

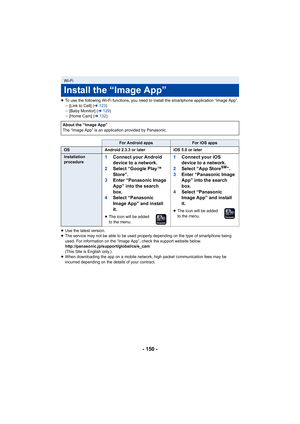

- 150 -
≥To use the following Wi-Fi functions, you need to install the smartphone application “Image App”.
j[Link to Cell] ( l123 )
j [Baby Monitor] ( l129 )
j [Home Cam] ( l132 )
≥ Use the latest version.
≥ The service may not be able to be used properly depending on the type of smartphone being
used. For information on the “Image App”, check the support website below.
http://panasonic.jp/support/global/cs/e_cam
(This Site is English only.)
≥ When downloading the app on a mobile network, high packet...
