Panasonic Hc V550 Owners Manual
Here you can view all the pages of manual Panasonic Hc V550 Owners Manual. The Panasonic manuals for Camcorder are available online for free. You can easily download all the documents as PDF.
Page 151

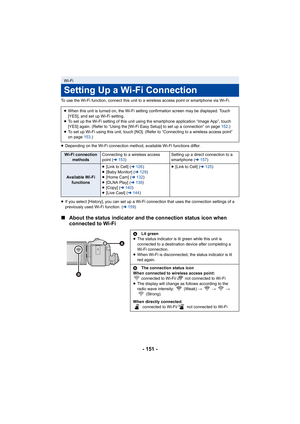

![Page 151
- 151 -
To use the Wi-Fi function, connect this unit to a wireless access point or smartphone via Wi-Fi.
≥Depending on the Wi-Fi connection method, available Wi-Fi functions differ.
≥ If you select [History], you can set up a Wi-Fi connection that uses the connection settings of a
previously used Wi-Fi function. ( l159)
∫ About the status indicator and the connection status icon when
connected to Wi-Fi
Wi-Fi
Setting Up a Wi-Fi Connection
≥When this unit is turned on, the Wi-Fi setting confirmation...](http://img.usermanuals.tech/thumb/58/64309/w300_hc-v550_en_advanced_om_d-150.png "Page 151
- 151 -
To use the Wi-Fi function, connect this unit to a wireless access point or smartphone via Wi-Fi.
≥Depending on the Wi-Fi connection method, available Wi-Fi functions differ.
≥ If you select [History], you can set up a Wi-Fi connection that uses the connection settings of a
previously used Wi-Fi function. ( l159)
∫ About the status indicator and the connection status icon when
connected to Wi-Fi
Wi-Fi
Setting Up a Wi-Fi Connection
≥When this unit is turned on, the Wi-Fi setting confirmation...")
- 151 - To use the Wi-Fi function, connect this unit to a wireless access point or smartphone via Wi-Fi. ≥Depending on the Wi-Fi connection method, available Wi-Fi functions differ. ≥ If you select [History], you can set up a Wi-Fi connection that uses the connection settings of a previously used Wi-Fi function. ( l159) ∫ About the status indicator and the connection status icon when connected to Wi-Fi Wi-Fi Setting Up a Wi-Fi Connection ≥When this unit is turned on, the Wi-Fi setting confirmation...
Page 152

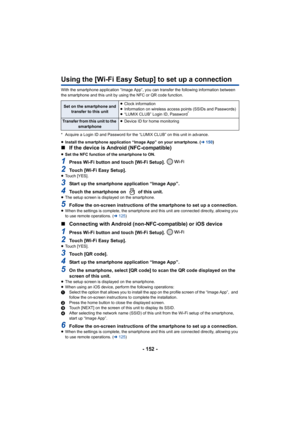

![Page 152
- 152 -
Using the [Wi-Fi Easy Setup] to set up a connection
With the smartphone application “Image App”, you can transfer the following information between
the smartphone and this unit by using the NFC or QR code function.
* Acquire a Login ID and Password for the “LUMIX CLUB” on this unit in advance.
≥Install the smartphone application “Image App” on your smartphone. ( l150)
∫ If the device is Android (NFC-compatible)
≥Set the NFC function of the smartphone to ON.
1Press Wi-Fi button and touch [Wi-Fi...](http://img.usermanuals.tech/thumb/58/64309/w300_hc-v550_en_advanced_om_d-151.png "Page 152
- 152 -
Using the [Wi-Fi Easy Setup] to set up a connection
With the smartphone application “Image App”, you can transfer the following information between
the smartphone and this unit by using the NFC or QR code function.
* Acquire a Login ID and Password for the “LUMIX CLUB” on this unit in advance.
≥Install the smartphone application “Image App” on your smartphone. ( l150)
∫ If the device is Android (NFC-compatible)
≥Set the NFC function of the smartphone to ON.
1Press Wi-Fi button and touch [Wi-Fi...")
- 152 - Using the [Wi-Fi Easy Setup] to set up a connection With the smartphone application “Image App”, you can transfer the following information between the smartphone and this unit by using the NFC or QR code function. * Acquire a Login ID and Password for the “LUMIX CLUB” on this unit in advance. ≥Install the smartphone application “Image App” on your smartphone. ( l150) ∫ If the device is Android (NFC-compatible) ≥Set the NFC function of the smartphone to ON. 1Press Wi-Fi button and touch [Wi-Fi...
Page 153

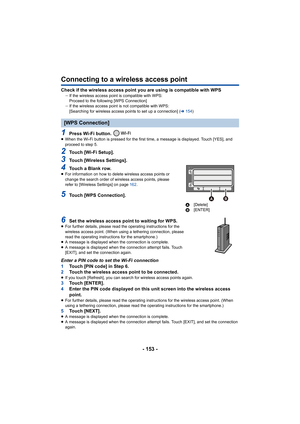

![Page 153
- 153 -
Connecting to a wireless access point
Check if the wireless access point you are using is compatible with WPSjIf the wireless access point is compatible with WPS:
Proceed to the following [WPS Connection]
j If the wireless access point is not compatible with WPS:
[Searching for wireless access points to set up a connection] ( l154 )
1Press Wi-Fi button. ≥When the Wi-Fi button is pressed for the first time, a message is displayed. Touch [YES], and
proceed to step 5.
2Touch [Wi-Fi Setup].
3Touch...](http://img.usermanuals.tech/thumb/58/64309/w300_hc-v550_en_advanced_om_d-152.png "Page 153
- 153 -
Connecting to a wireless access point
Check if the wireless access point you are using is compatible with WPSjIf the wireless access point is compatible with WPS:
Proceed to the following [WPS Connection]
j If the wireless access point is not compatible with WPS:
[Searching for wireless access points to set up a connection] ( l154 )
1Press Wi-Fi button. ≥When the Wi-Fi button is pressed for the first time, a message is displayed. Touch [YES], and
proceed to step 5.
2Touch [Wi-Fi Setup].
3Touch...")
- 153 - Connecting to a wireless access point Check if the wireless access point you are using is compatible with WPSjIf the wireless access point is compatible with WPS: Proceed to the following [WPS Connection] j If the wireless access point is not compatible with WPS: [Searching for wireless access points to set up a connection] ( l154 ) 1Press Wi-Fi button. ≥When the Wi-Fi button is pressed for the first time, a message is displayed. Touch [YES], and proceed to step 5. 2Touch [Wi-Fi Setup]. 3Touch...
Page 154

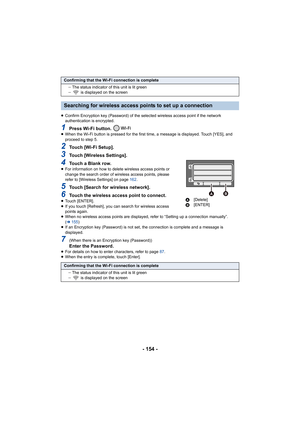

![Page 154
- 154 -
≥Confirm Encryption key (Password) of the se lected wireless access point if the network
authentication is encrypted.
1Press Wi-Fi button. ≥ When the Wi-Fi button is pressed for the first time, a message is displayed. Touch [YES], and
proceed to step 5.
2Touch [Wi-Fi Setup].
3Touch [Wireless Settings].
4Touch a Blank row.≥For information on how to delete wireless access points or
change the search order of wireless access points, please
refer to [Wireless Settings] on page 162 .
5Touch...](http://img.usermanuals.tech/thumb/58/64309/w300_hc-v550_en_advanced_om_d-153.png "Page 154
- 154 -
≥Confirm Encryption key (Password) of the se lected wireless access point if the network
authentication is encrypted.
1Press Wi-Fi button. ≥ When the Wi-Fi button is pressed for the first time, a message is displayed. Touch [YES], and
proceed to step 5.
2Touch [Wi-Fi Setup].
3Touch [Wireless Settings].
4Touch a Blank row.≥For information on how to delete wireless access points or
change the search order of wireless access points, please
refer to [Wireless Settings] on page 162 .
5Touch...")
- 154 - ≥Confirm Encryption key (Password) of the se lected wireless access point if the network authentication is encrypted. 1Press Wi-Fi button. ≥ When the Wi-Fi button is pressed for the first time, a message is displayed. Touch [YES], and proceed to step 5. 2Touch [Wi-Fi Setup]. 3Touch [Wireless Settings]. 4Touch a Blank row.≥For information on how to delete wireless access points or change the search order of wireless access points, please refer to [Wireless Settings] on page 162 . 5Touch...

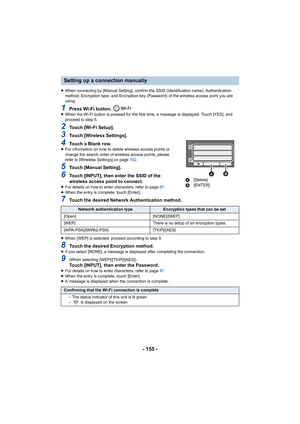

Page 155
![Page 155
- 155 -
≥When connecting by [Manual Setting], confirm the SSID (Identification name), Authentication
method, Encryption type, and Encryption key (Password) of the wireless access point you are
using.
1Press Wi-Fi button. ≥When the Wi-Fi button is pressed for the first time, a message is displayed. Touch [YES], and
proceed to step 5.
2Touch [Wi-Fi Setup].
3Touch [Wireless Settings].
4Touch a Blank row.≥For information on how to delete wireless access points or
change the search order of wireless...](http://img.usermanuals.tech/thumb/58/64309/w300_hc-v550_en_advanced_om_d-154.png "Page 155
- 155 -
≥When connecting by [Manual Setting], confirm the SSID (Identification name), Authentication
method, Encryption type, and Encryption key (Password) of the wireless access point you are
using.
1Press Wi-Fi button. ≥When the Wi-Fi button is pressed for the first time, a message is displayed. Touch [YES], and
proceed to step 5.
2Touch [Wi-Fi Setup].
3Touch [Wireless Settings].
4Touch a Blank row.≥For information on how to delete wireless access points or
change the search order of wireless...")
- 155 - ≥When connecting by [Manual Setting], confirm the SSID (Identification name), Authentication method, Encryption type, and Encryption key (Password) of the wireless access point you are using. 1Press Wi-Fi button. ≥When the Wi-Fi button is pressed for the first time, a message is displayed. Touch [YES], and proceed to step 5. 2Touch [Wi-Fi Setup]. 3Touch [Wireless Settings]. 4Touch a Blank row.≥For information on how to delete wireless access points or change the search order of wireless...
Page 156

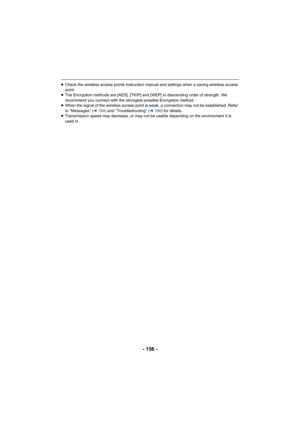

![Page 156
- 156 -
≥Check the wireless access points instruction manual and settings when a saving wireless access
point.
≥ The Encryption methods are [AES], [TKIP] and [WEP] in descending order of strength. We
recommend you connect with the strongest possible Encryption method.
≥ When the signal of the wireless access point is weak, a connection may not be established. Refer
to “Messages” ( l184) and “Troubleshooting” ( l186) for details.
≥ Transmission speed may decrease, or may not be usable depending on the...](http://img.usermanuals.tech/thumb/58/64309/w300_hc-v550_en_advanced_om_d-155.png "Page 156
- 156 -
≥Check the wireless access points instruction manual and settings when a saving wireless access
point.
≥ The Encryption methods are [AES], [TKIP] and [WEP] in descending order of strength. We
recommend you connect with the strongest possible Encryption method.
≥ When the signal of the wireless access point is weak, a connection may not be established. Refer
to “Messages” ( l184) and “Troubleshooting” ( l186) for details.
≥ Transmission speed may decrease, or may not be usable depending on the...")
- 156 - ≥Check the wireless access points instruction manual and settings when a saving wireless access point. ≥ The Encryption methods are [AES], [TKIP] and [WEP] in descending order of strength. We recommend you connect with the strongest possible Encryption method. ≥ When the signal of the wireless access point is weak, a connection may not be established. Refer to “Messages” ( l184) and “Troubleshooting” ( l186) for details. ≥ Transmission speed may decrease, or may not be usable depending on the...
Page 157

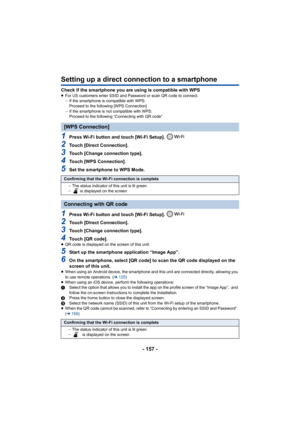

![Page 157
- 157 -
Setting up a direct connection to a smartphone
Check if the smartphone you are using is compatible with WPS≥For US customers enter SSID and Password or scan QR code to connect.
jIf the smartphone is compatible with WPS:
Proceed to the following [WPS Connection]
j If the smartphone is not compatible with WPS:
Proceed to the following “Connecting with QR code”
1Press Wi-Fi button and touch [Wi-Fi Setup].
2Touch [Direct Connection].
3Touch [Change connection type].
4Touch [WPS Connection].
5Set the...](http://img.usermanuals.tech/thumb/58/64309/w300_hc-v550_en_advanced_om_d-156.png "Page 157
- 157 -
Setting up a direct connection to a smartphone
Check if the smartphone you are using is compatible with WPS≥For US customers enter SSID and Password or scan QR code to connect.
jIf the smartphone is compatible with WPS:
Proceed to the following [WPS Connection]
j If the smartphone is not compatible with WPS:
Proceed to the following “Connecting with QR code”
1Press Wi-Fi button and touch [Wi-Fi Setup].
2Touch [Direct Connection].
3Touch [Change connection type].
4Touch [WPS Connection].
5Set the...")
- 157 - Setting up a direct connection to a smartphone Check if the smartphone you are using is compatible with WPS≥For US customers enter SSID and Password or scan QR code to connect. jIf the smartphone is compatible with WPS: Proceed to the following [WPS Connection] j If the smartphone is not compatible with WPS: Proceed to the following “Connecting with QR code” 1Press Wi-Fi button and touch [Wi-Fi Setup]. 2Touch [Direct Connection]. 3Touch [Change connection type]. 4Touch [WPS Connection]. 5Set the...

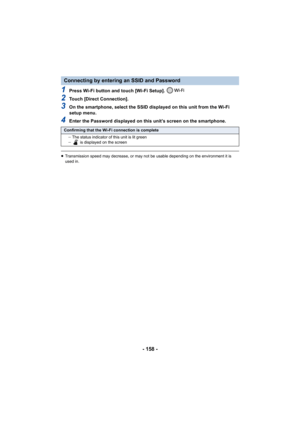

Page 158
![Page 158
- 158 -
1Press Wi-Fi button and touch [Wi-Fi Setup].
2Touch [Direct Connection].
3On the smartphone, select the SSID displayed on this unit from the Wi-Fi
setup menu.
4Enter the Password displayed on this unit’s screen on the smartphone.
≥Transmission speed may decrease, or may not be usable depending on the environment it is
used in.
Connecting by entering an SSID and Password
Confirming that the Wi-Fi connection is complete
jThe status indicator of this unit is lit green
j is displayed on the screen](http://img.usermanuals.tech/thumb/58/64309/w300_hc-v550_en_advanced_om_d-157.png "Page 158
- 158 -
1Press Wi-Fi button and touch [Wi-Fi Setup].
2Touch [Direct Connection].
3On the smartphone, select the SSID displayed on this unit from the Wi-Fi
setup menu.
4Enter the Password displayed on this unit’s screen on the smartphone.
≥Transmission speed may decrease, or may not be usable depending on the environment it is
used in.
Connecting by entering an SSID and Password
Confirming that the Wi-Fi connection is complete
jThe status indicator of this unit is lit green
j is displayed on the screen")
- 158 - 1Press Wi-Fi button and touch [Wi-Fi Setup]. 2Touch [Direct Connection]. 3On the smartphone, select the SSID displayed on this unit from the Wi-Fi setup menu. 4Enter the Password displayed on this unit’s screen on the smartphone. ≥Transmission speed may decrease, or may not be usable depending on the environment it is used in. Connecting by entering an SSID and Password Confirming that the Wi-Fi connection is complete jThe status indicator of this unit is lit green j is displayed on the screen
Page 159

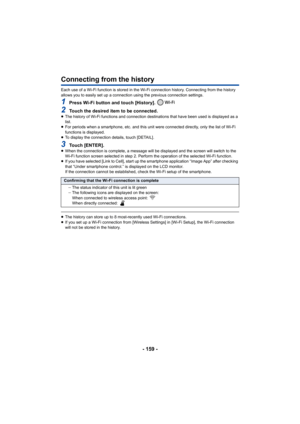

![Page 159
- 159 -
Connecting from the history
Each use of a Wi-Fi function is stored in the Wi-Fi connection history. Connecting from the history
allows you to easily set up a connection using the previous connection settings.
1Press Wi-Fi button and touch [History].
2Touch the desired item to be connected.≥The history of Wi-Fi functions and connection destinations that have been used is displayed as a
list.
≥ For periods when a smartphone, etc. and this unit were connected directly, only the list of Wi-Fi...](http://img.usermanuals.tech/thumb/58/64309/w300_hc-v550_en_advanced_om_d-158.png "Page 159
- 159 -
Connecting from the history
Each use of a Wi-Fi function is stored in the Wi-Fi connection history. Connecting from the history
allows you to easily set up a connection using the previous connection settings.
1Press Wi-Fi button and touch [History].
2Touch the desired item to be connected.≥The history of Wi-Fi functions and connection destinations that have been used is displayed as a
list.
≥ For periods when a smartphone, etc. and this unit were connected directly, only the list of Wi-Fi...")
- 159 - Connecting from the history Each use of a Wi-Fi function is stored in the Wi-Fi connection history. Connecting from the history allows you to easily set up a connection using the previous connection settings. 1Press Wi-Fi button and touch [History]. 2Touch the desired item to be connected.≥The history of Wi-Fi functions and connection destinations that have been used is displayed as a list. ≥ For periods when a smartphone, etc. and this unit were connected directly, only the list of Wi-Fi...
Page 160

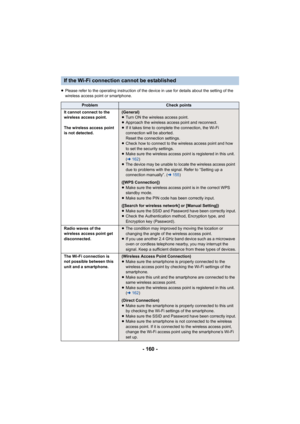

- 160 - ≥Please refer to the operating instruction of the device in use for details about the setting of the wireless access point or smartphone. If the Wi-Fi connection cannot be established ProblemCheck points It cannot connect to the wireless access point. The wireless access point is not detected. (General) ≥ Turn ON the wireless access point. ≥ Approach the wireless access point and reconnect. ≥ If it takes time to complete the connection, the Wi-Fi connection will be aborted. Reset the...
