Panasonic Hdc Hs250 Operating Instructions

11VQT1Y31

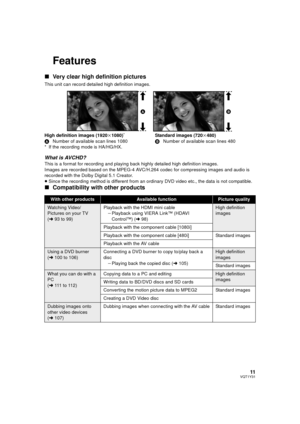

Features
∫Very clear high definition pictures
This unit can record detailed high definition images.
High definition images (1920 k1080)
*
ANumber of available scan lines 1080
* If the recording mode is HA/HG/HX. Standard images (720
k480)
B Number of available scan lines 480
What is AVCHD?
This is a format for recording and playing back highly detailed high definition images.
Images are recorded based on the MPEG-4 AVC/H.264 codec for compressing images and audio is
recorded with the Dolby...

12VQT1Y31

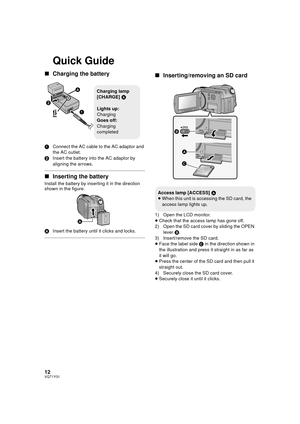

Quick Guide
∫Charging the battery
1 Connect the AC cable to the AC adaptor and
the AC outlet.
2 Insert the battery into the AC adaptor by
aligning the arrows.
∫Inserting the battery
Install the battery by inserting it in the direction
shown in the figure.
A Insert the battery until it clicks and locks.
∫Inserting/removing an SD card
1) Open the LCD monitor.
≥Check that the access lamp has gone off.
2) Open the SD card cover by sliding the OPEN
lever  B.
3) Insert/remove the SD card.
≥ Face...

13VQT1Y31

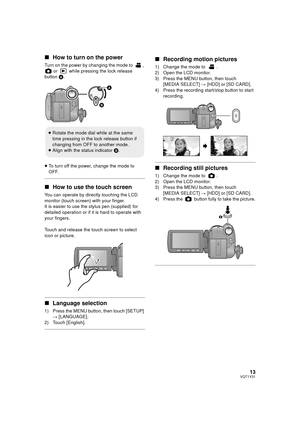

∫How to turn on the power
Turn on the power by changing the mode to  ,
 or   while pressing the lock release
button  A.
≥ To turn off the power, change the mode to
OFF.
∫ How to use the touch screen
You can operate by directly touching the LCD
monitor (touch screen) with your finger.
It is easier to use the stylus pen (supplied) for
detailed operation or if it is hard to operate with
your fingers.
Touch and release the touch screen to select
icon or picture.
∫Language selection
1) Press...

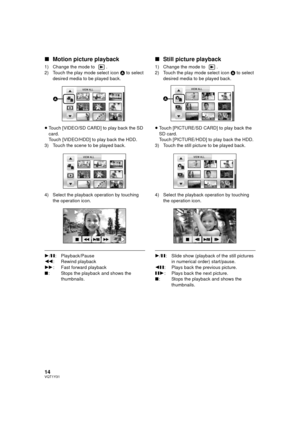

14VQT1Y31
∫Motion picture playback
1) Change the mode to  .
2) Touch the play mode select icon  A to select
desired media to be played back.
≥ Touch [VIDEO/SD CARD] to play back the SD
card.
Touch [VIDEO/HDD] to play back the HDD.
3) Touch the scene to be played back.
4) Select the playback operation by touching  the operation icon.
1/; : Playback/Pause
6 : Rewind playback
5 : Fast forward playback
∫ : Stops the playback and shows the
thumbnails.
∫Still picture playback
1) Change the mode to  .
2)...

15VQT1Y31
Preparation
Before using
1

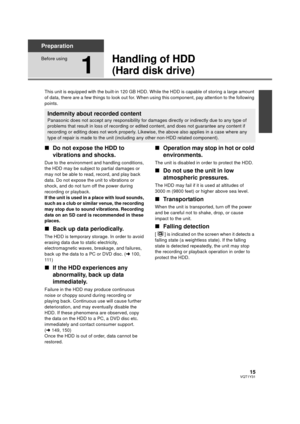

Handling of HDD
(Hard disk drive)
This unit is equipped with the built-in 120 GB HDD. While the HDD is capable of storing a large amount
of data, there are a few things to look out for. When using this component, pay attention to the following
points.
∫ Do not expose the HDD to
vibrations and shocks.
Due to the environment and handling conditions,
the HDD may be subject to partial damages or
may not be able to read, record, and play back
data. Do not expose the...

16VQT1Y31

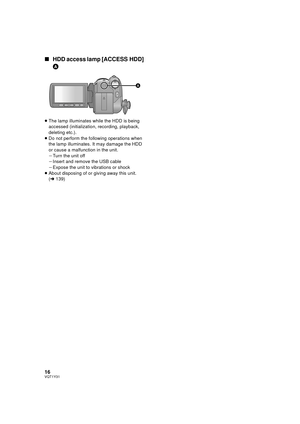

∫HDD access lamp [ACCESS HDD]
A
≥The lamp illuminates while the HDD is being
accessed (initialization, recording, playback,
deleting etc.).
≥ Do not perform the following operations when
the lamp illuminates. It may damage the HDD
or cause a malfunction in the unit.
jTurn the unit off
j Insert and remove the USB cable
j Expose the unit to vibrations or shock
≥ About disposing of or giving away this unit.
(l 139)
HDCHS250P-VQT1Y31_eng.book  16 ページ  ２００９年１月２０日　火曜日　午前１１時１８分

17VQT1Y31
Preparation
Before using
2

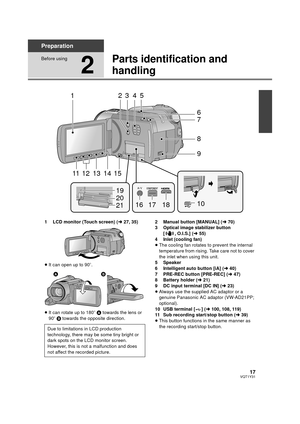

Parts identification and
handling
1 LCD monitor (Touch screen) (l27, 35)
≥ It can open up to 90 o.
≥ It can rotate up to 180 o A  towards the lens or
90o  B towards the opposite direction. 2 Manual button [MANUAL] (
l70)
3 Optical image stabilizer button
[ , O.I.S.] ( l55)
4 Inlet (cooling fan)
≥ The cooling fan rotates to prevent the internal
temperature from rising. Take care not to cover
the inlet when using this unit.
5 Speaker
6 Intelligent auto button [iA]...

18VQT1Y31

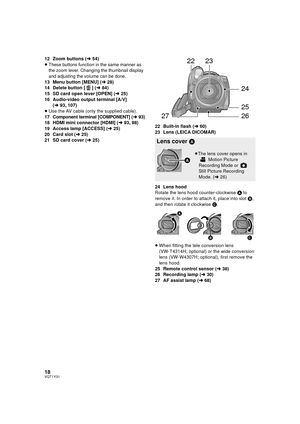

12 Zoom buttons (l54)
≥These buttons function in the same manner as
the zoom lever. Changing the thumbnail display
and adjusting the volume can be done.
13 Menu button [MENU] ( l28)
14 Delete button [ ] ( l84)
15 SD card open lever [OPEN] ( l25)
16 Audio-video output terminal [A/V]  (l93, 107)
≥ Use the AV cable (only the supplied cable).
17 Component terminal [COMPONENT] (l93)18 HDMI mini connector [HDMI] ( l93, 98)
19 Access lamp [ACCESS] ( l25)
20 Card slot ( l25)
21 SD card cover ( l25)...

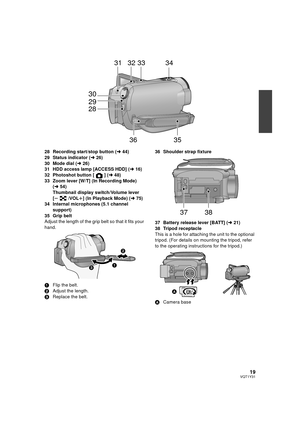

19VQT1Y31
28 Recording start/stop button (l44)
29 Status indicator ( l26)
30 Mode dial ( l26)
31 HDD access lamp [ACCESS HDD] ( l16)
32 Photoshot button [ ] ( l48)
33 Zoom lever [W/T] (In Recording Mode)  (l54)
Thumbnail display switch/Volume lever
[s /VOLr] (In Playback Mode) ( l75)
34 Internal microphones (5.1 channel
support)
35 Grip belt
Adjust the length of the grip belt so that it fits your
hand.
1 Flip the belt.
2 Adjust the length.
3 Replace the belt. 36 Shoulder strap fixture
37 Battery...

20VQT1Y31
Preparation
Setup
1

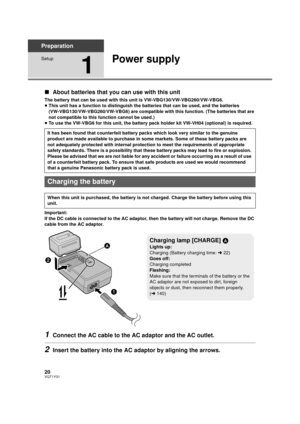

Power supply
∫About batteries that you can use with this unit
The battery that can be used with this unit is VW-VBG130/VW-VBG260/VW-VBG6.
≥This unit has a function to distinguish the batteries that can be used, and the batteries
(VW-VBG130/VW-VBG260/VW-VBG6) are compatible with this function. (The batteries that are
not compatible to this function cannot be used.)
≥ To use the VW-VBG6 for this unit, the battery pack holder kit VW-VH04 (optional) is required.
Important:
If...
