Panasonic Hdc Hs250 Operating Instructions

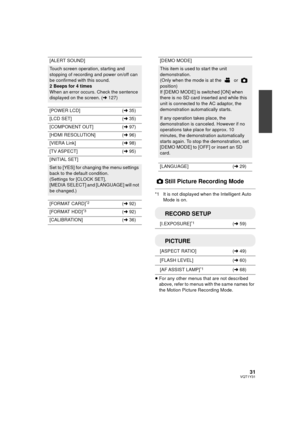

31VQT1Y31
Still Picture Recording Mode
*1 It is not displayed when the Intelligent Auto Mode is on.
≥ For any other menus that are not described
above, refer to menus with the same names for
the Motion Picture Recording Mode.
[ALERT SOUND]
Touch screen operation, starting and
stopping of recording and power on/off can
be confirmed with this sound.
2 Beeps for 4 times
When an error occurs. Check the sentence
displayed on the screen. (
l127)
[POWER LCD] (l 35)
[LCD SET] (l 35)
[COMPONENT OUT] (l 97)...

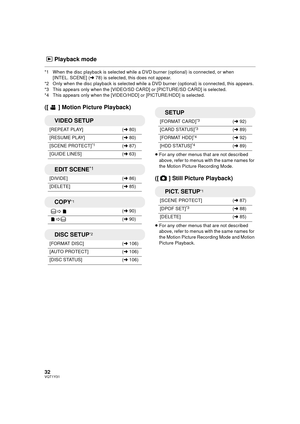

32VQT1Y31
Playback mode
*1 When the disc playback is selected while a DVD burner (optional) is connected, or when
[INTEL. SCENE] ( l78) is selected, this does not appear.
*2 Only when the disc playback is selected while a DVD burner (optional) is connected, this appears.
*3 This appears only when the [VIDEO/SD CARD] or [PICTURE/SD CARD] is selected.
*4 This appears only when the [VIDEO/HDD] or [PICTURE/HDD] is selected.
([ ] Motion Picture Playback)
≥ For any other menus that are not described
above,...

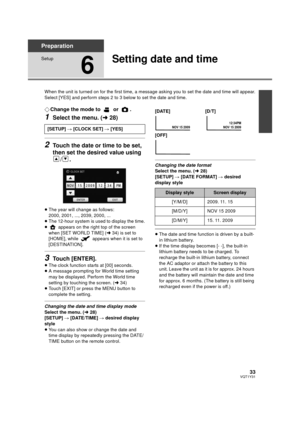

33VQT1Y31
Preparation
Setup
6
Setting date and time
When the unit is turned on for the first time, a message asking you to set the date and time will appear.
Select [YES] and perform steps 2 to 3 below to set the date and time.
¬Change the mode to   or  .
1Select the menu. ( l28)
2Touch the date or time to be set,
then set the desired value using
/.
≥The year will change as follows:
2000, 2001, ..., 2039, 2000, ...
≥ The 12-hour system is used to display the time.
≥  appears on the right top of the...

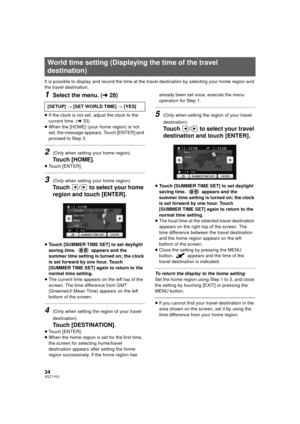

34VQT1Y31
It is possible to display and record the time at the travel destination by selecting your home region and
the travel destination.
1Select the menu. (l28)
≥If the clock is not set, adjust the clock to the
current time. ( l33)
≥ When the [HOME] (your home region) is not
set, the message appears. Touch [ENTER] and
proceed to Step 3.
2(Only when setting your home region)
Touch [HOME].
≥Touch [ENTER].
3(Only when setting your home region)
Touch  /  to select your home
region and touch [ENTER]....

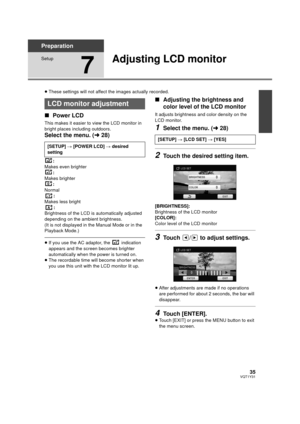

35VQT1Y31
Preparation
Setup
7
Adjusting LCD monitor
≥These settings will not affect the images actually recorded.
∫ Power LCD
This makes it easier to view the LCD monitor in
bright places including outdoors.
Select the menu. ( l28)
:
Makes even brighter
:
Makes brighter :
Normal :
Makes less bright
:
Brightness of the LCD is automatically adjusted
depending on the ambient brightness.
(It is not displayed in the Manual Mode or in the
Playback Mode.)
≥ If you use the AC adaptor, the   indication...

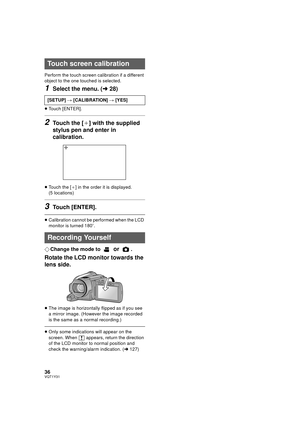

36VQT1Y31
Perform the touch screen calibration if a different
object to the one touched is selected.
1Select the menu. (l28)
≥Touch [ENTER].
2Touch the [_] with the supplied
stylus pen and enter in
calibration.
≥ Touch the [ _] in the order it is displayed.
(5 locations)
3Touch [ENTER].
≥ Calibration cannot be performed when the LCD
monitor is turned 180 o.
¬Change the mode to  or .
Rotate the LCD monitor towards the
lens side.
≥The image is horizontally  flipped as if you see
a mirror image....

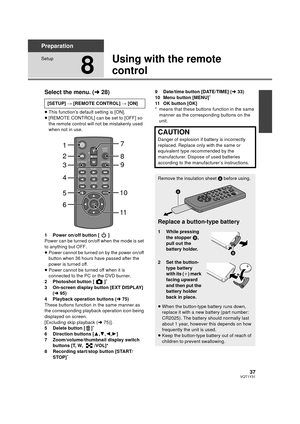

37VQT1Y31
Preparation
Setup
8
Using with the remote
control
Select the menu. (l28)
≥This function’s default setting is [ON].
≥ [REMOTE CONTROL] can be set to [OFF] so
the remote control will not be mistakenly used
when not in use.
1 Power on/off button [ ]
Power can be turned on/off when the mode is set
to anything but OFF.
≥ Power cannot be turned on by the power on/off
button when 36 hours have passed after the
power is turned off.
≥ Power cannot be turned off when it is
connected to the PC or...

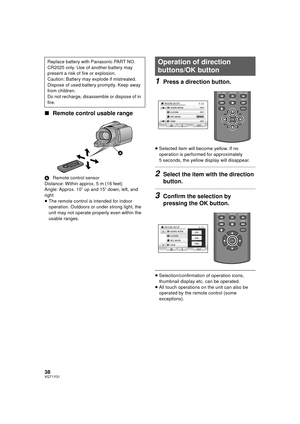

38VQT1Y31
∫Remote control usable range
A Remote control sensor
Distance: Within approx. 5 m (16 feet)
Angle: Approx. 10 o up and 15o down, left, and
right
≥ The remote control is intended for indoor
operation. Outdoors or under strong light, the
unit may not operate properly even within the
usable ranges.
1Press a direction button.
≥Selected item will become yellow. If no
operation is performed for approximately
5 seconds, the yellow display will disappear.
2Select the item with the direction...

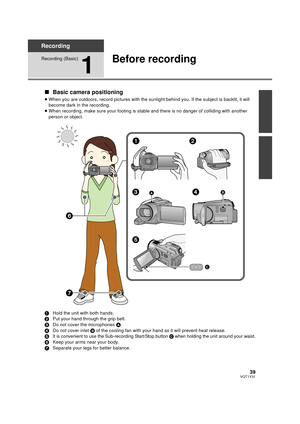

39VQT1Y31
Recording
Recording (Basic)
1
Before recording
∫Basic camera positioning
≥When you are outdoors, record pictur es with the sunlight behind you. If the subject is backlit, it will
become dark in the recording.
≥ When recording, make sure your footing is stable and there is no danger of colliding with another
person or object.
1 Hold the unit with both hands.
2 Put your hand through the grip belt.
3 Do not cover the microphones  A.
4 Do not cover inlet  B of the cooling fan with your hand as it...

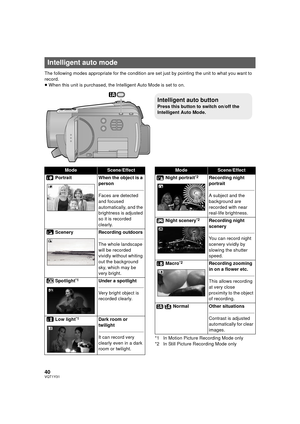

40VQT1Y31
The following modes appropriate for the condition are set just by pointing the unit to what you want to
record.
≥ When this unit is purchased, the Intelligent Auto Mode is set to on.
*1 In Motion Picture Recording Mode only
*2 In Still Picture Recording Mode only
Intelligent auto mode
Intelligent auto button
Press this button to switch on/off the
Intelligent Auto Mode.
ModeScene/Effect
Portrait When the object is a  person
Faces are detected
and focused
automatically, and the
brightness is...
