Panasonic Hdc Sd800 Owners Manual

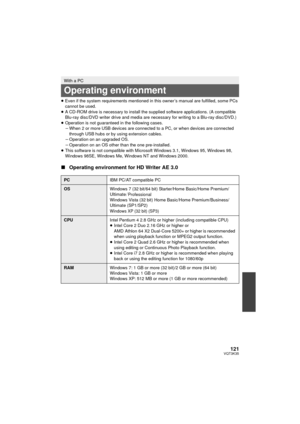

121VQT3K35
≥Even if the system  requirements mentioned in this owner’s manual are fulfilled, some PCs
cannot be used.
≥ A CD-ROM drive is necessary to install the su pplied software applications. (A compatible
Blu-ray disc/DVD writer drive and media are necessary for writing to a Blu-ray disc/DVD.)
≥ Operation is not guaranteed in the following cases.
jWhen 2 or more USB devices are connected to a PC, or when devices are connected
through USB hubs or by using extension cables.
j Operation on an...

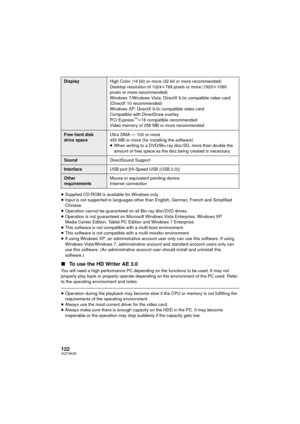

122VQT3K35
≥Supplied CD-ROM is available for Windows only.
≥ Input is not supported in languages other than English, German, French and Simplified
Chinese.
≥ Operation cannot be guaranteed on all Blu-ray disc/DVD drives.
≥ Operation is not guaranteed on Microsof t Windows Vista Enterprise, Windows XP
Media Center Edition, Tablet PC Edition and Windows 7 Enterprise.
≥ This software is not compatible with a multi-boot environment.
≥ This software is not compatible with a multi-monitor environment.
≥ If...

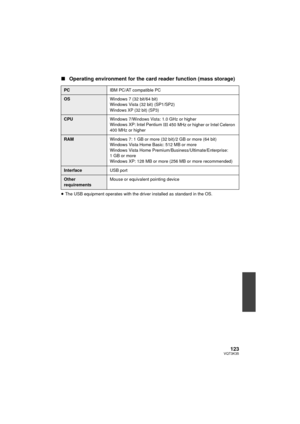

123VQT3K35
∫Operating environment for the card reader function (mass storage)
≥The USB equipment operates with the driver installed as standard in the OS.
PC IBM PC/AT compatible PC
OSWindows 7 (32 bit/64 bit)
Windows Vista (32 bit) (SP1/SP2)
Windows XP (32 bit) (SP3)
CPUWindows 7/Windows Vista: 1.0 GHz or higher
Windows XP: Intel PentiumIII 450 MHz or higher or Intel Celeron
400 MHz or higher
RAM Windows 7: 1 GB or more (32 bit)/2 GB or more (64 bit)
Windows Vista Home Basic: 512 MB or more
Windows...

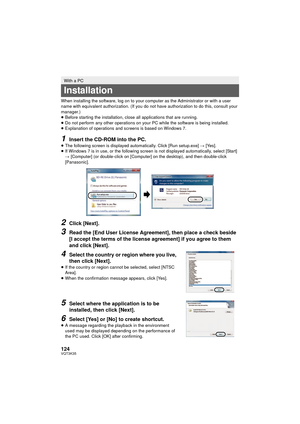

124VQT3K35
When installing the software, log on to your computer as the Administrator or with a user
name with equivalent authorization. (If you do not have authorization to do this, consult your
manager.)
≥Before starting the installation, close all applications that are running.
≥ Do not perform any other operations on your PC while the software is being installed.
≥ Explanation of operations and screens is based on Windows 7.
1Insert the CD-ROM into the PC.≥The following screen is displayed...

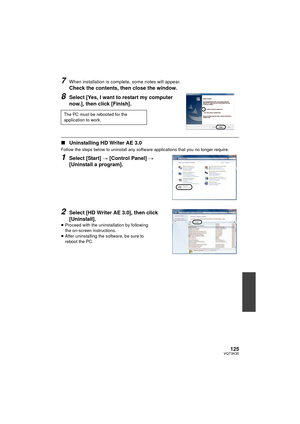

125VQT3K35
7When installation is complete, some notes will appear.
Check the contents, then close the window.
8Select [Yes, I want to restart my computer
now.], then click [Finish].
∫Uninstalling HD Writer AE 3.0
Follow the steps below to uninstall any software applications that you no longer require.
1Select [Start]  # [Control Panel]  #
[Uninstall a program].
2Select [HD Writer AE 3.0], then click
[Uninstall].
≥ Proceed with the uninstallation by following
the on-screen instructions.
≥ After...

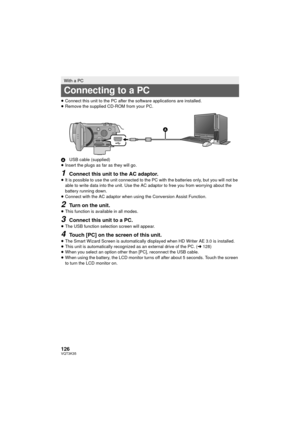

126VQT3K35
≥Connect this unit to the PC after the  software applications are installed.
≥ Remove the supplied CD-ROM from your PC.
A USB cable (supplied)
≥ Insert the plugs as far as they will go.
1Connect this unit to the AC adaptor.≥It is possible to use the unit connected to the PC with the batteries only, but you will not be
able to write data into the unit. Use the AC adaptor to free you from worrying about the
battery running down.
≥ Connect with the AC adaptor when using the Conversion Assist...

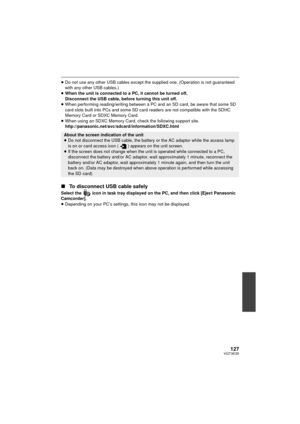

127VQT3K35
≥Do not use any other USB cables except the supplied one. (Operation is not guaranteed
with any other USB cables.)
≥ When the unit is connected to a PC, it cannot be turned off.
Disconnect the USB cable, before turning this unit off.
≥ When performing reading/writing between a PC and an SD card, be aware that some SD
card slots built into PCs and some SD ca rd readers are not compatible with the SDHC
Memory Card or SDXC Memory Card.
≥ When using an SDXC Memory Card, check the following...

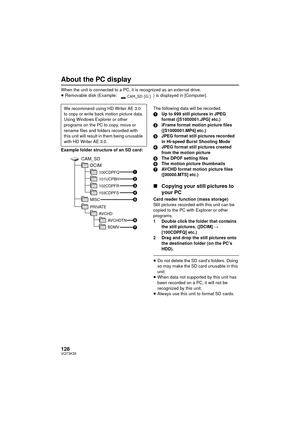

128VQT3K35
About the PC display
When the unit is connected to a PC, it is recognized as an external drive.
≥Removable disk (Example:  ) is displayed in [Computer].
Example folder structure of an SD card: The following data will be recorded.
1
Up to 999 still pictures in JPEG
format ([S1000001.JPG] etc.)
2 iFrame format motion picture files
([S1000001.MP4] etc.)
3 JPEG format still pictures recorded
in Hi-speed Burst Shooting Mode
4 JPEG format still pictures created
from the motion picture
5 The DPOF...

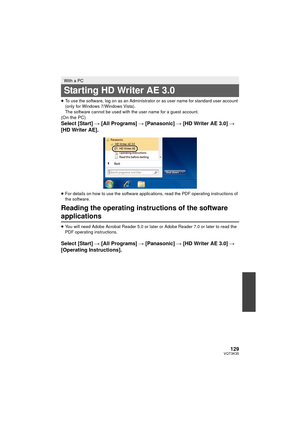

129VQT3K35
≥To use the software, log on as an Administrator or as user name for standard user account
(only for Windows 7/Windows Vista).
The software cannot be used with the user name for a guest account.
(On the PC)
Select [Start]  # [All Programs]  # [Panasonic] # [HD Writer AE 3.0]  #
[HD Writer AE].
≥ For details on how to use the software applications, read the PDF operating instructions of
the software.
Reading the operating instructions of the software
applications
≥You will need Adobe...

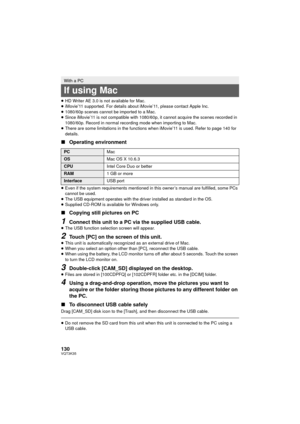

130VQT3K35
≥HD Writer AE 3.0 is not available for Mac.
≥ iMovie’11 supported. For details about iMovie’11, please contact Apple Inc.
≥ 1080/60p scenes cannot be imported to a Mac.
≥ Since iMovie’11 is not compatible with 1080/60p, it cannot acquire the scenes recorded in
1080/60p. Record in normal recording mode when importing to Mac.
≥ There are some limitations in the functions when iMovie’11 is used. Refer to page 140 for
details.
∫ Operating environment
≥Even if the system  requirements mentioned...
