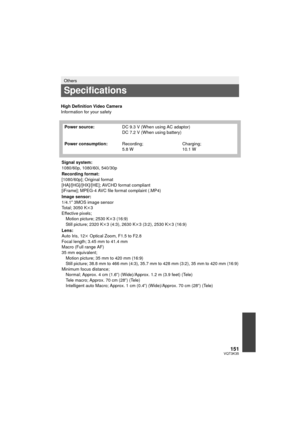

151VQT3K35
High Definition Video Camera
Information for your safety
Others
Specifications
Power source:DC 9.3 V (When using AC adaptor)
DC 7.2 V (When using battery)
Power consumption: Recording;
5.8 W Charging;
10.1 W
Signal system:
1080/60p, 1080/60i, 540/30p
Recording format:
[1080/60p]; Original format
[HA]/[HG]/[HX]/[HE]; AVCHD format compliant
[iFrame]; MPEG-4 AVC file format complaint (.MP4)
Image sensor:
1/4.1z  3MOS image sensor
Total; 3050 K k3
Effective pixels; Motion picture; 2530 K k3...

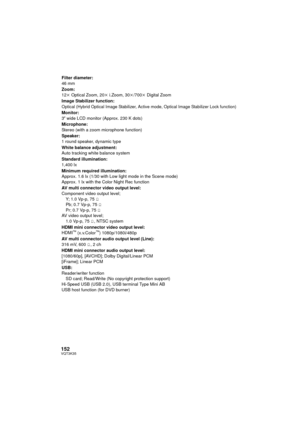

152VQT3K35
Filter diameter:
46 mm
Zoom:
12k Optical Zoom, 20 k i.Zoom, 30 k/700k  Digital Zoom
Image Stabilizer function:
Optical (Hybrid Optical Image Stabilizer, Active mode, Optical Image Stabilizer Lock function)
Monitor:
3 z wide LCD monitor (Approx. 230 K dots)
Microphone:
Stereo (with a zoom microphone function)
Speaker:
1 round speaker, dynamic type
White balance adjustment:
Auto tracking white balance system
Standard illumination:
1,400 lx
Minimum required illumination:
Approx. 1.6 lx (1/30 with...

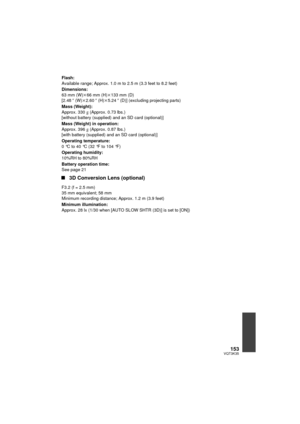

153VQT3K35
∫3D Conversion Lens (optional)
Flash:
Available range; Approx. 1.0 m to 2.5 m (3.3 feet to 8.2 feet)
Dimensions:
63 mm (W) k66 mm (H) k133 mm (D)
[2.48 q (W) k2.60 q (H)k 5.24q (D)] (excluding projecting parts)
Mass (Weight):
Approx. 330
g (Approx. 0.73 lbs.)
[without battery (supplied) and an SD card (optional)]
Mass (Weight) in operation:
Approx. 396
g (Approx. 0.87 lbs.)
[with battery (supplied) and an SD card (optional)]
Operating temperature:
0°Cto40°C (32°Fto104°F)
Operating humidity:...

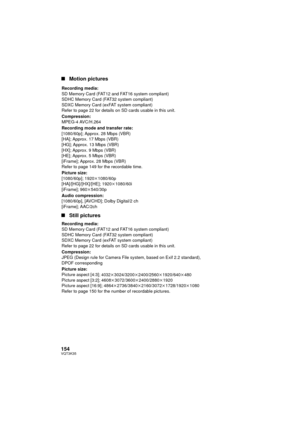

154VQT3K35
∫Motion pictures
∫ Still pictures
Recording media:
SD Memory Card (FAT12 and FAT16 system compliant)
SDHC Memory Card (FAT32 system compliant)
SDXC Memory Card (exFAT system compliant)
Refer to page 22 for details on SD cards usable in this unit.
Compression:
MPEG-4 AVC/H.264
Recording mode and transfer rate:
[1080/60p]; Approx. 28 Mbps (VBR)
[HA]; Approx. 17 Mbps (VBR)
[HG]; Approx. 13 Mbps (VBR)
[HX]; Approx. 9 Mbps (VBR)
[HE]; Approx. 5 Mbps (VBR)
[iFrame]; Approx. 28 Mbps (VBR)
Refer to...

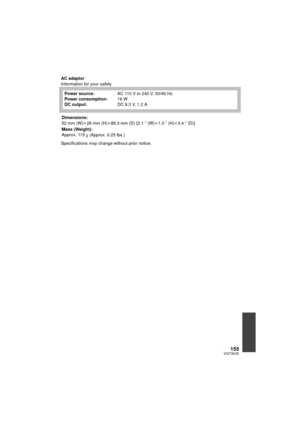

155VQT3K35
AC adaptor
Information for your safety
Specifications may change without prior notice.Power source:
Power consumption:
DC output:
AC 110 V to 240 V, 50/60 Hz
16 W
DC 9.3V, 1.2A
Dimensions:
52 mm (W) k26 mm (H) k86.3 mm (D) [2.1 q (W)k 1.0q (H) k3.4 q (D)]
Mass (Weight):
Approx. 115
g (Approx. 0.25 lbs.)
HDCSD800P-VQT3K35_mst.book  155 ページ  ２０１０年１２月２０日　月曜日　午前９時４分

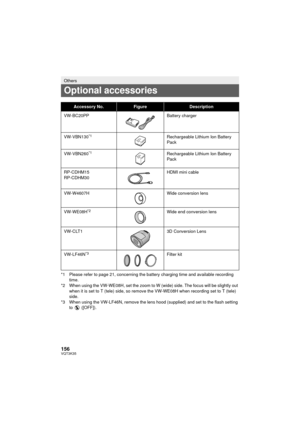

156VQT3K35
*1 Please refer to page 21, concerning the battery charging time and available recording time.
*2 When using the VW-WE08H, set the zoom to W (wide) side. The focus will be slightly out  when it is set to T (tele) side, so remove the VW-WE08H when recording set to T (tele)
side.
*3 When using the VW-LF46N, remove the lens hood (supplied) and set to the flash setting  to  ([OFF]).
Others
Optional accessories
Accessory No.FigureDescription
VW-BC20PP Battery charger
VW-VBN130
*1Rechargeable...

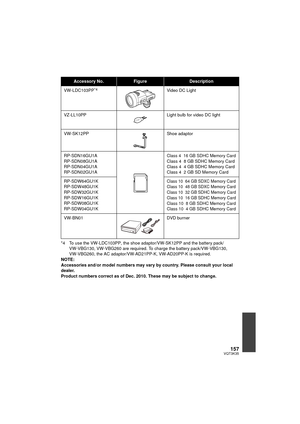

157VQT3K35
*4 To use the VW-LDC103PP, the shoe adaptor/VW-SK12PP and the battery pack/VW-VBG130, VW-VBG260 are required. To charge the battery pack/VW-VBG130,
VW-VBG260, the AC adaptor/VW-AD21PP-K, VW-AD20PP-K is required.
NOTE:
Accessories and/or model numbers may vary by country. Please consult your local
dealer.
Product numbers correct as of Dec. 2010. These may be subject to change.
Accessory No.FigureDescription
VW-LDC103PP
*4Video DC Light
VZ-LL10PP Light bulb for video DC light
VW-SK12PP Shoe...

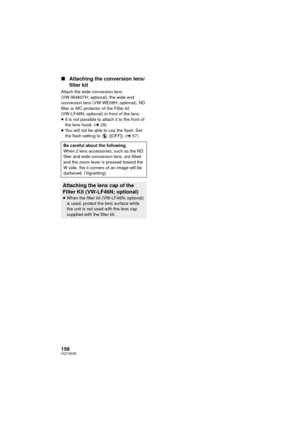

158VQT3K35
∫Attaching the conversion lens/
filter kit
Attach the wide conversion lens
(VW-W4607H; optional), the wide end
conversion lens (VW-WE08H; optional), ND
filter or MC protector of the Filter kit
(VW-LF46N; optional) in front of the lens.
≥It is not possible to attach it to the front of
the lens hood. ( l29)
≥ You will not be able to use the flash. Set
the flash setting to   ([OFF]). ( l57)
Be careful about the following.
When 2 lens accessories, such as the ND
filter and wide conversion...

159VQT3K35

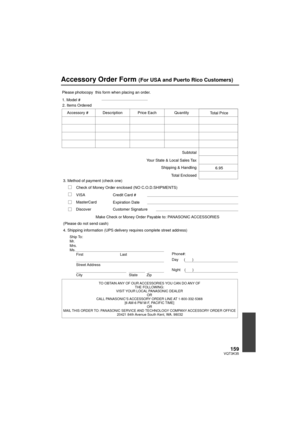

Accessory Order Form (For USA and Puerto Rico Customers)
TO OBTAIN ANY OF OUR ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER  OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368  [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO:  PANASONIC SERVICE AND TECHNOLOGY COMPANY  ACCESSORY ORDER OFFICE
20421 84th  A

venue South Kent, WA. 98032
Ship To:
Mr.
Mrs.
Ms.
First Last
Street Address
City State Zip
Phone#:
Day (       )
Night(       )
4....

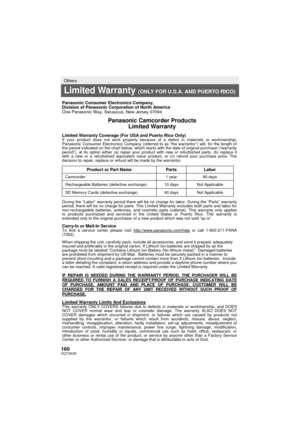

160VQT3K35
Others
Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO)
 Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
 Panasonic Camcorder Products  Limited Warranty
 Limited Warranty Coverage (For USA and Puerto Rico Only)  If your product does not work properly because of a defect in materials or workmanship,
Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for the length of
the...
