Panasonic Hdtv Projection Monitor Pt 53tw54 Operating Instructions

ICON MENUS OPERATION
19 z
ENGLISH

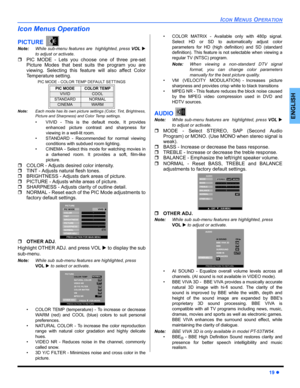

Icon Menus Operation
Note:While sub-menu features are  highlighted, press VOL X
to adjust or activate.
ˆPIC MODE - Lets you choose one of three pre-set
Picture Modes that best suits the program you are
viewing. Selecting this feature will also affect Color
Temperature setting.
PIC MODE - COLOR TEMP DEFAULT SETTINGS
Note:Each mode has its own picture settings (Color, Tint, Brightness,
Picture and Sharpness) and Color Temp settings.
• VIVID - This is the default...

20 z
ICON MENUS OPERATION
ENGLISH

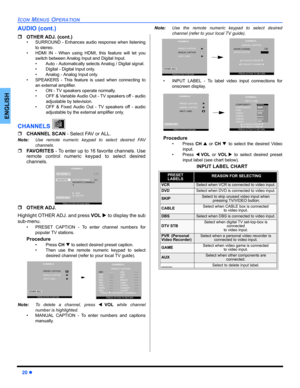

AUDIO (cont.)
ˆOTHER ADJ. (cont.)
• SURROUND - Enhances audio response when listening
to stereo.
• HDMI IN - When using HDMI, this feature will let you
switch between Analog Input and Digital Input.
• Auto - Automatically selects Analog / Digital signal.
• Digital - Digital Input only.
• Analog - Analog Input only.
• SPEAKERS - This feature is used when connecting to
an external amplifier.
• ON - TV speakers operate normally.
• OFF & Variable Audio Out - TV speakers off...

ICON MENUS OPERATION
21 z
ENGLISH

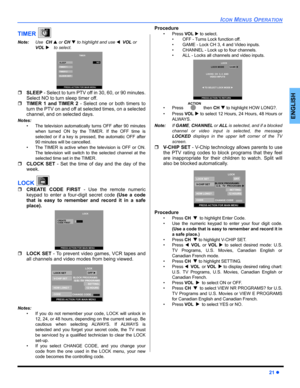

TIMER
Note:Use  CHS or CH T to highlight and use WVOL or
VOL X
 to select.
ˆSLEEP - Select to turn PTV off in 30, 60, or 90 minutes.
Select NO to turn sleep timer off.
ˆTIMER 1 and TIMER 2 - Select one or both timers to
turn the PTV on and off at selected times, on a selected
channel, and on selected days.
Notes:
• The television automatically turns OFF after 90 minutes
when turned ON by the TIMER. If the OFF time is
selected or if a key is pressed, the automatic OFF...

22 z
ICON MENUS OPERATION
ENGLISH

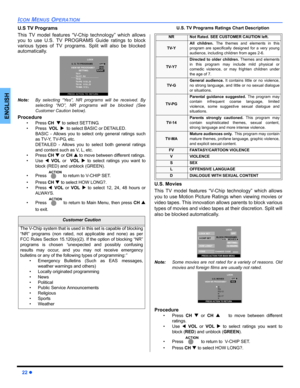

U.S TV Programs
This TV model features “V-Chip technology” which allows
you to use U.S. TV PROGRAMS Guide ratings to block
various types of TV programs. Split will also be blocked
automatically.
Note:By selecting “Yes”, NR programs will be received. By
selecting “NO”, NR programs will be blocked (See
Customer Caution below).
Procedure
• Press CHT to select SETTING.
• Press  VOLX  to select BASIC or DETAILED.
BASIC - Allows you to select only general ratings such
as...

ICON MENUS OPERATION
23 z
ENGLISH

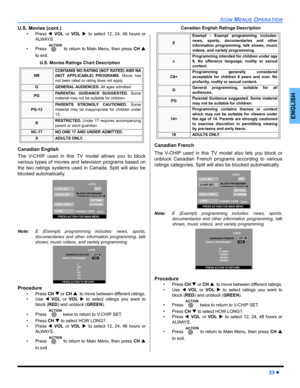

U.S. Movies (cont.)
• Press WVOLor VOLXto select 12, 24, 48 hours or
ALWAYS.
• Press  to return to Main Menu, then press CH S
to exit.
U.S. Movies Ratings Chart Description
Canadian English
The V-CHIP used in this TV model allows you to block
various types of movies and television programs based on
the two ratings systems used in Canada. Split will also be
blocked automatically.
Note:E (Exempt) programming includes: news, sports,
documentaries and other information...

24 z
ICON MENUS OPERATION
ENGLISH

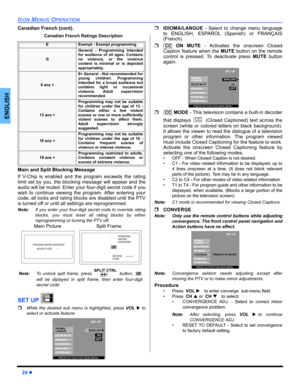

Canadian French (cont).
Canadian French Ratings Description
Main and Split Blocking Message
If V-Chip is enabled and the program exceeds the rating
limit set by you, the blocki ng message will appear and the
audio will be muted. Enter your  four-digit secret code if you
wish to continue viewing the program. After entering your
code, all locks and ra ting blocks are disabled until the PTV
is turned off or until all settings are reprogrammed.
Note: If you enter your...

ICON MENUS OPERATION
25 z
ENGLISH

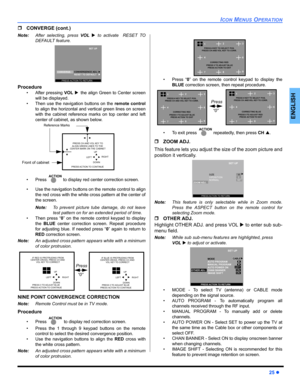

ˆCONVERGE (cont.)
Note:After selecting, press VOL Xto activate  RESET TO
DEFAULT feature.
Procedure
• After pressing VOL Xthe align Green to Center screen
will be displayed.
• Then use the navigation buttons on the remote control
to align the horizontal and vertical green lines on screen
with the cabinet reference marks on top center and left
center of cabinet, as shown below.
• Press   to display red center correction screen.
• Use the navigation buttons on the...

26 z

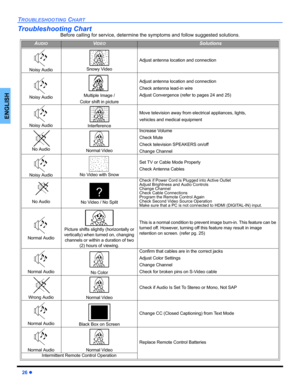

TROUBLESHOOTING CHART
ENGLISH
Troubleshooting Chart
Before calling for service, determine the symptoms and follow suggested solutions.
AUDIOVIDEOSolutions
Noisy Audio Snowy Video
Adjust antenna location and connection
Noisy AudioMultiple Image /
Color shift in picture
Adjust antenna location and connection
Check antenna lead-in wire
Adjust Convergence (refer to pages 24 and 25)
Noisy AudioInterference
Move television away from electrical appliances, lights,
vehicles and medical equipment
No Audio...

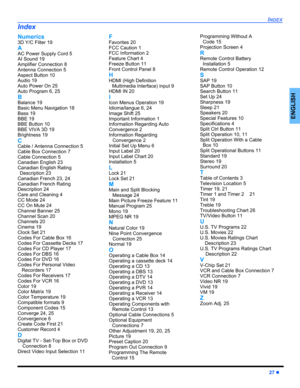

INDEX
