Panasonic High Speed Color Scanner Kv S4085cw Operating Instructions

(For KV-S4065CL and KV-S4065CW only)
LED LIGHT
DO NOT VIEW
 DIRECTLY WITH OPTICAL INSTRU-
MENTS.
CLASS 1M LED PRODUCT
LED properties LED radiation output: 12 mW max.
Wavelength: Red 630 nm typ.
Green 534 nm typ.
Blue 460 nm typ.
Emission duration: Continuous
Standard: IEC 60825-1:1993 +A1:1997 +A2:2001
Safety Information (For
United Kingdom only)
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5 amp

 fuse is fitted in this plug. Should the fuse need
to...

Precautions
Installation
•
Do not place the unit in direct sunlight, in a cold
draft, or near heating apparatus.
• Do not place the unit near apparatus which
generate electronic or magnetic noise.
• Protect the unit from static electricity.
• Do not move
 the unit immediately from a cold place
to a warm place. It may cause dew.
CD-ROM
• Do not write or stick paper on the front and/or back
of CD-ROM.
• Do not touch the data side of the CD-ROM. When
handling the CD-ROM, be careful not to leave
fingerprints...

Illegal Duplication
It is unlawful to make duplication of certain
documents.
Duplicating certain documents may be illegal in
your country/area.
Penalties of fines
 and/or imprisonment may be im-
posed on those found guilty. The following are
examples of items that may be illegal to duplicate
in your country/area.
• Currency
• Bank notes and checks
• Bank and government bonds, and securities
• Passports, licenses, official or private docu-
ments, identification cards, and the like
• Copyright materials,...

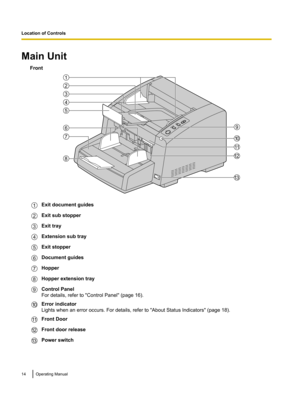

Main Unit
Front Exit document guides
Exit sub stopper
Exit tray
Extension sub tray
Exit stopper
Document guides
Hopper
Hopper extension tray
Control Panel
For details, refer to "Control Panel" (page 16).
Error indicator
Lights when an error occurs. For details, refer to "About Status Indicators
" (page 18).Front Door
Front door release
Power switch
14 Operating Manual
Location of Controls
Location of Controls6
7
1
2
3
4
5
8
9
10
11
13
12 1 2 3 4 5 6 7 8 9 10 11 12 13

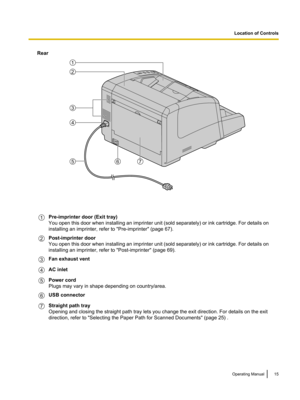

Rear
Pre-imprinter door (Exit tray)
You open this
 door when installing an imprinter unit (sold separately) or ink cartridge. For details on
installing an imprinter, refer to "Pre-imprinter" (page 67). Post-imprinter door
You open this

 door when installing an imprinter unit (sold separately) or ink cartridge. For details on
installing an imprinter, refer to "Post-imprinter" (page 69). Fan exhaust vent
AC inlet
Power cord
Plugs may vary in shape depending on country/area.
USB connector...

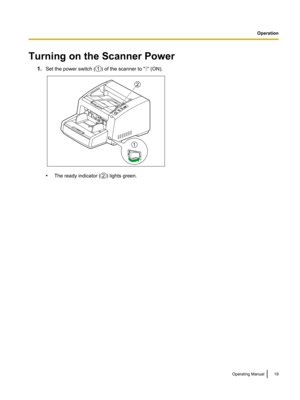

Control Panel and Status Indicators
Control Panel
Hopper key (Hopper)
Adjusts the hopper position. See "Changing the Hopper Position" (page 23).
ADF select key (ADF)
Sets the feeding method to auto feeding [
] or manual feeding [ ].
Paper thickness key (Thickness)
Changes the paper thickness mode according to the document type. See "
Changing the Paper
Thickness Mode" (page 24). Start/Stop key (Start/Stop)
•
If you set
 [Wait Key] for "Manual Feed Mode" *1
 in your application...

Ready indicator (Ready)
Shows the scanner's status. For details, see "About Status Indicators" (page
18).
*1 For details on "Manual Feed Mode", refer to the RTIV Reference Manual or PIE Reference Manual. Operating Manual 17 Location of Controls5

About Status Indicators
The status of  the scanner is displayed by the ready indicator ( ) and the error indicator ( ), as shown in the
table below:  Ready indicator ( )
(Green)  Error indicator ( )
(Red) Status
ON OFF Ready
ON Blink (Slow) Caution
*1 OFF ON Error
*1 Blink (Slow) OFF Sleep
Blink (Slow) Blink (Slow) Caution
*1
 / Sleep Blink (Fast) OFF Warming up
*1
Check the status of the scanner using User Utility. For details about User Utility, refer to the User Utility Reference Manual. 18 Operating...

Turning on the Scanner Power
1.Set the power switch ( ) of the scanner to " " (ON).
•
The ready indicator ( ) lights green.
Operating Manual 19Operation
Operation1  2
1 2

Preparing Documents
Acceptable Documents
The acceptable documents for this scanner are as follows.
Document size * For manual paper feed or thick paper mode:
100 mm (3.9 in.)
Loadable paper thickness and number of sheets Paper thickness:Thin 20–50 g/m²
(5–13 lbs.)
Normal 50–157  g/m²
(13–42 lbs.)
Thick 157–209 g/m²
(42–56 lbs.)
Maximum number of sheets loadable on the hopper Page thick-
ness (g/m²) 20
(5 lbs.) 40
(11 lbs.) 50
(13 lbs.) 64
(17 lbs.) 75
(20 lbs.) 80
(21 lbs.) 90
(24 lbs.) 104
(28 lbs.)...
