Unacceptable DocumentsThe following types of documents may not scan properly:
• Torn or frayed documents
• Curled, wrinkled or folded documents
• Carbon paper
• Thick or irregular documents such as envelopes, documents that are glued together, etc.
• Perforated or punched paper
• Coated paper
Do not scan the following types of paper:
• Thermal paper
• Photographs
• OHP sheets, other plastic films, cloths, or metallic sheets
• Paper with irregularities such as paper clips, staples, paste, or glue
•...

Scanning DocumentsThis scanner can scan documents whose pages are all the same size and documents whose pages are
different sizes.
Notice
•Make sure to remove paper clips and staples from documents before scanning. Failing to do so can
damage the unit, document, or both.
• Curled documents may cause a paper jam or damaging the document, therefore, set the document
flat before scanning.
• When scanning important documents, confirm that the number of scanned images matches the number
of pages in the...

Scanning Documents with Pages of the Same Size1.Use the manual feed selector to select continuous scanning (Auto) or manual scanning (Manual).
Continuous scanning (Auto)
Manual scanning (Manual)
Notice •When scanning a document manually (Manual), feed the document 1 page at a time.
• When scanning important documents or bound documents, feed them manually.
Note
•When scanning a document manually (Manual), the double feed detection function is disabled.
Operating Manual23Operation

2.Adjust the document guides ( A) slightly larger than the actual size of the documents.
3. Fan the documents.
• Documents that have been stapled together or stacked together (as in a file folder) will need to be
separated.
Fan the stack of documents to separate all the edges.
Hold both ends and bend the documents as shown in the illustration.
To flatten the documents, hold firmly and pull them apart as shown in the illustration.
Repeat these steps as necessary.
4. Carefully align the documents....

5.Place the documents on the hopper ( A) with the side to be scanned facing up.
Then push the documents in the direction of the arrow until they stop.
Notice
•The height of the documents should not exceed the limit mark ( B) on the document guide. This
may cause a paper jam or skewing.
Operating Manual25Operation2
1

6.Slide the document guides ( A) to match the width of the document to be scanned.
When scanning long sheets of paper
Pull out the hopper extension tray ( B) from the hopper.
26Operating ManualOperation1 2

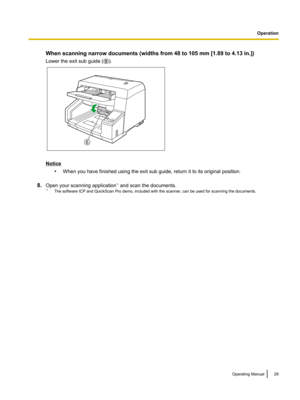

7.Raise the exit stopper ( A).
When scanning long sheets of paper

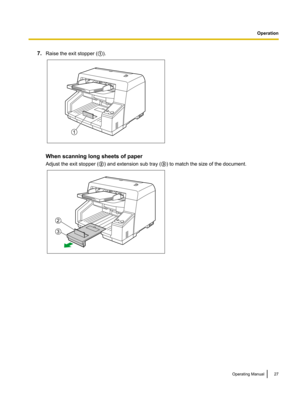

Adjust the exit stopper ( B) and extension sub tray ( C) to match the size of the document.
Operating Manual27Operation1 2
3

When scanning short sheets of paper

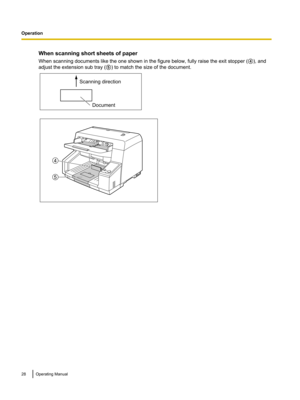

When scanning documents like the one shown in the figure below, fully raise the exit stopper ( D), and
adjust the extension sub tray ( E) to match the size of the document.28Operating ManualOperationScanning direction
Document 4
5

When scanning narrow documents (widths from 48 to 105 mm [1.89 to 4.13 in.])
Lower the exit sub guide ( F).
Notice
•When you have finished using the exit sub guide, return it to its original position.
8. Open your scanning application *1
 and scan the documents.
*1 The software ICP and QuickScan Pro demo, included with the scanner, can be used for scanning the documents.
Operating Manual29Operation6

Scanning Documents with Pages of Different SizesFor conditions when scanning documents with mixed page sizes, see  "For documents with mixed page sizes
and thicknesses" (page 20).
• When scanning different size documents, scanned sheets may need to be reordered for optimum
performance.
1. Use the manual feed selector to select continuous scanning (Auto).
Continuous scanning (Auto)30Operating ManualOperation
