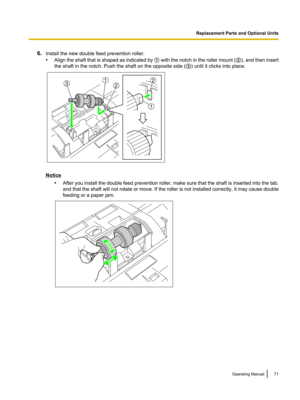

6.Install the new double feed prevention roller.
• Align the shaft that is shaped as indicated by  A with the notch in the roller mount ( B), and then insert
the shaft in the notch. Push the shaft on the opposite side ( C) until it clicks into place.
Notice
•After you install the double feed prevention roller, make sure that the shaft is inserted into the tab,
and that the shaft will not rotate or move. If the roller is not installed correctly, it may cause double
feeding or a paper jam.
Operating...

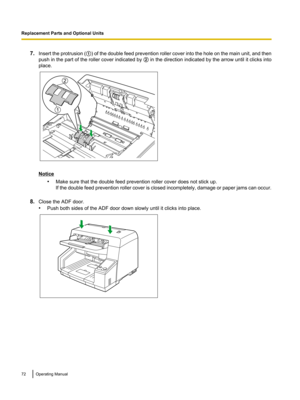

7.Insert the protrusion ( A) of the double feed prevention roller cover into the hole on the main unit, and then
push in the part of the roller cover indicated by  B in the direction indicated by the arrow until it clicks into
place.
Notice
•Make sure that the double feed prevention roller cover does not stick up.
If the double feed prevention roller cover is closed incompletely, damage or paper jams can occur.
8. Close the ADF door.
• Push both sides of the ADF door down slowly until it clicks into...

9.Plug in the power cord, and set the power switch of the scanner to "" (ON).
10. Reset the roller replacing counter in User Utility to 0.
• Start User Utility, and in the window, click the [ Clear Counter] button for "After Replace Roller " to reset
the counter to 0.
• For details, refer to the User Utility help.Operating Manual73Replacement Parts and Optional Units

Installing Optional Units
Installing the Imprinter Unit The imprinter prints on the face of the document before scanning. The printed material will also be scanned.
1. Set the power switch ( A) of the scanner to "
" (OFF).
2. Open the imprinter door.
74Operating ManualReplacement Parts and Optional Units 1

3.Connect the cable.
Notice
•Be sure to correctly match the rib with the slot prior to inserting the connector.
4. While keeping the direction of the imprinter as shown in the diagram below, insert the pins ( A) on both
sides into the guides, and insert the pins ( B) on both sides into the guides until they are locked by the
springs ( C).
Operating Manual75Replacement Parts and Optional Units 11
22
3

5.Close the imprinter door.
6.Set the power switch of the scanner to "" (ON).
Note
•For details on installing an ink cartridge, refer to "Installing the Ink Cartridge" (page 77).
76Operating ManualReplacement Parts and Optional Units

Installing the Ink CartridgeInstall the ink cartridge in the imprinter.
1. Set the power switch ( A) of the scanner to "
" (OFF).
2. Remove the protective tape.
Operating Manual77Replacement Parts and Optional Units 1

3.Move the carriage to the ink cartridge exchange position.
Notice
•Adjust the position following the label on the imprinter.
4. Insert the ink cartridge into the carriage.
5.Lock the ink cartridge adjustment lever ( A).
78Operating ManualReplacement Parts and Optional Units  1

Removing the ink cartridge1.Set the power switch of the scanner to "
" (OFF).
2. Move the carriage to the ink cartridge exchange position.
Notice
•Adjust the position following the label on the imprinter.
3. Pinch the ink cartridge adjustment lever ( A) and lift it.
4. Remove the ink cartridge ( A).
Operating Manual79Replacement Parts and Optional Units  1 1

PrintingAdjusting the imprinter printing position
1. Move the carriage to the desired printing position, and align the indicator ( A) with the "
" mark ( B) .
• The "
" mark indicates the printing position. Printing is not available in any other position.
Printing Position
Printing
Printing can be set from the ICP program and the TWAIN and ISIS drivers. For details, refer to the help for ICP
or PIE.
80Operating ManualReplacement Parts and Optional Units  2
1 16.5 mm (0.6 in.) 30.8 mm (1.2...
