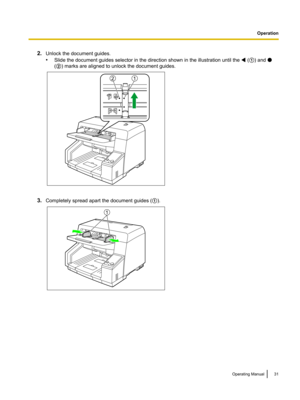

2.Unlock the document guides.
• Slide the document guides selector in the direction shown in the illustration until the
 (A ) and
(B ) marks are aligned to unlock the document guides.
3. Completely spread apart the document guides ( A).
Operating Manual31Operation  12 1

4.Fan the documents.
• Documents that have been stapled together or stacked together (as in a file folder) will need to be
separated.
Fan the stack of documents to separate all the edges.
Hold both ends and bend the documents as shown in the illustration.
To flatten the documents, hold firmly and pull them apart as shown in the illustration.
Repeat these steps as necessary.
Notice
•Fan the pages for each page size separately.
5. Align the document pages along one side.
32Operating ManualOperation   1
23...

6.Place the documents on the hopper ( A) with the scanning side facing up.
• Align the document position so that the center of the smallest sheet will be fed to the center of the paper
feed roller ( B). If the document is not properly aligned, the pages will not be fed correctly.
Notice
•The height of the documents should not exceed the limit mark ( C) on the document guide. This
may cause a paper jam or skew.
• Depending on the types of paper, the document may not be fed smoothly. In such case, reduce...

When scanning long sheets of paper
Pull out the hopper extension tray ( D) from the hopper.
7. Adjust the document guides ( A) to the width of the document.
34Operating ManualOperation4 2
1

8.Remove the document and lock the document guides.
• Slide the document guides selector in the direction shown in the illustration until the
 (A ) and
(B ) marks are aligned to lock the document guides.
9. Place the document on the hopper again and adjust the document guide according to the size of the
document to be scanned.
Notice
•Make sure to align the document pages along one side.
• Make sure that the center of the smallest sheet of the document will be fed to the center of the
paper slot....

10.Raise the exit stopper ( A).
When scanning long sheets of paper
Adjust the exit stopper ( B) and extension sub tray ( C) to match the largest document page.
36Operating ManualOperation2
1 2
2
3

When scanning short sheets of paper
When scanning documents like the one shown in the figure below, fully raise the exit stopper ( D), and
adjust the extension sub tray ( E) to match the size of the document.
11. Open your scanning application *1
 and scan the documents.
*1 The software ICP and QuickScan Pro demo, included with the scanner, can be used for scanning the documents.
Operating Manual37OperationScanning direction
Document 4
5

Adjusting the left and right document guides to their original position1.Unlock the document guides.
• Slide the document guides selector in the direction shown in the illustration until the
 (A ) and
(B ) marks are aligned to unlock the document guides.
2. Completely spread apart the document guides.
38Operating ManualOperation  12

3.Lock the document guides.
• Slide the document guides selector in the direction shown in the illustration until the
 (A ) and
(B ) marks are aligned to lock the document guides.
Operating Manual39Operation  12

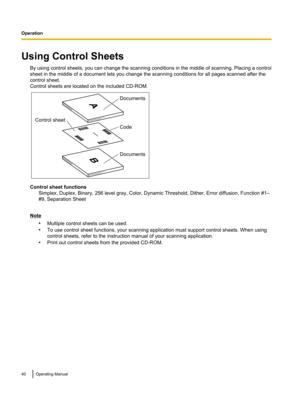

Using Control SheetsBy using control sheets, you can change the scanning conditions in the middle of scanning. Placing a control
sheet in the middle of a document lets you change the scanning conditions for all pages scanned after the
control sheet.
Control sheets are located on the included CD-ROM.
Control sheet functions Simplex, Duplex, Binary, 256 level gray, Color, Dynamic Threshold, Dither, Error diffusion, Function #1–
#9, Separation Sheet
Note
•Multiple control sheets can be used.
• To use...
