Operating Instructions
Hospitality LCD HDTV
TQB2AA0589
Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set
and retain them for future reference. The images shown in
this manual are for illustrative purposes only.English
Model No.
TH-32LRU20
TH-37LRU20
TH-42LRU20
UI@@@@MSV@FOH@JOEC


 UI@@@@MSV@FOH@JOEC











2
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC  in the United States and other countries.SDXC Logo is a trademark of SD-3C,  LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Experience an amazing level of
multimedia excitement
Enjoy rich multimedia
Amplifier
Home theater system  VCR
DVD recorder/
Blu-ray Disc recorder DVD player/
Blu-ray Disc player...

3
Viewing
Advanced
FAQs, etc.
Quick Start Guide
This product qualifies for ENERGY STAR in the
factory default setting and this is the setting in
which energy savings will be achieved.
Any modifications to the factory default setting
or other factory default settings could result in
greater energy consumption beyond levels that
meet ENERGY STAR qualifications.
● TV operation ··················\
··················\
············ 14
●   Watching Videos and DVDs ··················\
······· 15
●...

4
ANTENNA
LEAD-IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING
CONDUCTORS
 (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
ELECTRIC
SERVICE
EQUIPMENT
GROUND CLAMP
EXAMPLE OF ANTENNA
GROUNDING AS  PER
(NEC) NATIONAL
ELECTRICAL
CODE
Safety Precautions
Note to CATV System Installer
This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and,...

5

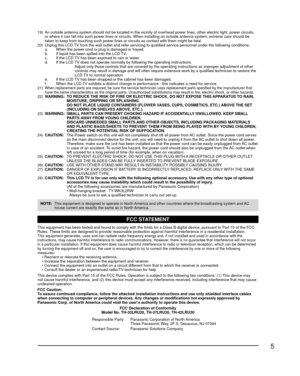

19)  An outside antenna system should not be located in the vicinity of overh\
ead power lines, other electric light, power circuits, or where it can fall into such power lines or circuits. When installing \
an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as contact with\
 them might be fatal.
20)  Unplug this LCD TV from the wall outlet and refer servicing to qualified service personn\
el under the following conditions:
  a.  When the power...

6

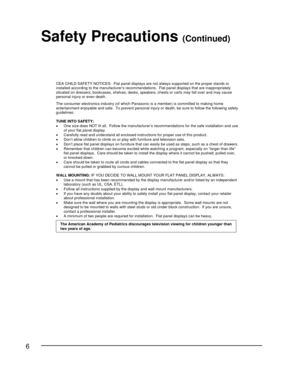

CEA CHILD SAFETY NOTICES:  Flat panel displays are not always supported on the proper stands or
installed according to the manufacturer’s recommenda tions.  Flat panel displays that are inappropriately
situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and may cause
personal injury or even death.
The consumer electronics industry (of which Panasonic is a member) is committed to making home
entertainment enjoyable and safe. To prevent personal injury or death, be...

7
Quick Start Guide
 Accessories/Optional Accessory
Optional Accessory
Wall-hanging bracket TY-WK3L2RW
WARNING Please contact your nearest Panasonic dealer to purchase the recommended\

wall-hanging bracket. For additional details, please refer to the wall-h\
anging
bracket installation manual.
Back of the TV
Holes for wall-hanging bracket
installation
Screw for fixing the TV onto the
wall-hanging bracket
(not supplied with the TV)
(View from the side)
7.9 ”
(200 mm)
7.9 ”
(200 mm)
  Customers...

8
Accessories
Assembly screws
(4 of each)

A
 XSS4+16FJK
  M4 × 16
B
 XYN4+F12FJK
  M4 × 12
Bracket (1)
 Base (1)

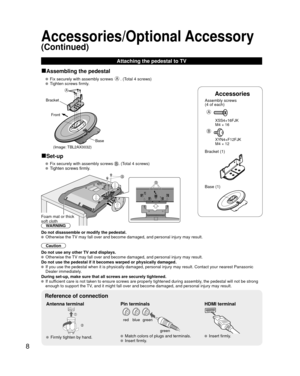

■Assembling the pedestal
   Fix securely with assembly screws A. (Total 4 screws)
   Tighten screws firmly.
A
Bracket
Front
Base
(Image: TBL2AX0032)
■Set-up
   Fix securely with assembly screws . (Total 4 screws)
  Tighten screws firmly.
B
B
Foam mat or thick
soft cloth
WARNING
Do not disassemble or modify the pedestal.
  Otherwise the TV may fall over and become damaged, and personal...

9
Quick Start Guide
 Accessories/Optional Accessory
Accessories
A Screws (2) XSN3+4FJ
  M3 × 4
B Wood screw (4) THM2AB001
C Bit (for pedestal) (1)
• Place the TV set in a position where it will not protrude from the table when swiv\
eled.
• Make sure there is enough space between the TV set and wall, so that when the TV set is swiveled it does not hit the wall.
Location
Place the TV at a comfortable distance for viewing. Avoid placing it where sunlight or other bright light (including reflect\
ions)...

10
Connections
Connection panel
■Side panel
■Back panel
RF connection*
* For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.
