Quick Start Guide

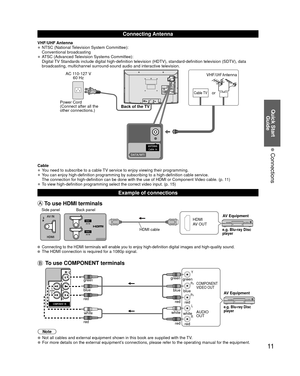

 Connections
Note
  Not all cables and external equipment shown in this book are supplied wi\
th the TV.  For more details on the external equipment’s connections, please refer to the operating manual for the equipment.
Example of connections
 To use HDMI terminals
HDMI
AV OUT
e.g. Blu-ray Disc
player
AV Equipment
Side panel Back panel
HDMI cable
 Connecting to the HDMI terminals will enable you to enjoy high-definitio\
n digital images and high-quality sound.  The HDMI connection...

12
 To use COMPOSITE terminals
L
Ror
redred
red
e.g. VCR
COMPOSITE
OUTyellow
w
hite
yellow
white
yellow
white
e.g. DVD Recorder
AV Equipment
Side panel Back panel
 To use AUDIO OUT terminals
Connect a cable which matches
the audio in terminal on the unit.  OPTICAL IN
Audio equipment
AUDIO IN
Audio cable
Optical digital audio cable
 To use DATA/MTI terminalExternal device
e.g. Game controller
Internal TA
External TA
MTI OUT
Terminal adapter
Cross Cable
 To use SERIAL terminal
Connect a cable which...

13
Quick Start Guide

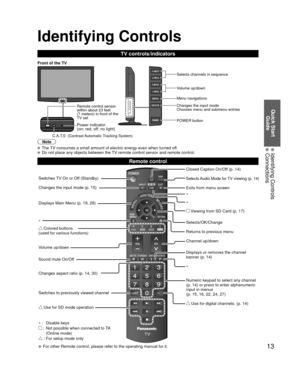

 Identifying Controls Connections
Identifying Controls
C.A.T.S  (Contrast Automatic Tracking System)
Power indicator
( on: red, off: no light)
Note
  The TV consumes a small amount of electric energy even when turned off.  Do not place any objects between the TV remote control sensor and remote control.
TV controls/indicators
Changes the input mode
Chooses menu and submenu entries Volume up/down Selects channels in sequence
Front of the TV
POWER button
Menu navigations
Remote...

14
TV operation
or
Turn the TV On with the POWER button
(TV)
or(Remote)
  Input select: press  (p. 15)
Select a channel number
up
down
or
(Remote) To directly enter the digital
channel number
When tuning to a digital channel,
press the button to enter the
minor number in a compound
channel number.
example:  CH15-1:
(TV)
Note
  Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal  reception between cable TV and antenna. (p. 25)
  The channel number and volume level...

15
Viewing
 Watching Videos and DVDs TV operation
If you have applicable equipment connected to the TV, you can watch videos and DVDs on the TV screen.
Input Select
You can select the external equipment to access.
 To return to TV

With the connected equipment turned On
Display the Input select menu
Select the input mode
Input selectTV1
5
234
678
Component HDMI 1
HDMI 2
HDMI 3
Video 1
PC Video 2AUX DVD(example)
or
 select
 enter
Press the corresponding NUMBER
button on the remote control to
select...

16
Displaying PC Screen on TV
The screen of the PC connected to the unit can be displayed on the TV.
You can also listen to PC sound with the audio cable connected. To connect PC (p. 12)
 PC menu setting (change as desired) Making settings  “How to Use Menu Functions”  to  (p. 19)
MenuItem Adjustments/Configurations (options)
PC
adjustments
Reset to defaultsResets PC adjustments. Confirmation screen is displayed. Select “Yes” and press OK to reset.
Sync H & V:     The H and V sync signals are...

17
Viewing
 Viewing from an SD card Displaying PC Screen on TV
Viewing from an SD card
This function that lets you easily view still images on a television by \
simply inserting an SD card into the SD card slot.
(Media other than SD Cards will not work.)
 Press to exit from a menu screen
 Press to return to
the previous screen
Insert the SD card
  Insert the card  Remove the cardGently insert the SD Card label surface facing front.
Label surface
Push until a
click is heard
Cutout
Press in lightly  on...

18
Hotel Mode Setup
Display “Hotel Mode”
Press MENU, G, Y and 0 remote button.
Hotel Mode
Mode
Initial volume TA Ctrl
Initial input
Initial channel
Max. volume
OSD Ctrl Save
1/2
HDMI 1
101-1
On
Internal
10
25
Off
Hotel ModeButton lock
Power ctrl
Remote
CC reset
Lock reset
2/2
Pattern 1
On
Panasonic
Off
Off
 select
 Adjust
Select “Save” then press OK
Complete Hotel Mode setup
Hotel Mode
Mode
TA Ctrl
Initial input Save
1/2
HDMI 1
On
Internal
 select
 ok
Operating restrictions can be set by setting the...

19
Advanced
 How to Use Menu Functions
 Hotel Mode Setup
How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and othe\
r functions so that you can enjoy
watching TV best suited for you.
  Guest menu (p. 28)
 Press to exit from a menu screen
 Press to return to the previous
screen

Display the menu
  Shows the functions that can be adjusted.  Some functions will be disabled depending on  the type of input signal.
Edit
RETURN
ABC Delete
abc
Menu
RGBY...
