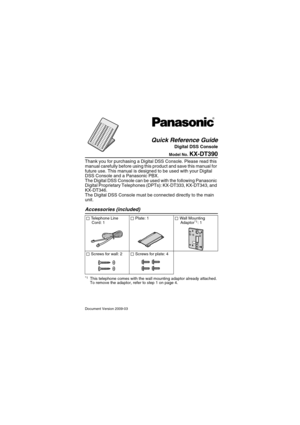

    Page 1 Document Version 2009-03 Model No. KX-DT390 Thank you for purchasing a Digital DSS Console. Please read this manual carefully before using this product and save this manual for future use. This manual is designed to be used with your Digital DSS Console and a Panasonic PBX. The Digital DSS Console can be used with the following Panasonic Digital Proprietary Telephones (DPTs): KX-DT333, KX-DT343, and KX-DT346. The Digital DSS Console must be connected directly to the main unit. Accessories...
    Page 2 2 Document Version 2009-03 Location of Controls Connection Operation Board Angle Adjustment DSS Buttons with Busy Lamp Field (BLF): To access an extension, simply press a DSS button. These buttons also can be assigned for the One-touch Dialing and reassigned to other features. The BLF indicates the current status of the corresponding extension. CAUTION: Ensure the cord is inserted in the grooves and the hook (...
    Page 3 Document Version 2009-03 3 Operation Board Angle AdjustmentAttaching a DPT To lower: Raise the operation board to level 8. Next, with one hand on the base of the unit, lift the operation board again to release the latch, then slowly push the operation board down to level 1. If the operation board cannot be lowered to level 1, repeat this step. 1.Fit the protrusions on the KX-DT390 and a DPT into the 4...
    Page 4 4 Document Version 2009-03 Wall Mounting CAUTION: Do not mount this unit on a wall while attached to a DPT. Doing so may damage the wall mounting adaptor or, may cause the unit to fall, possibly resulting personal injury. 1.Remove the wall mounting adaptor from the unit as shown. 2. Set the operation board to level 1, then connect and secure the telephone line cord. 3. Attach the wall mounting adaptor as...
