Panasonic Kx Dt390 Information Manual

Document Version 2009-03
Model No. KX-DT390
Thank you for purchasing a Digital DSS Console. Please read this
manual carefully before using this product and save this manual for
future use. This manual is designed to be used with your Digital
DSS Console and a Panasonic PBX.
The Digital DSS Console can be used with the following Panasonic
Digital Proprietary Telephones (DPTs): KX-DT333, KX-DT343, and
KX-DT346.
The Digital DSS Console must be connected directly to the main
unit.
Accessories...

2                                                                                             Document Version 2009-03
Location of Controls
Connection
Operation Board Angle Adjustment
DSS Buttons with Busy Lamp Field (BLF):
To access an extension, simply press a DSS
button.
These buttons also can be assigned for the
One-touch Dialing and reassigned to other
features.
The BLF indicates the current status of the
corresponding extension.
CAUTION:
Ensure the cord is inserted in the grooves and the hook (...

Document Version 2009-03                                                                                                   3
Operation Board Angle AdjustmentAttaching a DPT
To lower:
Raise the operation board to level 8. Next, with one hand on the
base of the unit, lift the operation board again to release the latch,
then slowly push the operation board down to level 1. If the
operation board cannot be lowered to level 1, repeat this step.
1.Fit the protrusions on the KX-DT390 and a DPT into the
4...

4                                                                                             Document Version 2009-03
Wall Mounting
CAUTION:
Do not mount this unit on a wall while attached to a DPT.
Doing so may damage the wall mounting adaptor or, may cause
the unit to fall, possibly resulting personal injury.
1.Remove the wall mounting
adaptor from the unit as shown.
2. Set the operation board to level
1, then connect and secure the
telephone line cord.
3. Attach the wall mounting adaptor
as...

Document Version 2009-03                                                                                                   5

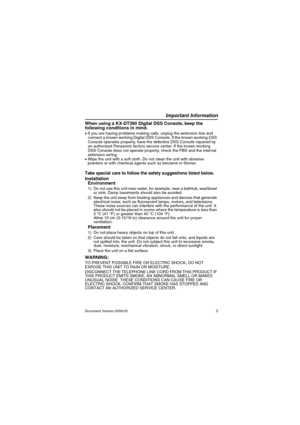

Important Information
When using a KX-DT390 Digital DSS Console, keep the
following conditions in mind.
•If you are having problems making calls, unplug the extension line and
connect a known working Digital DSS Console. If the known working DSS
Console operates properly, have the  defective DSS Console repaired by
an authorized Panasonic factory service center. If the known...

6                                                                                             Document Version 2009-03

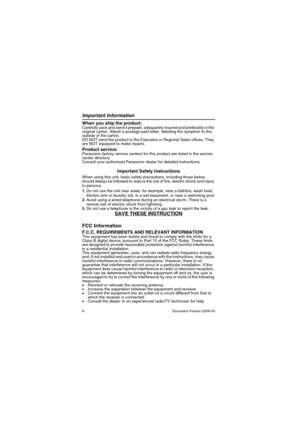

Important Information
When you ship the product:Carefully pack and send it prepaid, adequately insured and preferably in the
original carton. Attach a postage-paid letter, detailing the symptom to the
outside of the carton.
DO NOT send the product to the Executive or Regional Sales offices. They
are NOT equipped to make repairs.
Product service:Panasonic factory service centers for th...

Document Version 2009-03                                                                                                   7

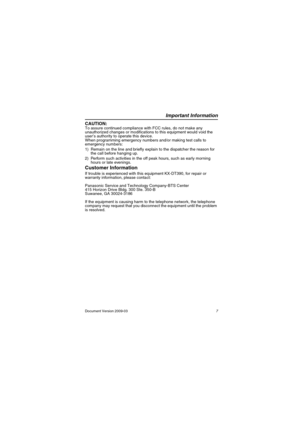

Important Information
CAUTION:To assure continued compliance with FCC rules, do not make any
unauthorized changes or modifications to this equipment would void the
user’s authority to operate this device.
When programming emergency numbers and/or making test calls to
emergency numbers:
1) Remain on the line and briefly explain to the dispatcher the reason for the call before...

PSQX4707ZA-UU (A) KK0309YH0 (M)
83 mm (3-1/4 in)
100 mm (3-15/16 in)
100 mm (3-15/16 in)
83 mm (3-1/4 in)
for DPT
for KX-DT390 DSS Console (with 60 Keys)
157 mm (6-1/5 in)
One screw here
One screw at either point One screw at either point One screw here

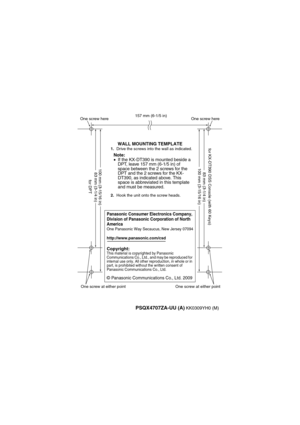

WALL MOUNTING TEMPLATE1.
Drive the screws into the wall as indicated.
Note:•If the KX-DT390 is mounted beside a
DPT, leave 157 mm (6-1/5 in) of
space between the 2 screws for the
DPT and the 2 screws for the KX-
DT390, as indicated above....
