Panasonic LCD Projector Pt Tw340 Operating Instructions

ENGLISH - 11

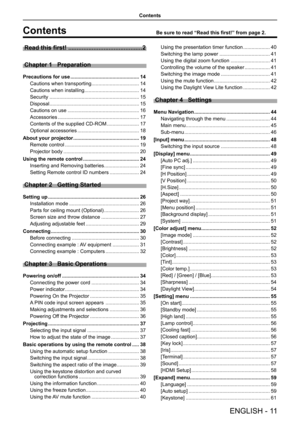

Contents
Contents
Read this first! ............................................2
Chapter 1   Preparation
Precautions for use .................................................14
Cautions when transporting ..................................14
Cautions when installing .......................................14
Security ................................................................15
Disposal ................................................................15
Cautions on use...

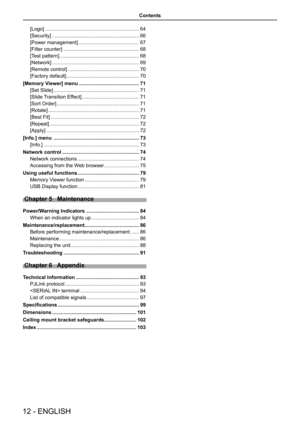

12 - ENGLISH
[Logo] ...................................................................64
[Security] ..............................................................66
[Power management] ...........................................67
[Filter counter] ......................................................68
[Test pattern] .........................................................68
[Network] ..............................................................69
[Remote control]...

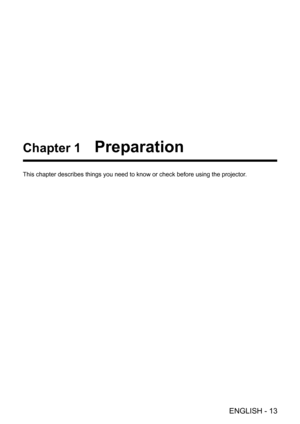

ENGLISH - 13
Chapter 1   Preparation
This chapter describes things you need to know or check before using the\
 projector.

14 - ENGLISH

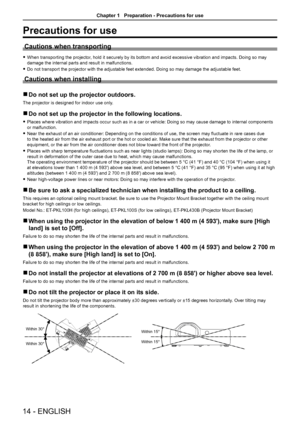

Precautions for use
Cautions when transporting
 fWhen transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may
damage the internal parts and result in malfunctions.
 fDo not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.
Cautions when installing
 rDo not set up the projector outdoors.
The projector is designed for indoor use only.
 rDo not set up the projector in the following...

ENGLISH - 15

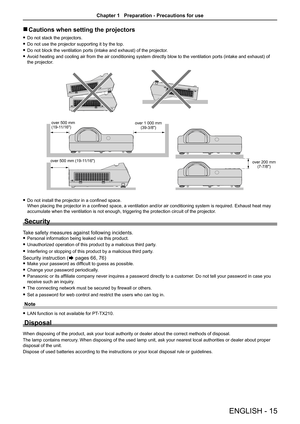

 rCautions when setting the projectors
 fDo not stack the projectors.
 fDo not use the projector supporting it by the top.
 fDo not block the ventilation ports (intake and exhaust) of the projector.
 fAvoid heating and cooling air from the air conditioning system directly blow to the ventilation ports (intake and exhaust) of
the projector.
 fDo not install the projector in a confined space.
When placing the projector in a confined space, a ventilation and/or air conditioning system is...

16 - ENGLISH

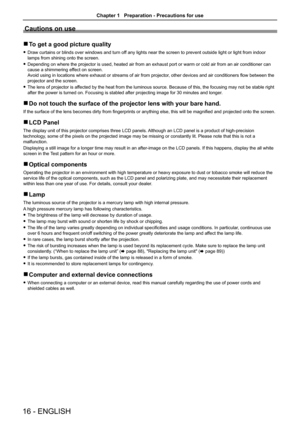

Cautions on use
 rTo get a good picture quality
 fDraw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indo\
or
lamps from shining onto the screen.
 fDepending on where the projector is used, heated air from an exhaust port or warm or cold air from an air conditioner can
cause a shimmering effect on screen.
Avoid using in locations where exhaust or streams of air from projector, other devices and air conditioners flow between...

ENGLISH - 17

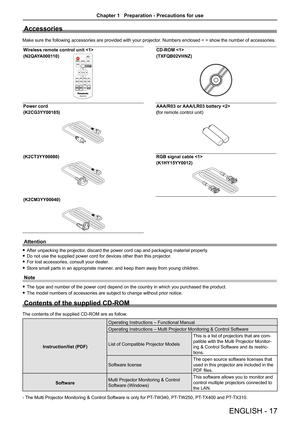

Accessories
Make sure the following accessories are provided with your projector. Numbers enclosed < > show the number of accessories.
Wireless remote control unit
(N2QAYA000110)
CD-ROM
(TXFQB02VHNZ)
Power cord
(K2CG3YY00185)
AAA/R03 or AAA/LR03 battery
(for remote control unit)
(K2CT3YY00080)RGB signal cable
(K1HY15YY0012)
(K2CM3YY00040)
Attention
 fAfter unpacking the projector, discard the power cord cap and packaging material properly.
 fDo not use the supplied power cord for...

18 - ENGLISH

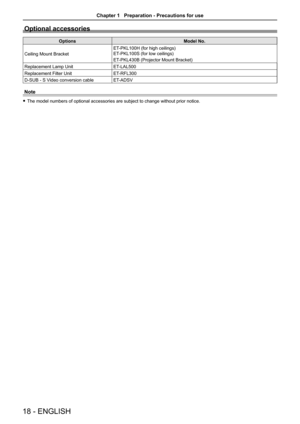

Optional accessories
OptionsModel No.
Ceiling Mount Bracket
ET-PKL100H (for high ceilings)
ET-PKL100S (for low ceilings)
ET-PKL430B (Projector Mount Bracket)
Replacement Lamp UnitET-LAL500
Replacement Filter UnitET-RFL300
D-SUB - S Video conversion cableET-ADSV
Note
 fThe model numbers of optional accessories are subject to change without \
prior notice.
Chapter 1   Preparation - Precautions for use

ENGLISH - 19

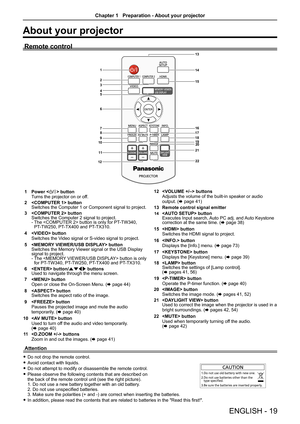

About your projector
Remote control
1
2
3
4
5
6
7 8
9
10
12 13
14
15
16
17
18 19 20
21
11
22
1
Attention
 fDo not drop the remote control.
 fAvoid contact with liquids.
 fDo not attempt to modify or disassemble the remote control.
 fPlease observe the following contents that are described on  the back of the remote control unit (see the right picture). 1. Do not use a new battery together with an old battery. 2. Do not use unspecified batteries.
3. Make sure the polarities (+ and -) are...

20 - ENGLISH

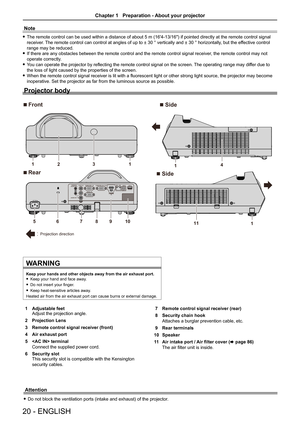

Attention
 fDo not block the ventilation ports (intake and exhaust) of the projector.
WARNING
Keep your hands and other objects away from the air exhaust port. fKeep your hand and face away.
 fDo not insert your finger.
 fKeep heat-sensitive articles away.
Heated air from the air exhaust port can cause burns or external damage.
Note
 fThe remote control can be used within a distance of about 5 m (16'4-13/16") if pointed directly at the remote control signal
receiver. The remote...
