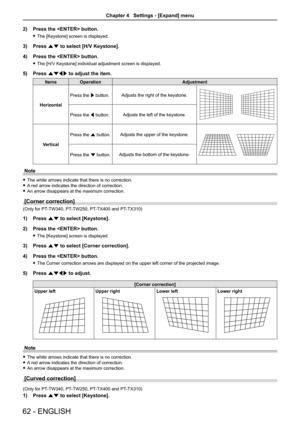

ENGLISH - 61

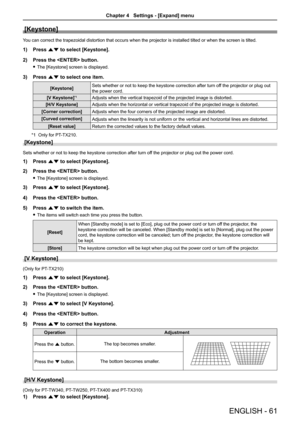

[Keystone]
You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [Keystone].
2) Press the  button.
 fThe [Keystone] screen is displayed.
3) Press as to select one item.
[Keystone]Sets whether or not to keep the keystone correction after turn off the projector or plug out
the power cord.
[V Keystone]*1Adjusts when the vertical trapezoid of the projected image is distorted.
[H/V Keystone]Adjusts when...

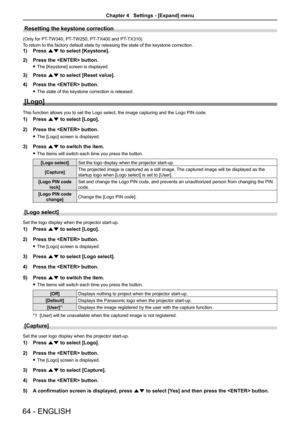

62 - ENGLISH
2) Press the  button.
 fThe [Keystone] screen is displayed.
3) Press as to select [H/V Keystone].
4) Press the  button.
 fThe [H/V Keystone] individual adjustment screen is displayed.
5) Press asqw to adjust the item.
ItemsOperationAdjustment
Horizontal
Press the w button.Adjusts the right of the keystone.
Press the q button.Adjusts the left of the keystone.
Vertical
Press the a button.Adjusts the upper of the keystone.
Press the s button.Adjusts the bottom of the keystone.
Note
 fThe white...

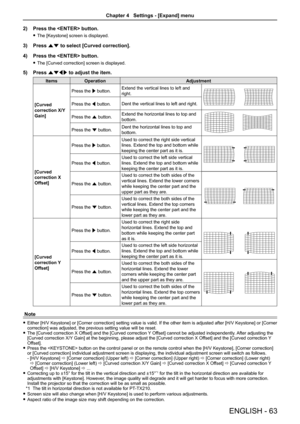

ENGLISH - 63
2) Press the  button.
 fThe [Keystone] screen is displayed.
3) Press as to select [Curved correction].
4) Press the  button.
 fThe [Curved correction] screen is displayed.
5) Press asqw to adjust the item.
ItemsOperationAdjustment
[Curved
correction X/Y
Gain]
Press the w button.Extend the vertical lines to left and
right.
Press the q button.Dent the vertical lines to left and right.
Press the a button.Extend the horizontal lines to top and
bottom.
Press the s button.Dent the horizontal...

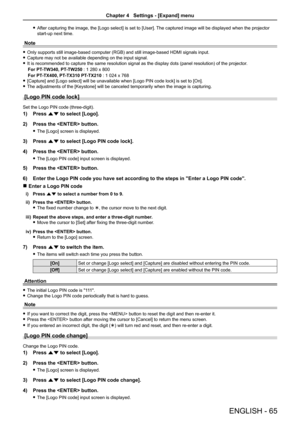

64 - ENGLISH
Resetting the keystone correction
(Only for PT-TW340, PT-TW250, PT-TX400 and PT-TX310)
To return to the factory default state by releasing the state of the keys\
tone correction.
1) Press as to select [Keystone].
2) Press the  button.
 fThe [Keystone] screen is displayed.
3) Press as to select [Reset value].
4) Press the  button.
 fThe state of the keystone correction is released.
[Logo]
This function allows you to set the Logo select, the image capturing and\
 the Logo PIN code.
1) Press as...

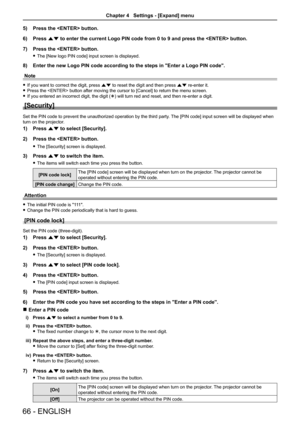

ENGLISH - 65
 fAfter capturing the image, the [Logo select] is set to [User]. The captured image will be displayed when the projector
start-up next time.
Note
 fOnly supports still image-based computer (RGB) and still image-based HDMI signals input.
 fCapture may not be available depending on the input signal.
 fIt is recommended to capture the same resolution signal as the display dots (panel resolution) of the projector.
    For PT-TW340, PT-TW250 : 1 280 x 800
    For PT-TX400, PT-TX310 PT-TX210 : 1...

66 - ENGLISH
5) Press the  button.
6) Press as to enter the current Logo PIN code from 0 to 9 and press the  bu\
tton.
7) Press the  button.
 fThe [New logo PIN code] input screen is displayed.
8) Enter the new Logo PIN code according to the steps in "Enter a Logo PIN \
code".
Note
 fIf you want to correct the digit, press as to reset the digit and then press as re-enter it.
 fPress the  button after moving the cursor to [Cancel] to return the menu screen.
 fIf you entered an incorrect digit, the...

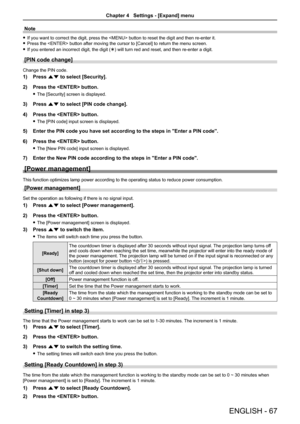

ENGLISH - 67
Note
 fIf you want to correct the digit, press the  button to reset the d\
igit and then re-enter it.
 fPress the  button after moving the cursor to [Cancel] to return the menu screen.
 fIf you entered an incorrect digit, the digit () will turn red and reset, and then re-enter a digit.
[PIN code change]
Change the PIN code.
1) Press as to select [Security].
2) Press the  button.
 fThe [Security] screen is displayed.
3) Press as to select [PIN code change].
4) Press the  button.
 fThe [PIN...

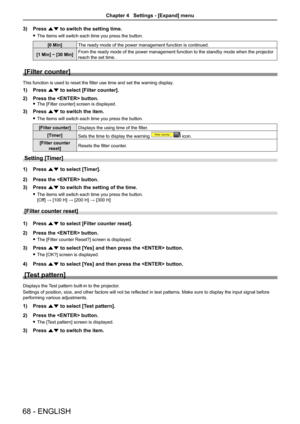

68 - ENGLISH
3) Press as to switch the setting time.
 fThe items will switch each time you press the button.
[0 Min]The ready mode of the power management function is continued.
[1 Min] ~ [30 Min]From the ready mode of the power management function to the standby mode when the projector
reach the set time.
[Filter counter]
This function is used to reset the filter use time and set the warning display.
1) Press as to select [Filter counter].
2) Press the  button.
 fThe [Filter counter] screen is...

ENGLISH - 69

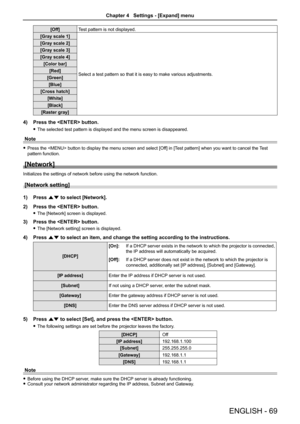

[Off]Test pattern is not displayed.
[Gray scale 1]
Select a test pattern so that it is easy to make various adjustments.
[Gray scale 2]
[Gray scale 3]
[Gray scale 4]
[Color bar]
[Red]
[Green]
[Blue]
[Cross hatch]
[White]
[Black]
[Raster gray]
4) Press the  button.
 fThe selected test pattern is displayed and the menu screen is disappeare\
d.
Note
 fPress the  button to display the menu screen and select [Off] in [Test pattern] when you want to cancel the Test
pattern function.
[Network]...

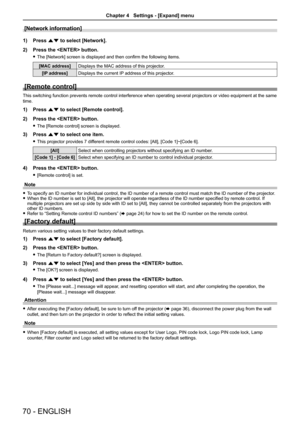

70 - ENGLISH
[Network information]
1) Press as to select [Network].
2) Press the  button.
 fThe [Network] screen is displayed and then confirm the following items.
[MAC address]Displays the MAC address of this projector.
[IP address]Displays the current IP address of this projector.
[Remote control]
This switching function prevents remote control interference when operat\
ing several projectors or video equipment at the same
time.
1) Press as to select [Remote control].
2) Press the  button.
 fThe...
