Panasonic LCD Projector Pt Tw340 Operating Instructions

ENGLISH - 21

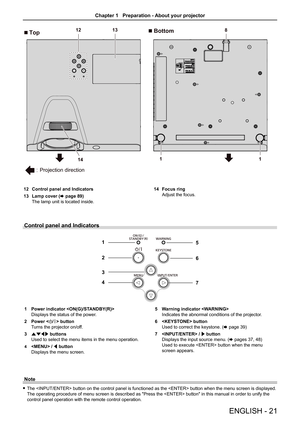

Control panel and Indicators
1
2
3
45
6
7
1 Power indicator
Displays the status of the power.
2 Power  button
Turns the projector on/off.
3 asqw buttons
Used to select the menu items in the menu operation.
4  / q button
Displays the menu screen.
5 Warning indicator
Indicates the abnormal conditions of the projector.
6  button
Used to correct the keystone. (x page 39)
7  / w button
Displays the input source menu. (x pages 37, 48)
Used to execute  button when the menu
screen appears....

22 - ENGLISH

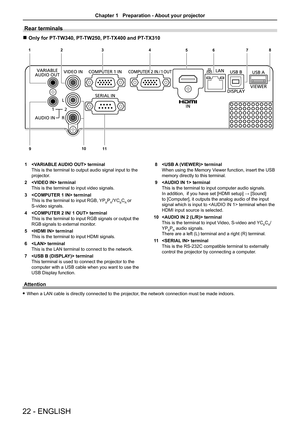

Attention
 fWhen a LAN cable is directly connected to the projector, the network connection must be made indoors.
1  terminal
This is the terminal to output audio signal input to the
projector.
2  terminal
This is the terminal to input video signals.
3  terminal
This is the terminal to input RGB, YPBPR/YCBCR or
S-video signals.
4  terminal
This is the terminal to input RGB signals or output the
RGB signals to external monitor.
5  terminal
This is the terminal to input HDMI signals.
6...

ENGLISH - 23

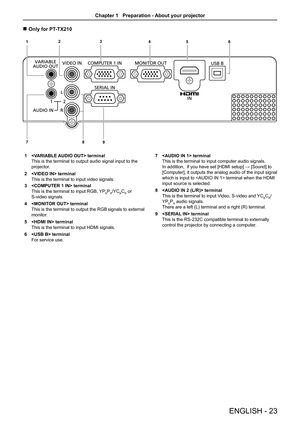

 rOnly for PT-TX210
12
3
4
5 6
7 9
8
1  terminal
This is the terminal to output audio signal input to the
projector.
2  terminal
This is the terminal to input video signals.
3  terminal
This is the terminal to input RGB, YPBPR/YCBCR or
S-video signals.
4  terminal
This is the terminal to output the RGB signals to external
monitor.
5  terminal
This is the terminal to input HDMI signals.
6  terminal
For service use.
7  terminal
This is the terminal to input computer audio signals.
In...

24 - ENGLISH

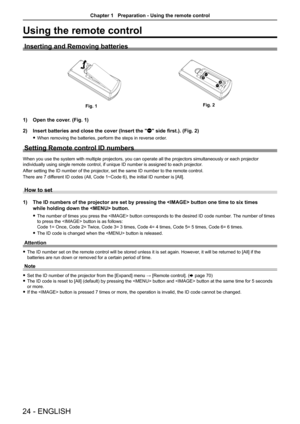

Using the remote control
Inserting and Removing batteries
Fig. 1Fig. 2
1) Open the cover. (Fig. 1)
2) Insert batteries and close the cover (Insert the "m" side first.). (Fig. 2)
 fWhen removing the batteries, perform the steps in reverse order.
Setting Remote control ID numbers
When you use the system with multiple projectors, you can operate all th\
e projectors simultaneously or each projector
individually using single remote control, if unique ID number is assigne\
d to each...

ENGLISH - 25

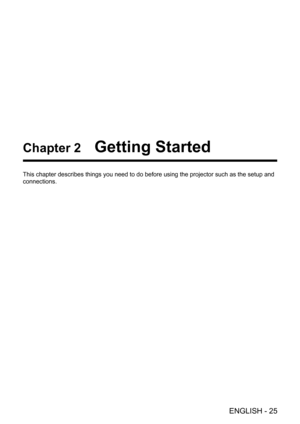

Chapter 2   Getting Started
This chapter describes things you need to do before using the projector \
such as the setup and
connections.

26 - ENGLISH

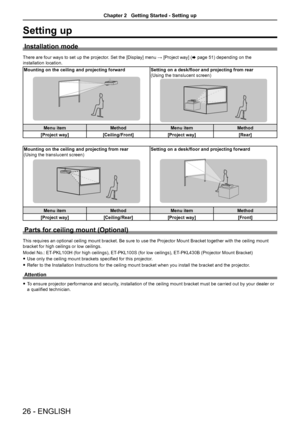

Setting up
Installation mode
There are four ways to set up the projector. Set the [Display] menu → [Project way] (x page 51) depending on the
installation location.
Mounting on the ceiling and projecting forwardSetting on a desk/floor and projecting from rear
(Using the translucent screen)
Menu itemMethodMenu itemMethod
[Project way][Ceiling/Front][Project way][Rear]
Mounting on the ceiling and projecting from rear
(Using the translucent screen)
Setting on a desk/floor and projecting...

ENGLISH - 27

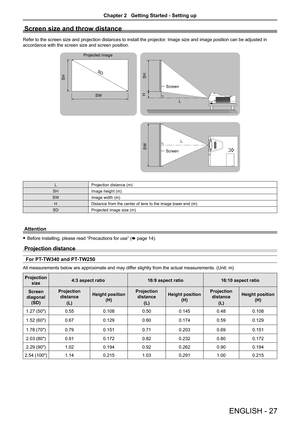

Screen size and throw distance
Refer to the screen size and projection distances to install the projector. Image size and image position can be adjusted in
accordance with the screen size and screen position.
Projected image
SH
SW
SD
SH
Screen
L
Screen L
SW
H
LProjection distance (m)
SHImage height (m)
SWImage width (m)
HDistance from the center of lens to the image lower end (m)
SDProjected image size (m)
Attention
 fBefore installing, please read “Precautions for use” (x page 14)....

28 - ENGLISH

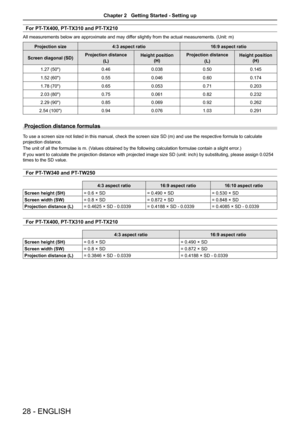

For PT-TX400, PT-TX310 and PT-TX210
All measurements below are approximate and may differ slightly from the actual measurements. (Unit: m)
Projection size4:3 aspect ratio16:9 aspect ratio
Screen diagonal (SD)Projection distance
(L)
Height position
(H)
Projection distance
(L)
Height position
(H)
1.27 (50")0.460.0380.500.145
1.52 (60")0.550.0460.600.174
1.78 (70")0.650.0530.710.203
2.03 (80")0.750.0610.820.232
2.29 (90")0.850.0690.920.262
2.54...

ENGLISH - 29

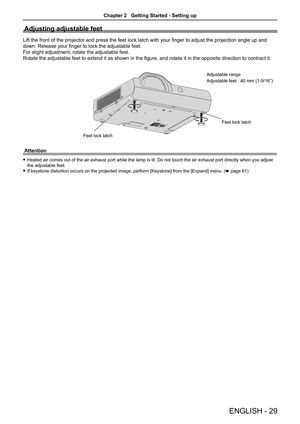

Adjusting adjustable feet
Lift the front of the projector and press the feet lock latch with your finger to adjust the projection angle up and
down. Release your finger to lock the adjustable feet.
For slight adjustment, rotate the adjustable feet.
Rotate the adjustable feet to extend it as shown in the figure, and rotate it in the opposite direction to contract it.
Feet lock latchFeet lock latch
Adjustable range
Adjustable feet : 40 mm (1-9/16”)
Attention
 fHeated air comes out of the air...

30 - ENGLISH

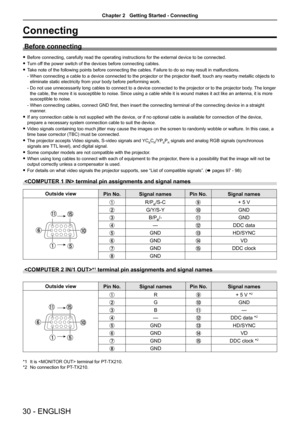

Connecting
Before connecting
 fBefore connecting, carefully read the operating instructions for the external device to be connected.
 fTurn off the power switch of the devices before connecting cables.
 fTake note of the following points before connecting the cables. Failure to do so may result in malfunctions.
-  When connecting a cable to a device connected to the projector or the pr\
ojector itself, touch any nearby metallic objects to
eliminate static electricity from your body before...
